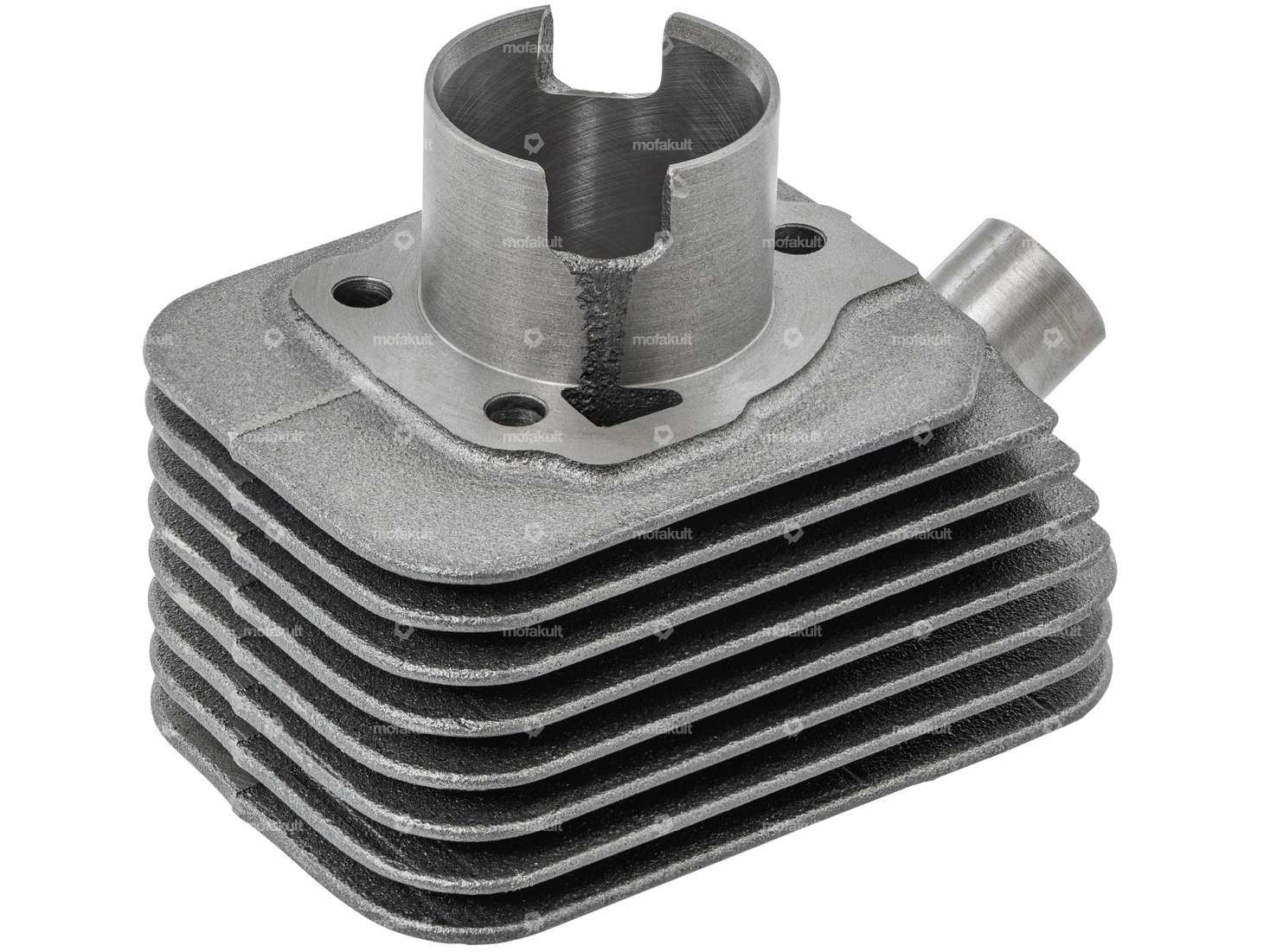

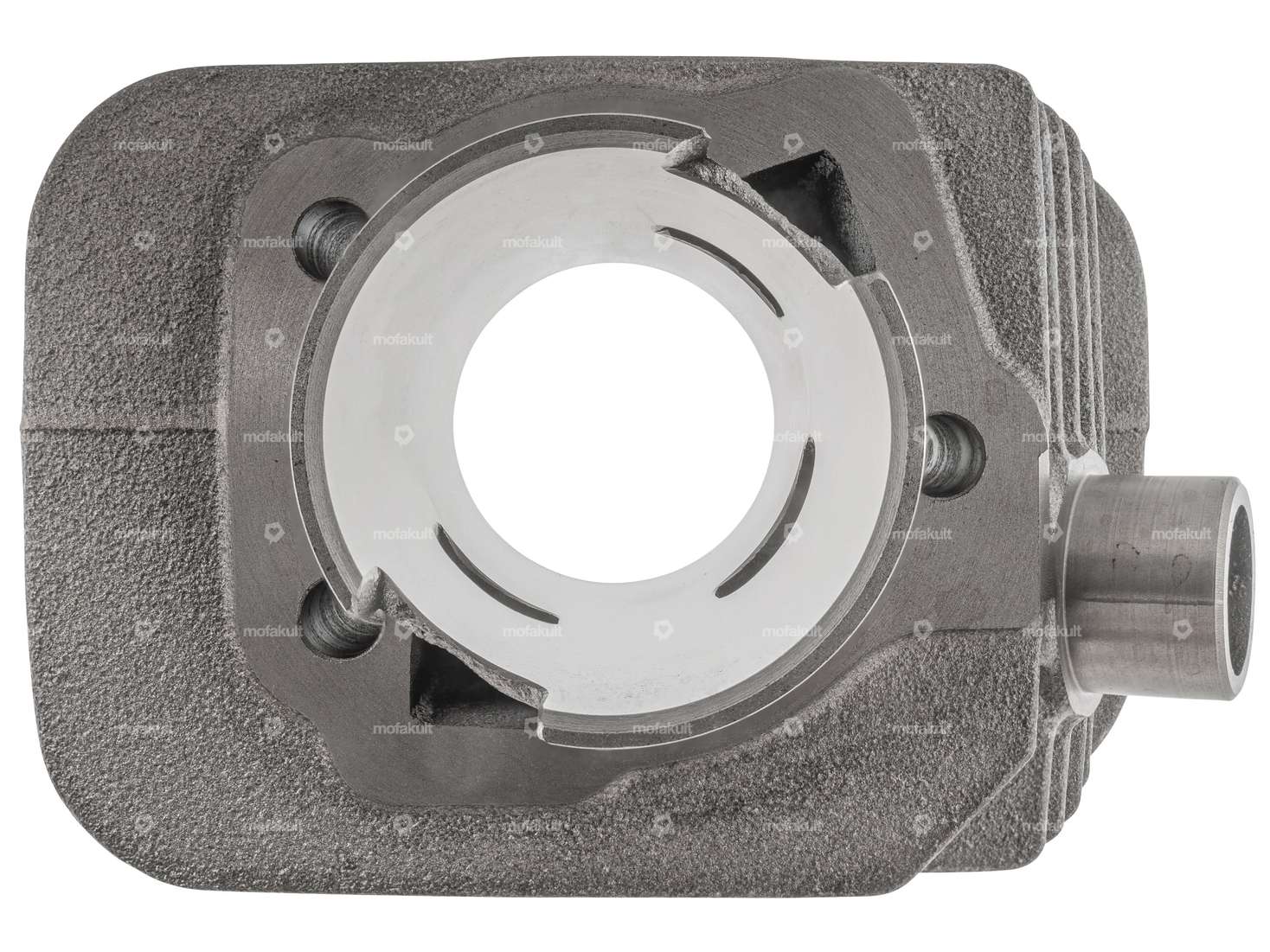

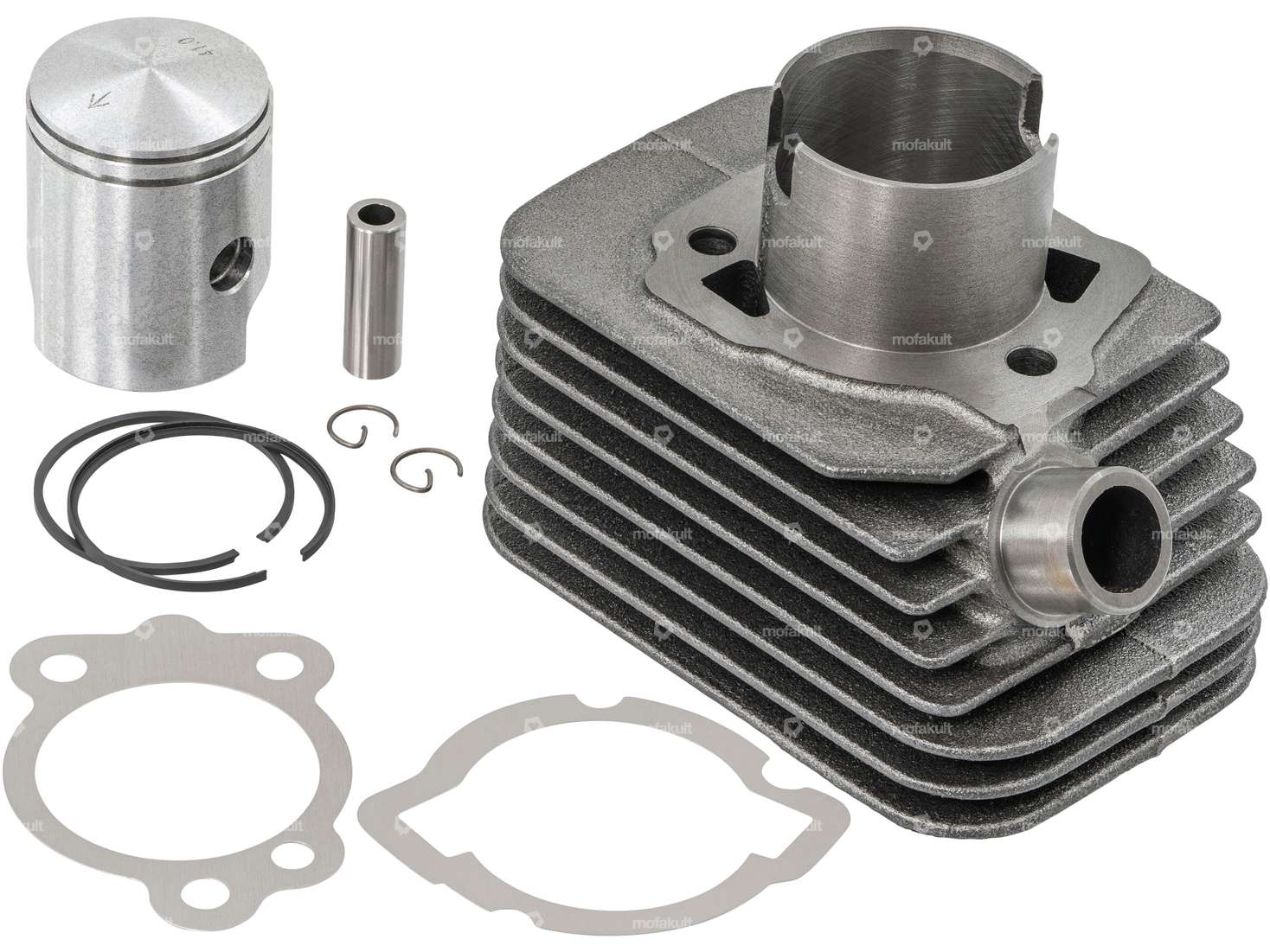

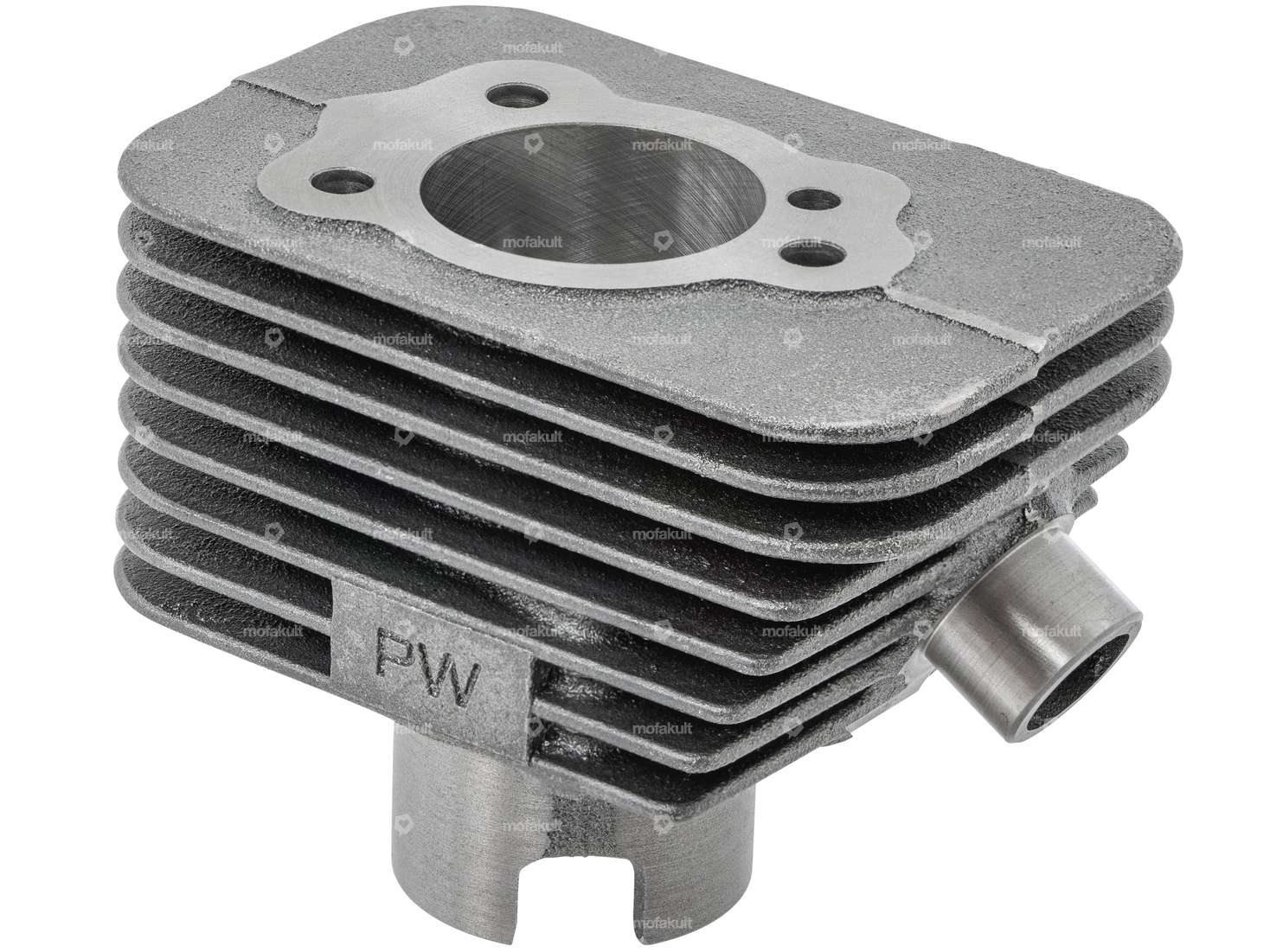

41 mm racing kit with 57 cc, suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped.
This is the version with 10 mm piston pin.
The workmanship is clean and the casting is of good quality.
In terms of performance, however, this racing cylinder is no slouch.
The overflow ducts and the exhaust correspond to the original 38 mm cylinder. There are also no boost parts. This cylinder can therefore be regarded as a replacement for the original cylinder with slight tuning, for which no adjustments need to be made to the housing. Due to the increased displacement, we recommend that you always adjust the carburetor and exhaust accordingly in addition to the tuning cylinder. The original cylinder head can be used, but we recommend replacing it with a 41 mm cylinder cover from the accessories.
All necessary parts such as piston ring, bolts, clips and gaskets are included in the scope of delivery.
You can find the cylinder head, exhaust and a suitable carburettor among the accessories.
| Material | Gray cast iron |
| Surface | blank / oiled |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 41 mm |
| Ø cylinder neck | 45 mm |
| Ø Outlet outside | 22.4 mm |
| Ø outlet inside | 16.5 mm |
| Ø piston pin (B) | 10 mm |
| Number of fixing points | 3 pcs |
| Area of application | Performance |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products

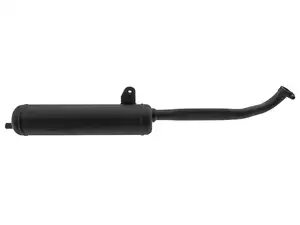

SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Ø outside: 14 mm · Mounting type: Welded lug · Number of fixing points: 1 pcs · Material: Steel · Color: black · Total length: 690 mm · Surface: varnished · Ø Silencer: 70 mm · Ø Internal connection: 22 mm · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped
EUR 86.40

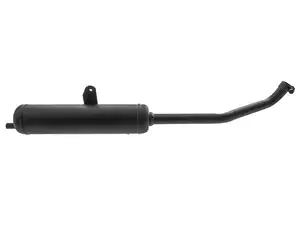

SITO Plus exhaust Ø 24 mm | Piaggio SI, Grillo
Manufacturer: SITO · Material: Steel · Surface: varnished · Ø outside: 14 mm · Total length: 720 mm · Ø Silencer: 70 mm · Ø Internal connection: 22.3 mm · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Number of fixing points: 1 pcs · Mounting type: Welded lug · Color: black · Flame tube attachment: Plug connection clamped
EUR 92.10
Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao
Manufacturer: Olympia · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Ø cylinder: 41 - 43 mm · Width: 78 mm · Height: 60 mm · Total length: 120 mm · Number of fixing points: 3 pcs · Candle thread: short
EUR 29.90
Malossi tuning set 43 mm | Piaggio Ciao, Bravo, Boxer
Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing® revival parts · Camouflaged: No · Area of application: Tuning · Displacement: 65 ccm · Nominal diameter: 65 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm
EUR 409.20

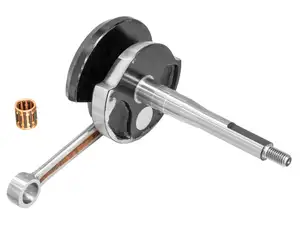

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Weight: 698 g · Number of gears: 1 pcs · Thread type: M8x1.25 (standard thread) · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread length: 16 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Area of application: Racing · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °
EUR 172.80
Malossi tuning set 43 mm | Piaggio SI, Bravo, Grillo
Nominal diameter: 44 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing® revival parts · Camouflaged: No · Area of application: Tuning · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes
EUR 432.20
Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao PX, C24
Nominal diameter: 13 mm · Width: 60 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Component group Carburetor: Carburetor complete · Mounting type: Plug connection clamped · Carburetor type: SHA (Piaggio) · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Total length: 46 mm · Ø without reducing sleeve: 18 mm · Nozzle size: 66 · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Height: 96 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Choke control: Hand choke · Area of application: Tuning
EUR 77.10
Explore categories from Cylinder
Moped fans also bought

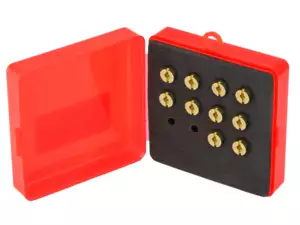

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70
EUR 24.10
SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Ø outside: 14 mm · Mounting type: Welded lug · Number of fixing points: 1 pcs · Material: Steel · Color: black · Total length: 690 mm · Surface: varnished · Ø Silencer: 70 mm · Ø Internal connection: 22 mm · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped
EUR 86.40
Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao
Manufacturer: Olympia · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Ø cylinder: 41 - 43 mm · Width: 78 mm · Height: 60 mm · Total length: 120 mm · Number of fixing points: 3 pcs · Candle thread: short
EUR 29.90

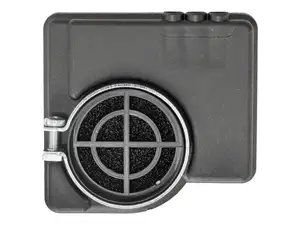

Polini air filter | Piaggio Ciao, SI, Bravo, Boxer
