For: Puch

17769

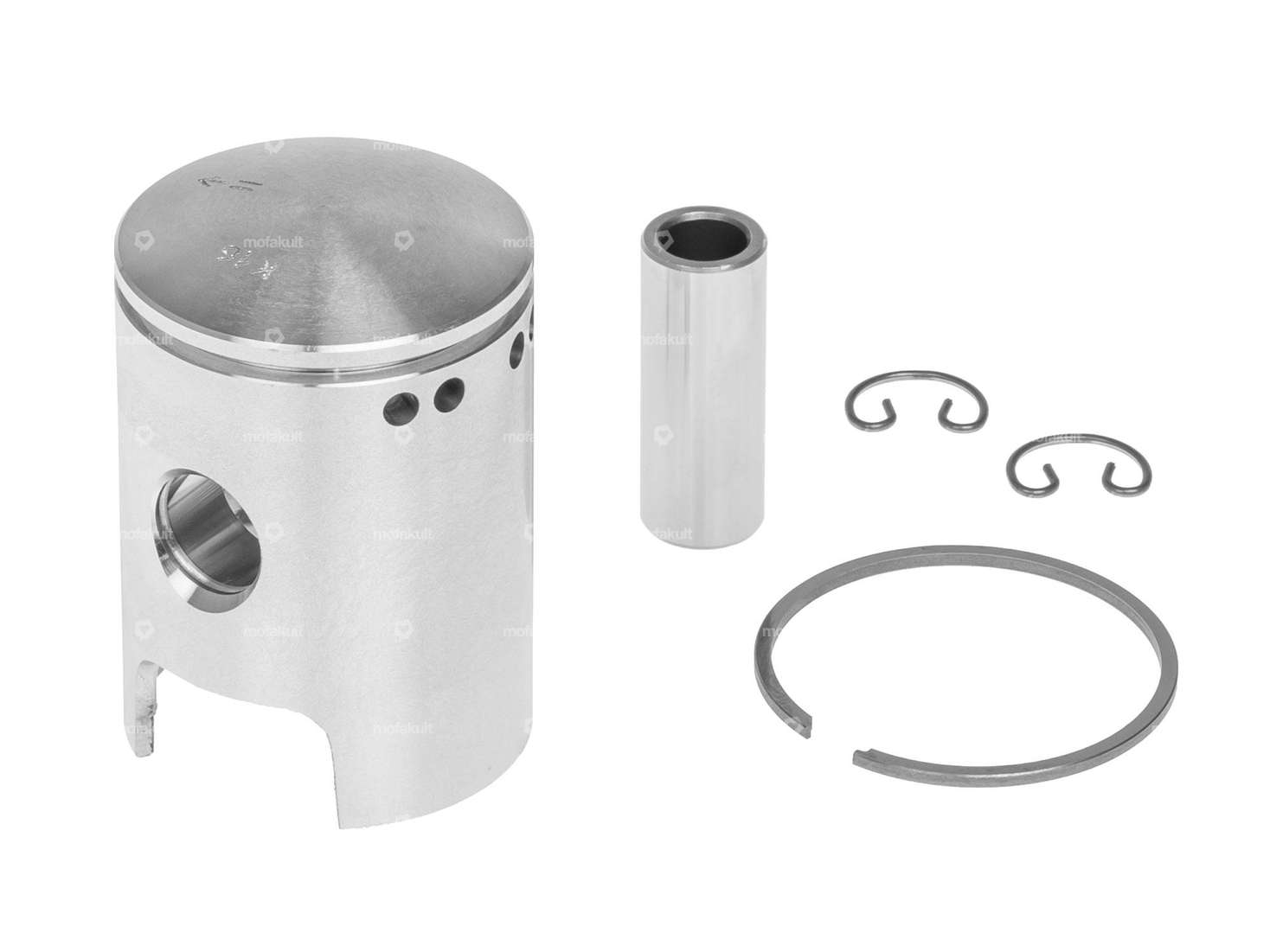

Athena piston 38 mm #A | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 77.00

Incl. 21% VAT.

Description

38.0 mm piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for slotted cylinders of various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerAthena
Nominal diameter38 mm
Ø outside piston (A)37.94 mm
Ø piston pin (B)12 mm
Compression height (C)22.5 mm
Curvature (D)3.55 mm
Total piston height (E)55 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupA
Weight piston kit76 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Ø outside: 12 mm · Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs

EUR 1.45

- 11 %
Hot Hot
Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L
undefined

Universal

10610

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 30.70

EUR 27.20

Not in stock

EUR 27.20/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.00

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Ø outside: 12 mm · Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

EUR 1.45

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm

EUR 23.60

Athena piston 38 mm #B | Puch
undefined

For: Puch

18862

Athena piston 38 mm #B | Puch

Manufacturer: Athena · Ø outside piston (A): 37.94 mm · Compression height (C): 22.45 mm · Curvature (D): 3.55 mm · Total piston height (E): 55 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 74 g

EUR 77.00

Athena piston 38 mm #C | Puch
undefined

For: Puch

31006

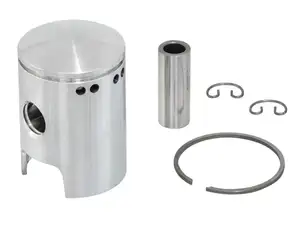

Athena piston 38 mm #C | Puch
