44 mm oversize piston with two 1 mm rectangular piston rings with internal locking (IS) for the Metra-Kit cylinder on your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Spanish manufacturer Barikit.
Details
| Manufacturer | Barikite |
| Nominal diameter | 44 mm |
| Ø outside piston (A) | 44 mm |
| Compression height (C) | 22.3 mm |
| Curvature (D) | 3.35 mm |
| Total piston height (E) | 52.2 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 100 g |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products

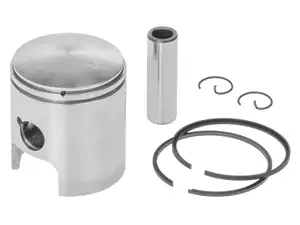

Metrakit piston 43.5 mm | Puch
Manufacturer: Metracite · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.45 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.9 mm · Curvature (D): 3.1 mm · Total piston height (E): 49.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 85 g
EUR 47.20
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Total length: 130 mm · Diameter: 10 mm · Width across flats SW: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 17 mm · Number of components: 7 pcs · Area of application: (Dis)assembly tool
EUR 21.20
EUR 23.60
Metrakit 43.5 mm cylinder kit (65 cc - camouflaged) | Puch
Nominal diameter: 43.5 mm · Manufacturer: Barikite · Manufacturer: Metracite · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Area of application: Tuning · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
EUR 159.70
Moped fans like you also bought:

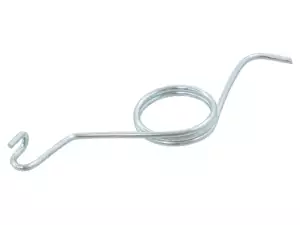

Return spring brake plate | Puch Maxi
Spring design: Nose feather · Spring design: Torsion spring · Ø inside: 25.5 mm · Ø outside: 30 mm · Length spring hook: 50 mm · Leg length: 45 mm · Ø wire: 2.4 mm · Material: Spring steel · Surface: galvanized (blue) · Area of application: Original · Area of application: Standard · Total length: 125 mm
EUR 5.80
Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)
Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Area of application: Standard · Surface: galvanized (blue) · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Number of components: 1 pcs · Cable length: 2200 mm
EUR 2.85

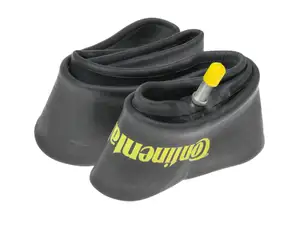

Continental 2.00 - 2.50 x 17" tube
Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire width [mm]: 50.8 - 63.5 · Wheel size [inch]: 17 " · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Tire height [%]: 100 · Valve type: TR6 car valve
EUR 17.60

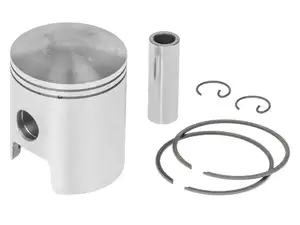

Barikit piston 43.5 mm MetraKit | Puch
Manufacturer: Barikite · Nominal diameter: 43.5 mm · Thick piston ring: 0.97 mm · Ø outside piston (A): 43.44 mm · Compression height (C): 22.5 mm · Curvature (D): 2 mm · Total piston height (E): 51.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston weight: 98 g
EUR 65.00

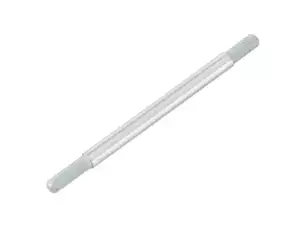

GPO stud bolt special M6x106 mm galvanized (10.9 strength) | Puch
