48.0 mm ¨oum dimension piston with two 1 mm rectangular piston rings with internal locking (IS) for the Metra-Kit cylinder on your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.

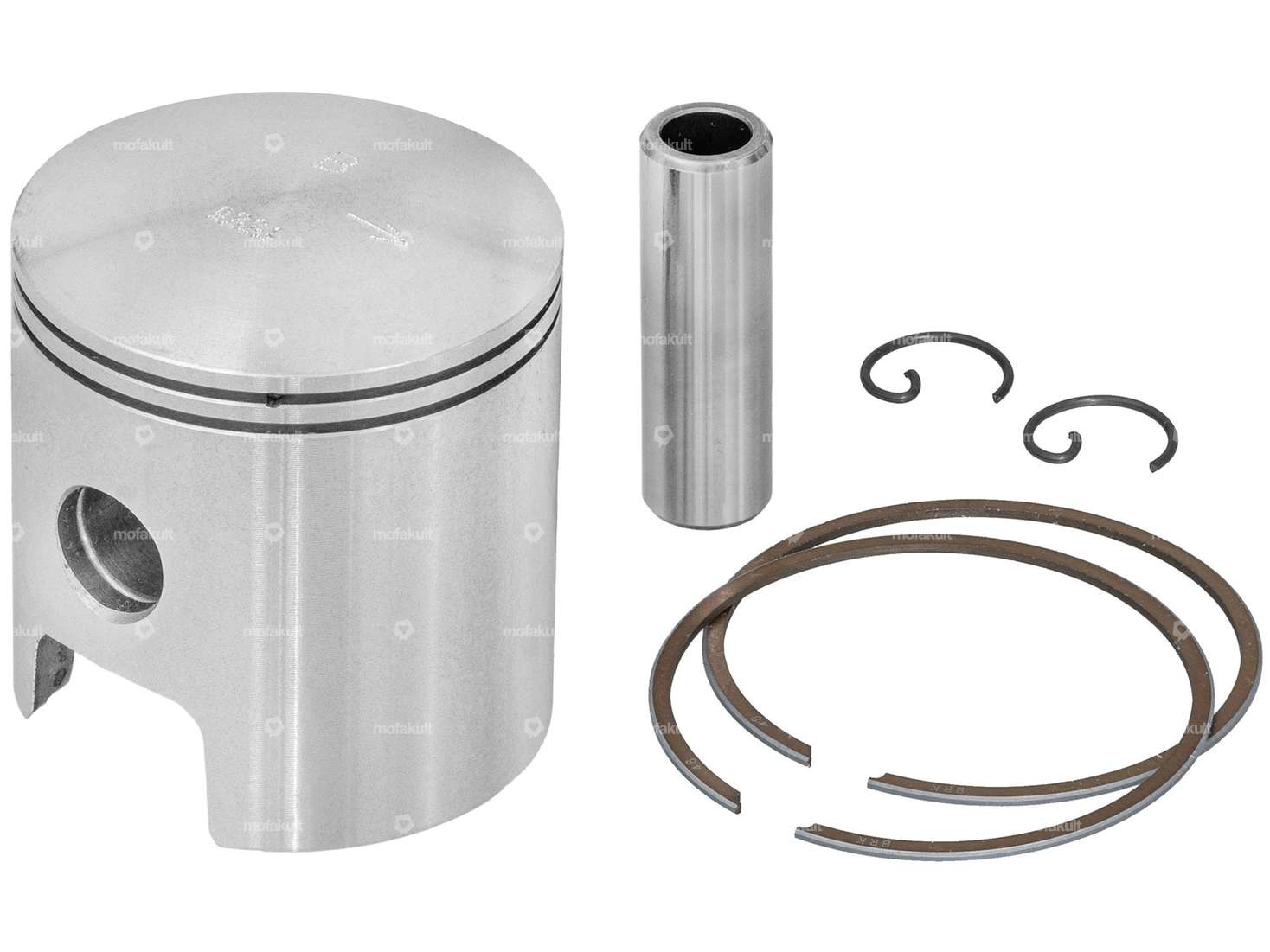

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Spanish manufacturer Barikit.
| Manufacturer | Barikite |
| Ø outside piston (A) | 47.95 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22 mm |
| Curvature (D) | 3.45 mm |
| Total piston height (E) | 52.45 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 48 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Weight piston kit | 124 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
