Tretachse & Lagerung

swiing® revival Ø 9.5 mm wedge 4.5° pedal crank galvanized

Ø outside: 9.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M7x1 (standard thread) · Total length: 43 mm · Angle crank wedge: 4.5°

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Ø inside: 16.2 mm · Ø outside: 20.2 mm · Total length: 19 mm · Manufacturer: swiing® revival parts · Material: Nylon · Surface: blank · Bearing type: Plain bearing · Color: black · Ø Bundle: 24.1 mm · Puch OEM number: 349.1.42.005.1

swiing® revival Ø 9 mm wedge 3.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M7x1 (standard thread) · Angle crank wedge: 3.5° · Ø outside: 9 mm · Total length: 43 mm

swiing® revival spring washer pedal axle 0.6 mm

Spring design: Special spring · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Total length: 1.7 mm · Ø inside: 17 mm · Material thickness: 0.6 mm · Ø outside: 29 mm

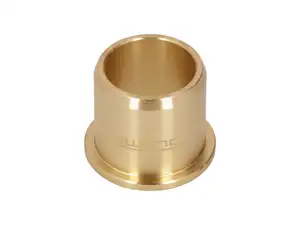

swiing® ingenious bottom bracket bushing brass | Puch Maxi, X30 Sport, Velux, NG-2AH

Manufacturer: swiing® ingenious parts · Material: Brass · Surface: blank · Color: bronze · Bearing type: Plain bearing · Ø inside: 16.1 mm · Ø Bundle: 23.9 mm · Total length: 19 mm · Ø outside: 20 mm · Puch OEM number: 349.1.42.005.1

swiing® revival bottom bracket bushing Ø 16 / 21 mm nylon

Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Bearing type: Plain bearing · Ø inside: 16 mm · Total length: 19 mm · Ø outside: 21 mm · Ø outside: 24 mm

Ø 9.5 mm Wedge 4.5° Pedal crank galvanized

Ø outside: 9.5 mm · Material: Steel · Surface: galvanized (blue) · Angle crank wedge: 4.5° · Total length: 43 mm · Color: silver · Thread type: M6x1 (standard thread)

Bottom bracket washer 16x28x0.5 mm

Thickness: 0.5 mm · Ø inside: 16.1 mm · Ø outside: 28 mm · Nominal diameter (thread): 16 mm

swiing® revival Ø 9.5 mm wedge 3.5° crank handle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Total length: 44 mm · Angle crank wedge: 3.5° · Ø outside: 9.5 mm · Thread type: M7x1 (standard thread)

swiing® revival thrust washer tread axle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: blank · Color: Chrome · Total length: 4.3 mm · Ø Bundle: 27 mm · Ø inside: 16.3 mm · Ø outside: 39.6 mm

Ø 9 mm wedge 3.5° pedal crank galvanized

Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M6x1 (standard thread) · Angle crank wedge: 3.5° · Total length: 43 mm · Ø outside: 9 mm

swiing® revival spacer bushing 10 mm pedal axle PVC

Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm · Ø outside: 24 mm · Nominal diameter inside: 16.5 mm · Total length: 10 mm

swiing® revival Ø 9 mm wedge 4.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Color: silver · Surface: galvanized (blue) · Angle crank wedge: 4.5° · Ø outside: 9 mm · Total length: 43 mm · Thread type: M7x1 (standard thread)

GPO pedal axle 28 teeth chrome | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 28 pcs · Ø outside: 15.9 mm · Wavelength from wreath: 40 mm · Wavelength from wreath: 183 mm · Ø Outer sprocket: 120 mm

GPO axle footrest mounting chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 168 mm · Ø outside: 16 mm

swiing® revival bottom bracket bushing nylon | Puch Supermaxi

Total length: 19 mm · Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Bearing type: Plain bearing · Ø inside: 16 mm · Ø outside: 21 mm · Ø outside: 24 mm

swiing® revival Ø 9 mm wedge 3.5° crank handle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Total length: 44 mm · Angle crank wedge: 3.5° · Ø outside: 9 mm · Thread type: M7x1 (standard thread)

swiing® ingenious bottom bracket bushing Ø 16 / 21 mm brass

Manufacturer: swiing® ingenious parts · Material: Brass · Bearing type: Plain bearing · Ø inside: 16 mm · Ø Bundle: 24 mm · Ø outside: 21 mm · Total length: 19 mm

GPO pedal set | Puch Maxi

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome

Circlip 18 mm pedal axle | Sachs 50/2 Caravelle

Nominal diameter: 18 mm · Fuse type: Outside · Manufacturer: Sachs · Material: Spring steel

Spacer washer 17/28/2.5 Pedal axle Inox

Material: Chrome steel (known as Nirosta®) · Thickness: 2.5 mm · Nominal diameter inside: 17 mm · Ø inside: 17 mm · Ø outside: 28 mm · Puch OEM number: 900.3993

swiing® revival Ø 9 mm wedge 4.5° crank handle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Angle crank wedge: 4.5° · Ø outside: 9 mm · Total length: 43 mm · Thread type: M7x1 (standard thread)

Spring washer pedal axle (thick)

Spring design: Special spring · Material: Spring steel · Surface: galvanized (blue) · Ø inside: 17.2 mm · Ø outside: 29.5 mm · Material thickness: 1.6 mm

swiing® ingenious bottom bracket bushing brass | Puch Supermaxi LG1, LG2 (Cat.)

Material: Brass · Bearing type: Plain bearing · Total length: 19 mm · Manufacturer: swiing® ingenious parts · Ø outside: 21 mm · Ø inside: 16 mm · Ø Bundle: 24 mm

swiing® ingenious extension pedal axle + 48 mm Inox

Manufacturer: swiing® ingenious parts · Material: Chrome steel (known as Nirosta®) · Ø outside: 32 mm · Ø bore: 16.1 mm · Depth: 35 mm · Ø Pedal arm holder: 15.8 mm · Total length: 78 mm

swiing® revival spacer bushing 40 mm pedal axle PVC

Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm · Nominal diameter inside: 16 mm · Ø outside: 25 mm · Total length: 40 mm

swiing® revival bearing ring Ø 22 / 35 mm pedal set (large)

Manufacturer: swiing® revival parts · Bearing type: Bearing ring · Ø ball [inch] / [mm]: 1/4" (6.35 mm) · Ø inside: 22 mm · Ø outside: 35 mm

swiing® revival spacer bushing 15 mm pedal axle PVC

Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Total length: 15 mm · Nominal diameter inside: 16 mm · Ø outside: 25 mm · Ø inside: 16.3 mm

swiing® revival spacer bushing 20 mm pedal axle (PVC)

Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm · Nominal diameter inside: 16 mm · Total length: 20 mm · Ø outside: 25 mm

swiing® revival spacer bushing 5 mm pedal axle PVC

Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm · Nominal diameter inside: 16 mm · Total length: 5 mm · Ø outside: 25 mm

GPO chrome pedal axle | Puch X30 NS, NL

Manufacturer: GPO · Color: Chrome · Material: Steel · Surface: chrome-plated · Ø outside: 16 mm · Number of teeth: 37 pcs · Wavelength from wreath: 33 mm · Wavelength from wreath: 170 mm · Ø Outer sprocket: 155 mm

GPO pedal axle with chrome rim | Puch Supermaxi LG1, LG2

Chain pitch: 1/2" x 3/16" · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 257 mm · Number of teeth: 28 pcs · Ø outside: 15.9 mm · Wavelength from wreath: 41 mm · Wavelength from wreath: 206 mm · Ø Outer sprocket: 120 mm · Ø Pedal arm holder: 15.9 mm · Ø Bearing support: 15.9 mm · Crank (wreath): 7.5 mm

Pedal axle extension + 48 mm Inox

Depth: 35 mm · Material: Chrome steel (known as Nirosta®) · Ø outside: 32 mm · Ø bore: 16.1 mm · Ø Pedal arm holder: 15.8 mm · Total length: 78 mm

swiing® revival spacer bushing pedal axle 30 mm PVC

Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm · Total length: 30 mm · Nominal diameter inside: 16 mm · Ø outside: 25 mm

GPO pedal axle with rim black | Puch Supermaxi LG1, LG2

Manufacturer: GPO · Material: Steel · Surface: varnished · Color: black · Total length: 250 mm · Number of teeth: 28 pcs · Ø outside: 15.9 mm · Wavelength from wreath: 29 mm · Wavelength from wreath: 209 mm · Ø Outer sprocket: 126 mm

swiing® ingenious axle footrest ref. M12 | Puch Maxi S, N, X30 Sport, X30 NG-2AH

Manufacturer: swiing® ingenious parts · Material: Steel · Color: silver · Surface: galvanized (blue) · Ø outside: 16 mm · Total length: 132 mm · Thread type: M12x1.75 (standard thread)

GPO pedal set | Puch X30 Sport NS/NL, NG-2AH

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome

GPO pedal axle with rim 34 teeth chrome | Puch X30 Velux

Chain pitch: 1/2" x 1/8" · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 34 pcs · Wavelength from wreath: 30 mm · Wavelength from wreath: 167 mm · Ø Outer sprocket: 144 mm · Ø Pedal arm holder: 16 mm · Total length: 200 mm · Crank (wreath): 15 mm

Spacer washer 17/33.5/4 pedal axle original | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Thickness: 4 mm · Ø inside: 17 mm · Nominal diameter inside: 17 mm · Ø outside: 33.5 mm

Spacer washer 17/30/1.6 Pedal axle

Material: Steel · Surface: galvanized (blue) · Thickness: 1.6 mm · Ø inside: 17.1 mm · Nominal diameter inside: 17 mm · Ø outside: 29.6 mm

GPO pedal set chrome | Puch Velux

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 34 pcs

swiing® revival lock nut 18 - 24G LH pedal axle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: electropolished · Nut type: Hexagon nut · Drive: External hexagon · Height: 4.2 mm · Width across flats SW: 27 mm · Thread type: 18x24G LH

swiing® revival bearing ring pedal set (small)

Manufacturer: swiing® revival parts · Bearing type: Bearing ring · Ø inside: 16.8 mm · Ø outside: 29.5 mm · Ø ball [inch] / [mm]: 1/4" (6.35 mm)

swiing® ingenious bottom bracket bushing brass | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Material: Brass · Ø inside: 16 mm · Ø outside: 20 mm · Total length: 19 mm · Puch OEM number: 050.1342 · Alternative version of the Puch OEM number: 349.1.42.005.1

Spring washer Pedal axle (thick) Inox

Spring design: Special spring · Material: Chrome steel (known as Nirosta®) · Ø outside: 30 mm · Ø inside: 16.9 mm · Material thickness: 1.6 mm

66HEROES Spacer tube pedal axle 50 mm Inox

Manufacturer: 66HEROES · Surface: polished · Surface: shiny · Material: Chrome steel (known as Nirosta®) · Nominal diameter inside: 16 mm · Ø inside: 16.3 mm · Ø outside: 22 mm · Total length: 50 mm

swiing® revival cone pedal axle FG18x24G LH

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: gas nitrided · Nut type: K-mother · Ø outside: 33 mm · Height: 11.8 mm · Width across flats SW: 32 mm · Thread type: 18x24G LH

Pedal axle with crown 26 teeth chrome | Puch Maxi S, N

Chain pitch: 1/2" x 1/8" · Material: Steel · Color: Chrome · Surface: chrome-plated · Number of teeth: 26 pcs · Wavelength from wreath: 41 mm · Wavelength from wreath: 180 mm · Total length: 230 mm · Ø Outer sprocket: 120 mm

GPO pedal set | Puch Supermaxi LG1 / LG2

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome

GPO bottom bracket cups & bearing races set

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø inside: 30 mm · Ø ball [inch] / [mm]: 1/4" (6.35 mm)

swiing® revival pedal axle 28 teeth chrome | Tigra Pionier P30-74, P30-R, Caravelle

Chain pitch: 1/2" x 3/16" · Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Pedal shaft type: with thread · Total length: 210 mm · Number of teeth: 28 pcs · Wavelength from wreath: 60 mm · Wavelength from wreath: 150 mm · Ø Pedal arm holder: 15.8 mm · Ø Bearing support: 17.8 mm · Thread type: 18x24G LH

swiing® revival bearing cone pedal axle | Sachs

Manufacturer: swiing® revival parts · Surface: gas nitrided · Color: black · Material: Steel · Ø inside: 18 mm · Ø outside: 33 mm · Total length: 13.7 mm

GPO pedal shaft chrome | Puch X30 Velux

Manufacturer: GPO · Total length: 195 mm · Ø outside: 16 mm · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø Pedal arm holder: 15.9 mm

Pedal axle with galvanized rim | Puch Supermaxi LG1, LG2 (Cat)

Chain pitch: 1/2" x 1/8" · Manufacturer: Made in Italy · Material: Steel · Color: silver · Surface: galvanized (blue) · Number of teeth: 28 pcs · Ø outside: 16 mm · Wavelength from wreath: 41 mm · Wavelength from wreath: 210 mm · Total length: 255 mm

Nut M18x1 LH chrome

Surface: chrome-plated · Nut type: Octagonal nut · Material: Steel · Height: 5 mm · Width across flats SW: 27 mm · Strength class: 8 · Thread type: MF18x1 LH (fine/left-hand thread)

Grease nipple pedal axle red

Manufacturer: Puch · Material: Plastic · Color: red · Ø outside: 6.4 mm · Ø Bundle: 8.4 mm · Total length: 12.8 mm · Ø inside: 4.2 mm

Grease nipple pedal axle | Beta 521 (P8064)

Manufacturer: Pony · Material: Metal · Color: silver · Ø outside: 6.05 mm · Ø outside: 6.3 mm · Total length: 15.3 mm

swiing® revival nose disk M18 pedal axle chrome

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Thickness: 2.5 mm · Ø inside: 18.3 mm · Ø outside: 25.3 mm · Nominal diameter (thread): 18 mm

GPO pedal axle 37 teeth chrome | Puch X30 NG-2AH, Maxi

Chain pitch: 1/2" x 1/8" · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 37 pcs · Wavelength from wreath: 40 mm · Wavelength from wreath: 180 mm · Ø Outer sprocket: 155 mm · Total length: 230 mm

GPO pedal axle black | Puch X30 NS, NL

Manufacturer: GPO · Material: Steel · Surface: powder-coated · Color: black · Total length: 210 mm · Number of teeth: 37 pcs · Ø outside: 16 mm · Wavelength from wreath: 34 mm · Wavelength from wreath: 173 mm · Ø Outer sprocket: 155 mm
