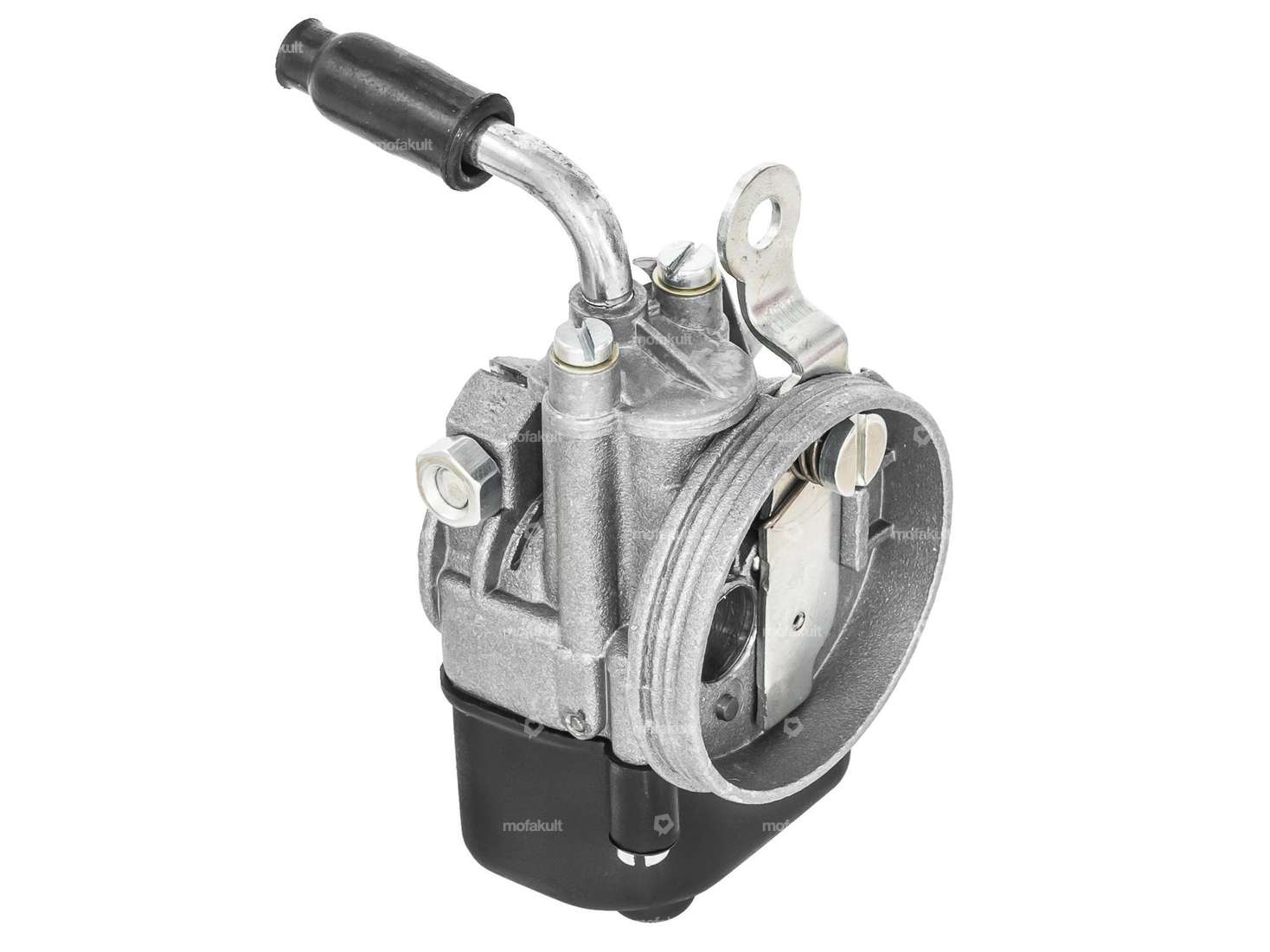

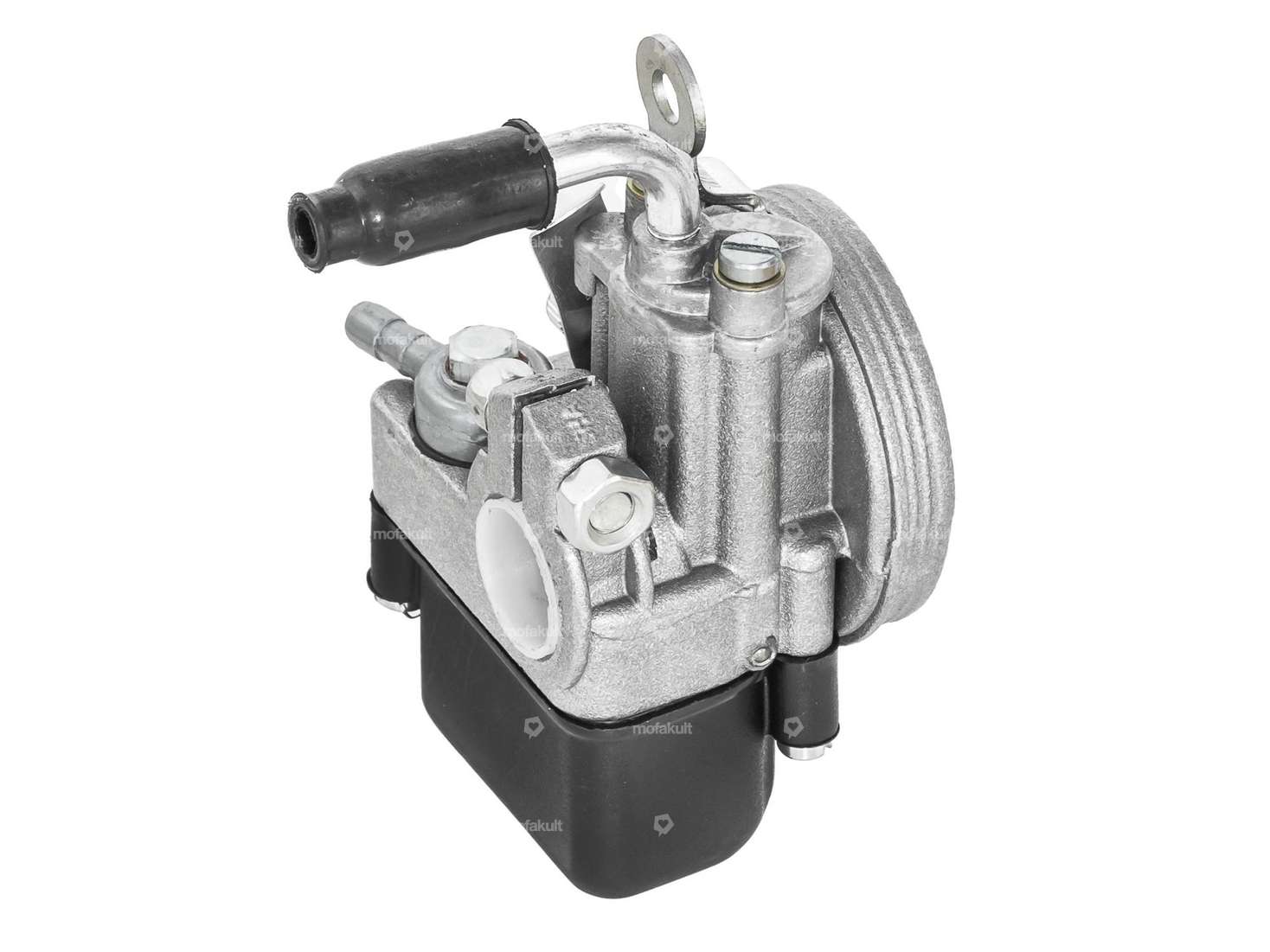

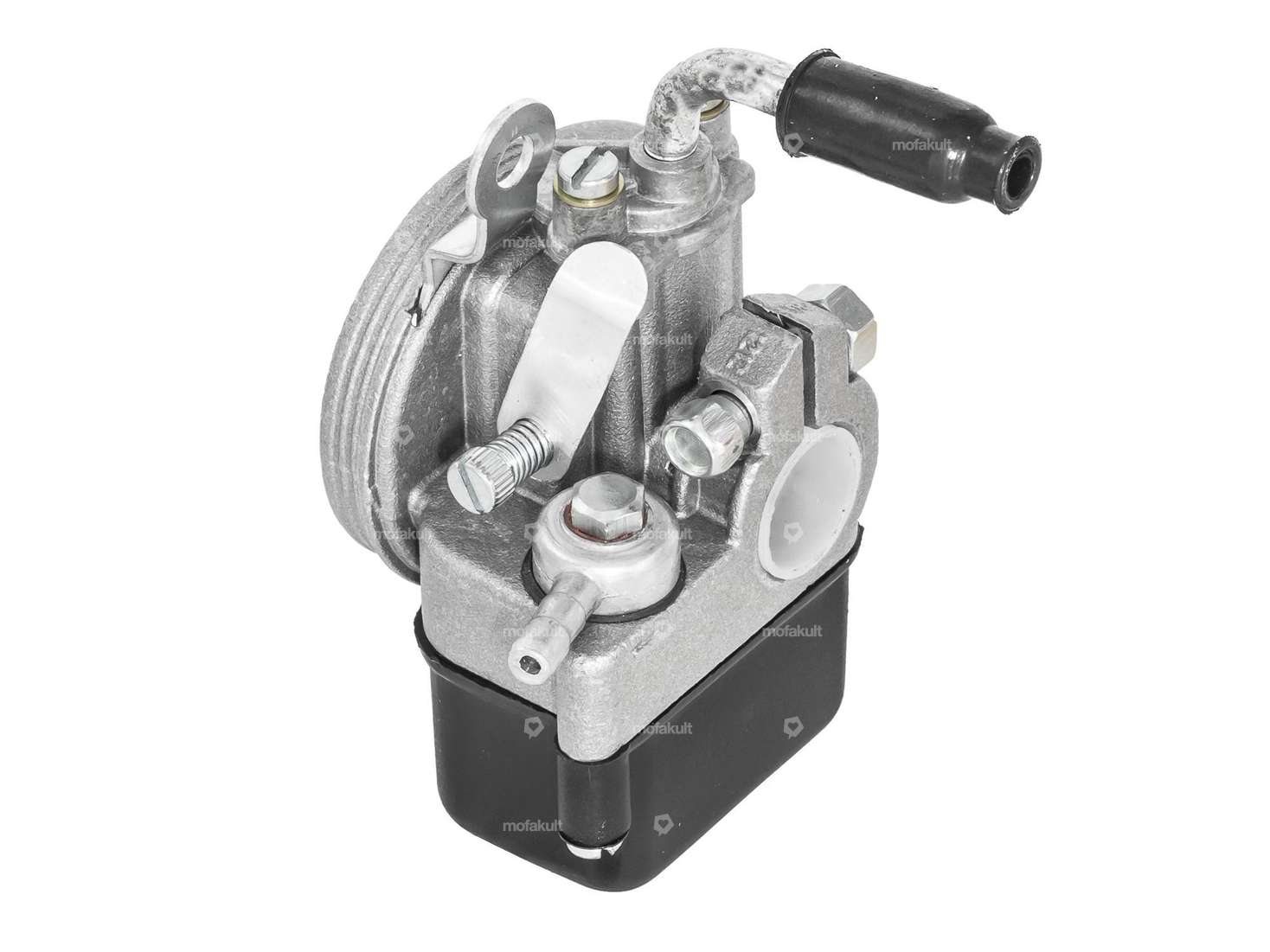

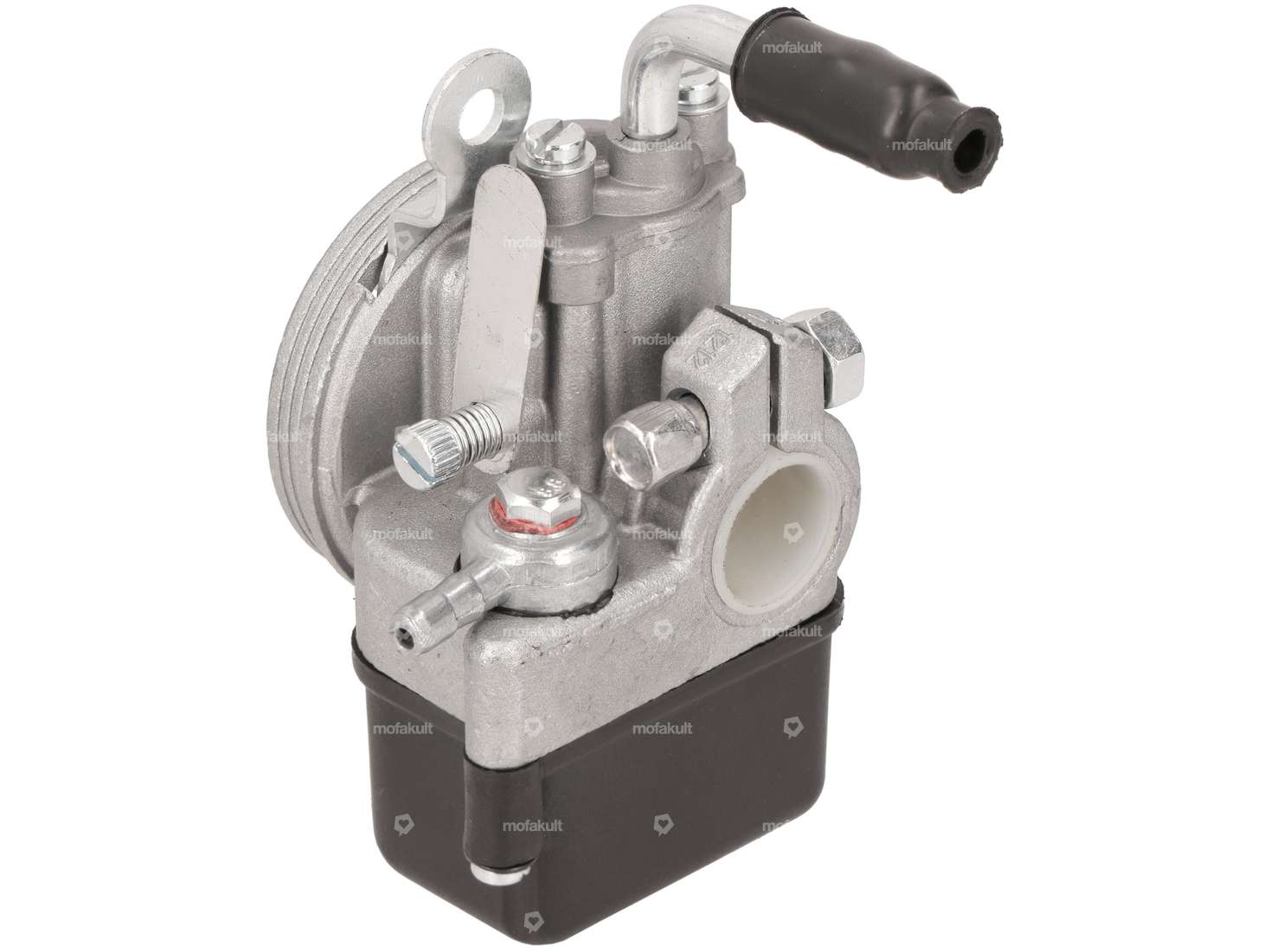

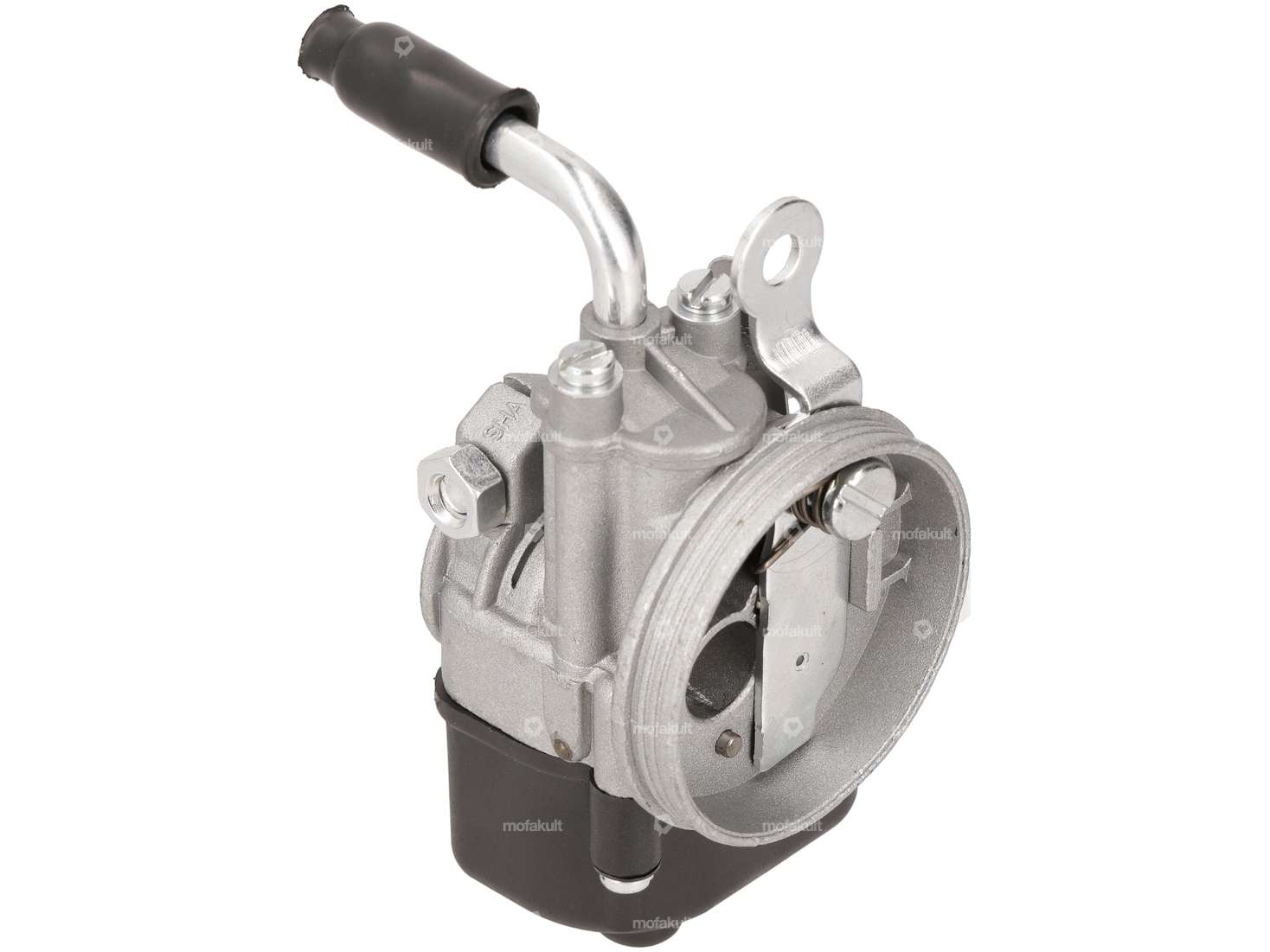

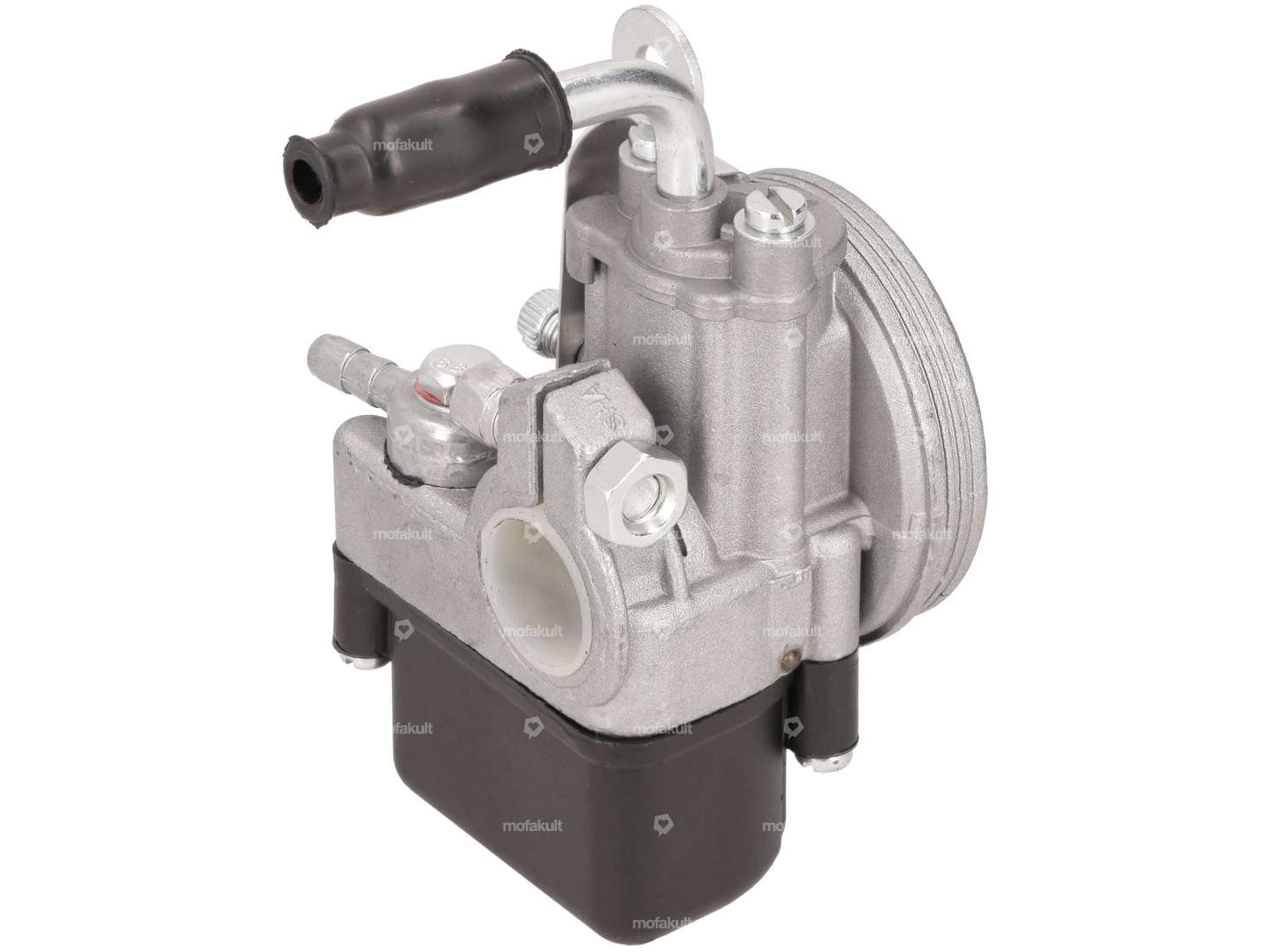

Favourable 12 / 12 replica carburettor for your Piaggio Ciao moped / moped.

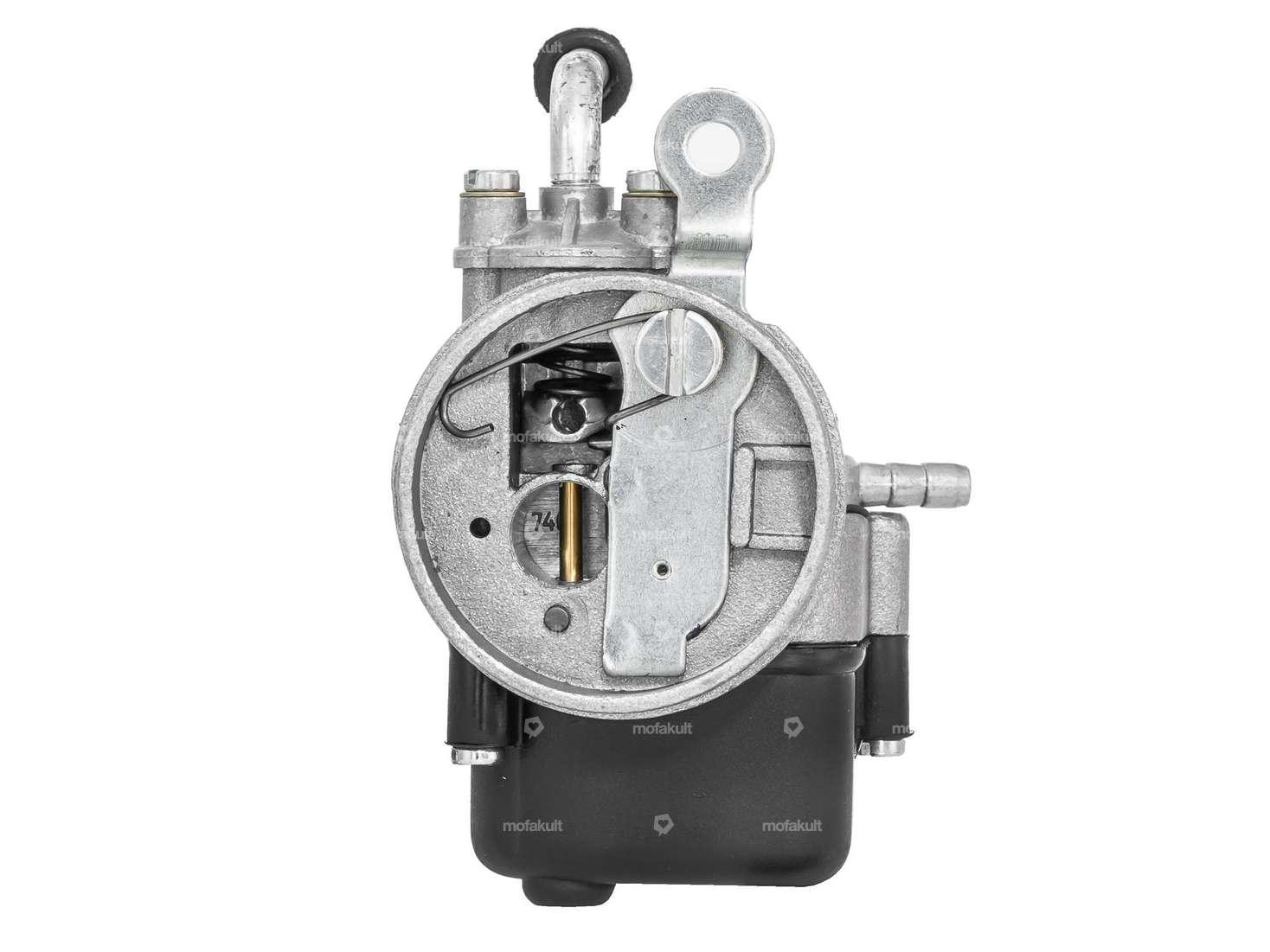

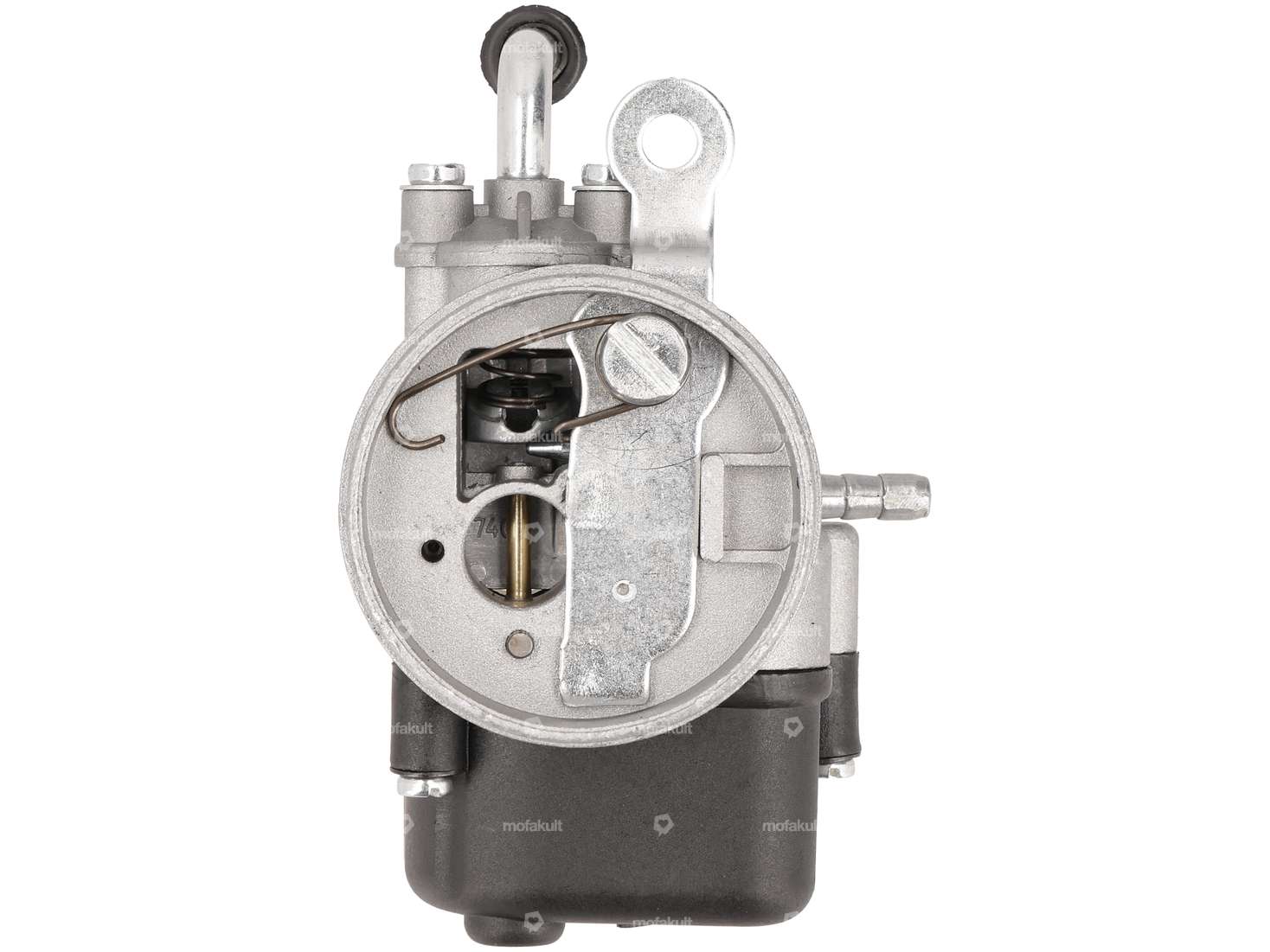

The carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.5 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 87 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
Note: The finish of the aftermarket carburettors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
| Nominal diameter | 12 mm |
| Height | 104 mm |
| Manufacturer | Quenching |
| Total length | 45 mm |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Area of application | Tuning |
| Carburetor type | SHA (Piaggio) |
| Choke control | Hand choke |
| Color | black |
| Ø fuel hose connection | 5.5 mm, 4.8 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Ø without reducing sleeve | 18 mm |
| Width | 60 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.5 mm |
| Mixed oil connection | No |
| Mounting type | Plug connection clamped |
| Vacuum connection | No |
| Camouflaged | No |
| Piaggio | Ciao - PX, C24 |
Ratings
Accessories & related products
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Height: 88.7 mm · Manufacturer: Malossi · Material: Plastic · Area of application: Tuning · Ø outside: 53.2 mm · Filter type: Foam · Total length: 31.2 mm · Color: black · Width: 95 mm · Ø Internal connection: 51 mm · Mounting type: Plug connection clamped · Camouflaged: No
EUR 23.80

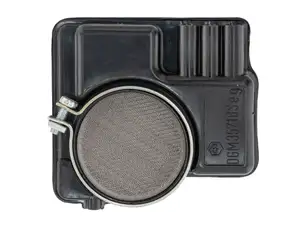

Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Height: 89 mm · Manufacturer: Piaggio · Material: Plastic · Ø outside: 51 mm · Filter type: Grille · Total length: 26.5 mm · Color: black · Width: 94 mm · Ø Internal connection: 49.7 mm · Area of application: Original · Area of application: Tuning · Mounting type: Plug connection clamped
EUR 19.00
Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24
Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Nominal diameter: 12 mm · Color: black · Choke control: Hand choke · Carburetor type: SHA (Piaggio) · Width: 60 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Height: 110 mm · Ø without reducing sleeve: 18 mm · Nozzle size: 48 · Total length: 55 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Area of application: Tuning · Ø Air filter connection: 50.6 mm · Mounting type: Plug connection clamped · Ø Internal connection: 16 mm · Mixed oil connection: No · Vacuum connection: No
EUR 77.50
Not in stock
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Drive: Slot · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120
EUR 4.20
swiing® revival nozzle set M5 (32 - 50) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50
EUR 25.00

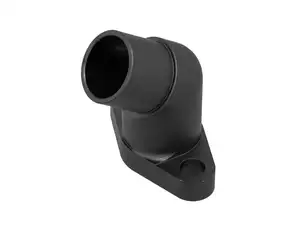

swiing® ingenious 16 mm intake manifold | Cilo 502
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Color: black-matt · Ø inside: 16 mm · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Area of application: Tuning · Ø External connection: 19 mm
EUR 58.40

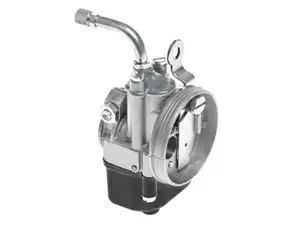

Dell'Orto 12/12 SHA carburetor | Piaggio Ciao PX, C24
