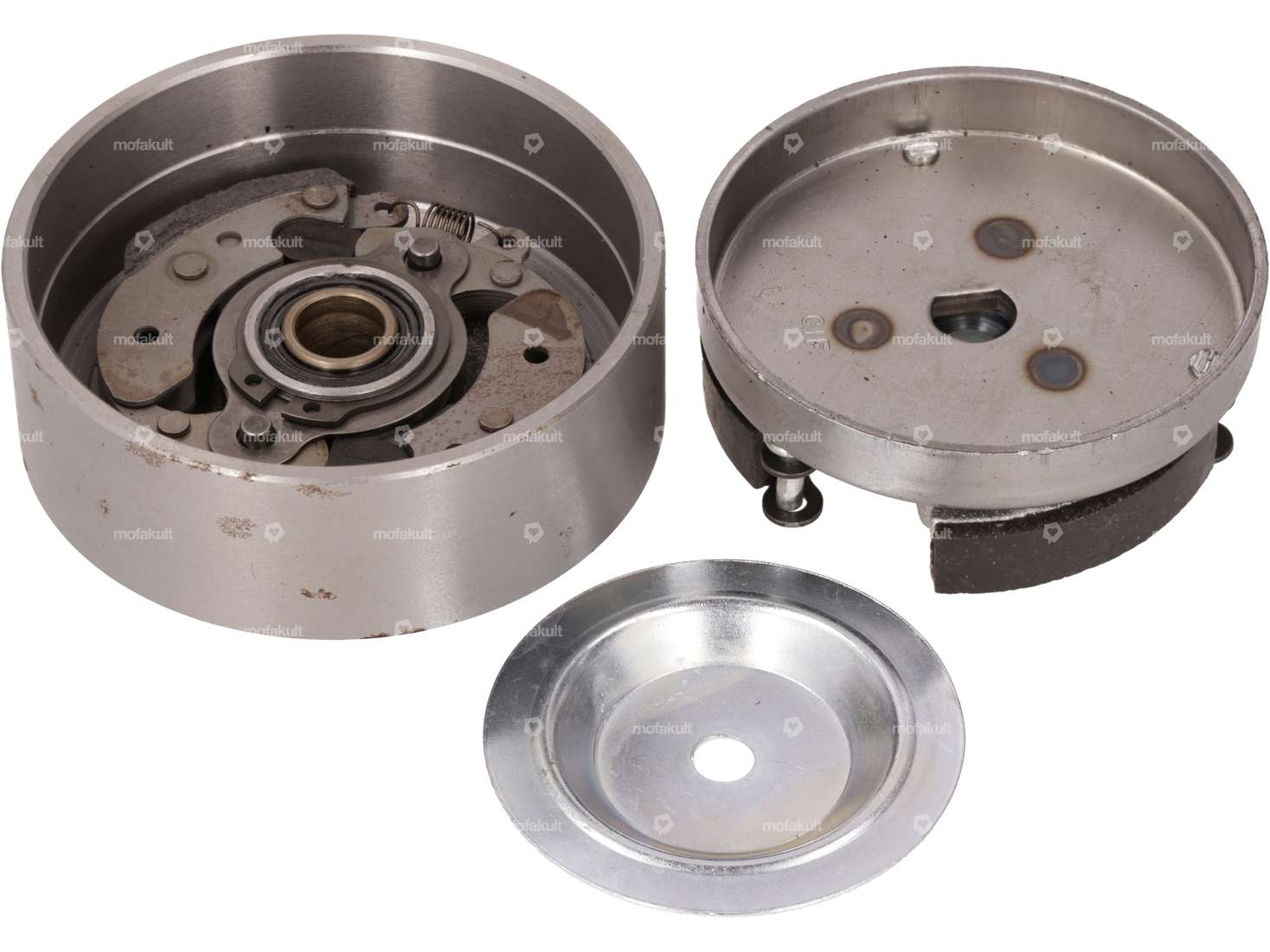

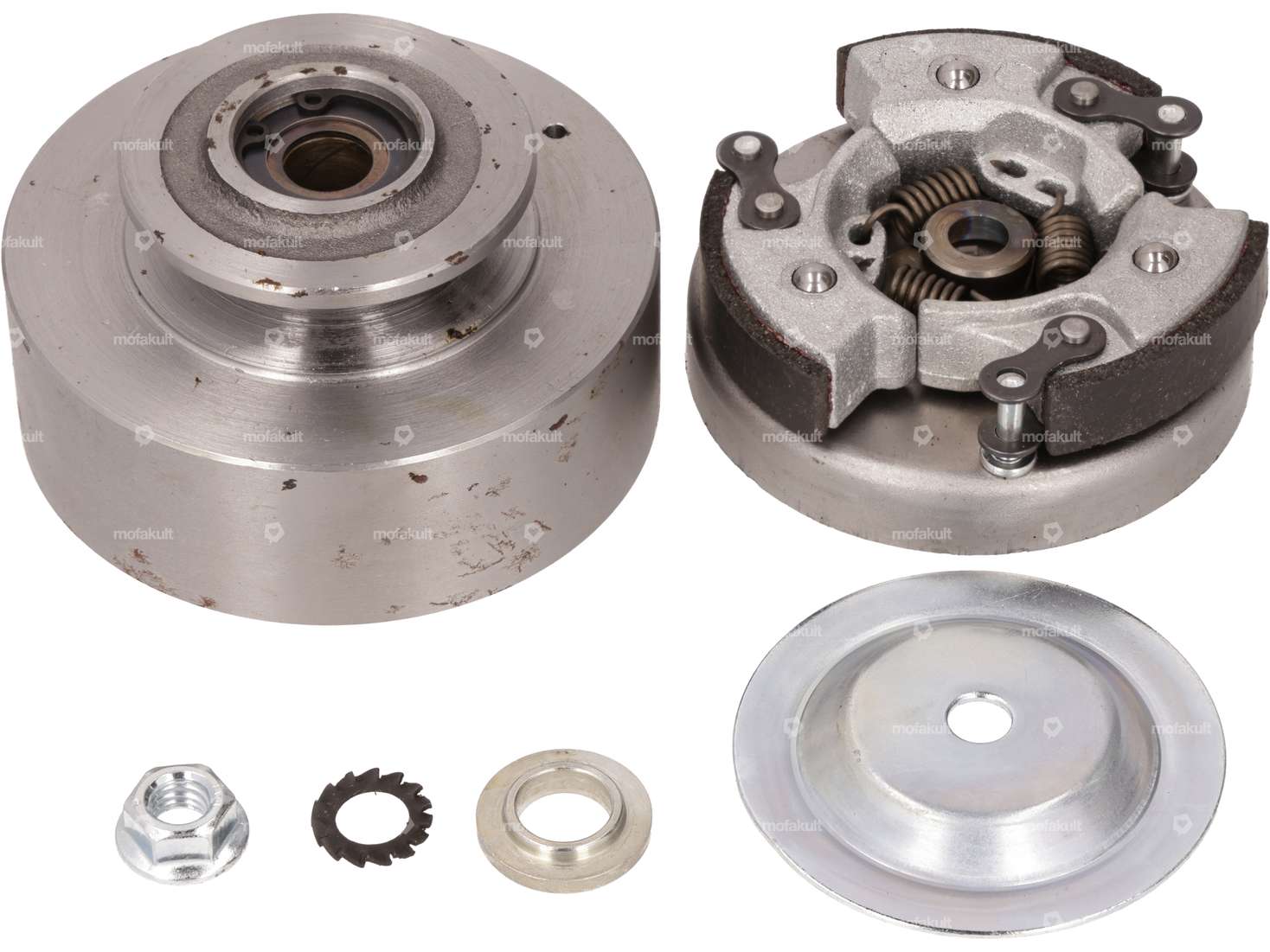

Original 1.2 hp clutch with 56 mm for Piaggio mopeds such as Ciao, SI, Bravo and identical models with mono gearbox and 16" cast rims.
Note: During assembly, it is essential to adjust the axial play of the clutch bell, which should be 0.1-0.2 mm, in order to prevent the rivets from sticking to the starter clutch. The liner must be removed before fitting the clutch, the needle bearings inside the clutch must then be filled with grease, otherwise the clutch bearing will run dry and seize up.

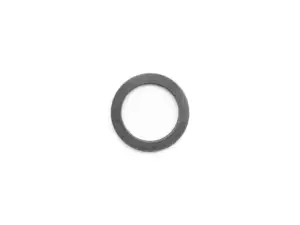

Suitable spacers can be found in the accessories section.
Original Piaggio spare part number: 1651505/ 4803595
Made by the Italian brand CIF.
| Manufacturer | CIF |
| Ø Outer pulley | 56 mm |
| Material | Steel |
| Number of springs | 3 pcs, 2 pcs |
| Ø inside | 82 mm |
| Ø outside | 90 mm |
| Number of jaws | 3 pcs, 2 pcs |
| Area of application | Standard |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
