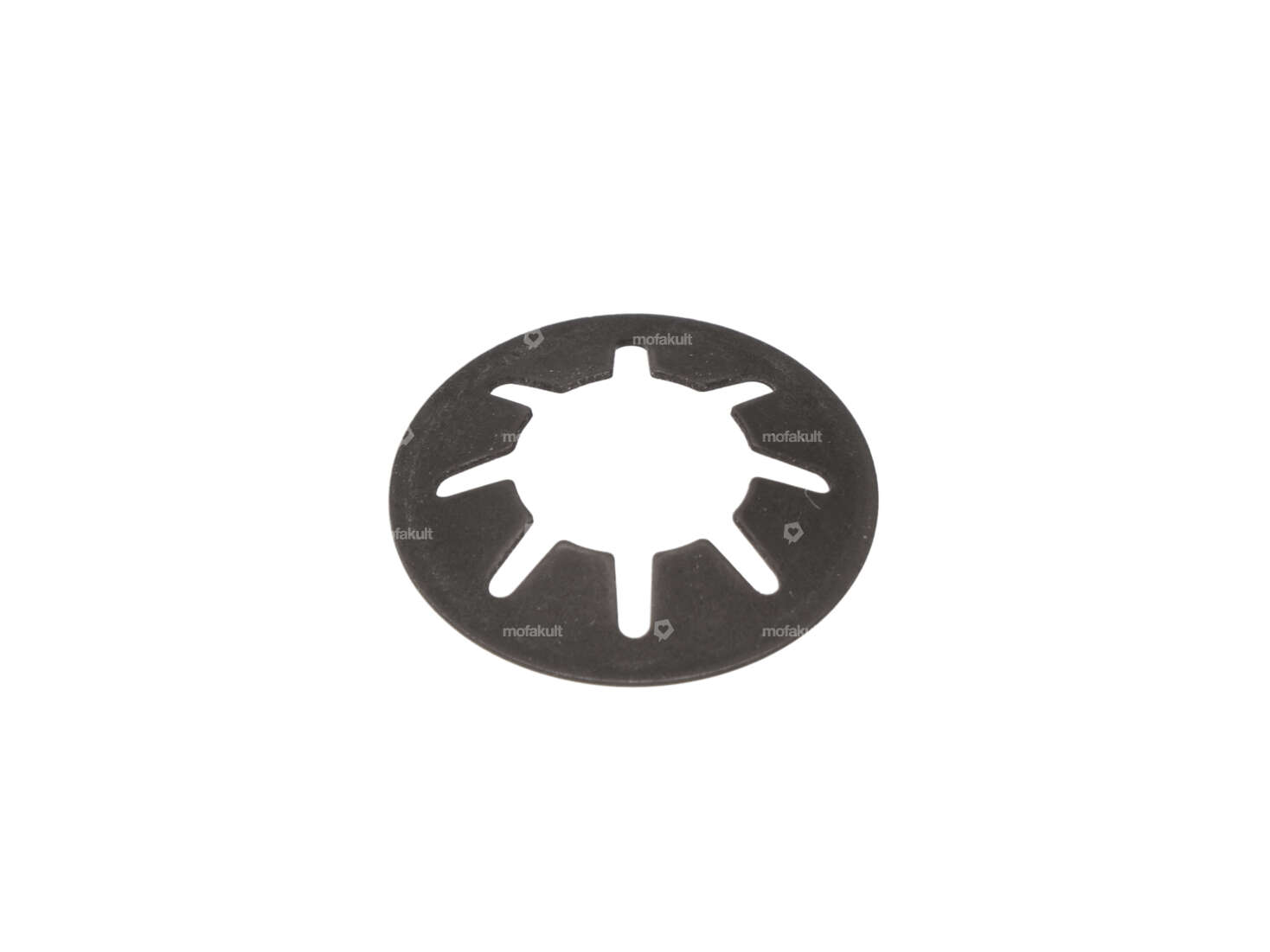

D10 retaining ring type BQ for positioning components on axles that do not have a groove. Clamping rings are ideal for fastening emblems, for example on mopeds, mopeds and small motorcycles.
The sheet metal edge grips into the counterpart due to the spring preload and the crowning and thus protects against displacement.
Note: In many cases, disassembly is not possible without damage. In addition, locking elements should only be used once.
Further details in other sizes can be found in the accessories section.
| Place of use | Universal |
| Fuse type | Outside |
| Thickness | 0.4 mm |
| Material | Spring steel |
| Surface | blackened |
| Ø inside | 9.65 mm |
| Ø outside | 20 mm |
| Height | 2.3 mm |
| Nominal diameter | 10 mm |
