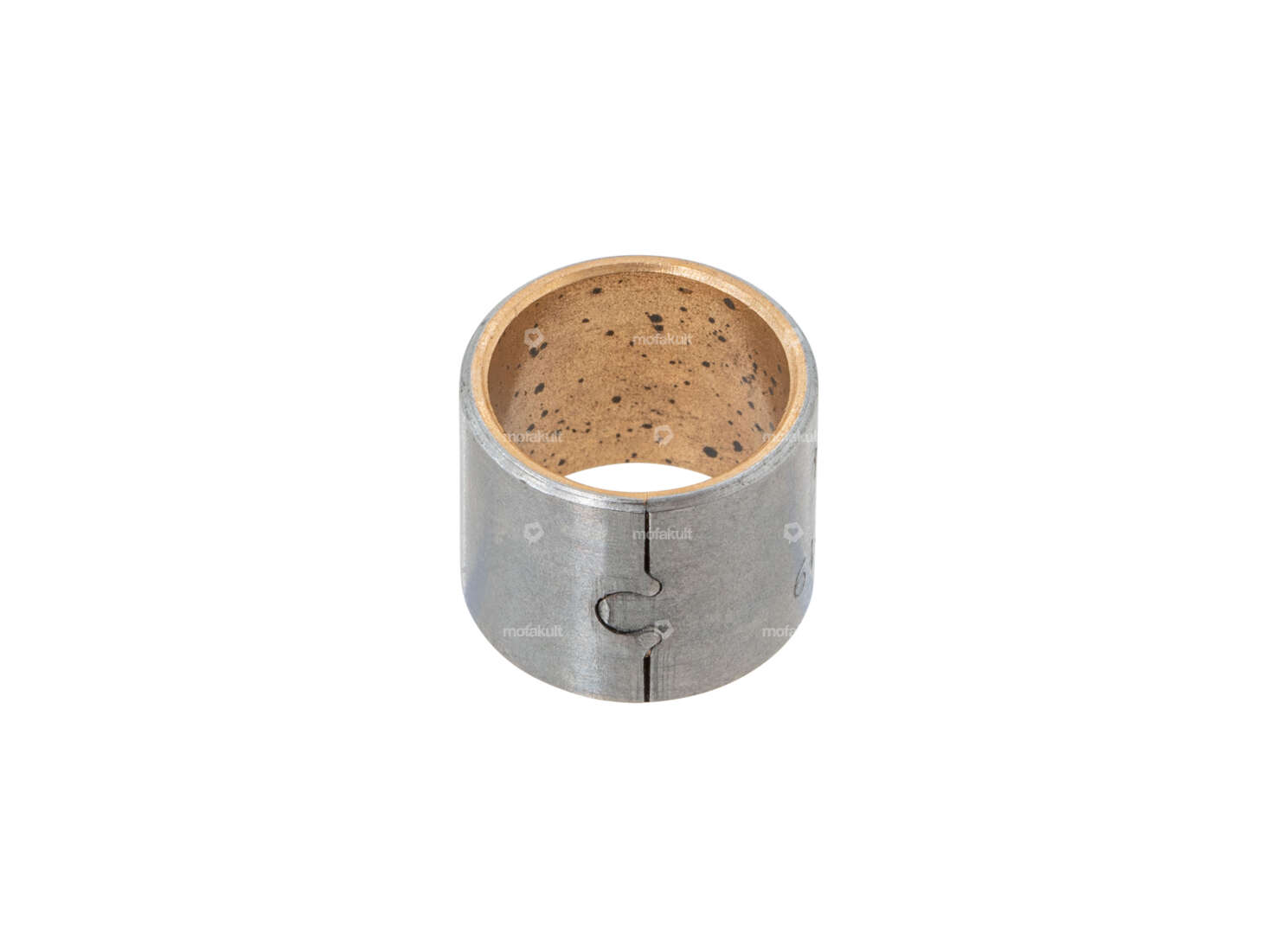

Original bushing for the upper connecting rod eye of all Axe 12 mm Piaggio crankshafts.
After pressing in, the bushing deforms slightly. It is reamed to the correct size using the reamer at the bottom of the accessory.
Ø inner: 11.8 mm
Ø outer: 14 mm
Length: 11.65 mm
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 242965
| Manufacturer | Piaggio |
| Nominal diameter inside | 12 mm |
| Ø inside | 11.8 mm |
| Ø outside | 14 mm |
| Total height | 11.65 mm |
| Piaggio | Ciao - P, SC Bravo / Super Bravo Boxer |
