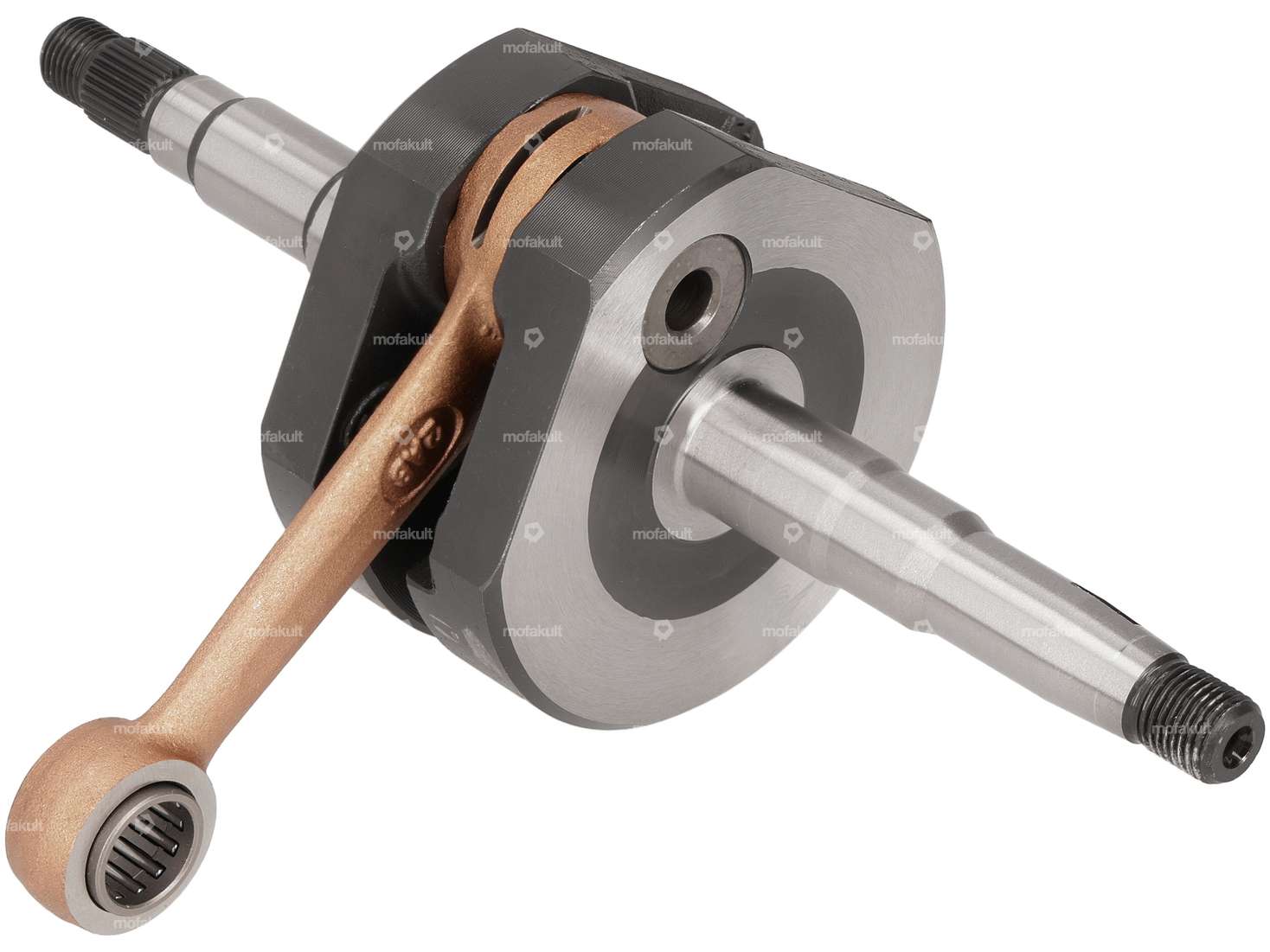

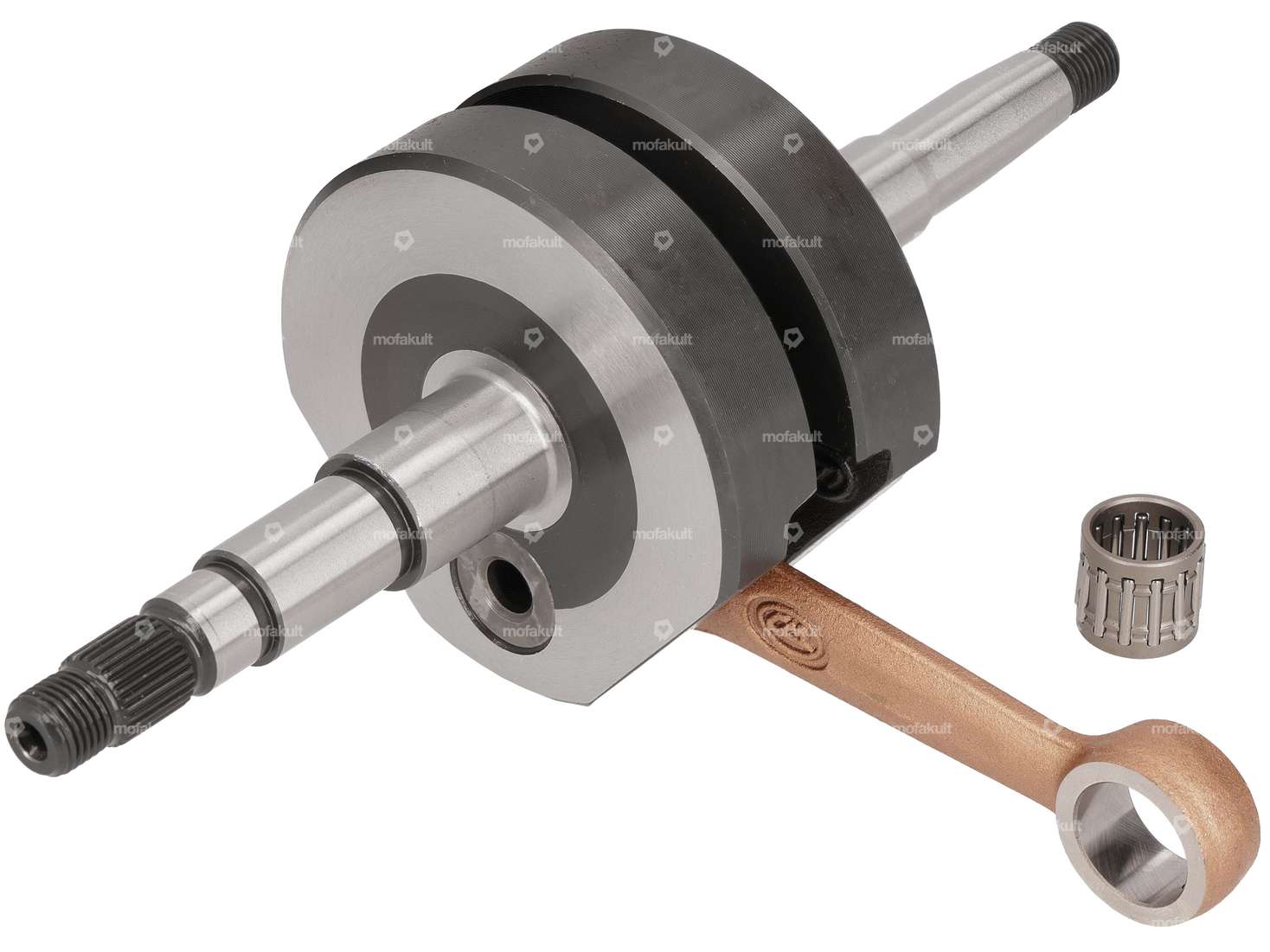

| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 73 mm |
| Total length crankpin ignition side | 73 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 8 mm, 10 mm |
| Dimension needle bearing | 12 /15 x 14.2 mm (axe 12) |
| Wide crank webs | 38 mm |
| Ø 1st step (on the coupling side) | 21.5 mm |
| Ø 2nd shoulder (on the clutch side) | 21 mm |
| Ø 3rd step (on the clutch side) | 9 mm |
| Weight | 1003 g |
| Zündapp OEM number | 250-03.900 |
| Zündapp | ZR 10 / ZR 20 / ZR 22 / ZR 30 / ZB 22 (type 250-447) ZD 10 / ZD 30 (type 250-466) ZA 25 / ZA 40 (type 250-460) |
Accessories & related products
SKF 6202 C3 ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Stock number: 6202 · Width: 11 mm · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: Sheet steel cage ball-guided · Ø inside: 15 mm · Ø outside: 35 mm · Puch OEM number: 900.4.6202
EUR 11.80
