For: Piaggio

27248

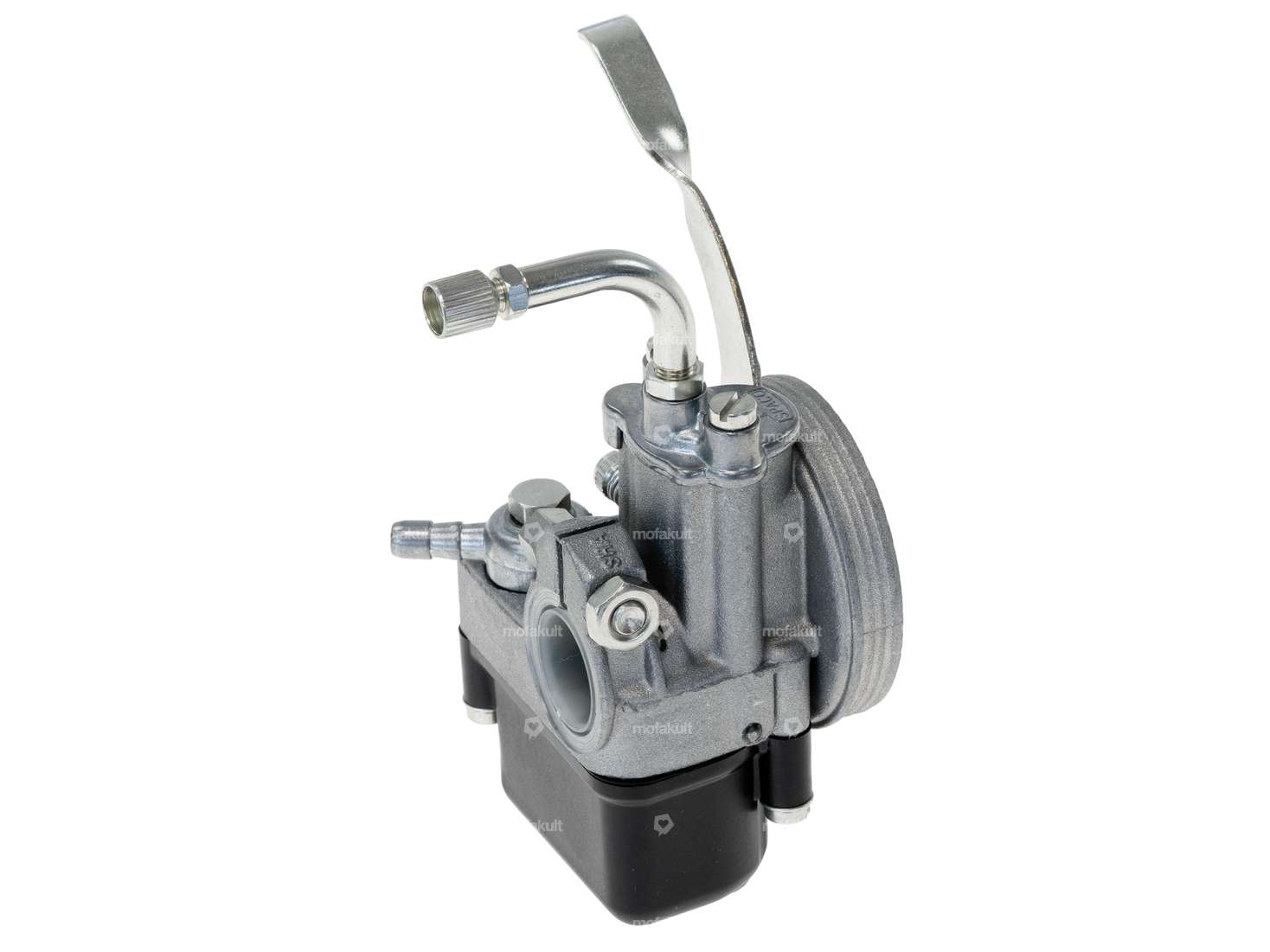

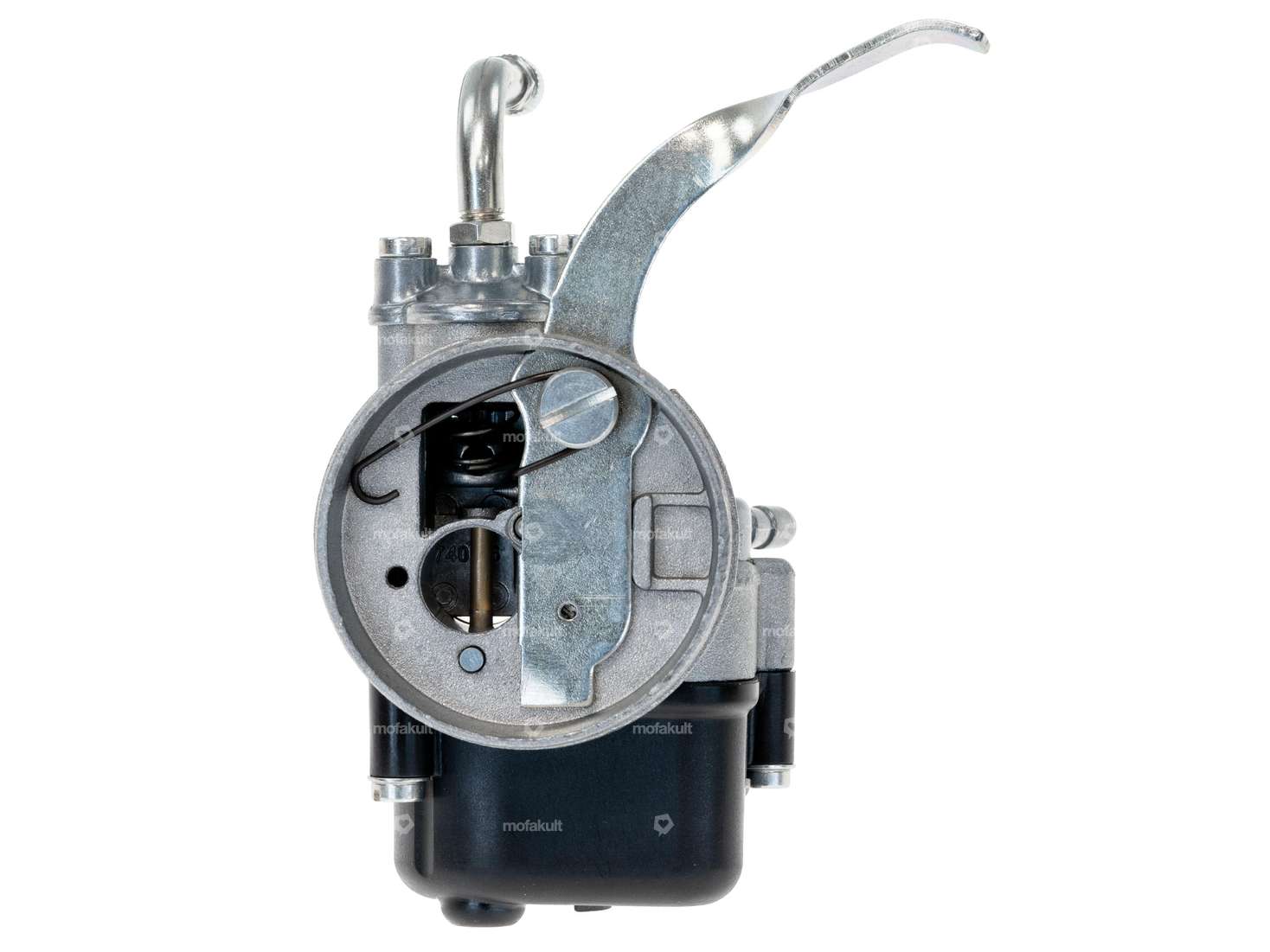

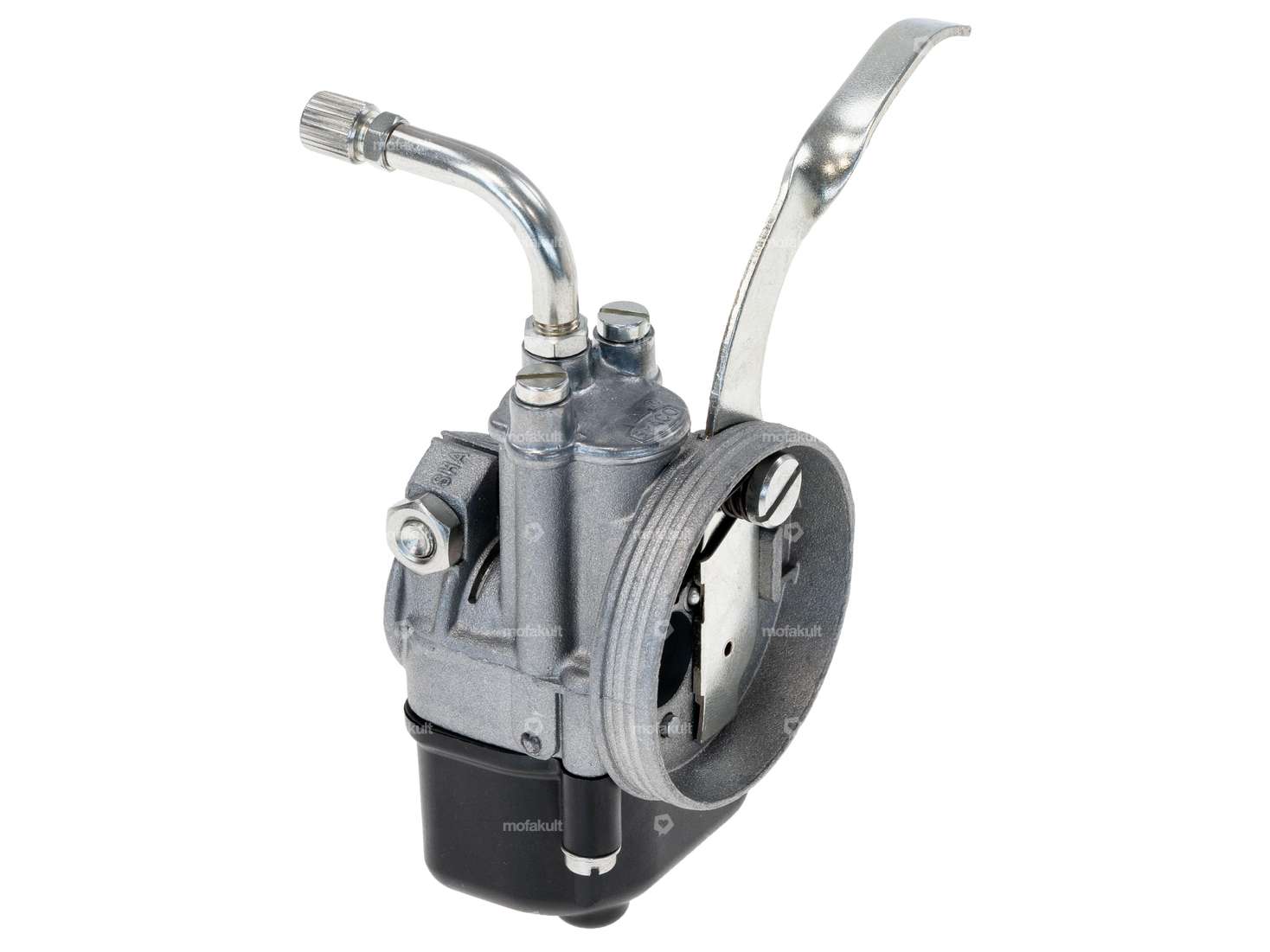

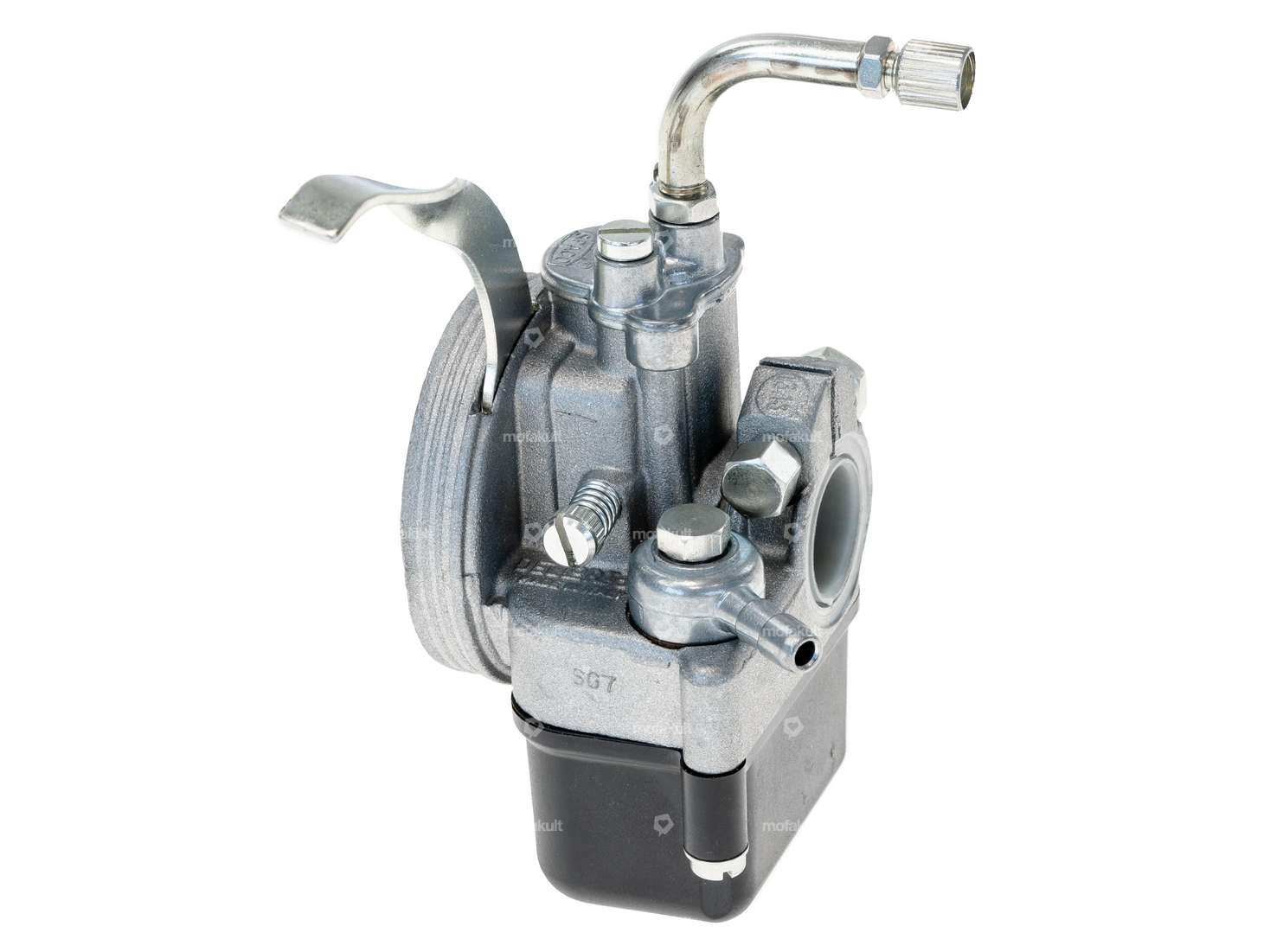

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao P, SC

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 83.50

Incl. 21% VAT.

Description

Dell'Orto 13 / 13 SHA racing carburetor for Piaggio Ciao P and SC mopeds / mopeds which have a choke lever that extends to the right.
Depending on the footboard used, the carburetor in this version can also be installed in newer models such as the PX or C24.

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 66
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø external air filter connection: 50.9 mm
Ø passage on air filter side: 13 mm
Ø passage on intake manifold side: 13 mm
Total height: 110 mm (without pipe bend)
Total length: 55 mm
Total width: 60 mm

For matching nozzles and alternative air filters, see accessories.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter13 mm
ManufacturerDell'Orto
CamouflagedNo
MaterialAluminum
Component group CarburetorCarburetor complete
Colorblack
Carburetor typeSHA (Piaggio)
Total length55 mm
Nozzle threadM5x0.8 (standard thread)
Nozzle size66
Ø without reducing sleeve18 mm
Ø Inside entrance13 mm
Width60 mm
Ø Output inside13 mm
Height110 mm
Ø Air filter connection50.9 mm
Ø Internal connection16 mm
Ø fuel hose connection6 mm, 5.2 mm
Mixed oil connectionNo
Vacuum connectionNo
Mounting typePlug connection clamped
Choke controlHand choke
Area of applicationTuning
Piaggio

Ciao - P, SC
