Universal

20176

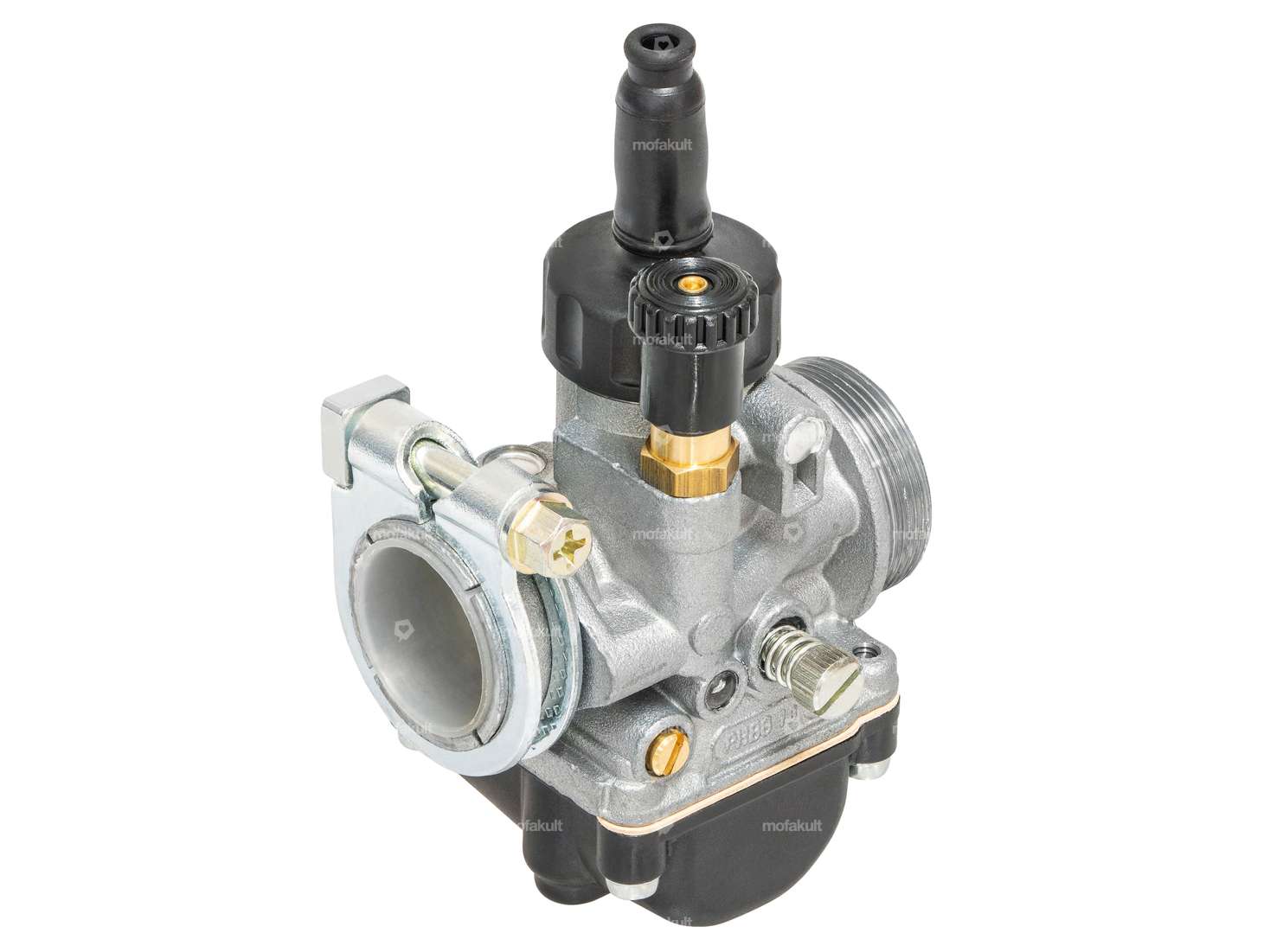

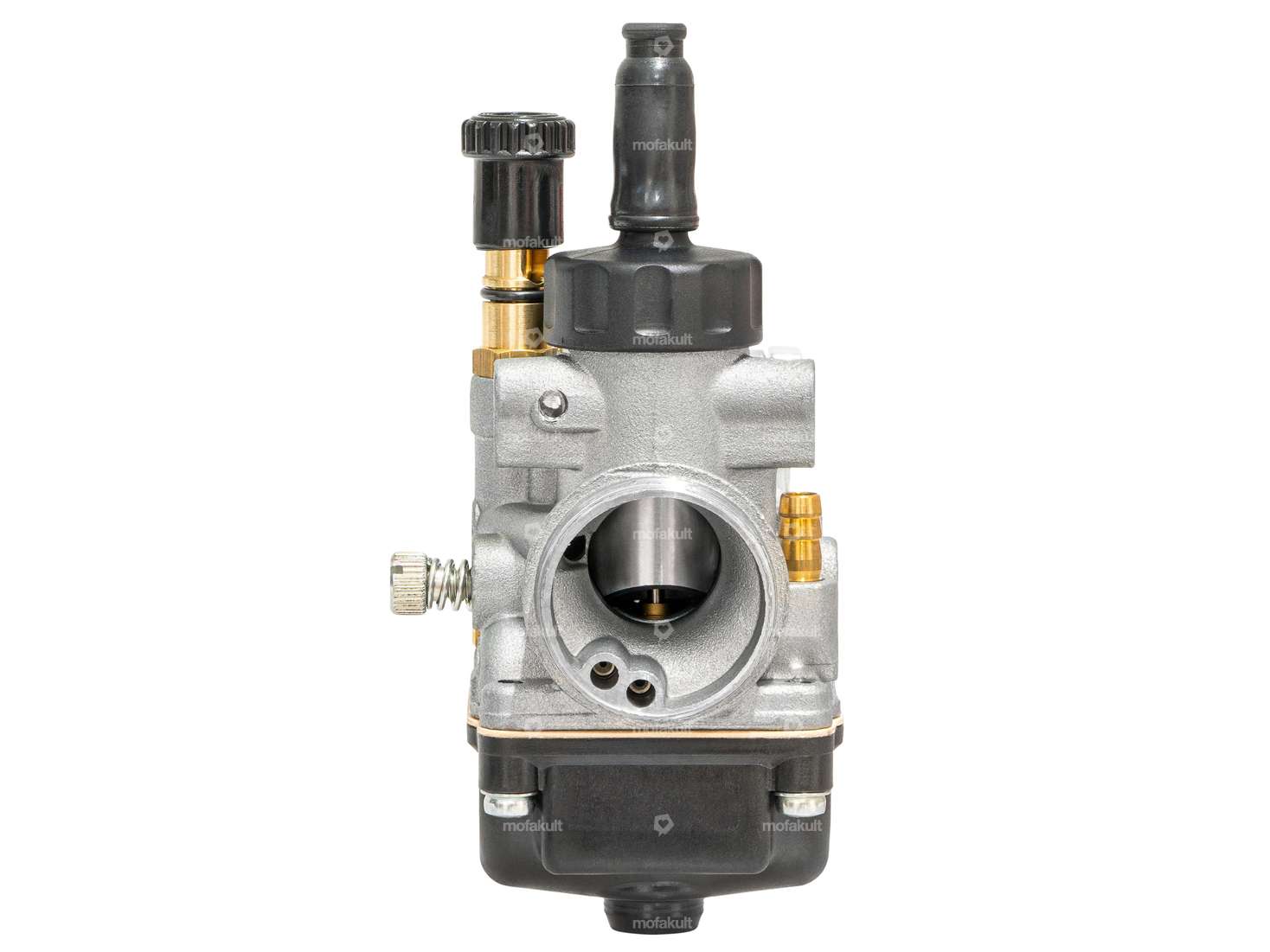

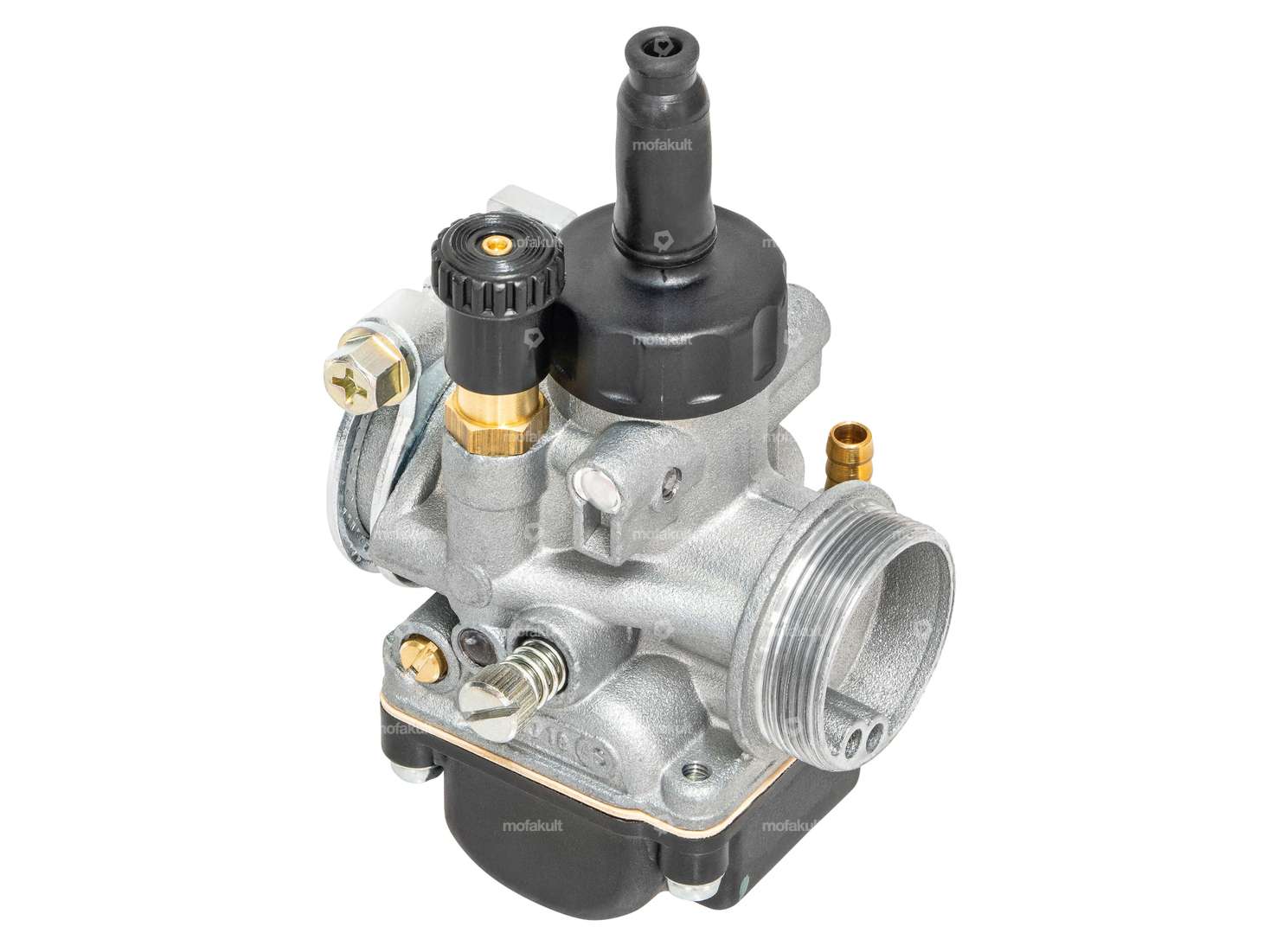

Dell'Orto 18 mm PHBG AS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 154.10

Incl. 21% VAT.

Description

18 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main jet size: 85
Side jet size (idle jet): 50
Choked jet size: 55
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 130 mm
Total width: 75 mm

You can find matching nozzles, air filters and intake manifolds in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter18 mm
ManufacturerDell'Orto
Colorblack
MaterialAluminum
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm, 5.3 mm
Total length71.5 mm
Mixed oil connectionNo
Mounting typePlug connection clamped
Width62 mm
Vacuum connectionNo
Height125 mm
Choke controlHand choke
Choke nozzle size55
Nozzle threadM5x0.8 (standard thread)
Nozzle block262AN
Nozzle size85
CamouflagedNo
Size of secondary nozzle50
Area of applicationTuning
