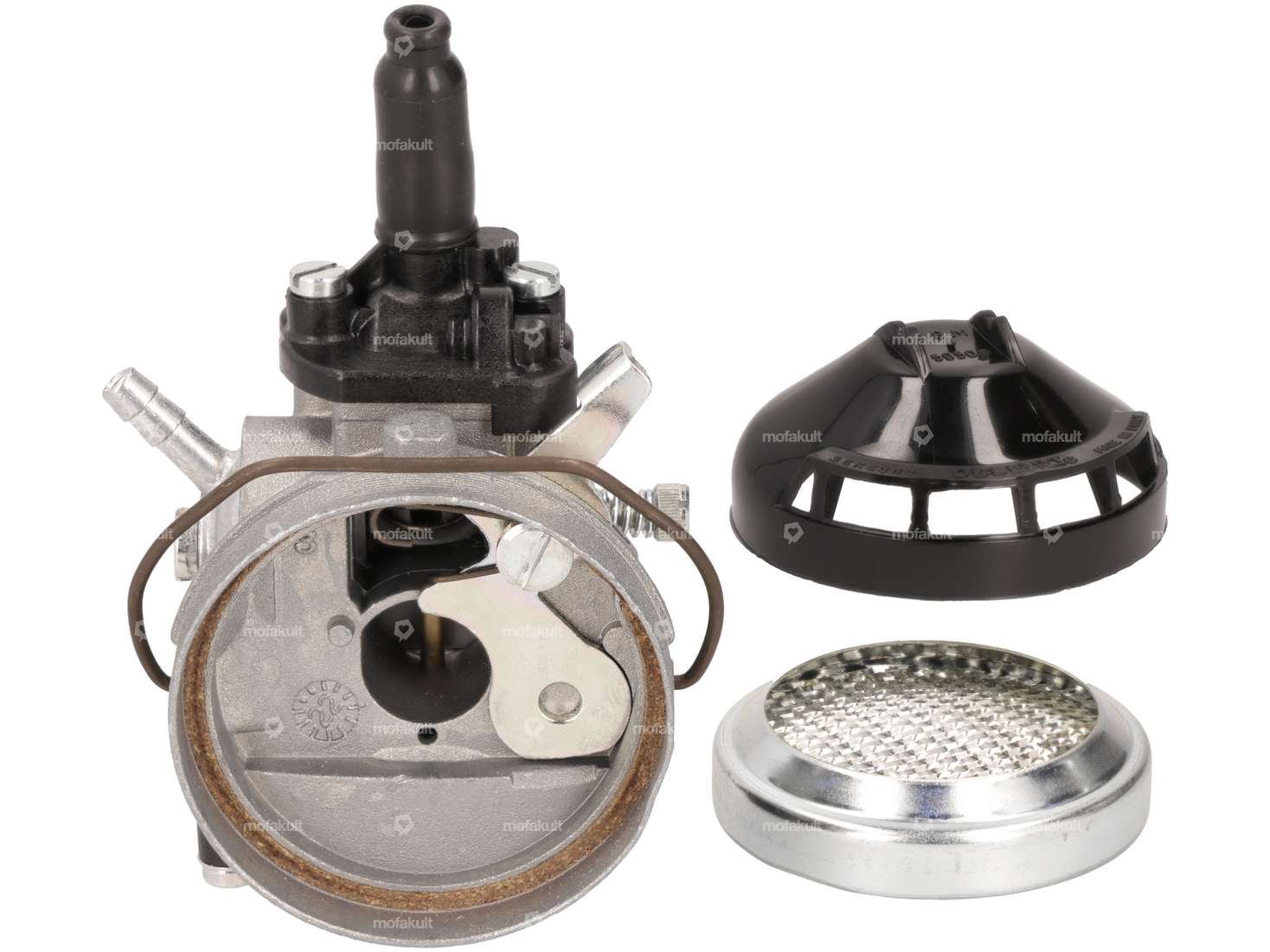

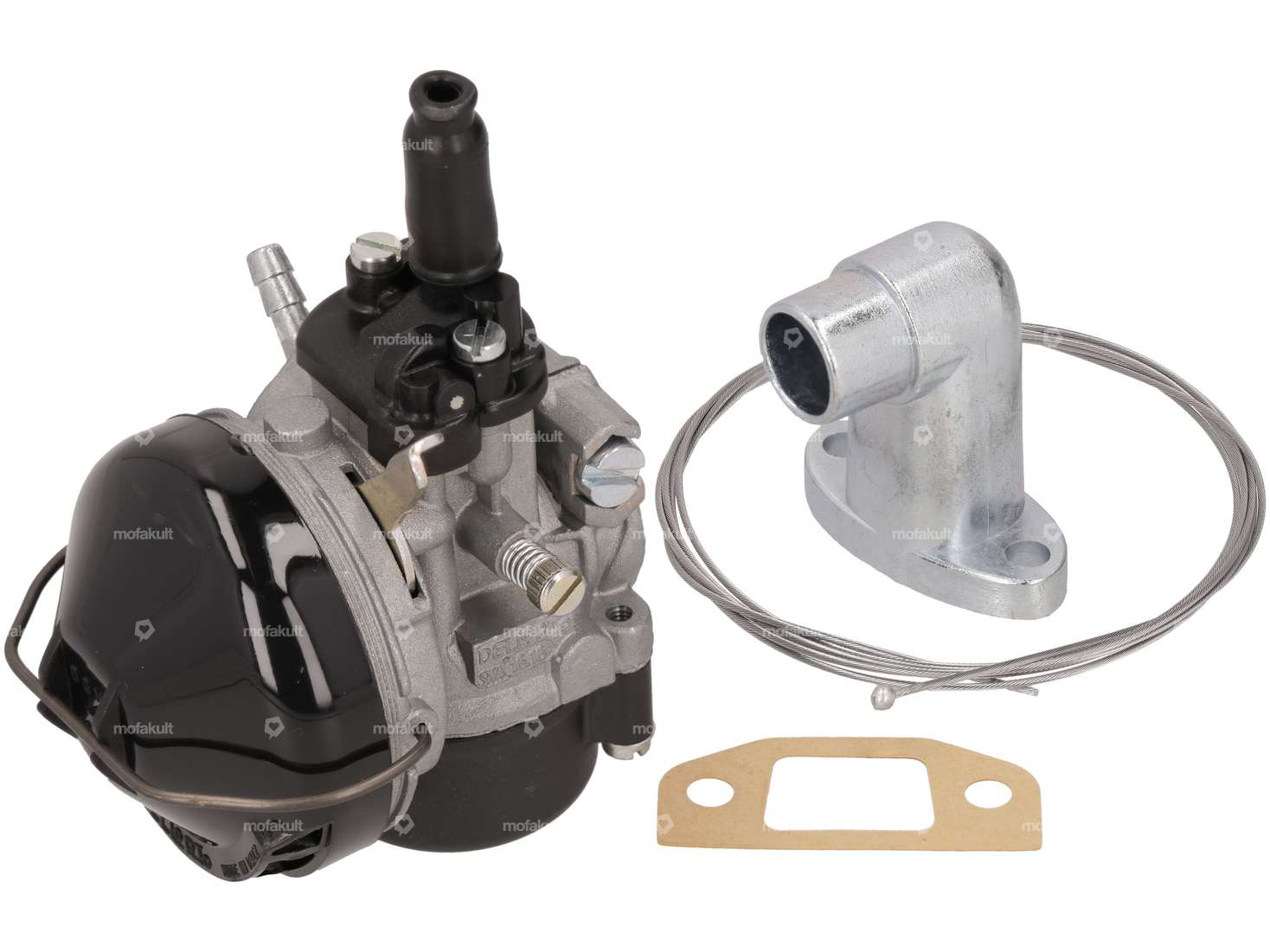

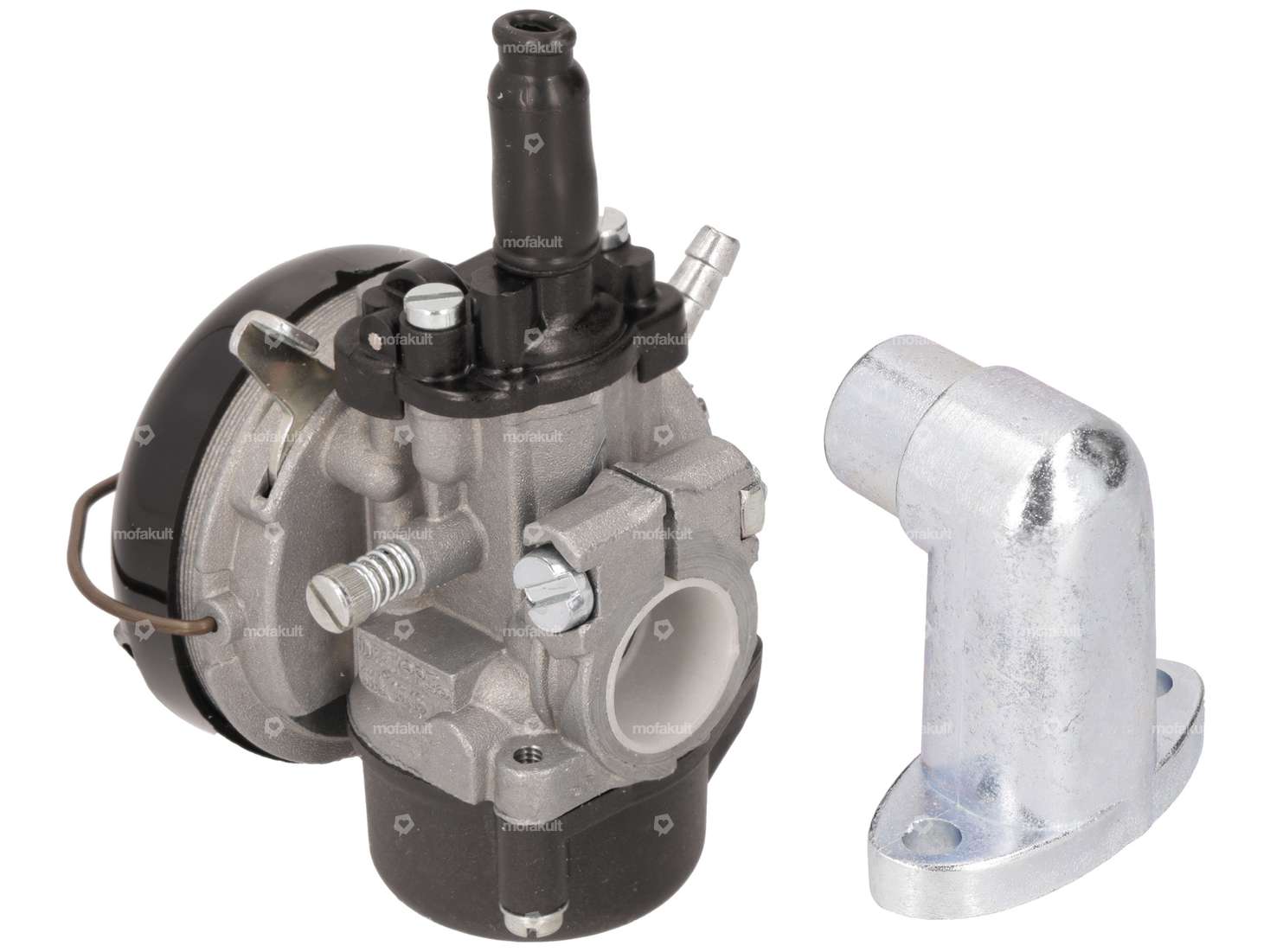

Tuning carburetor set suitable for all Puch Maxi S / N mopeds with E50 engine
The set consists of the following components:
- 16/16 Dell'Orto SHA carburetor - Art. 10225
- 15 mm intake manifold - Art. 10708
- Gas cable Dell'Orto - Art. 10703
- Large intake gasket - Art. 15590
When you purchase this complete set, you will receive a large percentage off the retail price of the individual parts.
Quality product from the Italian manufacturer Dell'Orto.
Nozzle size: 82 · Manufacturer: Dell'Orto · Camouflaged: No · Material: Aluminum · Color: black · Carburetor type: SHA · Nominal diameter: 16 mm · Ø Internal connection: 19 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 16 mm · Ø Output inside: 16 mm · Ø Air filter connection: 58.5 mm, 56 mm · Ø fuel hose connection: 6 mm, 5.1 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Total length: 82 mm · Width: 72 mm · Height: 111 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Manufacturer: Airsal · Material: Sealing paper · Place of use: Admission · Thickness: 0.4 mm · Reinforced: No · Hole spacing inlet: 38 mm · Ø screw holder: 6.7 mm · Area of application: Standard
Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Number of components: 1 pcs
Material: Aluminum · Ø inside: 15 mm · Ø External connection: 19 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Height flange center hole: 41 mm · Area of application: Tuning
| Manufacturer | Dell'Orto |
| Component group Carburetor | Carburetor complete |
| Nominal diameter | 16 mm |
| Area of application | Tuning |
| Carburetor type | SHA |
| Hole spacing inlet | 38 mm |
| Mounting type | Flange, Plug connection clamped |
| Ø fuel hose connection | 6 mm |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Puch | E50 |
Ratings
Accessories & related products
Dell'Orto 16/16 SHA carburetor hand choke
Nominal diameter: 16 mm · Manufacturer: Dell'Orto · Material: Aluminum · Color: black · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SHA · Height: 111 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 16 mm · Ø Internal connection: 19 mm · Ø Output inside: 16 mm · Ø Air filter connection: 56 mm · Ø Air filter connection: 58.5 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Width: 72 mm · Vacuum connection: No · Total length: 82 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 82
EUR 83.30
BING 15 mm Bing original carburetor (1/15/46A)
Nominal diameter: 15 mm · Material: Aluminum · Total length: 66 mm · Height: 95 mm · Manufacturer: BING · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Width: 50 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Nozzle size: 82 · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Area of application: Standard · Area of application: Tuning · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.17 · Camouflaged: No · Clamping screw torque (max.): 4 N/m
EUR 158.30
- 38 %
Hot
swiing® ingenious 15 mm carburetor camouflaged | Puch
Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Total length: 66 mm · Carburetor type: SRE · Width: 50 mm · Height: 95 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.1.15.100.0 · Puch OEM number: 349.2.15.800.0 · Puch OEM number: 349.4.15.500.0 · Puch OEM number: 349.4.15.000.0 · Puch OEM number: 349.4.15.300.0 · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0 · Puch OEM number: 349.8.15.400.0 · Puch OEM number: 349.9.15.300.0
EUR 95.20
EUR 58.30
swiing® ingenious 15 mm carburetor set camouflaged | Puch E50
Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Hole spacing inlet: 38 mm · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m
EUR 125.00
EUR 100.00
swiing® revival 12 mm carburetor set "Original" | Puch E50
Manufacturer: swiing® revival parts · Mounting type: Flange · Mounting type: Plug connection clamped · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nominal diameter: 12 mm · Ø Internal connection: 20 mm · Area of application: Standard · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 52 · Hole spacing inlet: 38 mm · Clamping screw torque (max.): 4 N/m
EUR 113.10

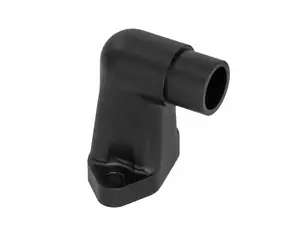

15 mm intake manifold CNC milled Dell'Orto SHA | Puch E50
