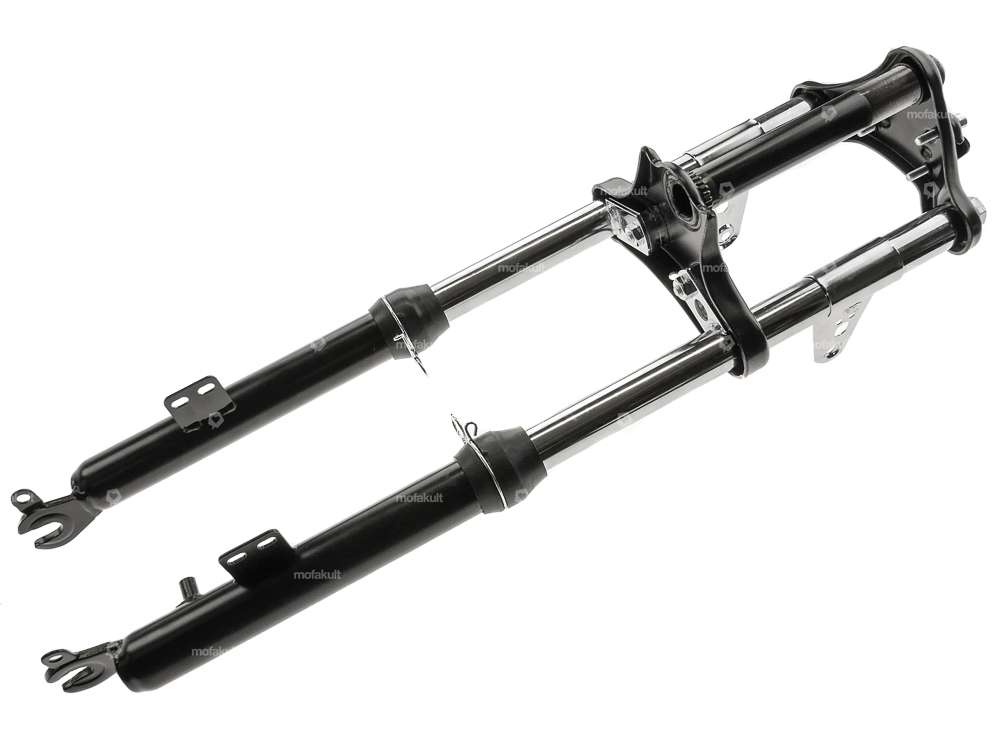

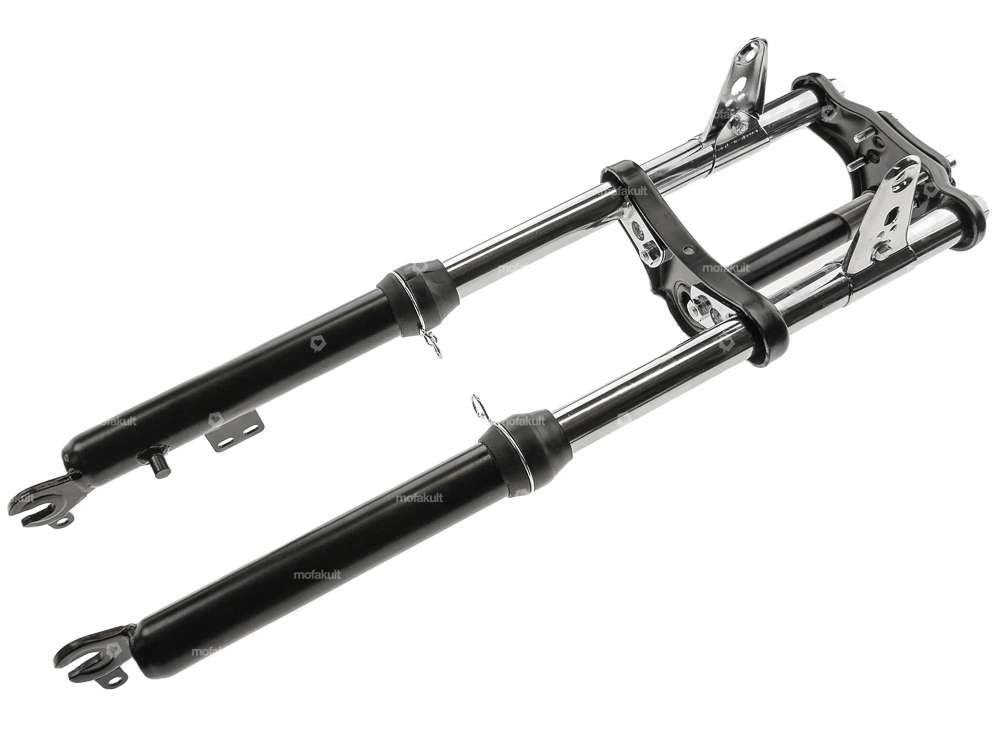

Fork specially made for Zündapp Belmondo mopeds!
The black painted fork fits perfectly and no further adjustments are necessary.

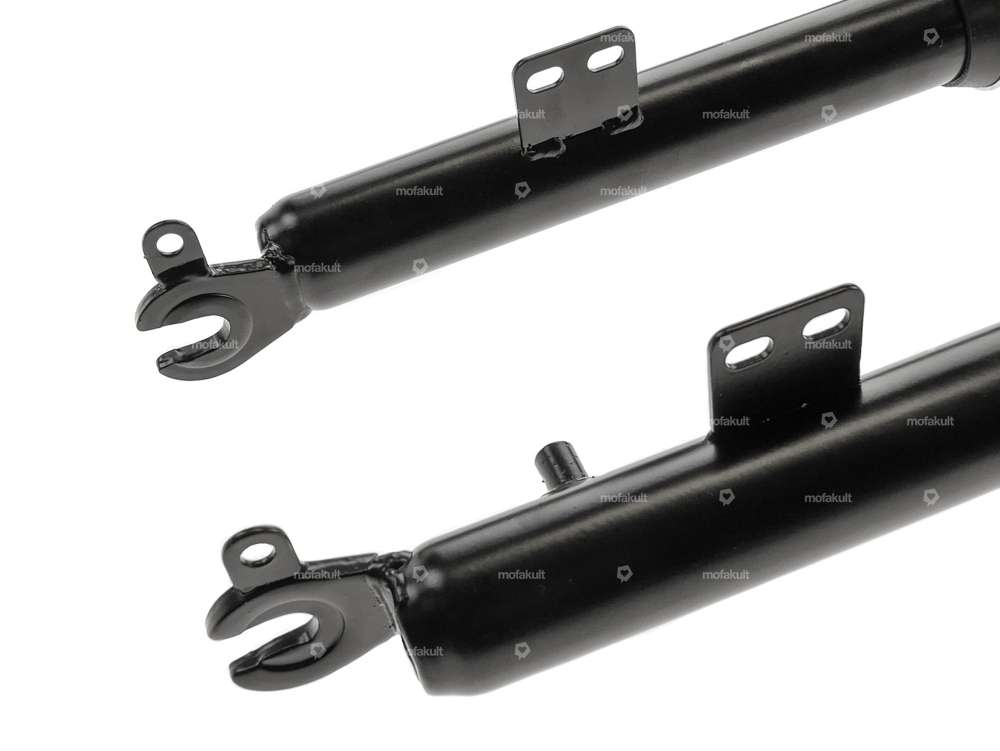

The two tabs for attaching the upper and lower struts are perfectly modeled on the original.
You will find the matching headset set and other add-on parts in the accessories section below.
The snap ring is supplied as shown.
Total fork length: 64 cm
Head tube length: 18.5 cm
Head tube thread: M26x1
Head tube inner diameter (for stem mounting): 22 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 139 mm |
| Ø head tube inside | 22.2 mm |
| Ø outer head tube | 26.1 mm |
| Ø spars | 28 mm |
| Head tube length | 185 mm |
| Total length | 630 mm |
| Fork bridge - center wheel axle | 415 mm |
| Distance brake cam to wheel axle center-center | 72 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Thread length | 58 mm |
| Zündapp Belmondo |
