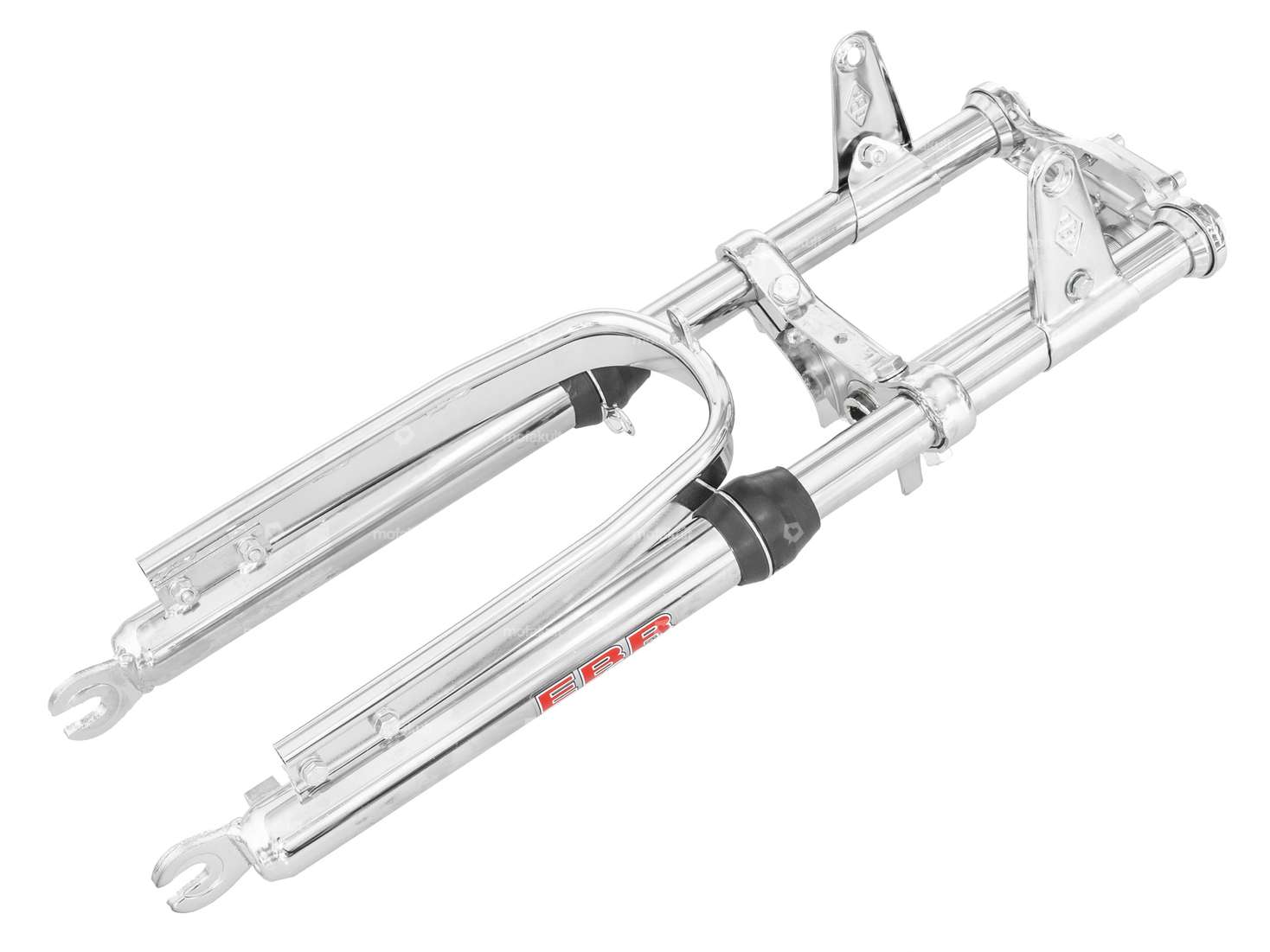

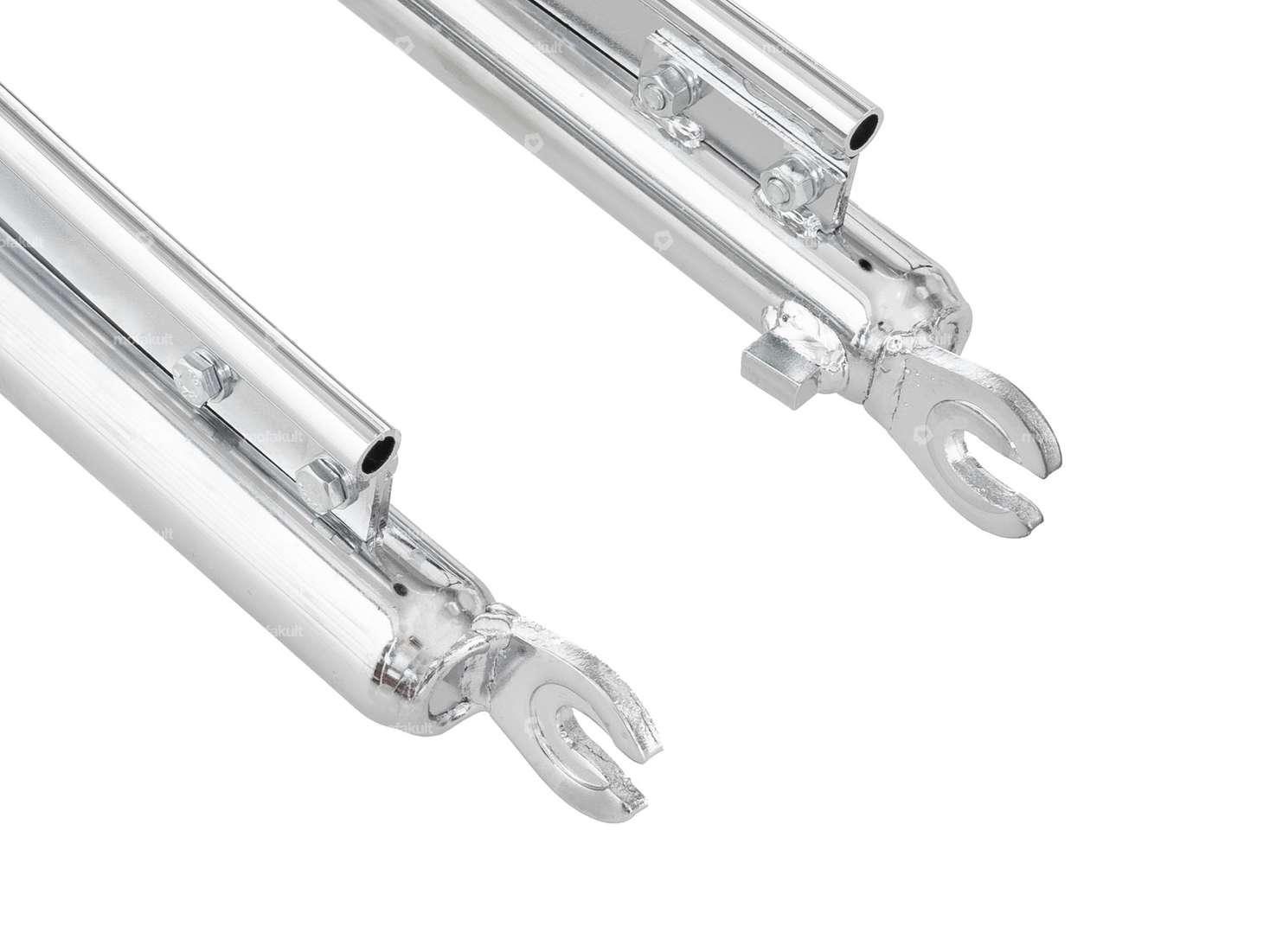

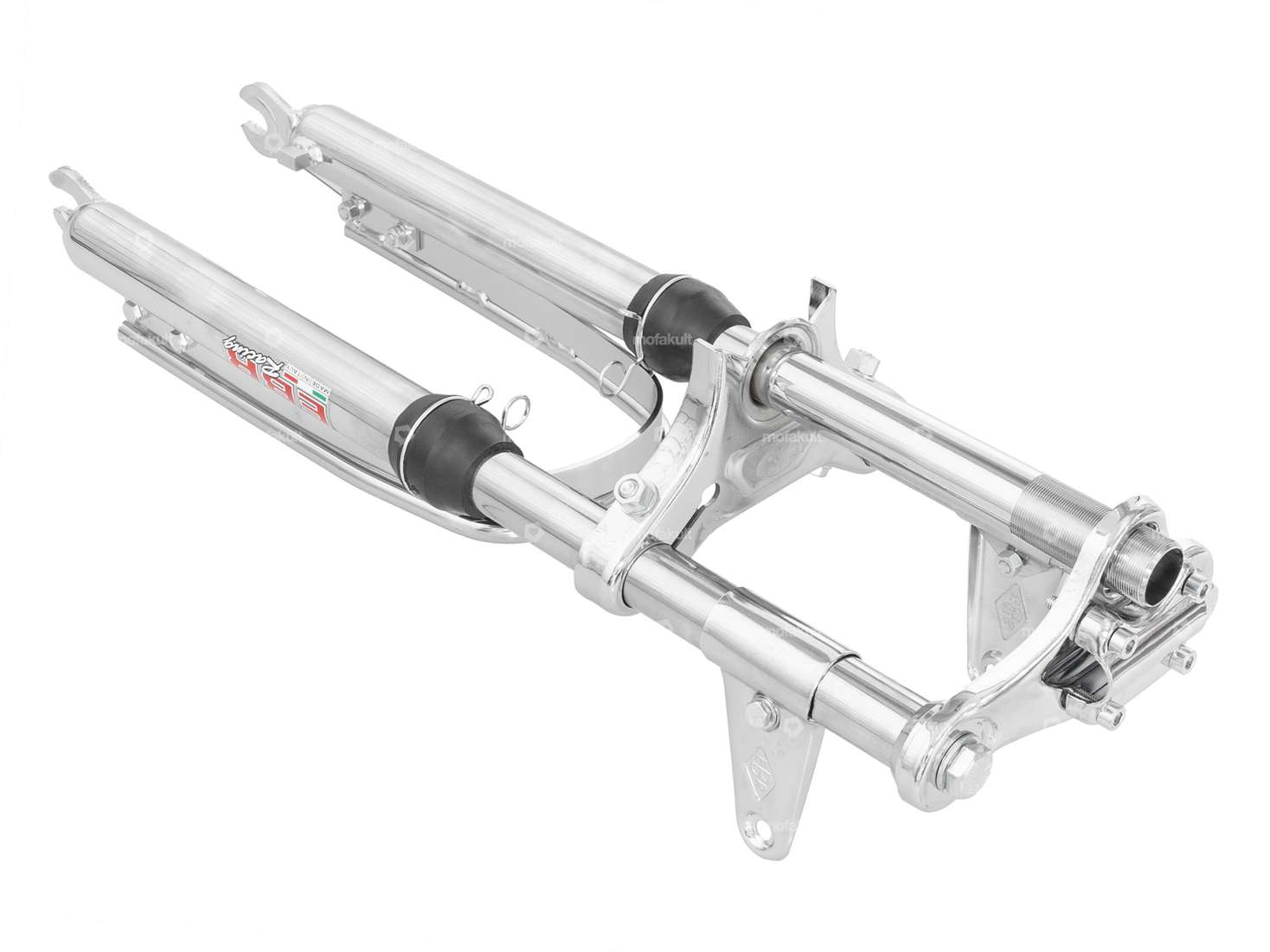

Chrome-plated EBR fork, reinforced bars.
For various Puch mopeds.
With clamp for attaching the handlebars to the fork plate.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 58 cm
In addition, this fork has been fitted with a strut bracket, which is also used for mounting mudguards.

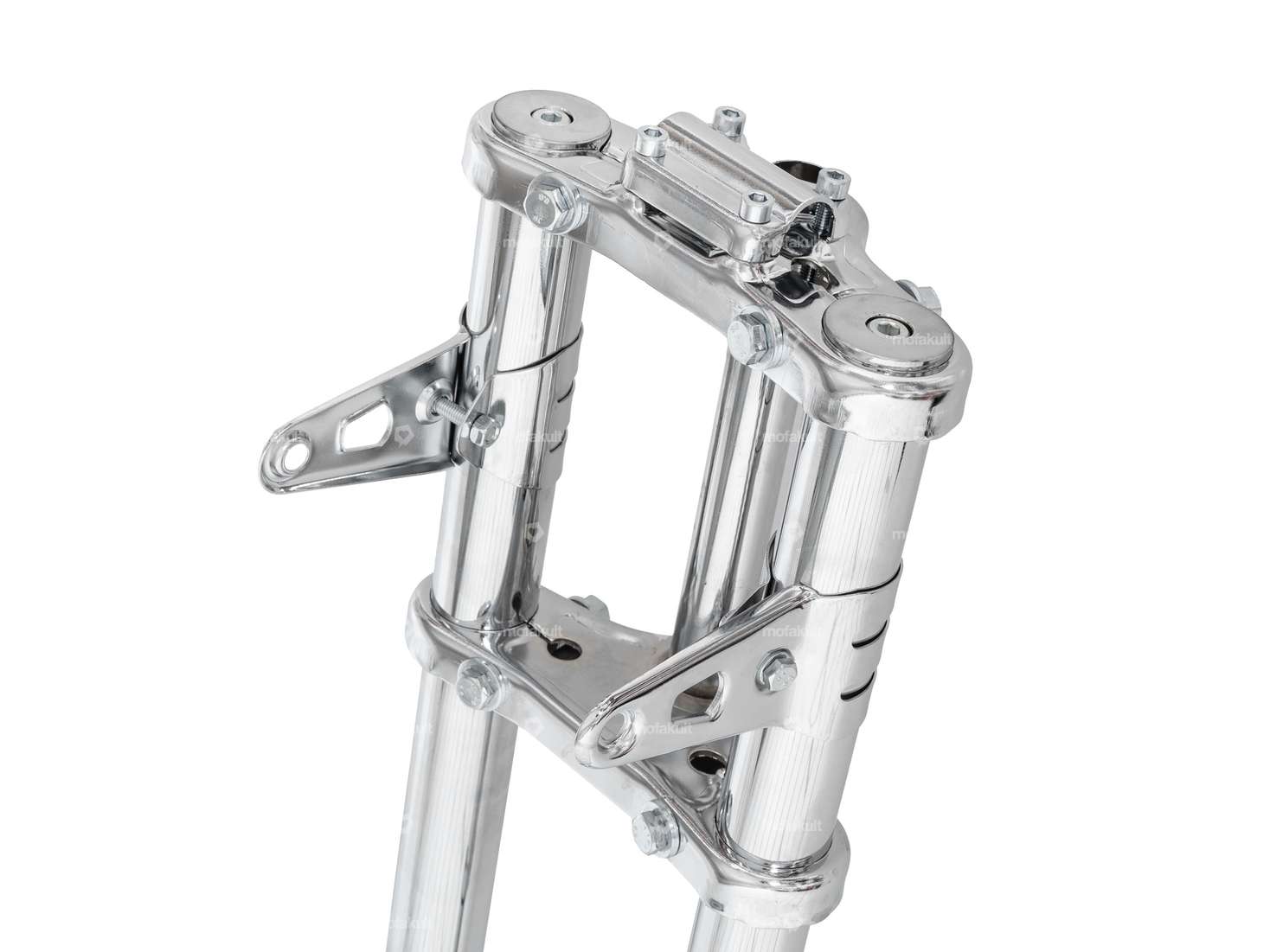

Another special feature is the reinforced upper fork clamp.
Branded product from the Italian manufacturer EBR.
| Material | Steel |
| Total length | 580 mm |
| Manufacturer | EWC |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 139 mm |
| Ø head tube inside | 22.3 mm |
| Ø outer head tube | 26 mm |
| Ø spars | 28 mm |
| Head tube length | 180 mm |
| Fork bridge - center wheel axle | 375 mm, 310 mm |
| Distance brake cam to wheel axle center-center | 35 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Thread length | 60 mm |
| Puch |
Ratings
Moped fans also bought
Hot
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Area of application: Standard
EUR 2.85
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut
EUR 11.70

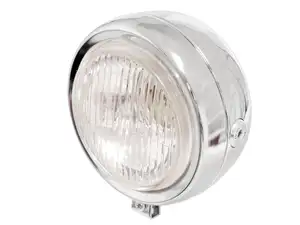

Spotlight round Ø 13 cm chrome
Width: 135 mm · Test mark: none · Depth: 80 mm · Bulb holder: BA15d · Surface: chrome-plated · Switch included: No · Housing material: Sheet metal (steel) · Tension: 6 V · Tension: 12 V · Thread size: M6 · Lens material: Plastic · Ø outside: 130 mm · Color: Chrome · Color: transparent · Height: 146 mm · Speedometer recording: None · Ø External connection: 12 mm · Battery operated: No · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Standard
EUR 30.70
Hot

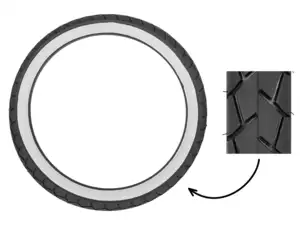

Mitas 2.25 x 17" tires MC11 Semi-Slick Whitewall
