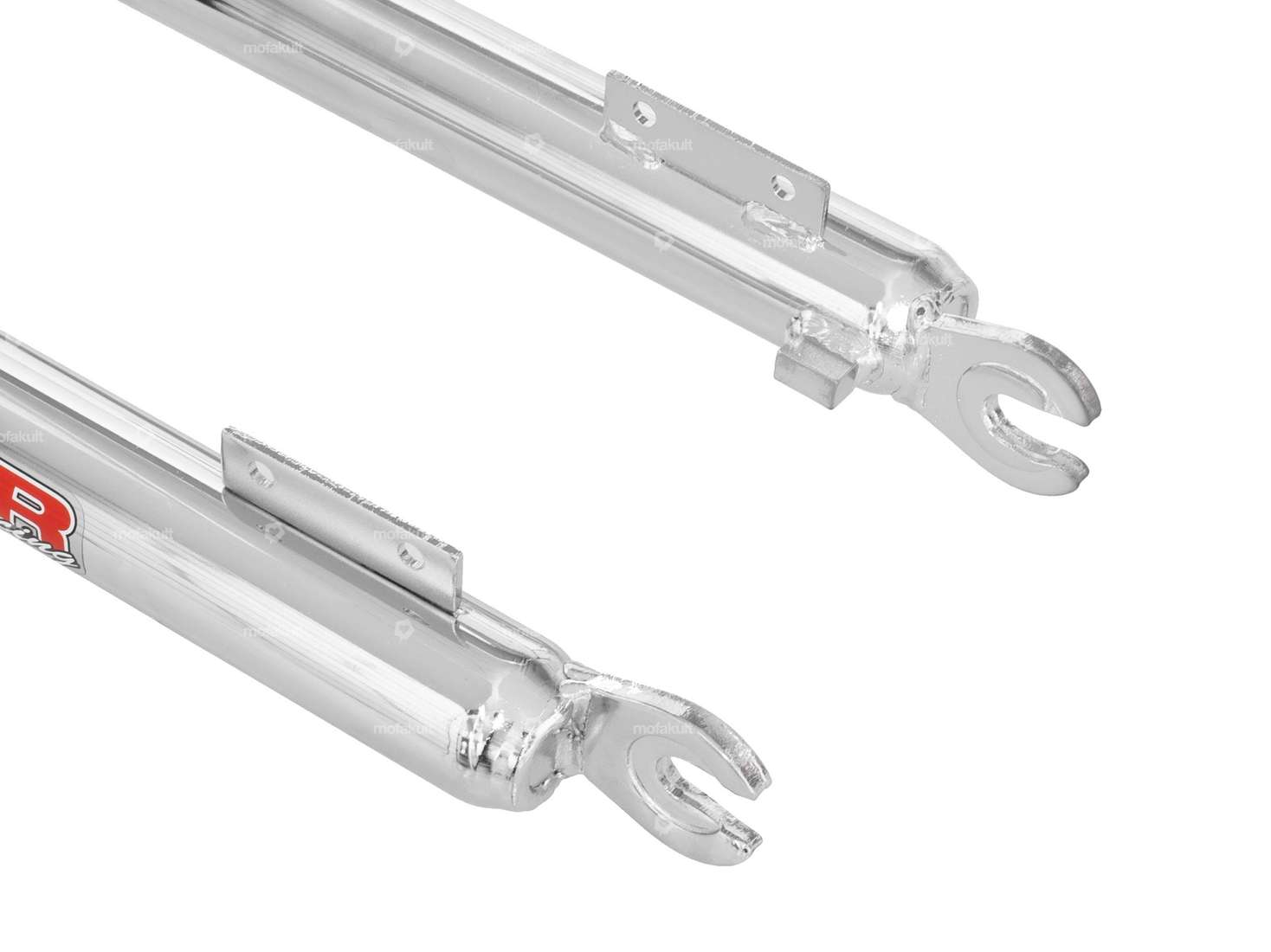

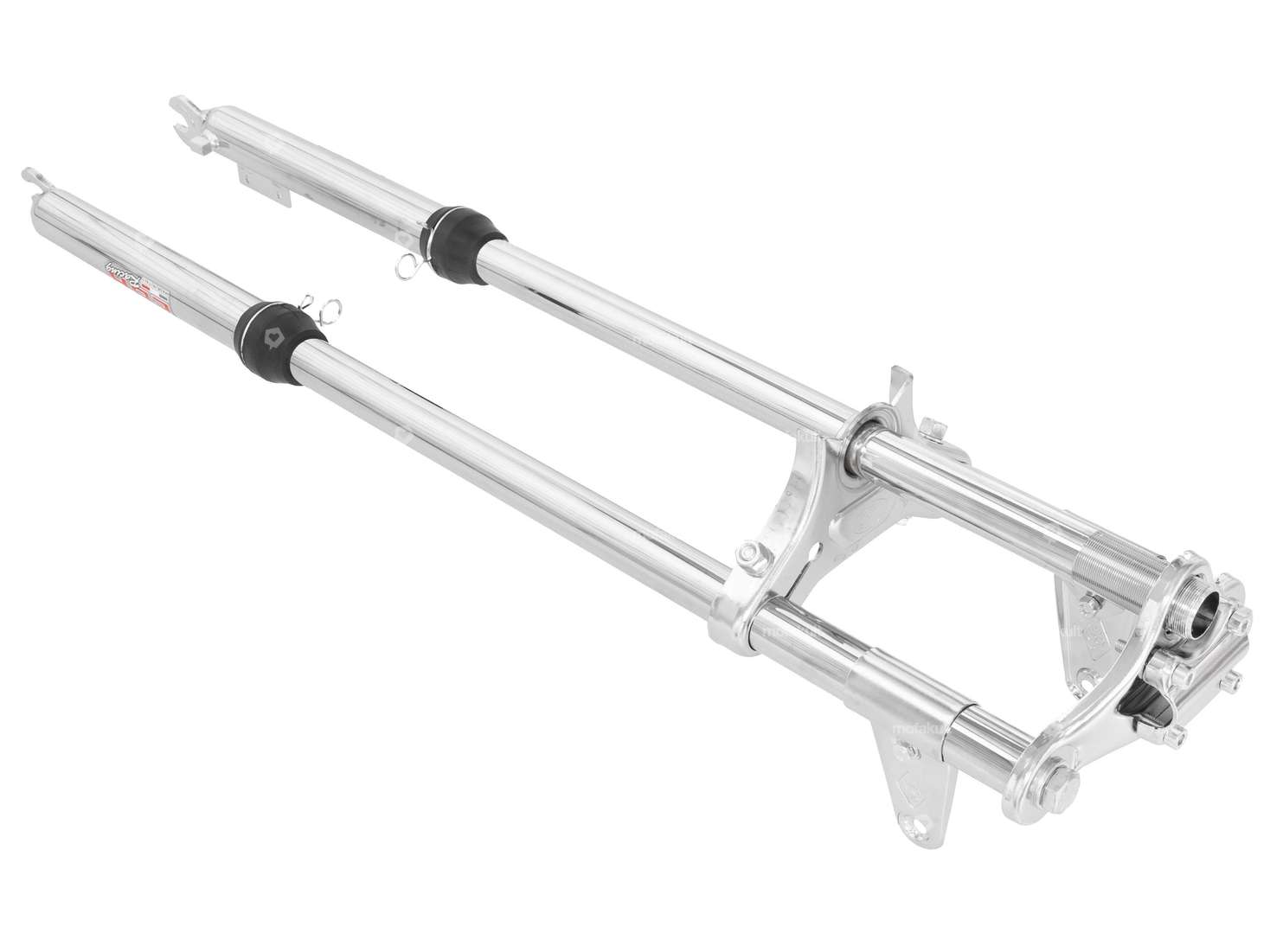

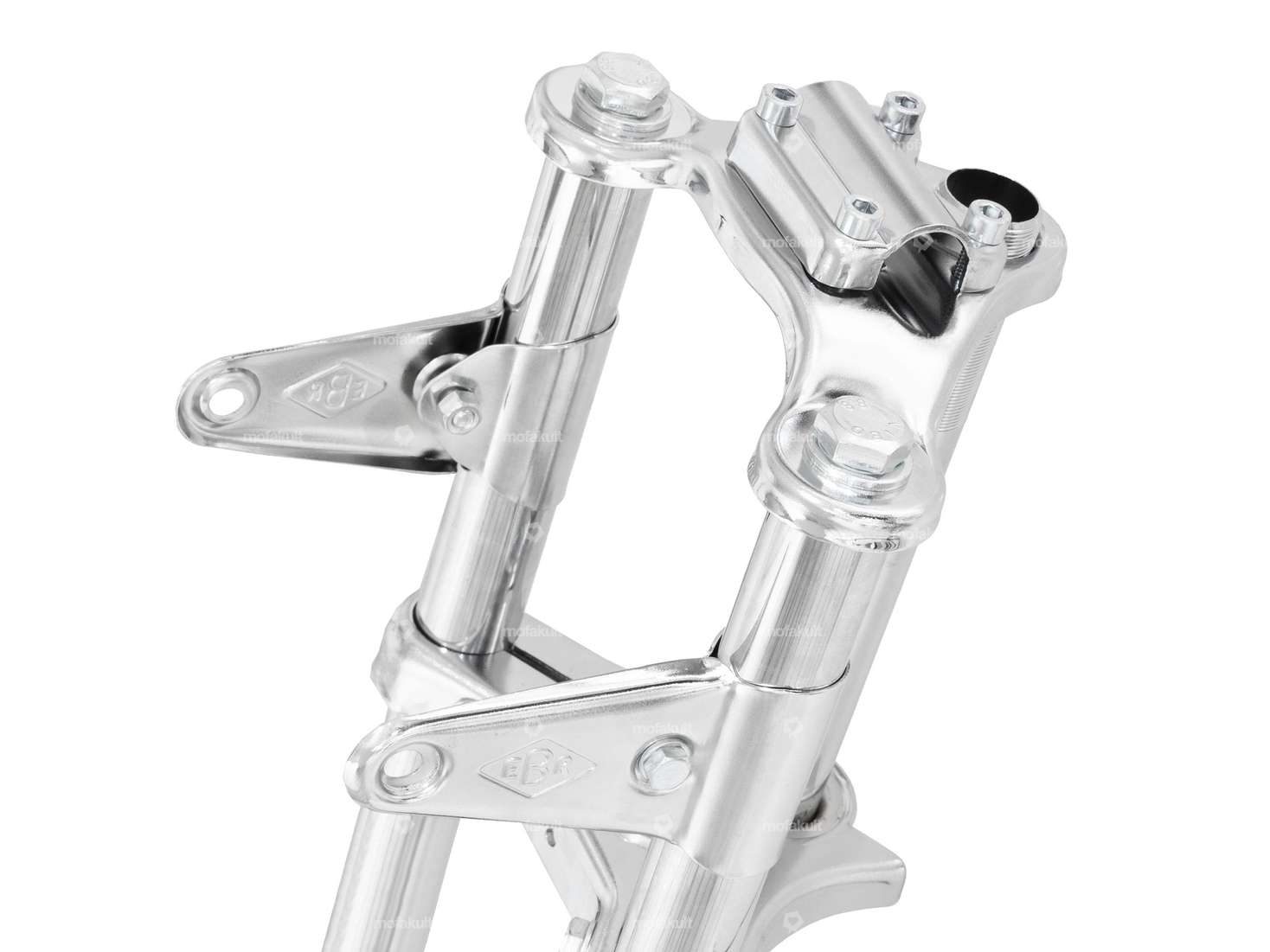

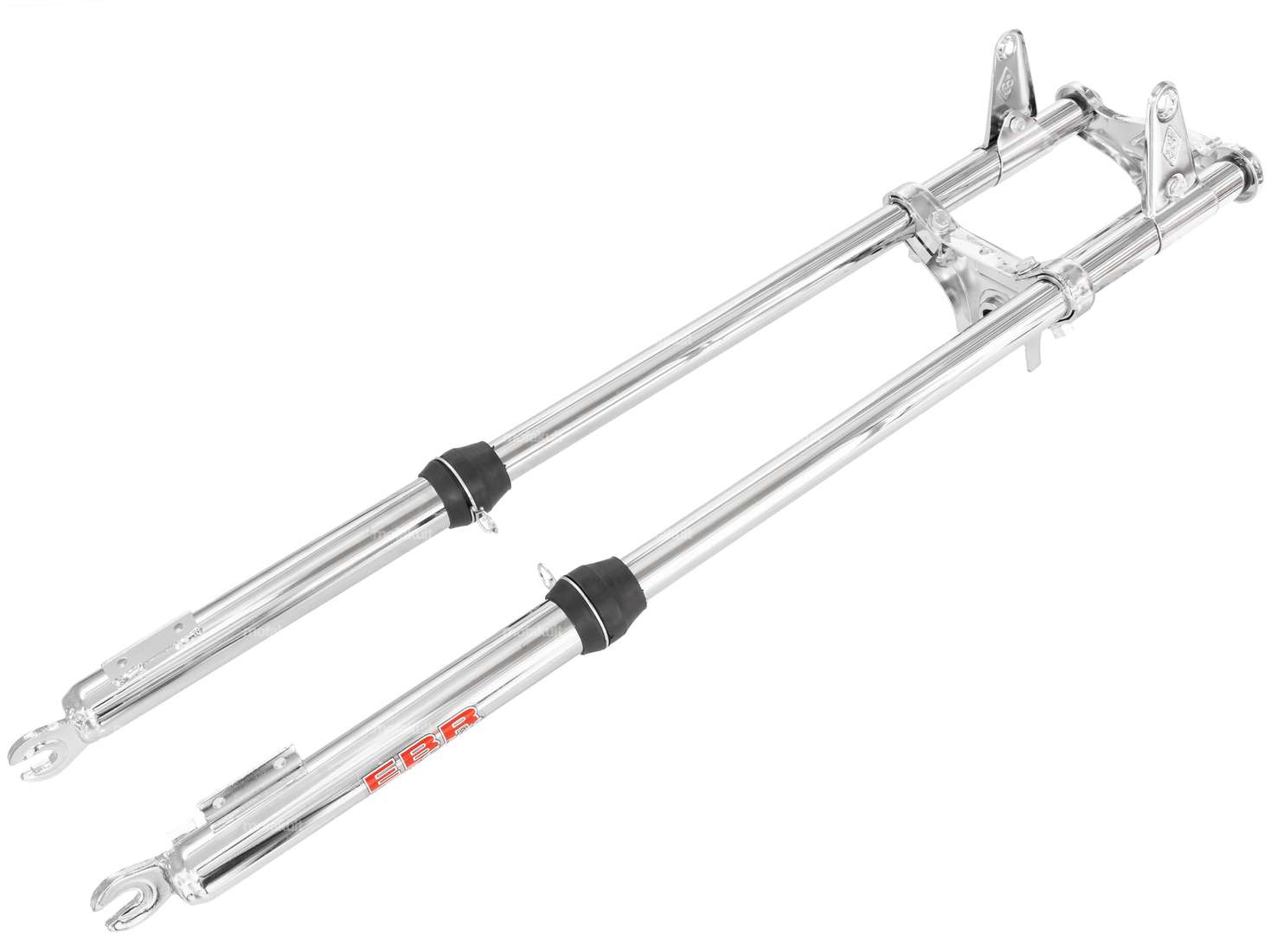

Chrome-plated chopper fork suitable for various Puch mopeds.
The fork is 18 cm longer than the original EBR fork.
Strengthened stanchions have been installed to ensure stabilization of the greatly elongated fork.
If you want to be on the safe side, you can find appropriate stabilizers in the accessories.
Ø stanchion: 28 mm
Head tube length: 180 mm
Ø inner head tube: 22.3 mm (for stem mounting)
Total length: 860 mm
Thread: M26 x 1 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Thread type | MF26x1 (fine pitch thread) |
| Spar end distance (center-center) | 138 mm |
| Total length | 870 mm |
| Ø outer head tube | 26 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22.3 mm |
| Adjustable | No |
| Head tube length | 180 mm |
| Thread length | 57 mm |
| Fork bridge - center wheel axle | 642 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
| Puch |
