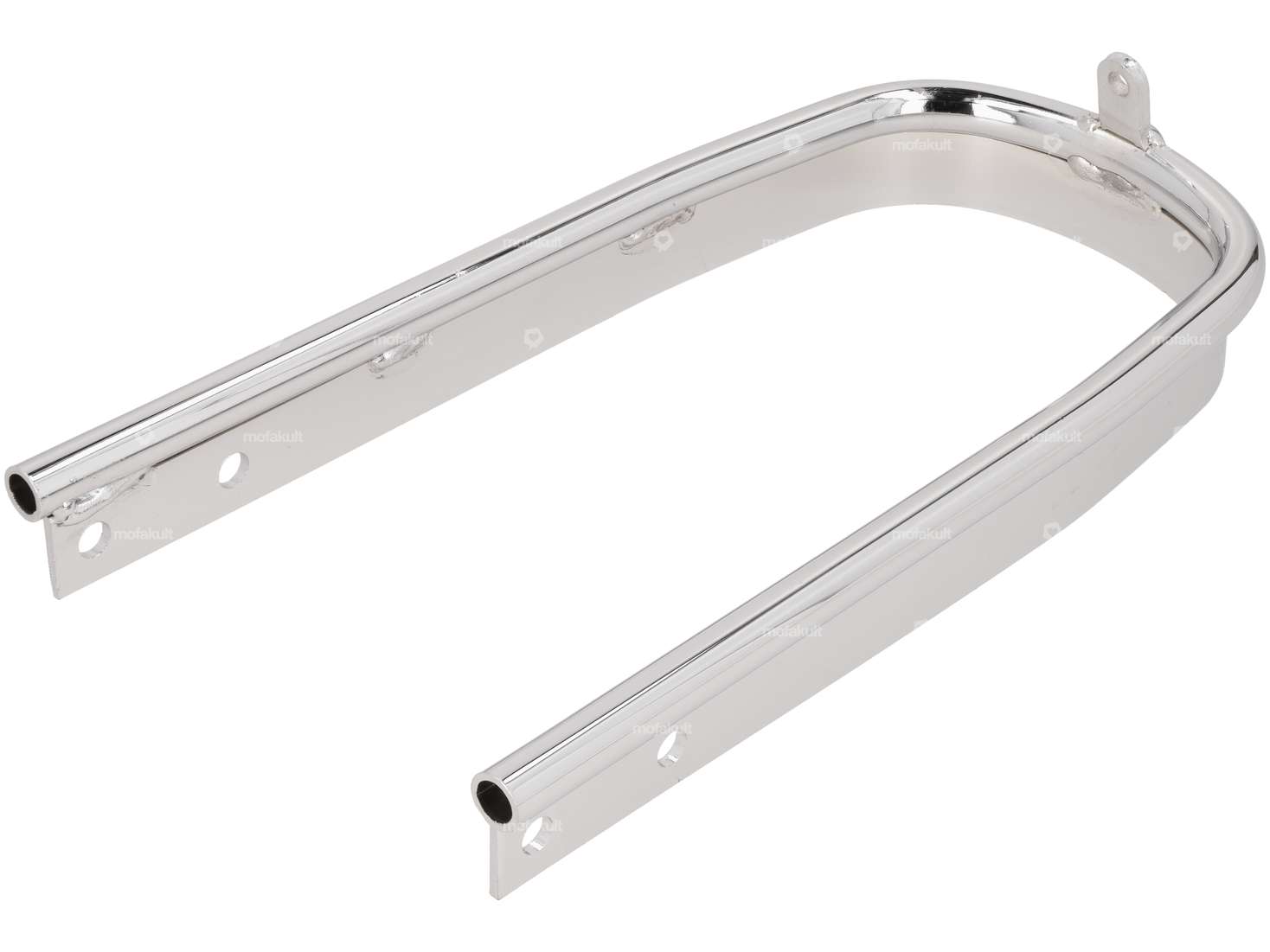

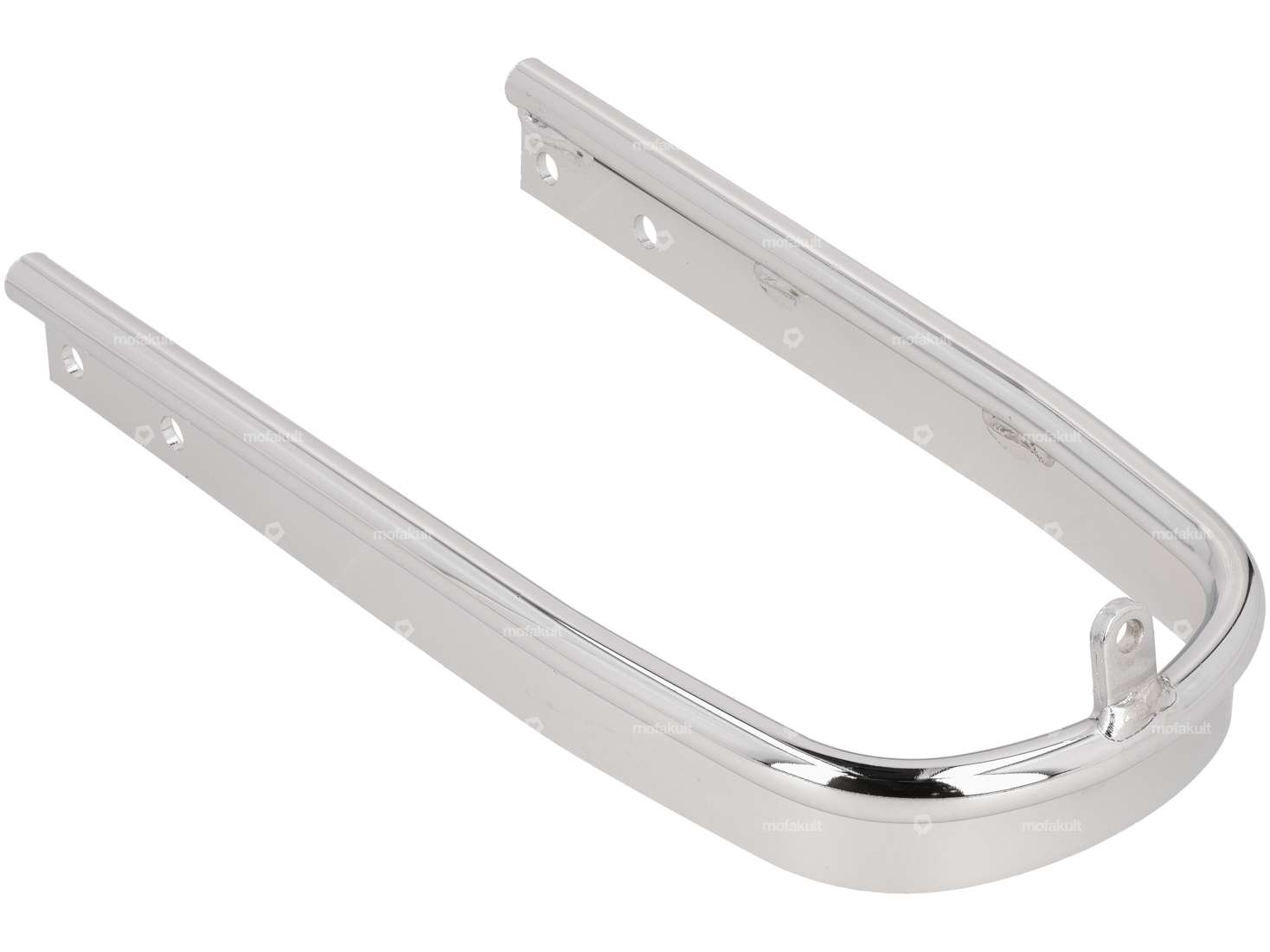

Massive, chrome-plated tube bend for attaching the front fender.
Also increases the stability of the fork.
Fits all reinforced EBR forks with the tabs towards the front.
Total height of arch: 263 mm
Width (outer edges of flat bar): 136 mm
Hole spacing of side holes: 36 mm
Hole diameter: 7.2 mm
Distance from upper hole of flat bar to lower edge of mudguard mount: 212 mm
Figure 5 is for illustration purposes only.
Branded product of the Italian manufacturer EBR.
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Manufacturer | EWC |
| Mounting type | Nuts & bolts |
| Number of fixing points | 5 pcs |
| Hole spacing | 36 mm |
| Ø mounting hole | 7.2 mm |
| Distance mudguard - center hole | 212 mm |
| Total length | 263 mm |
| Wide intake | 136 mm |
| Puch | |
| Sachs | |
| Zündapp Belmondo |
Moped fans also bought
Karcoma fuel tap M12x1 vertical (with union nut) 2 connections
Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut
EUR 29.40
Magura cable clamp Ø 8 x 15 mm
Ø Cable bushing: 2.3 mm · Manufacturer: Magura · Thread length: 7 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Drive: External hexagon · Drive: Slot · Ø Bundle: 6 mm · Screw head: Hexagon · Ø outside: 8 mm · Total length: 15 mm · Area of application: Standard · Width across flats SW: 7 mm
EUR 2.95
Hot
Wippermann drive chain No.18 (double reinforced)
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Surface: blank / oiled · Color: gray · Manufacturer: Wippermann · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Ø bore: 4.2 mm · Ø Pin: 4.15 mm
EUR 40.10

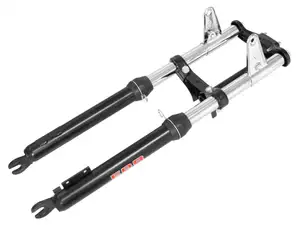

EBR fork reinforced black | Puch
