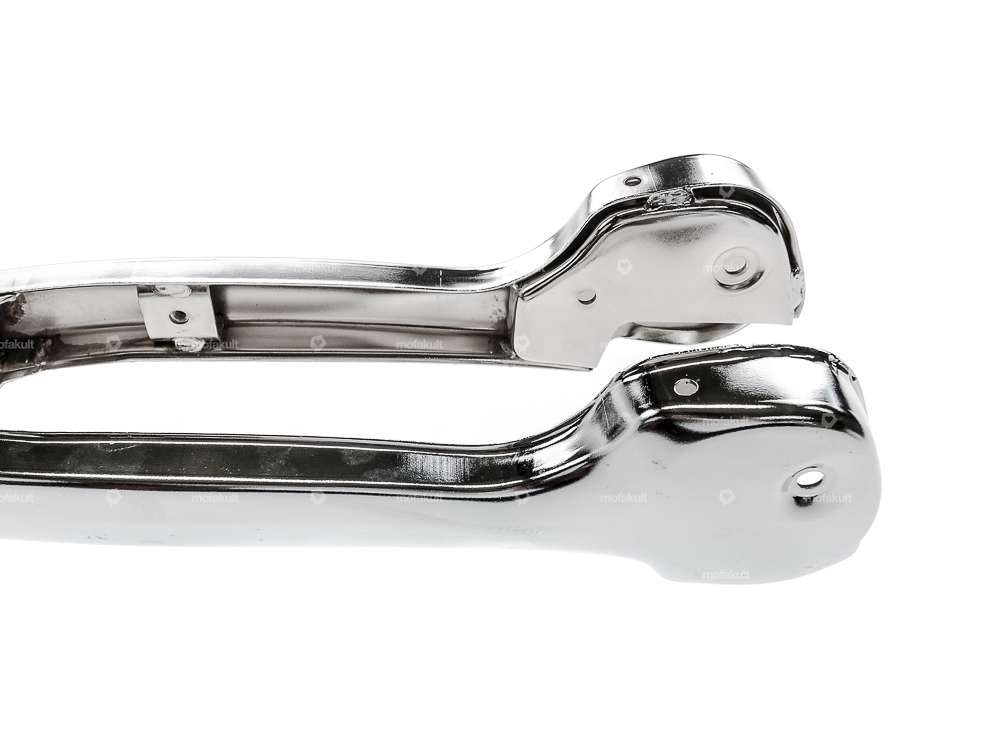

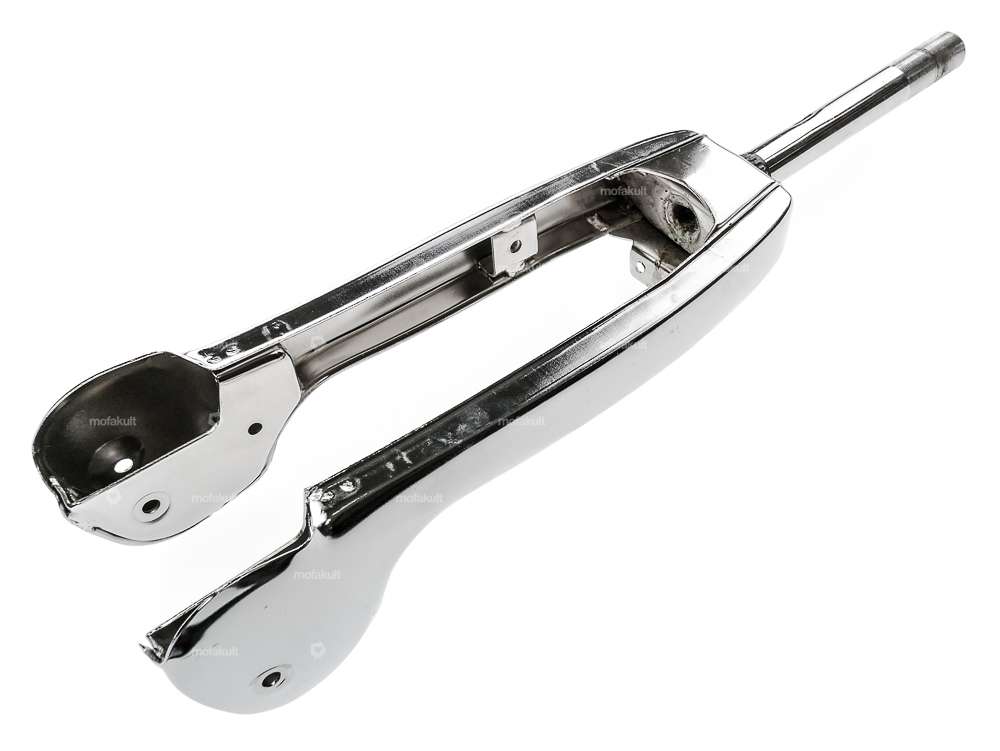

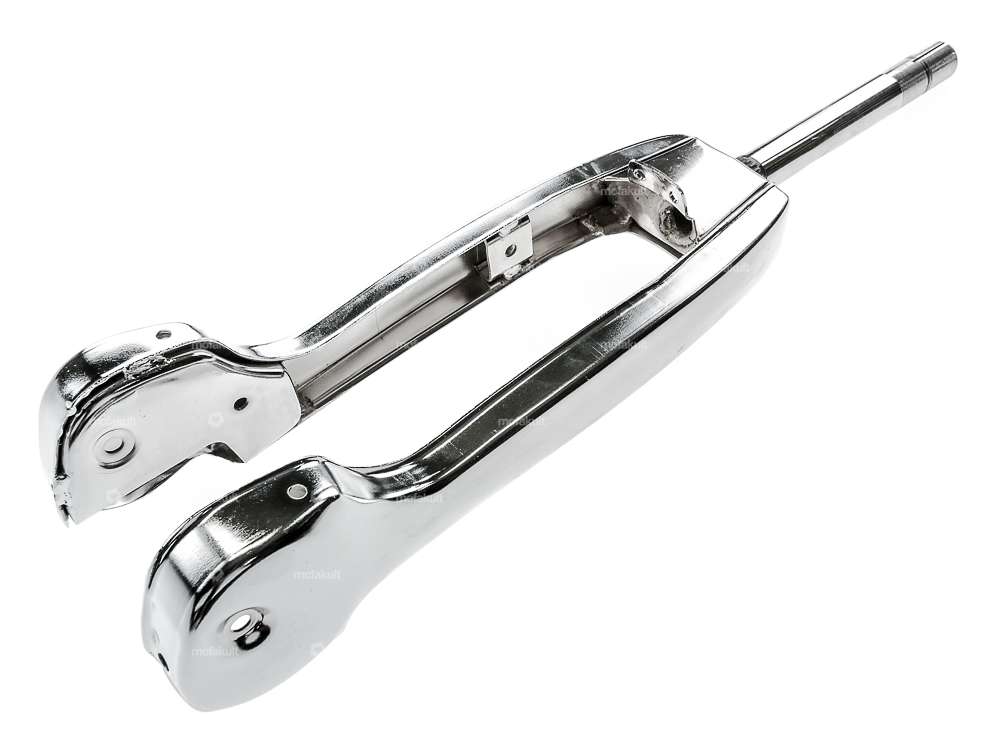

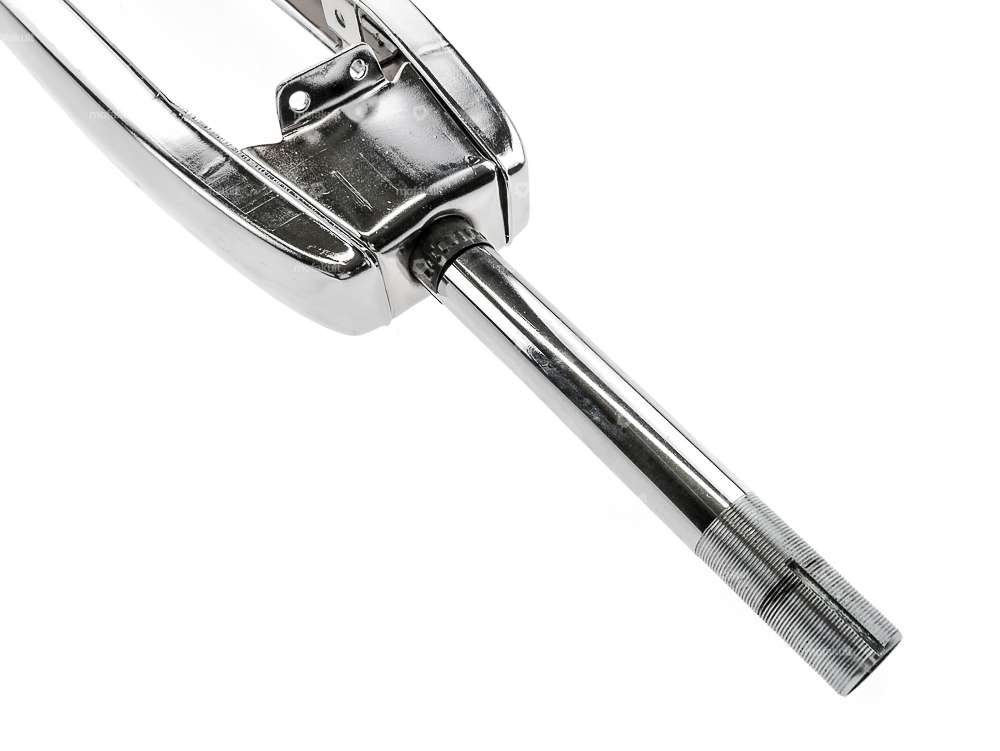

Chrome-plated fork for Piaggio Ciao mopeds / mopeds.
Same as the original fork.
Total length: 580 mm
Fork width - center wheel axle: 355 mm
Head tube length: 200 mm
Ø inner steerer tube (for stems and handlebars): 21 mm
Supplied without swing arms.
These can be found along with other parts in the accessories
Original Piaggio spare part number: 814227, 104145, 175853
Branded product of the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Thread type | FG25.4 (1" 24G) |
| Color | Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 106 mm |
| Ø outer head tube | 25.4 mm |
| Ø head tube inside | 21.5 mm |
| Total length | 585 mm |
| Head tube length | 195 mm |
| Fork bridge - center wheel axle | 325 mm |
| Thread length | 58 mm |
| Piaggio | Ciao - P, SC, PX, C24 |
