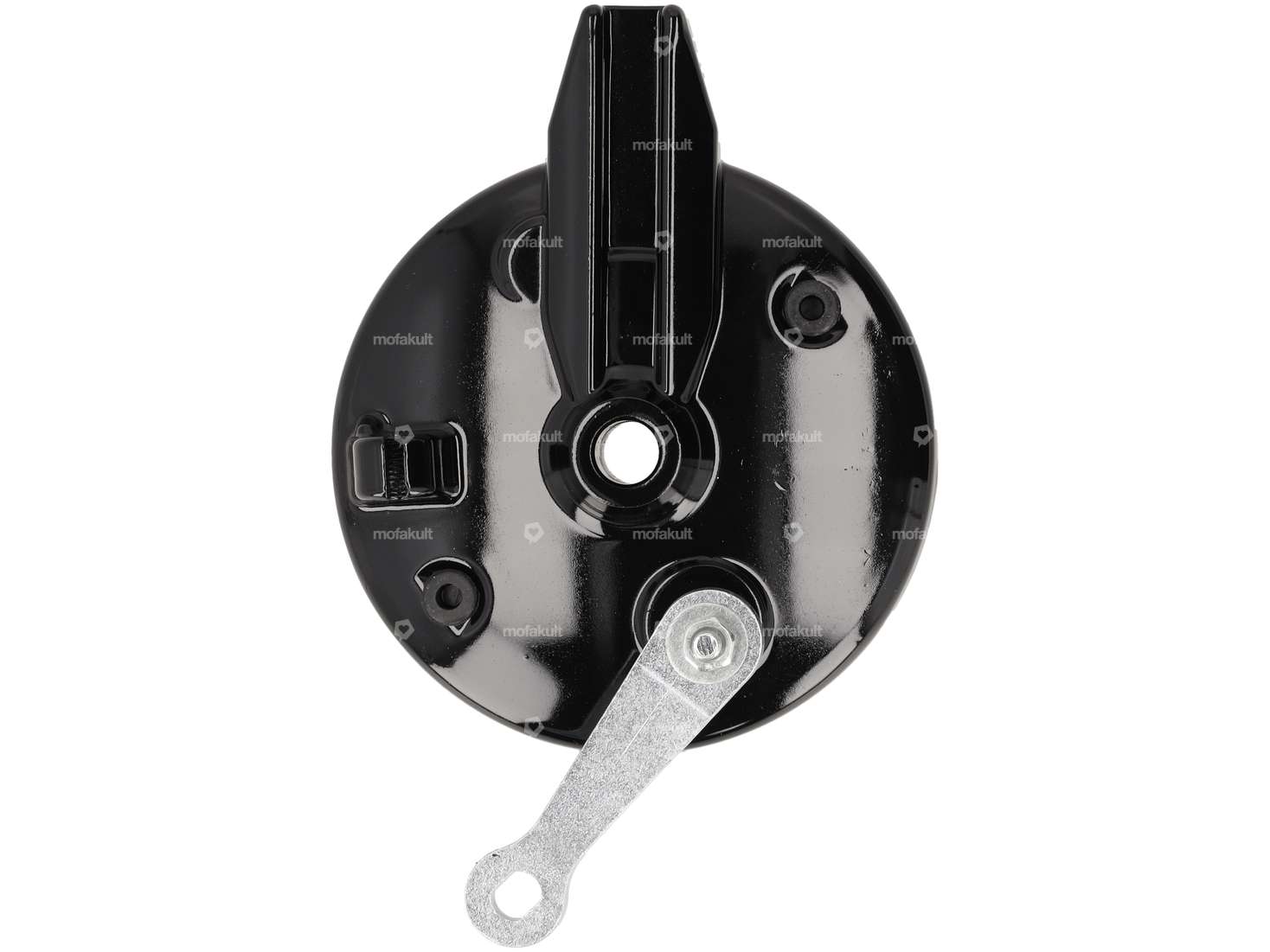

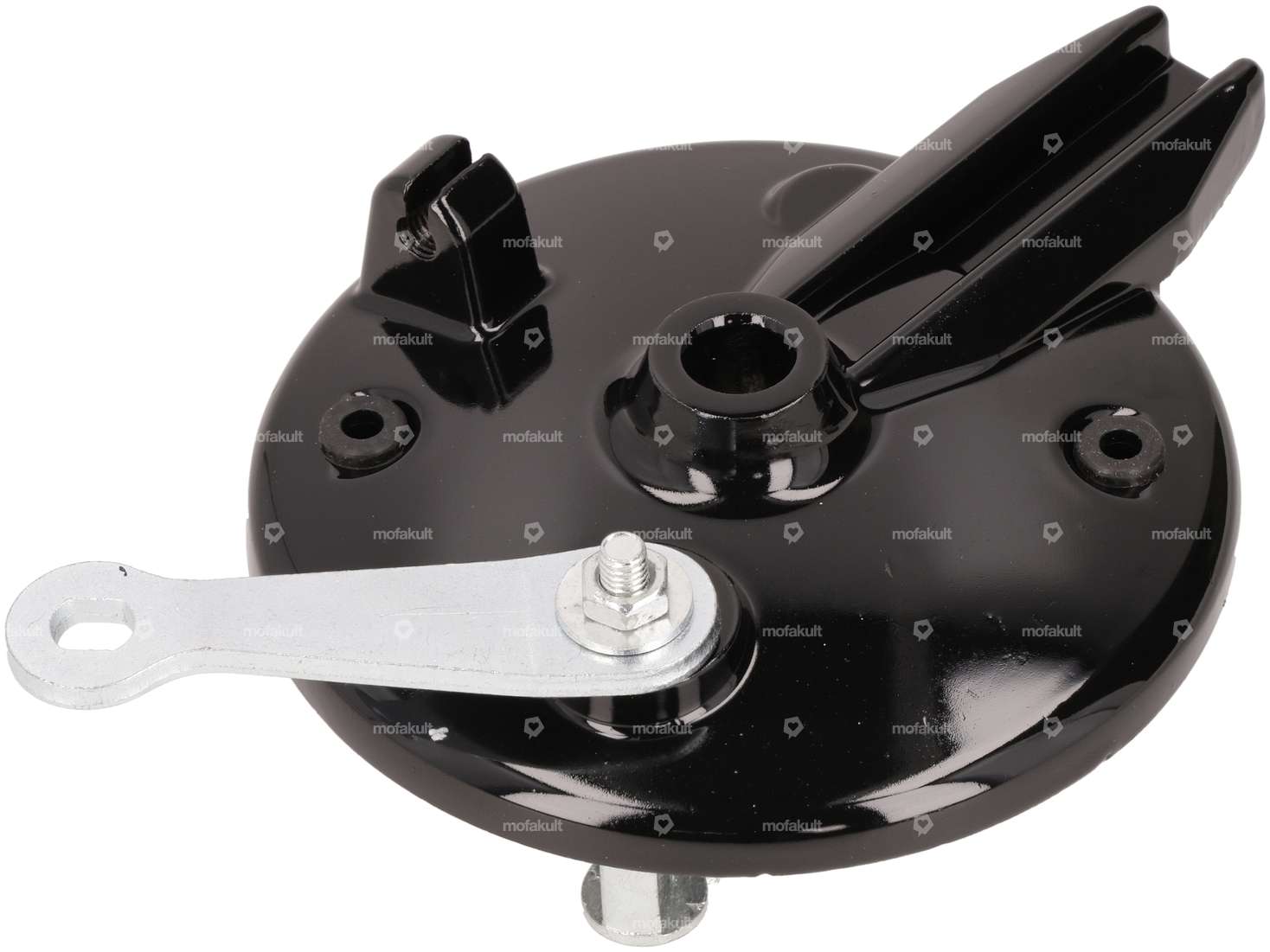

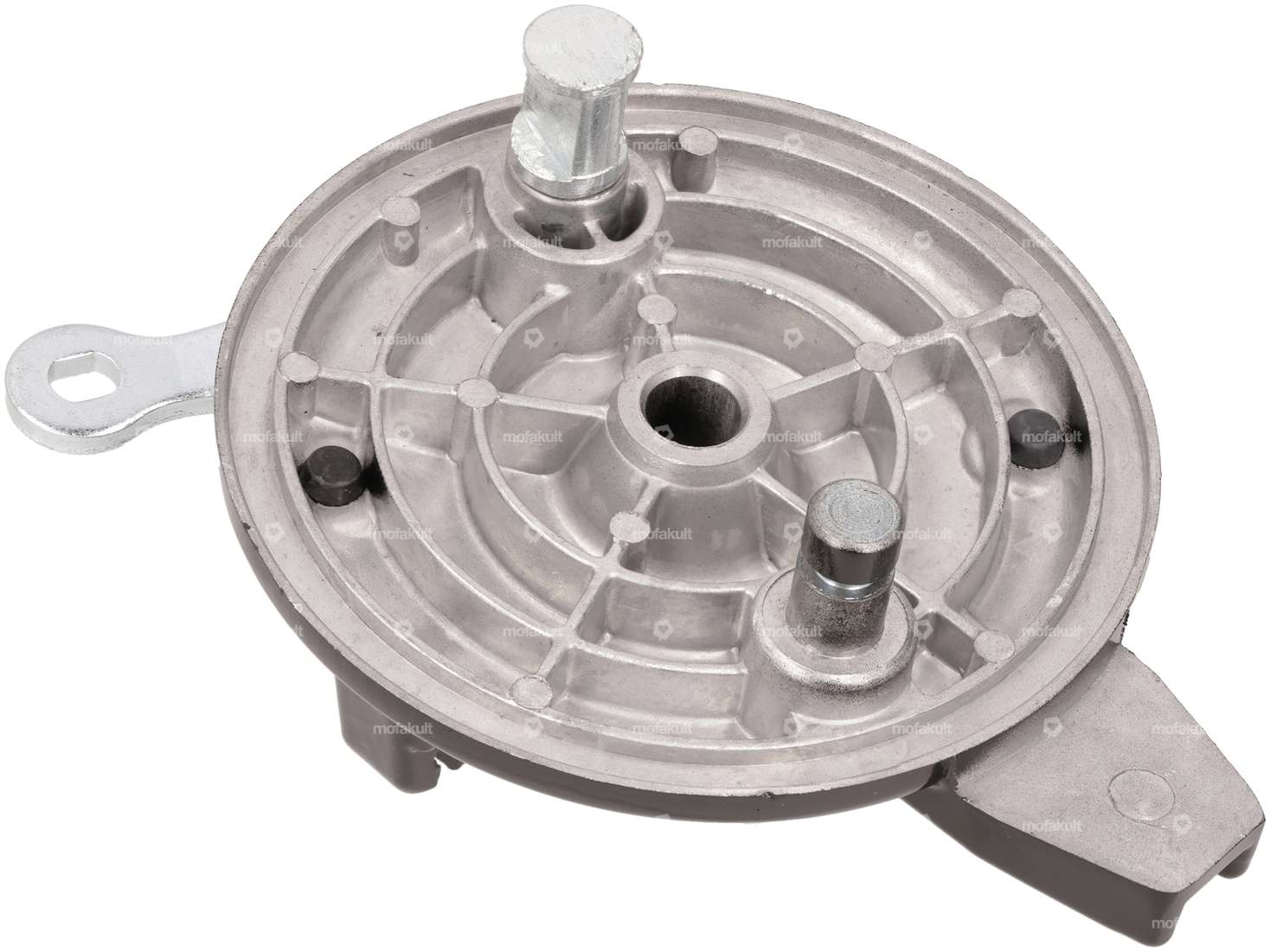

Brake anchor plate for the front and rear wheels, compatible with various Tomos mopeds.
The brake plate fits, among others, the Sprint Sport, Classic XL, Fun Sport R, Quadro, Flexer / Flexer XL, Standard, Luxe, Taxxity, Classic, Pack'R, Roadie, and A35.
Note: 105 mm brake pads, cable clamp, and cable adjustment screw are not included.
You can find compatible 105 mm brake pads and the cable clamp in the accessories section.
Original Tomos part numbers: 230979, 233196
| Material | Aluminum |
| Ø drum | 105 mm |
| Surface | varnished |
| Ø outside | 120 mm |
| Ø External brake pads | 105 mm |
| Ø axle | 12.3 mm |
| Brake lever length (lever length) | 81 mm |
| Tomos OEM number | 233196, 230979 |
| Tomos | Classic Quadro Sprint Fun Sport'R Roadie A35 |
