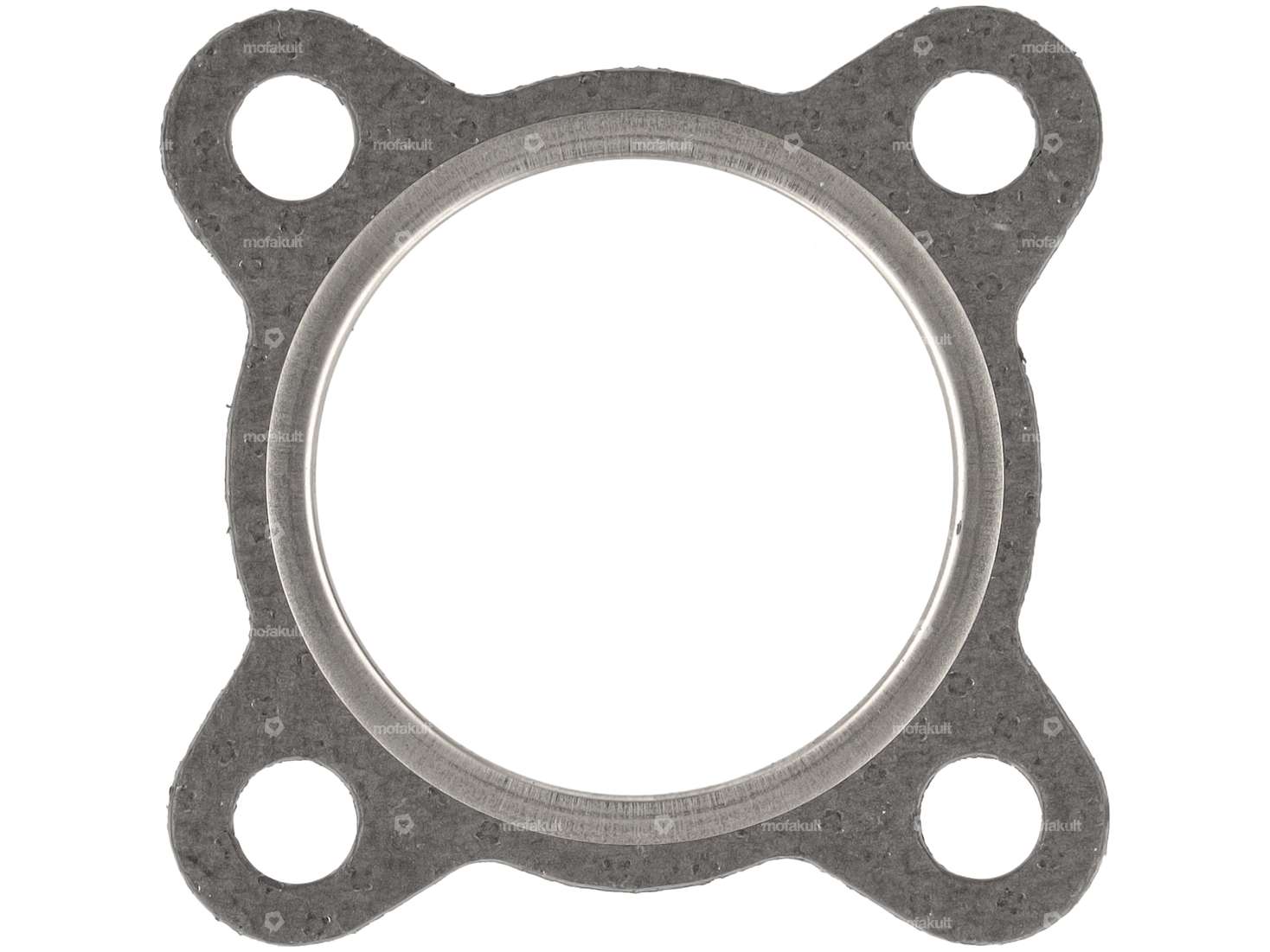

Head gasket for cylinder covers with 38 - 41 mm combustion chamber diameter and 44 x 44 mm stud bolt spacing for Puch Maxi S / N, Puch Supermaxi LG1 / LG2, Puch X30 Sport NS / NL, Puch X30 NG-2AH, Puch X30 N-2AH, Puch X30 Velux, Tomos Classic / Sprint / Quadro, etc. Mopeds / mopeds.
The cylinder cover gasket is made of special, heat-resistant material and has a 1.3 mm thick aluminium ring for stabilization.
Ø inner: 41.3 mm
Ø stud bolt length: 7.9 mm
Hole pattern: 44 x 44 mm
Material thickness: 1.2 mm
| Ø cylinder | 38 - 41 mm |
| Reinforced | Yes |
| Nominal diameter | 38 mm |
| Ø outlet inside | 41.3 mm |
| Thickness | 1.2 mm |
| Ø screw holder | 7.9 mm |
| Place of use | Cylinder head |
| Hole pattern [mm] | 44 x 44 |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Tomos |
Ratings
Accessories & related products
swiing® revival stud bolt set M6 x 106 | Puch
Drive: External hexagon · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Total length: 106 mm · Width across flats: 10 mm · Thread type: M6x1 (standard thread) · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 8.80
Loctite 270 High-strength threadlocker 10 ml
Temperature resistance (min.): -55 - 180 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Type of application: 1K · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Color: green · Signal word: Attention · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Adhesion: high-strength · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 5 N/m · Breakaway torque (according to material): 31 N/m · Breakaway torque (according to material): 33 N/m
EUR 26.10
EUR 2’610.00/l
Moped fans also bought
- 20 %
Hot
Motorex Automatic Motor Oil (ATF) 450 ml
Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002
EUR 11.80
EUR 9.40
EUR 20.89/l

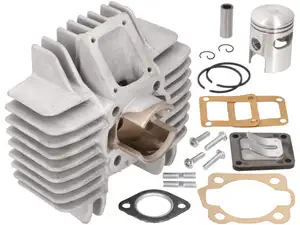

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35
