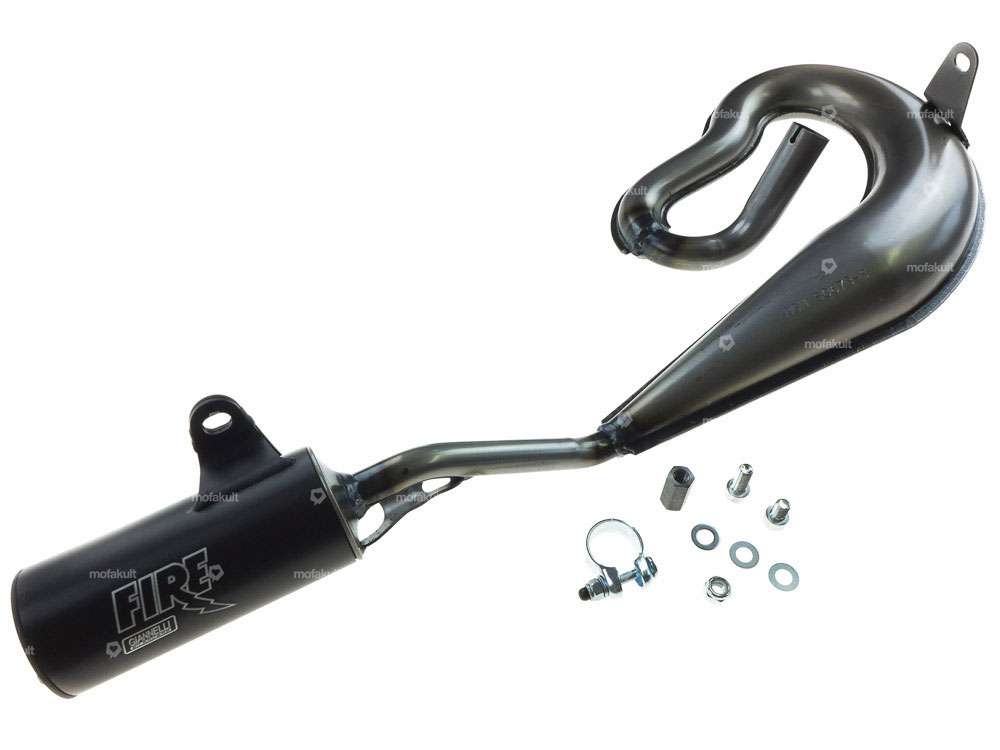

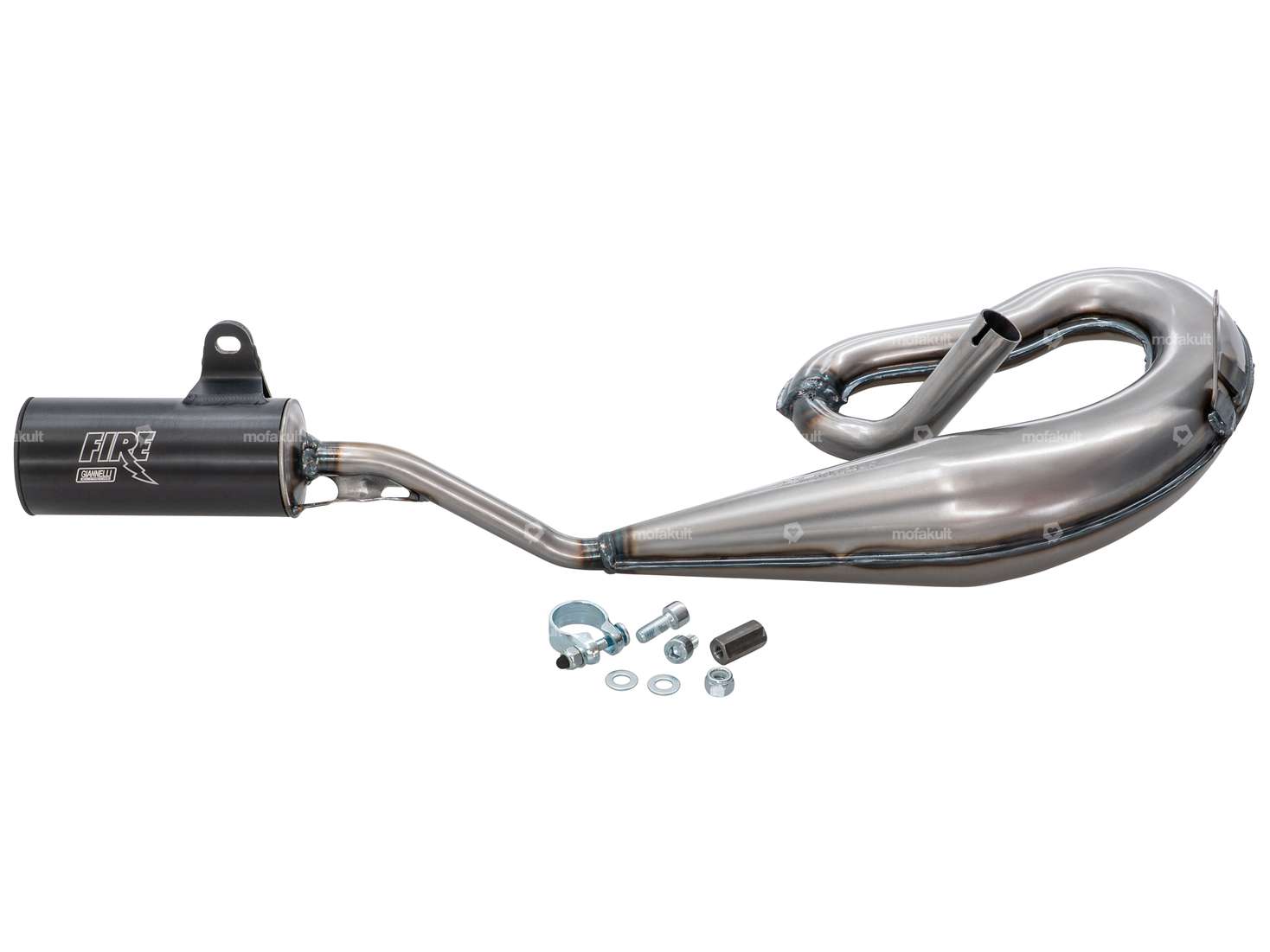

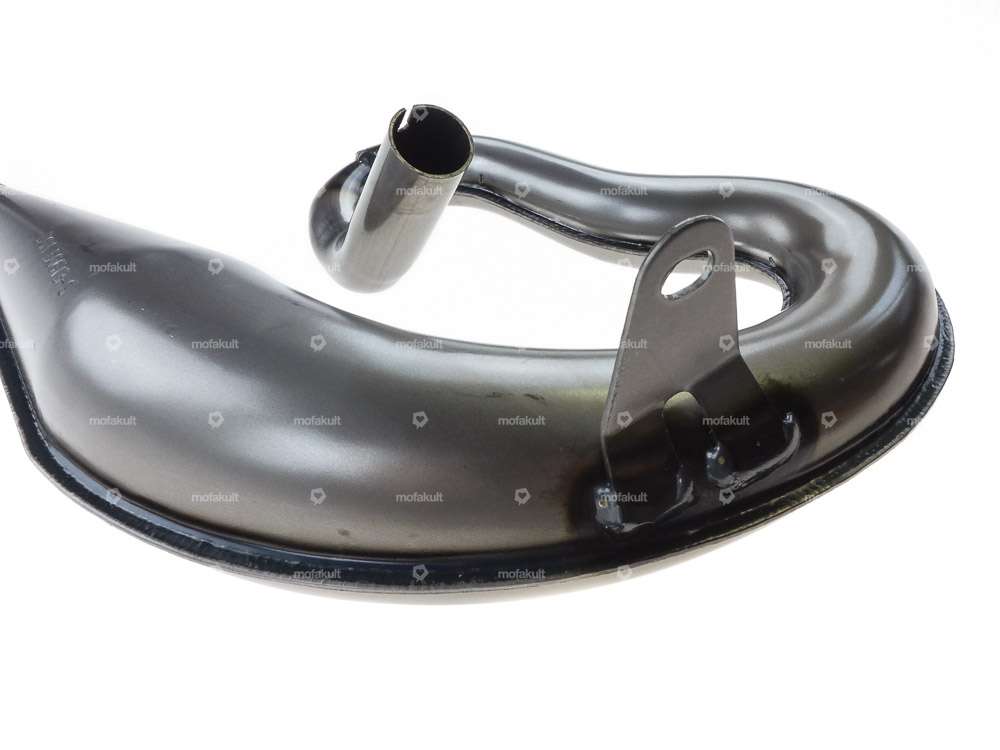

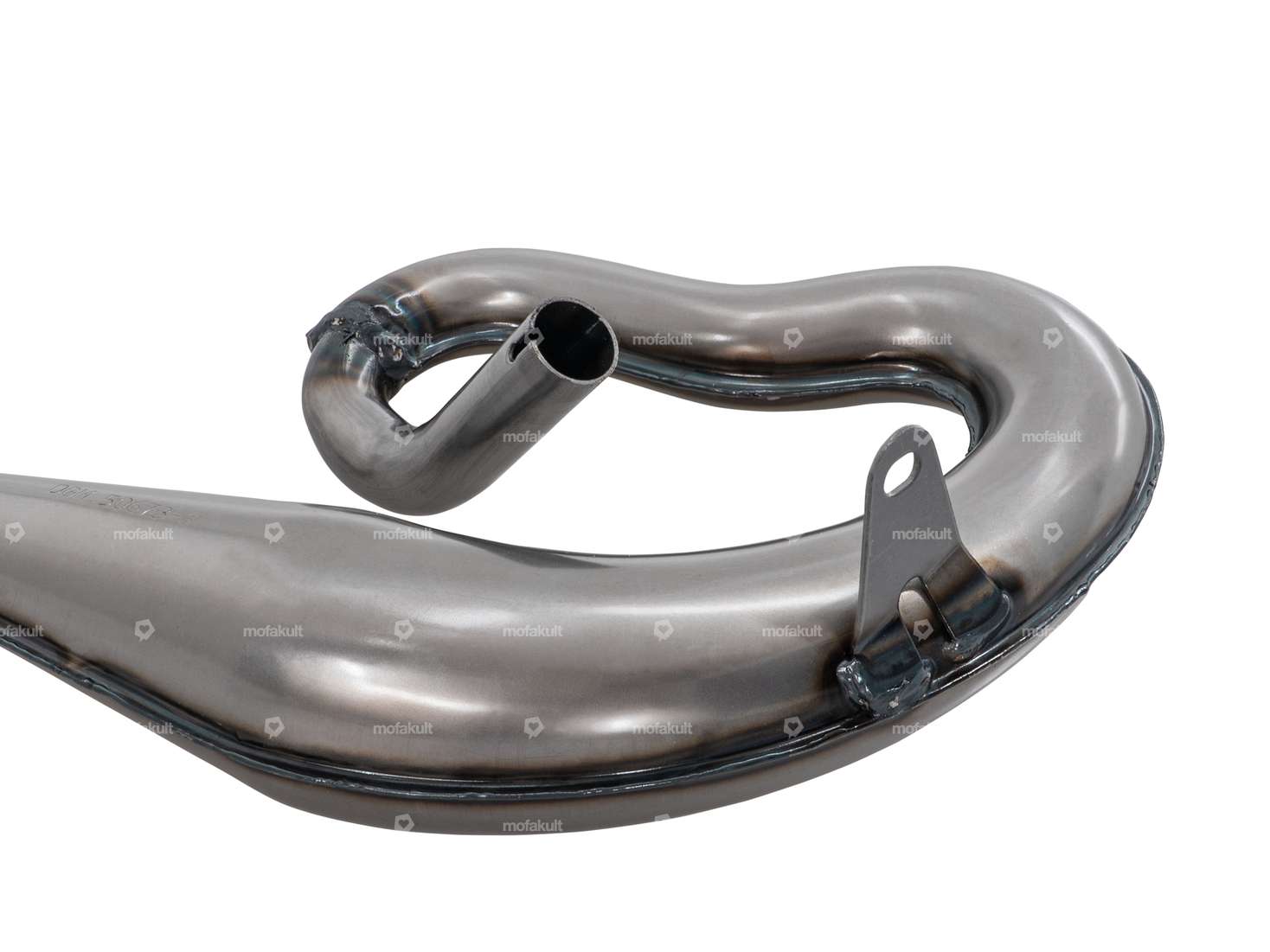

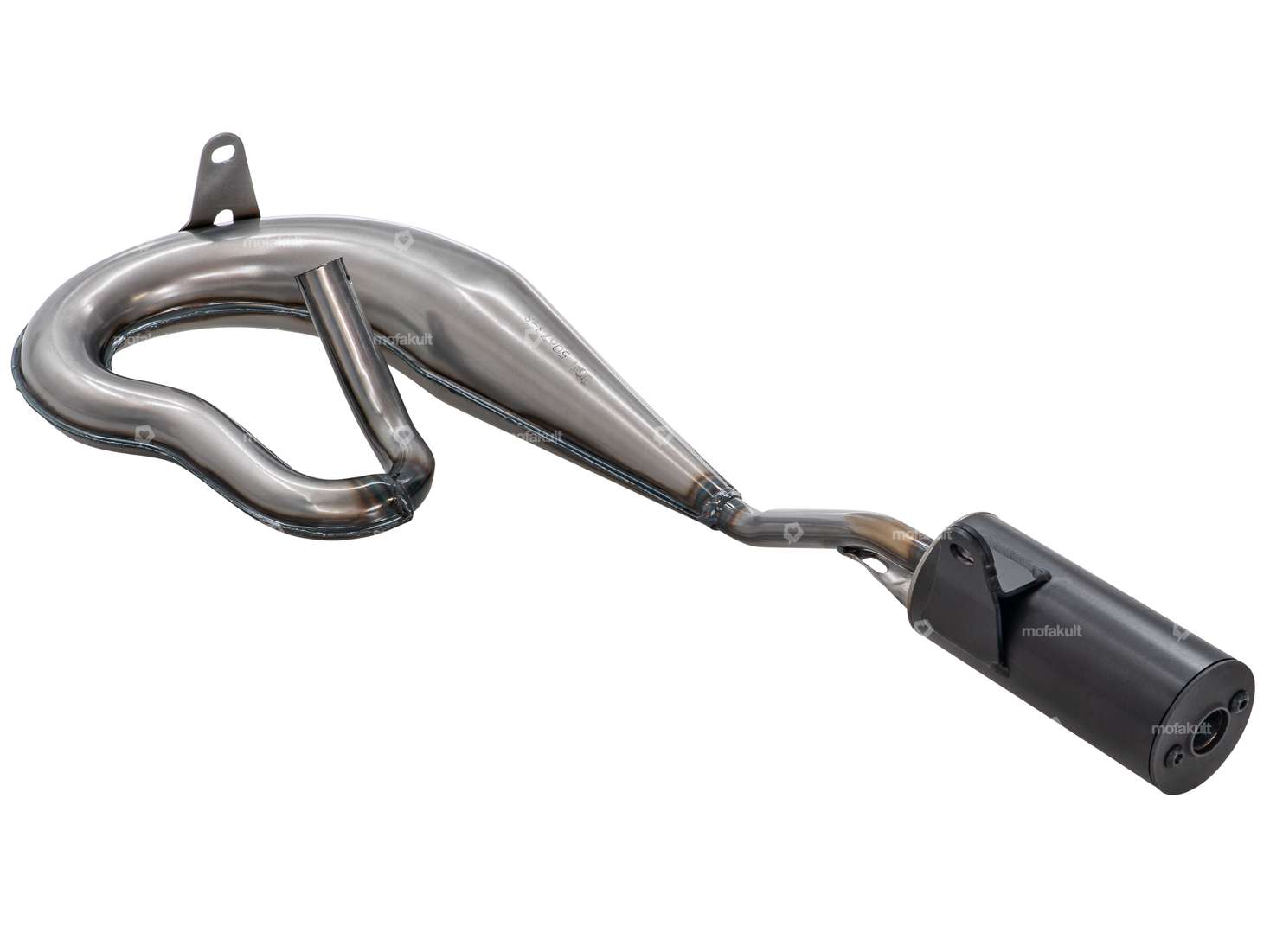

Racing exhaust from Gianelli in snail muffler design suitable for Piaggio Ciao.

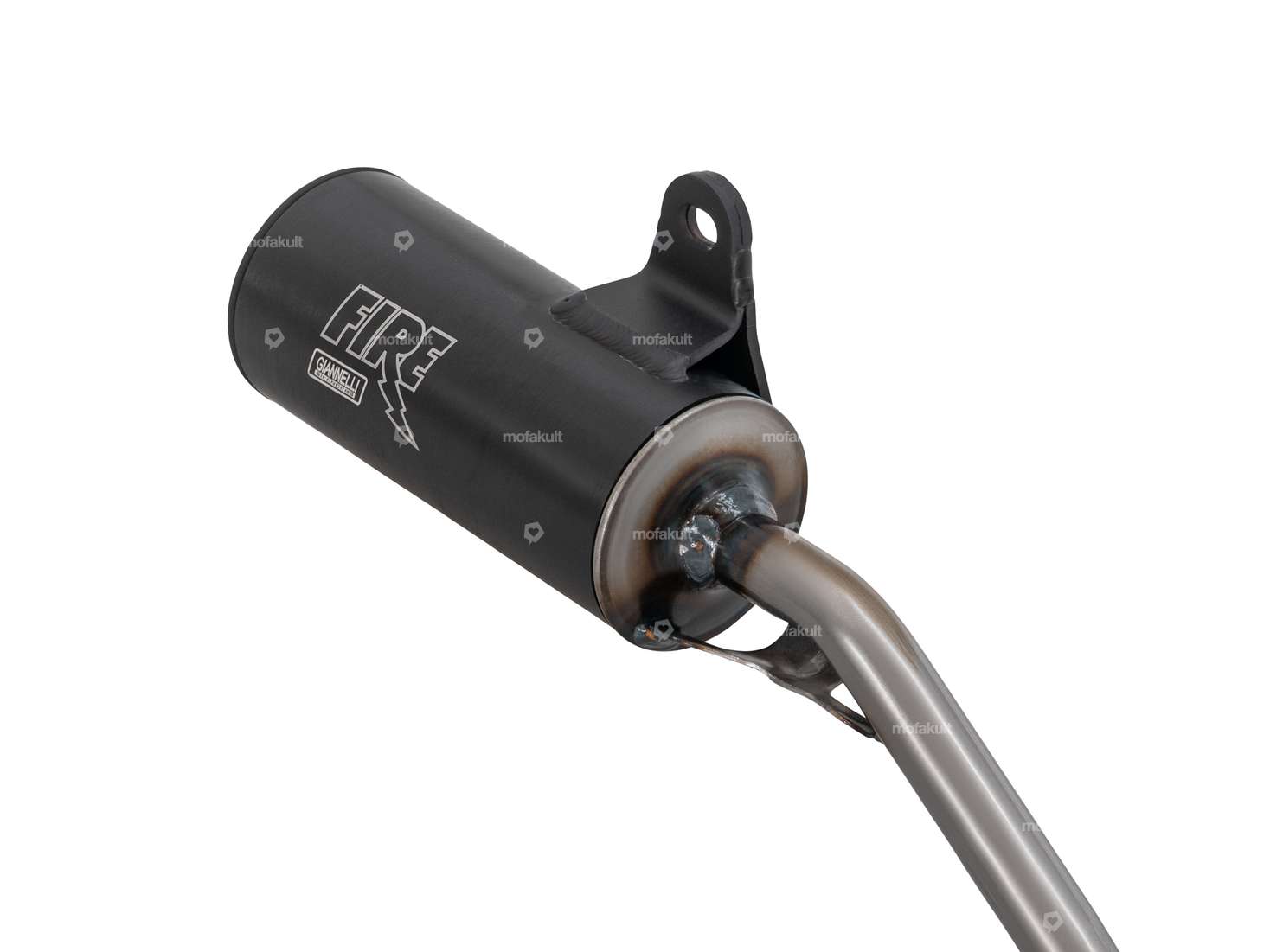

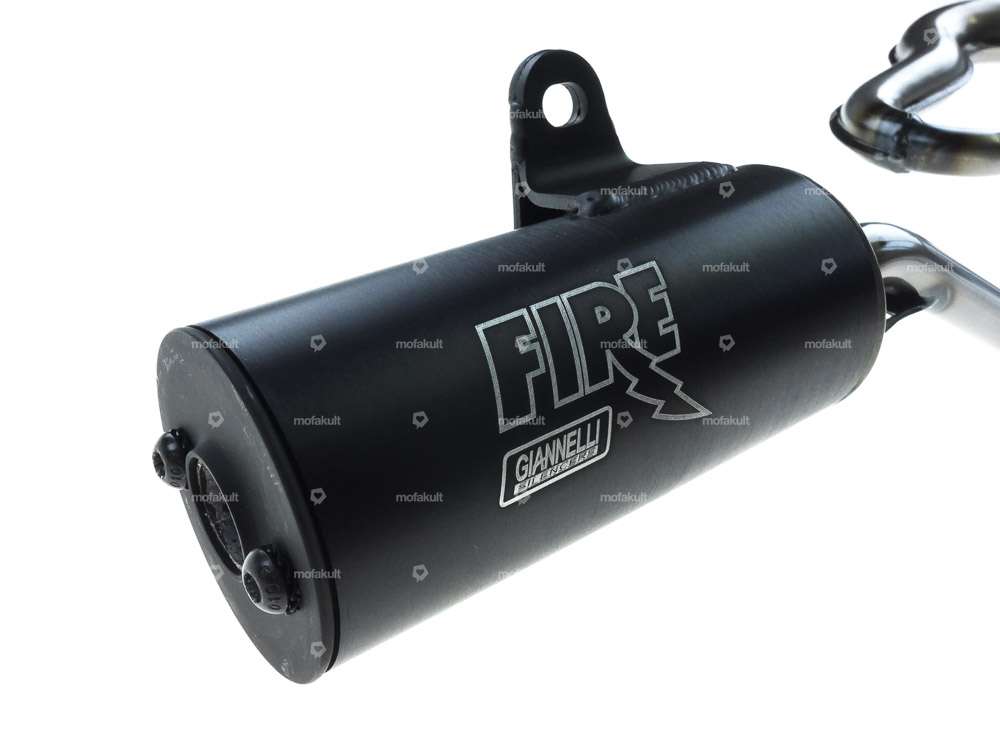

Optically a very nice exhaust with black anodized tailpipe.
This racing silencer offers an enormous increase in performance, especially in the medium speed range.
Connection diameter: 22 mm
Outer diameter: 25 mm

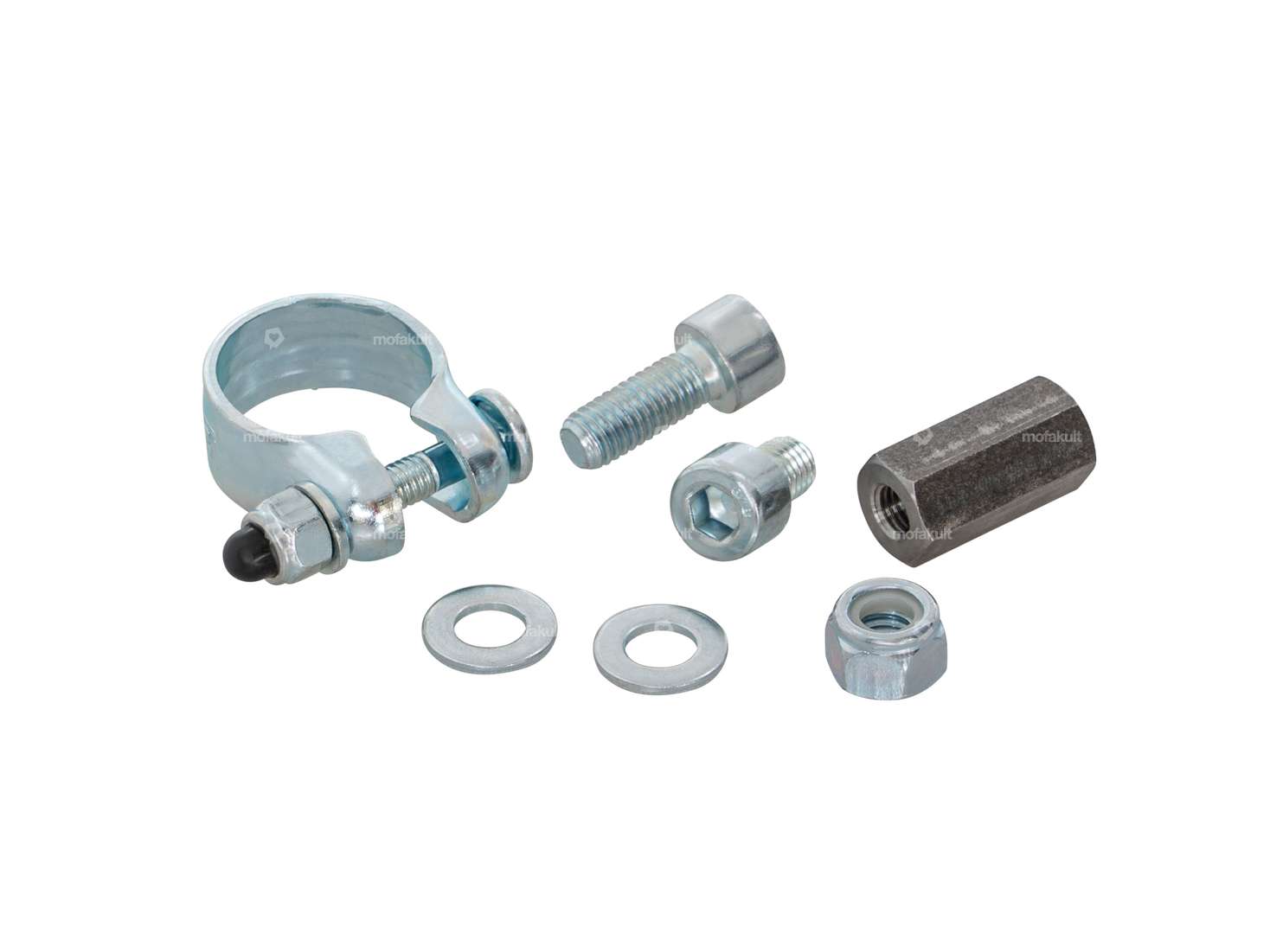

The small parts shown in the first picture are included in the scope of delivery.
Branded product from the Italian manufacturer Giannelli.
Details
| Total length | 630 mm |
| Manufacturer | Giannelli |
| Surface | blank, burnished |
| Material | Steel |
| Color | silver, black-matt |
| Ø outside | 77 mm |
| Ø Silencer | 60 mm |
| Ø Internal connection | 22.5 mm |
| Mounting type | Welded lug |
| Number of fixing points | 2 pcs |
| Ø Flame tube outside | 25 mm |
| Exhaust type | Snail |
| Flame tube attachment | Plug connection clamped |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 |
