47.0 mm replacement piston with a 2 mm rectangular piston ring and a 1.5 mm L-piston ring to fit the Gilardoni italkit cylinder for your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance: B

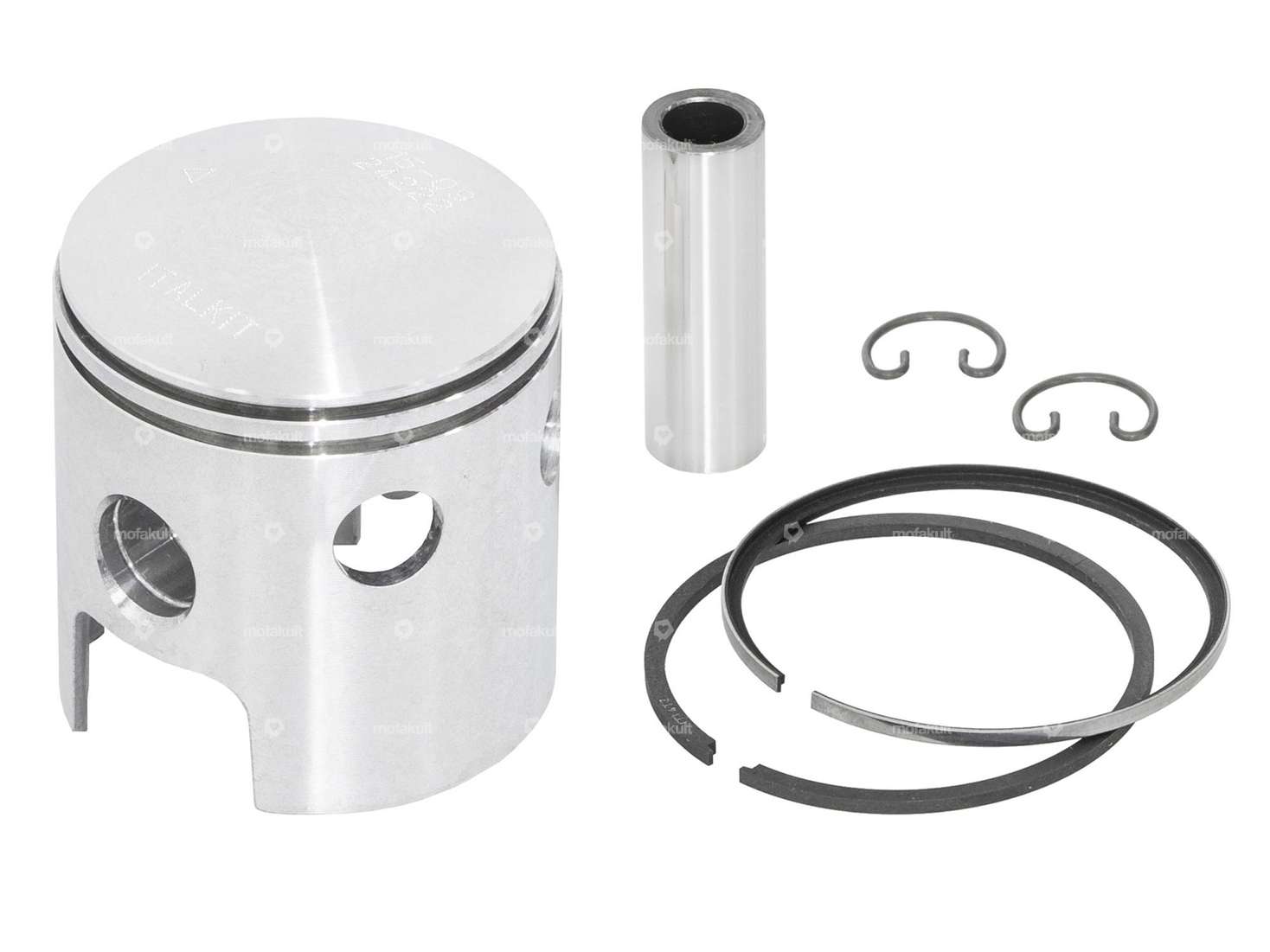

The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found in the accessories section.
Quality product from the Italian manufacturer Gilardoni under the italkit brand.
Details
| Manufacturer | Gilardoni italkit |
| Thick piston ring | 2 mm |
| Ø outside piston (A) | 46.97 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.2 mm |
| Total piston height (E) | 52.5 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 47 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Tolerance group | B |
| Piston weight | 100 g |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
