45.0 mm piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for your moped / moped with blown BAD ASS Lucifer 45.00 mm cylinder on Puch X30 Velux and Puch X30 NG-2AH engines. The piston kit is used for the 45 mm cylinder variant.

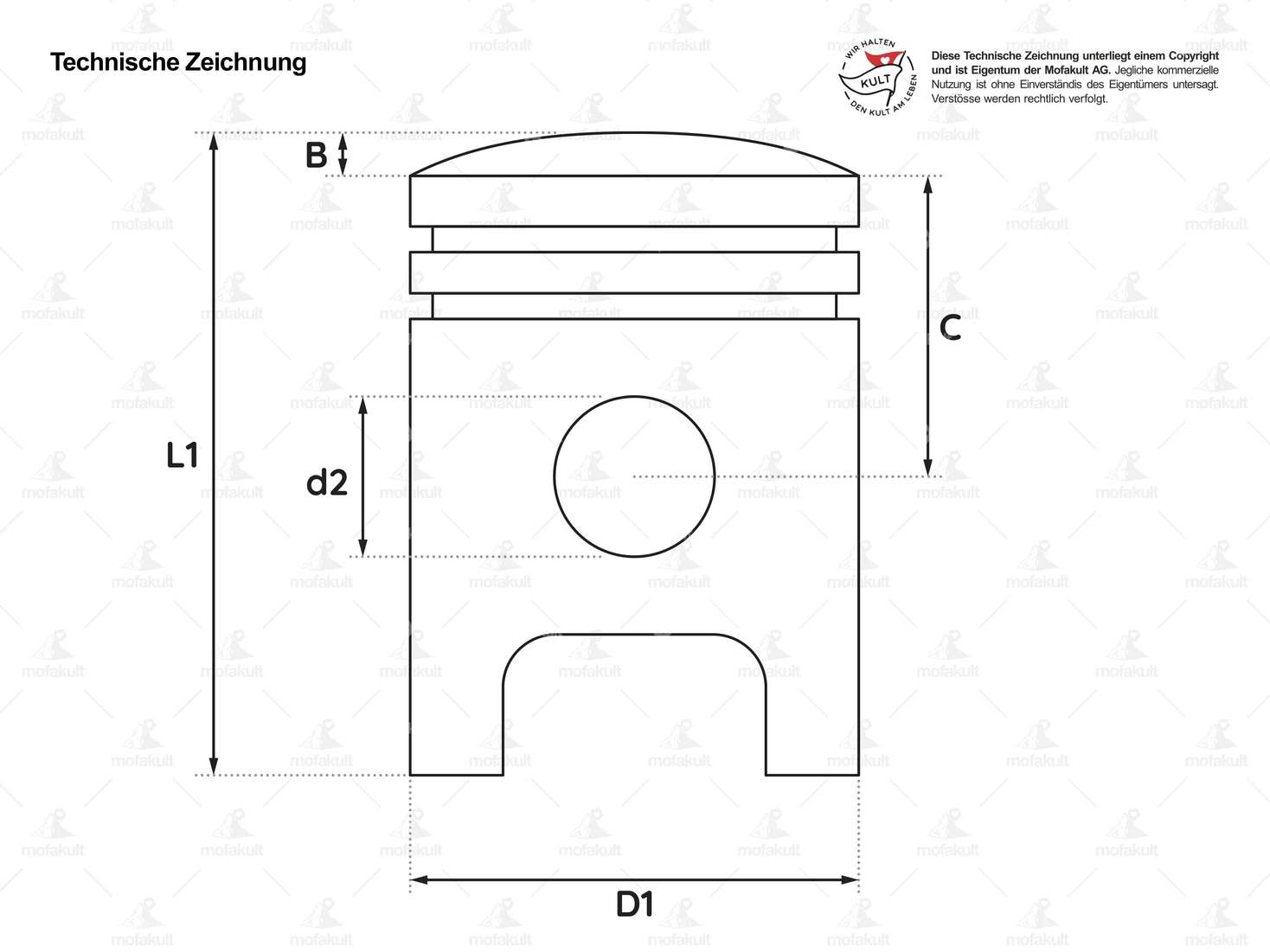

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

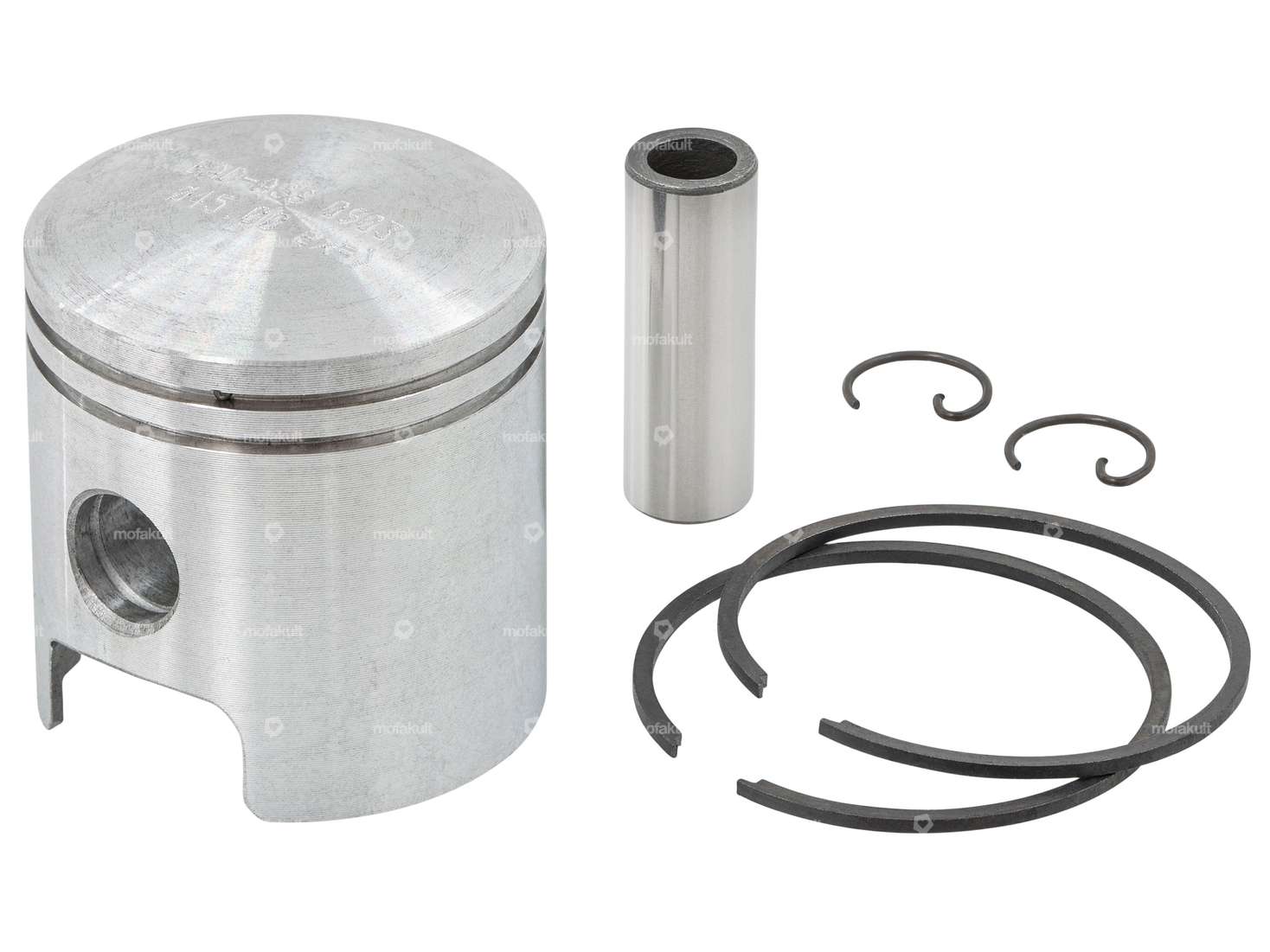

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer GOL.
| Manufacturer | BAD ASS |
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22.4 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 48.3 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Nominal diameter | 45 mm |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 105 g |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
