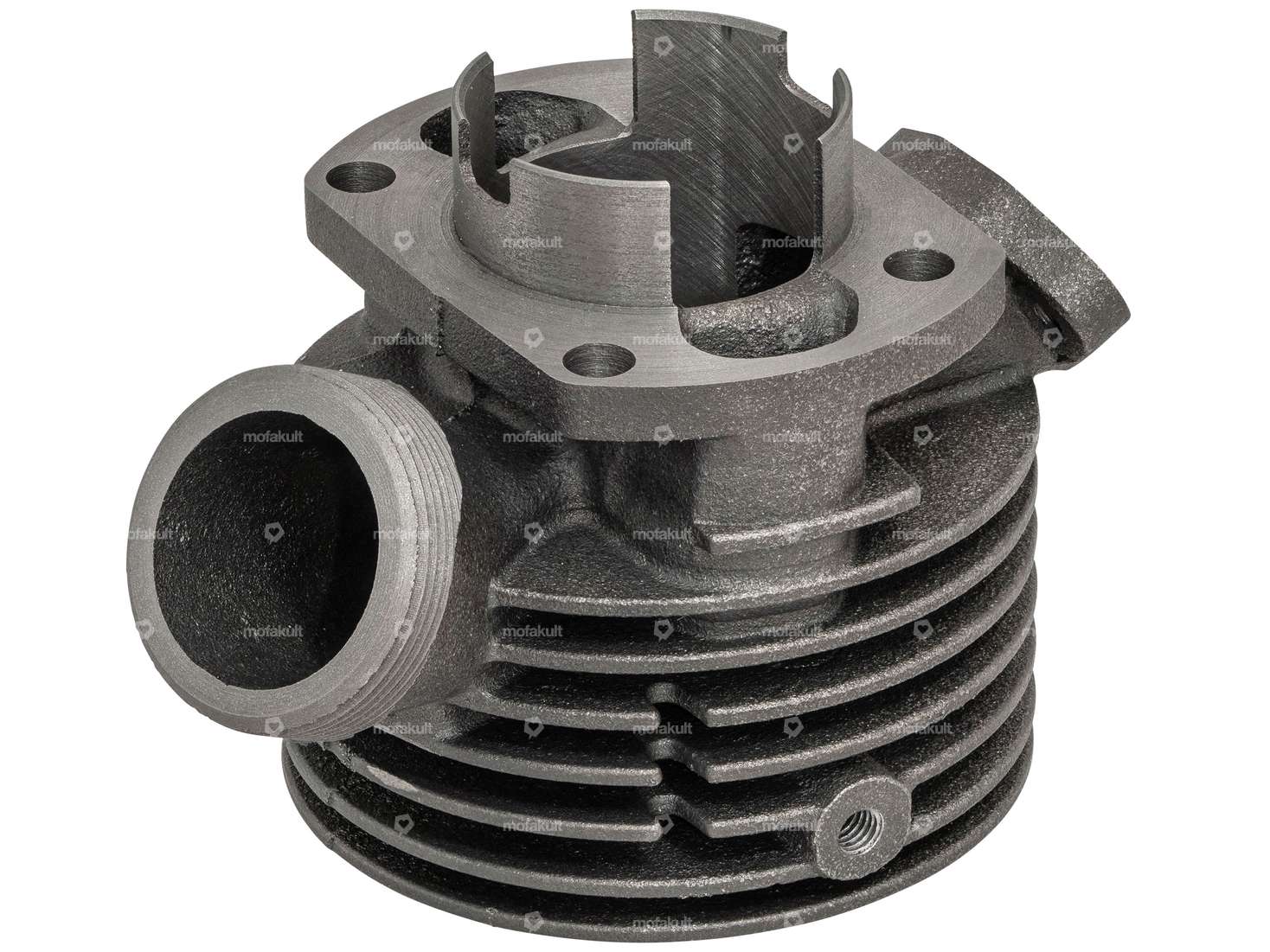

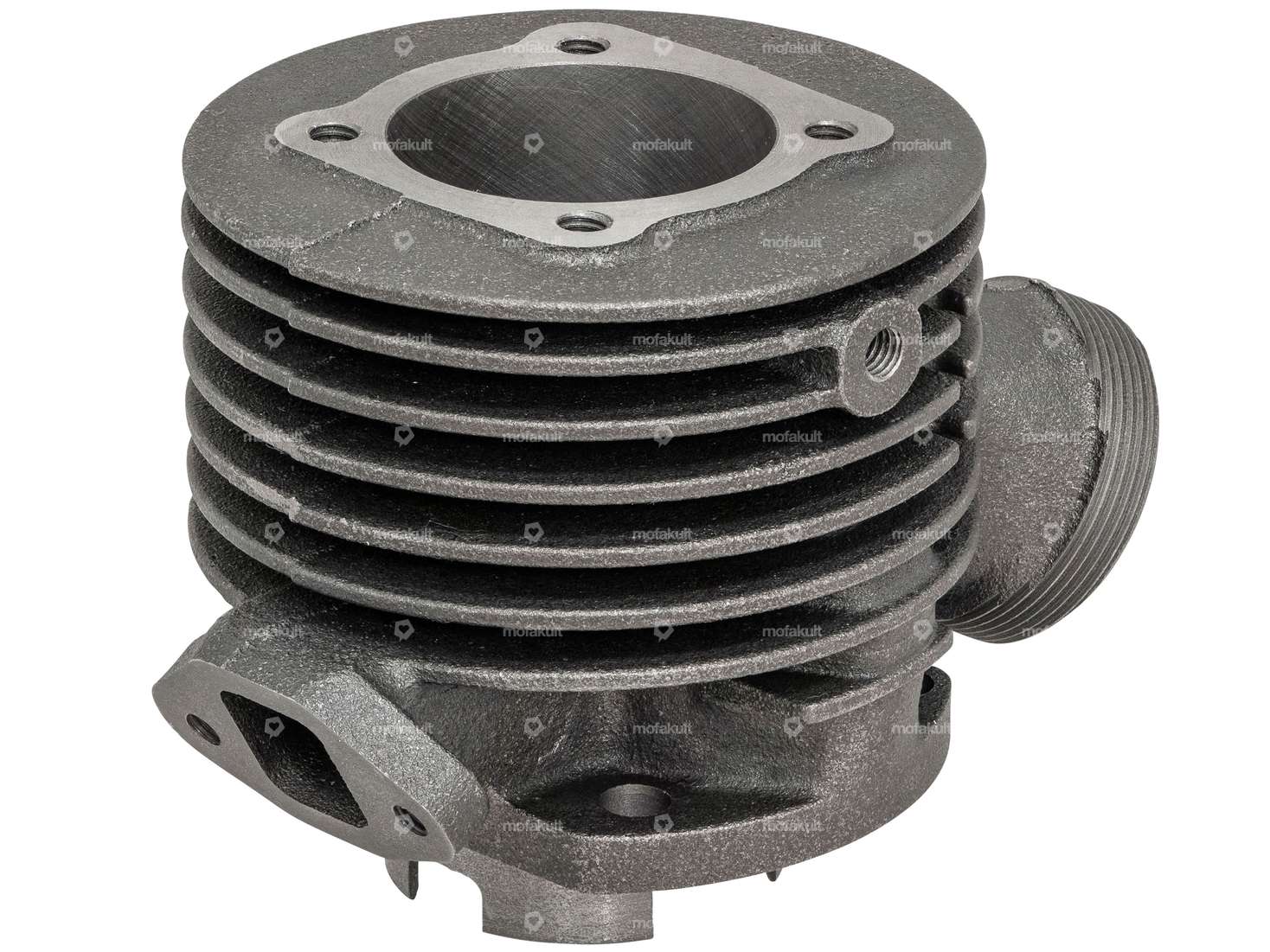

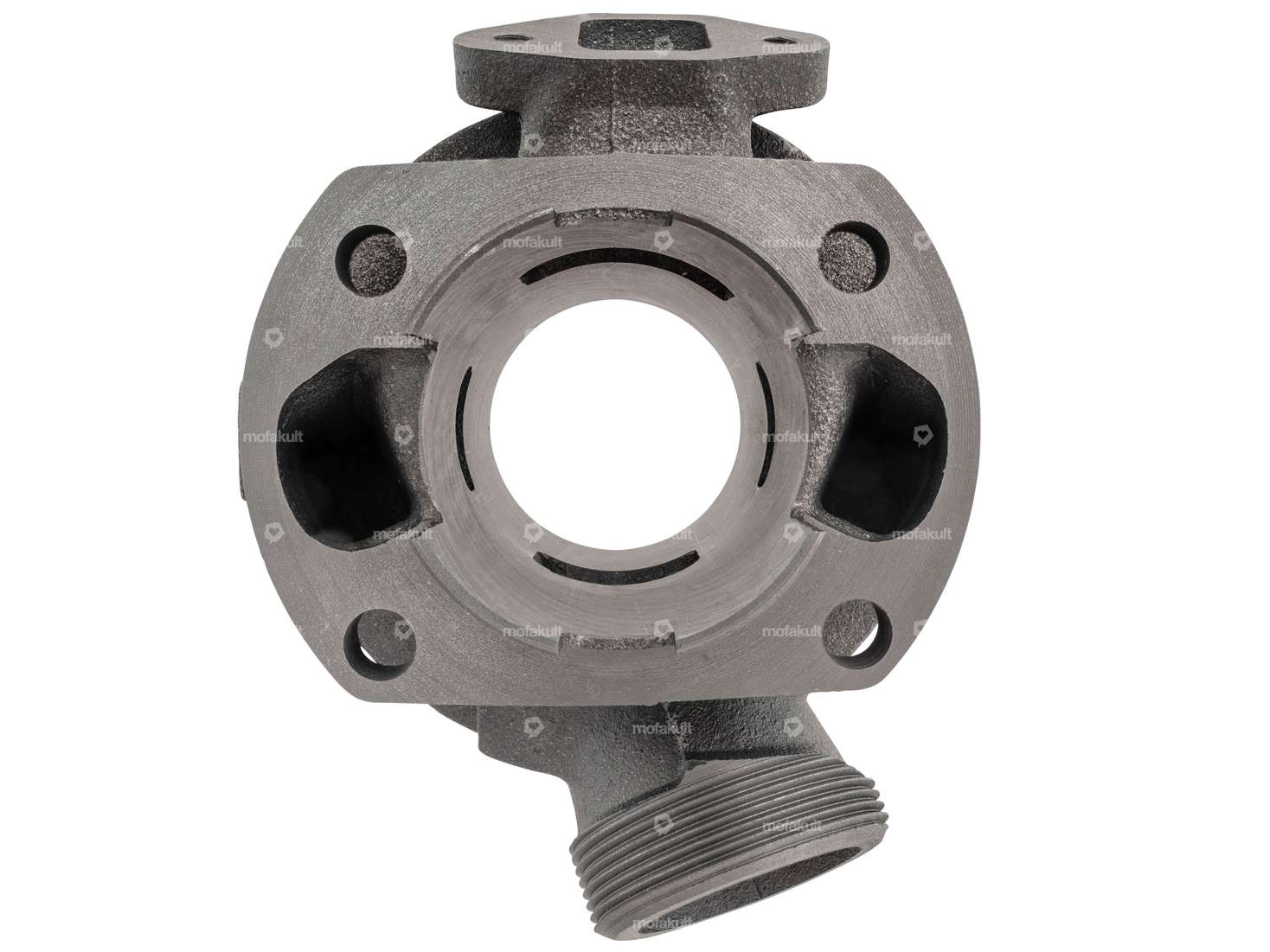

41mm tuning cylinder with square intake for Sachs 3- and 4-speed engines with blower cover, which was used on Hercules 50/ALS 50/2 S 50/KS 50/2 DK 50/3 LS 50/4 LKS, Gritzner etc., among others.
The smaller cooling fins make installation on a Swiss Sachs 50/2 (502) engine easier, as the fan cowl can be fitted without any adjustments. However, adjustments in the area of the stud bolt holes are essential.
The cylinder should preferably be used with a 17 mm Bing SSB carburetor.
Exhaust thread: M40x1.5
Ø outer: ~92 mm
Ø bore: 41.01 mm
Ø piston: 40.94 mm
Matching add-on parts can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight piston kit: 86 g
Manufacturer: GPO · Material: Gray cast iron · Surface: raw · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 41 mm · Ø Outlet outside: 40 mm · Hole spacing inlet: 31 mm · Outlet type: Union nut · Cooling type: Fan air cooling · Number of fixing points: 4 pcs · Area of application: Tuning
Material: Copper · Ø inside: 30.6 mm · Ø outside: 37.8 mm
Hole pattern [mm]: 40.5 x 51 · Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm
Place of use: Admission · Thickness: 2.6 mm · Hole spacing inlet: 30 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm, 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101, 0640 016 102
| Nominal diameter | 41 mm |
| Manufacturer | GPO |
| Material | Gray cast iron |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 55 ccm |
| Crankshaft stroke | 42 mm |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing inlet | 31 mm |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 51 x 40 |
| Area of application | Tuning |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
