For: Sachs

35504

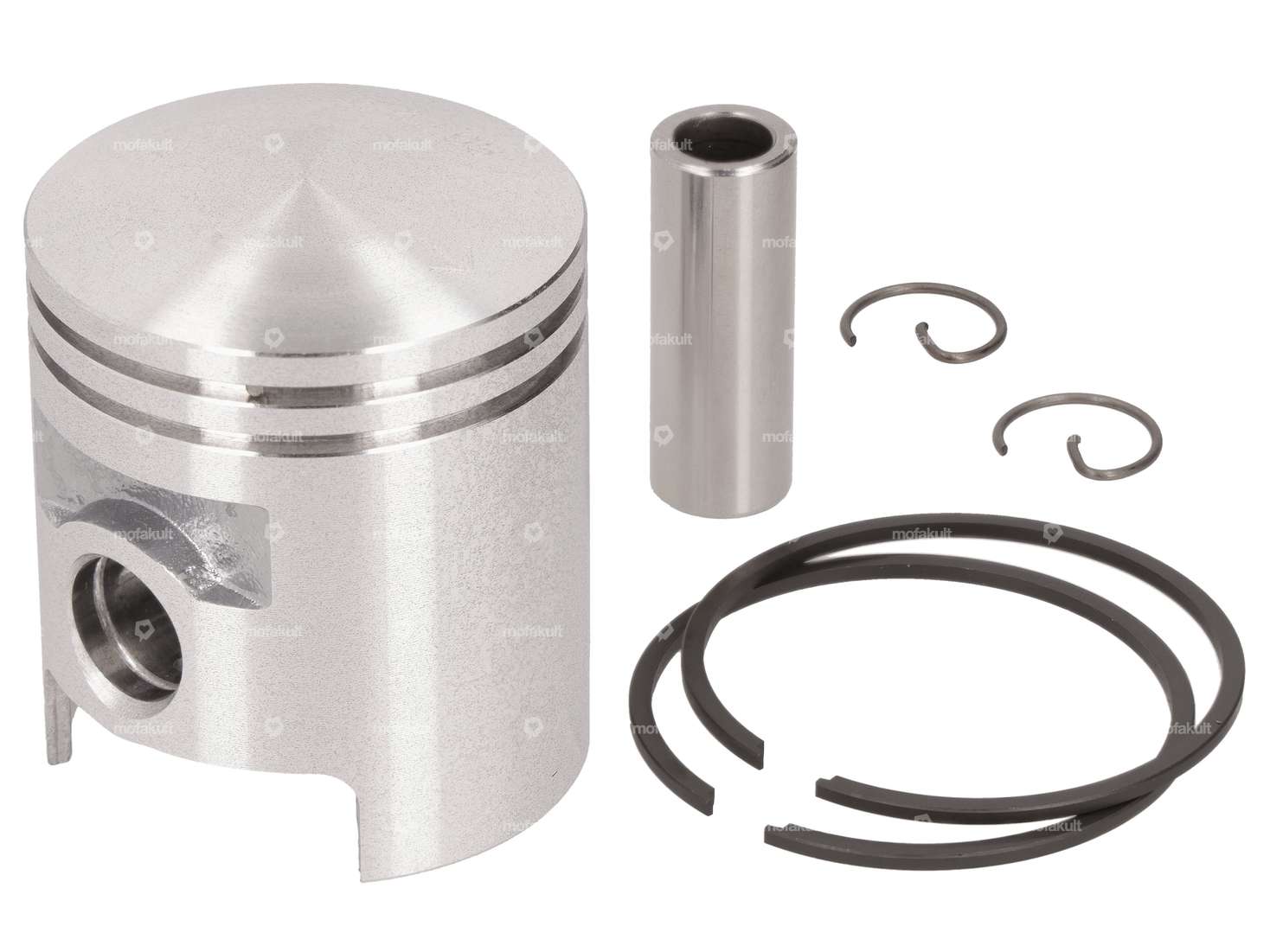

GPO 43 mm piston "Divertimento" | Sachs 502, 50/2, 50/3, 50/4

EUR 53.30

Incl. 21% VAT.

Description

43.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal circlip (IS) to fit the GPO «Divertimento» 41 mm racing kit on your moped / moped with Sachs 50, 502, 50/2, 50/3, 50/4 engine.

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter43 mm
ManufacturerGPO
MaterialAluminum
Ø outside piston (A)42.95 mm
Compression height (C)28 mm
Curvature (D)3.4 mm
Total piston height (E)50.5 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Thick piston ring1.7 mm
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)
