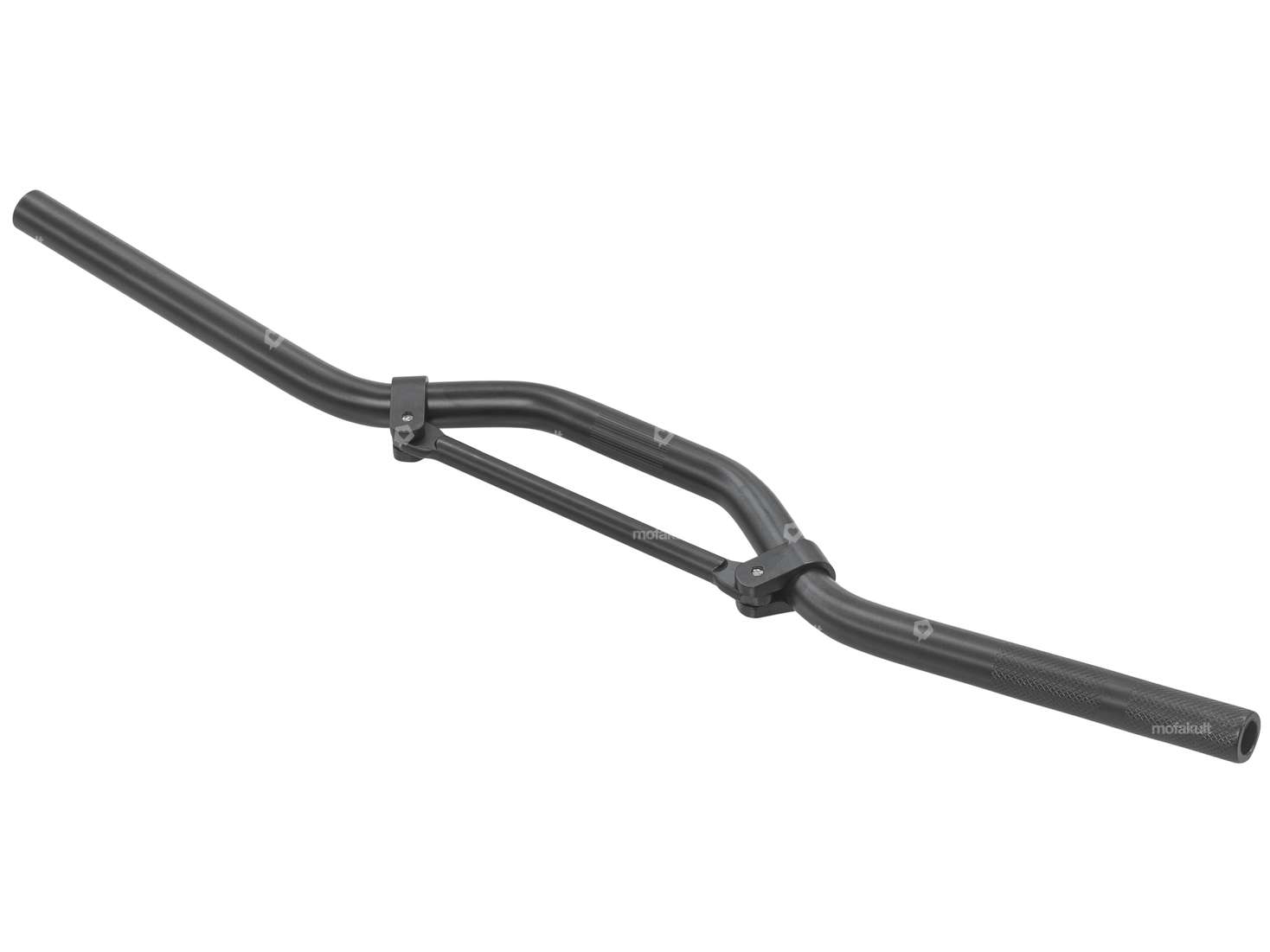

Black matt anodized racing handlebar with bolted crossbar for your moped, moped and small motorcycle. The aluminum handlebar is mounted on the fork plate.
Both balance ends are slightly bent backwards, the left handlebar end is also knurled for additional grip.
Height: 70 mm
Width: 650 mm
Ø Tube: 22.15 mm
Length handlebar ends (for grip mounting): 170 mm
Length fork plate mount: 70 mm
Matching attachments such as clamps, steerer nuts, grips etc. can be found under accessories.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Material | Aluminum |
| Color | black |
| Surface | anodized |
| Clamping diameter | 22.15 mm |
| Width | 650 mm |
| Fork plate holder length | 70 mm |
| Ø outside | 22.15 mm |
| Mounting type | Fork plate |
| Length handlebar ends | 170 mm |
| Height | 70 mm |
| Crossbar | Yes |
| Ø Strut | 12.5 mm |
| Strut length | 160 mm |
