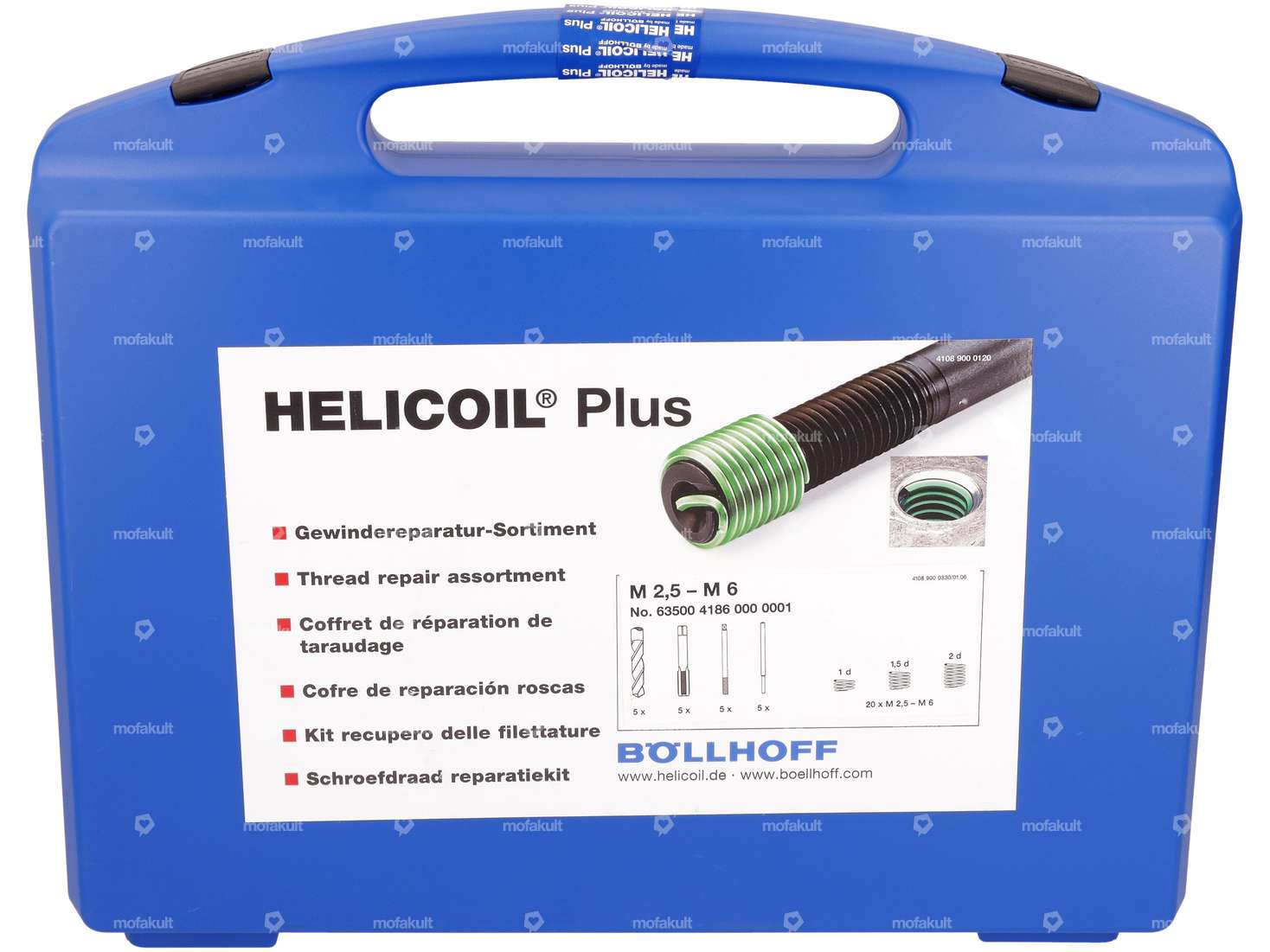

The use of wear-free HeliCoil thread inserts not only repairs the thread but also increases the thread load-bearing capacity.
Application:
1. Drill out the defective thread with the enclosed drill
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread.
5. Remove the tang with the tang breaker.
Full instructions are included.
For thread sizes M2.5, M3, M4, M5 and M6.

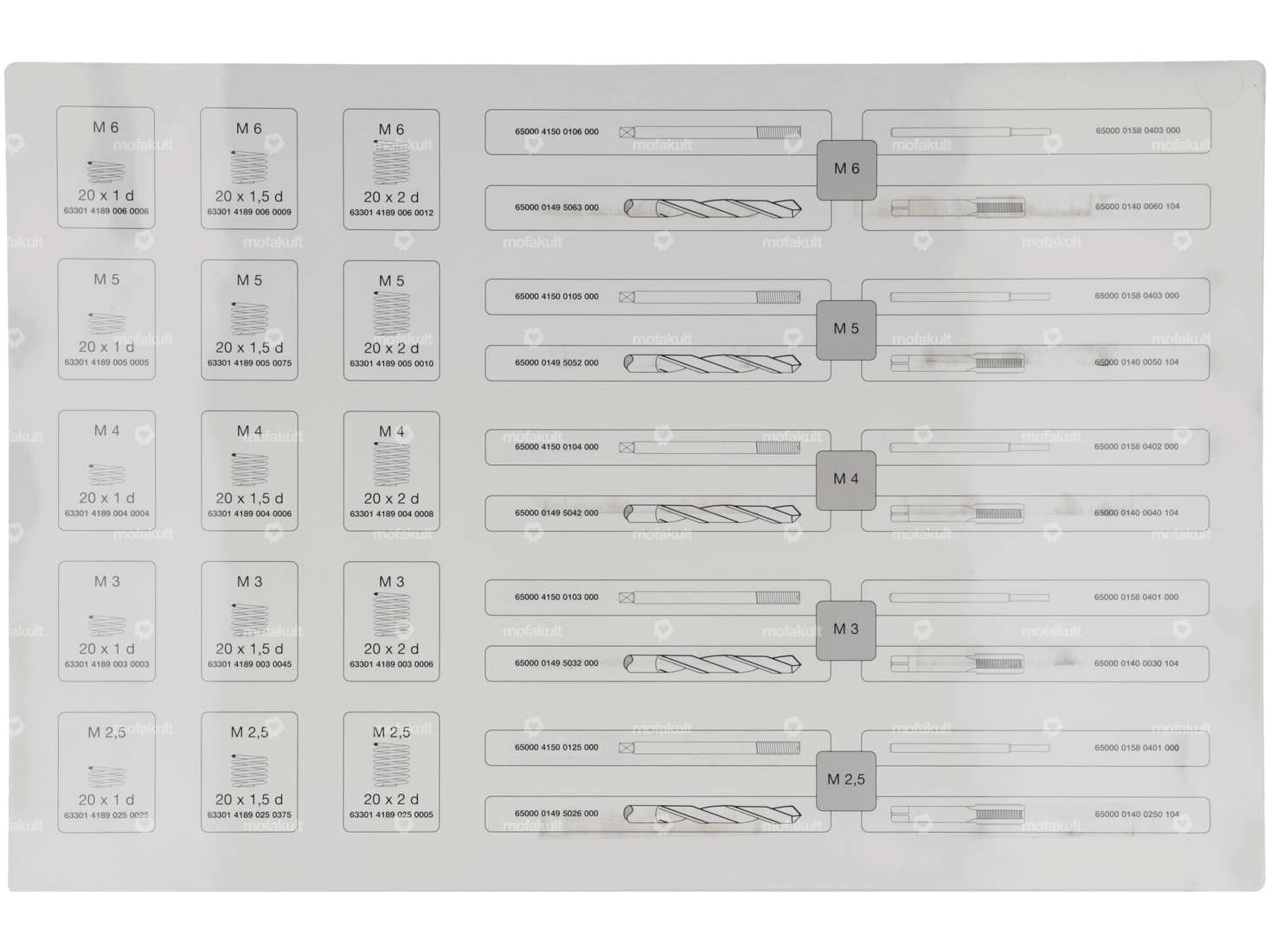

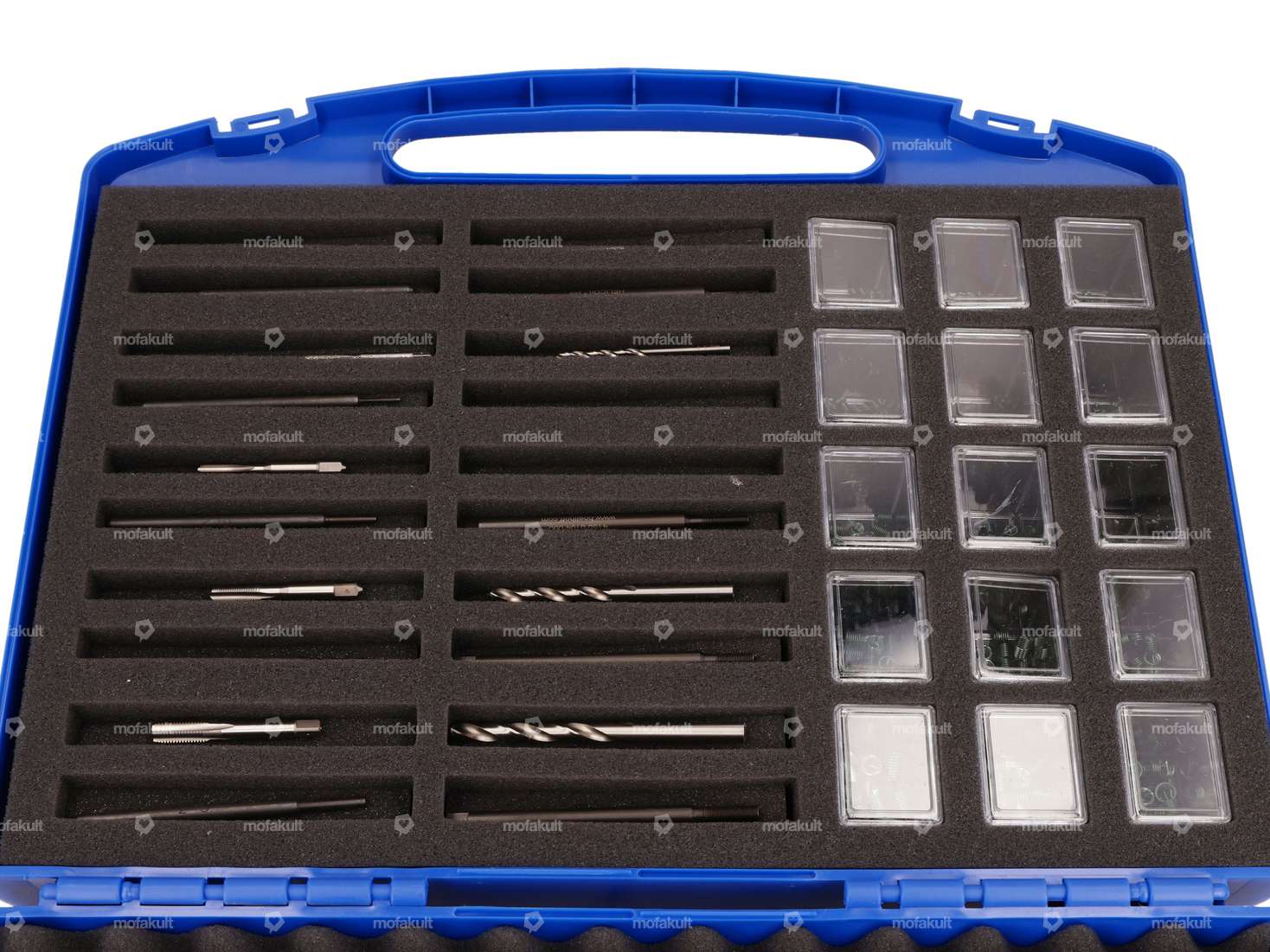

Scope of delivery for each thread size:
1 spiral drill bit
1 tap tap. Thread tap
1 pc. Installation tool
1 pc. Tang breaker
20 pcs. HeliCoil thread insert (1d)
20 pcs. HeliCoil thread insert (1.5d)
20 pcs. HeliCoil thread insert (2d)
Original HeliCoil product from the German manufacturer Böllhoff.
| Storage method | Suitcase |
| Manufacturer | HeliCoil |
| Material | Chrome steel (known as Nirosta®) |
| Thread type | M2.5x0.45 (standard thread), M3x0.5 (standard thread), M4x0.7 (standard thread), M5x0.8 (standard thread), M6x1 (standard thread) |
| Dimension thread insert | 1D, 1.5D, 2D |
| Nominal diameter (thread) | 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm |
| Area of application | Workshop accessories |
| Dimension storage box | 420 x 345 x 125 mm |
| Number of components | 300 pcs |
