For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, a gauge-containing internal thread that can be used on both sides is created.
Complete repair kit for M14x1.50 thread sizes in plastic case.
Application:
1. Drill out defective thread with 14.5 mm drill (not included in scope of delivery).
2. Check the tap and threaded bolt.
3. Cut the holding thread using the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang using a punch or needle-nose pliers.

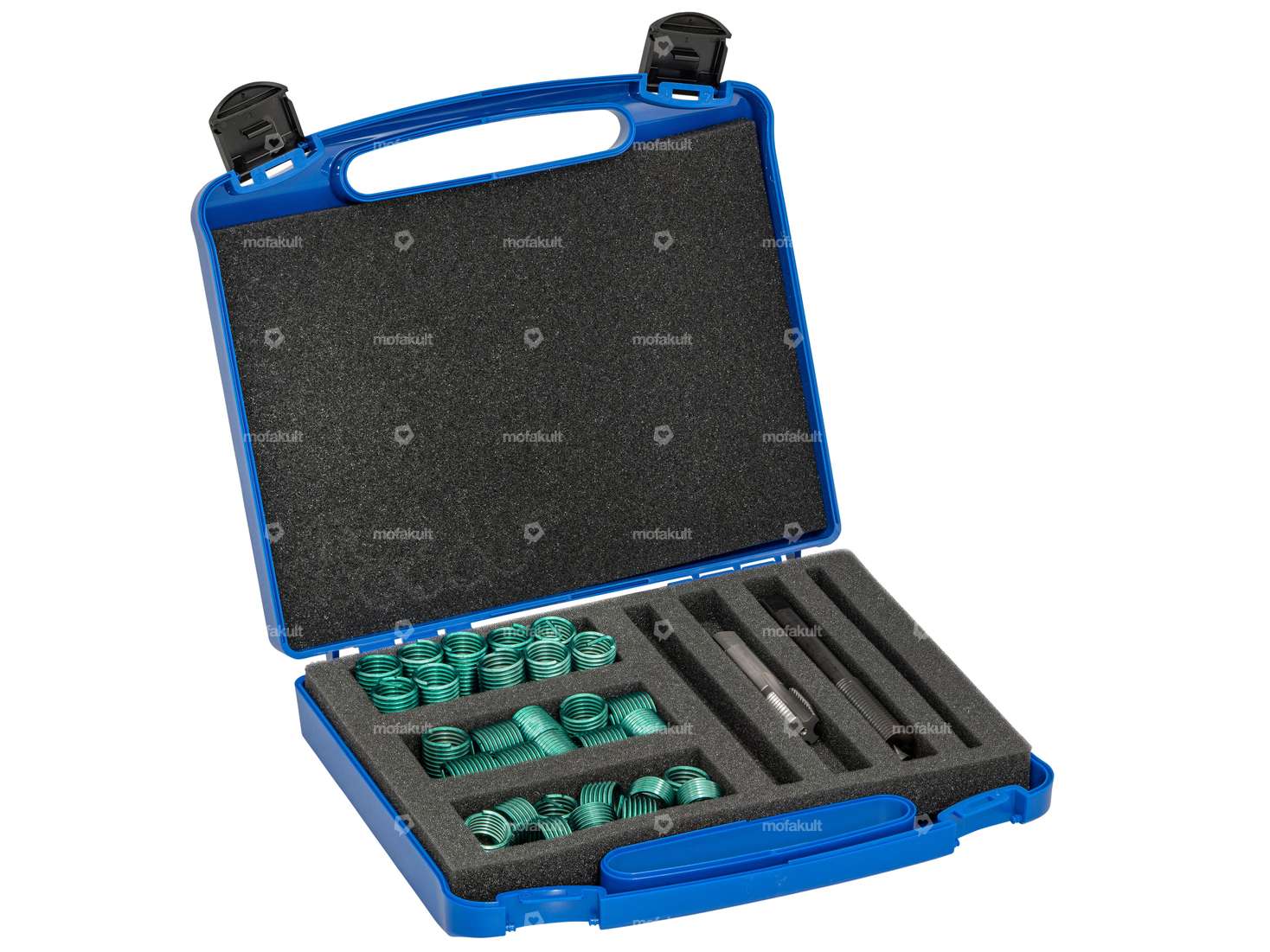

Scope of delivery

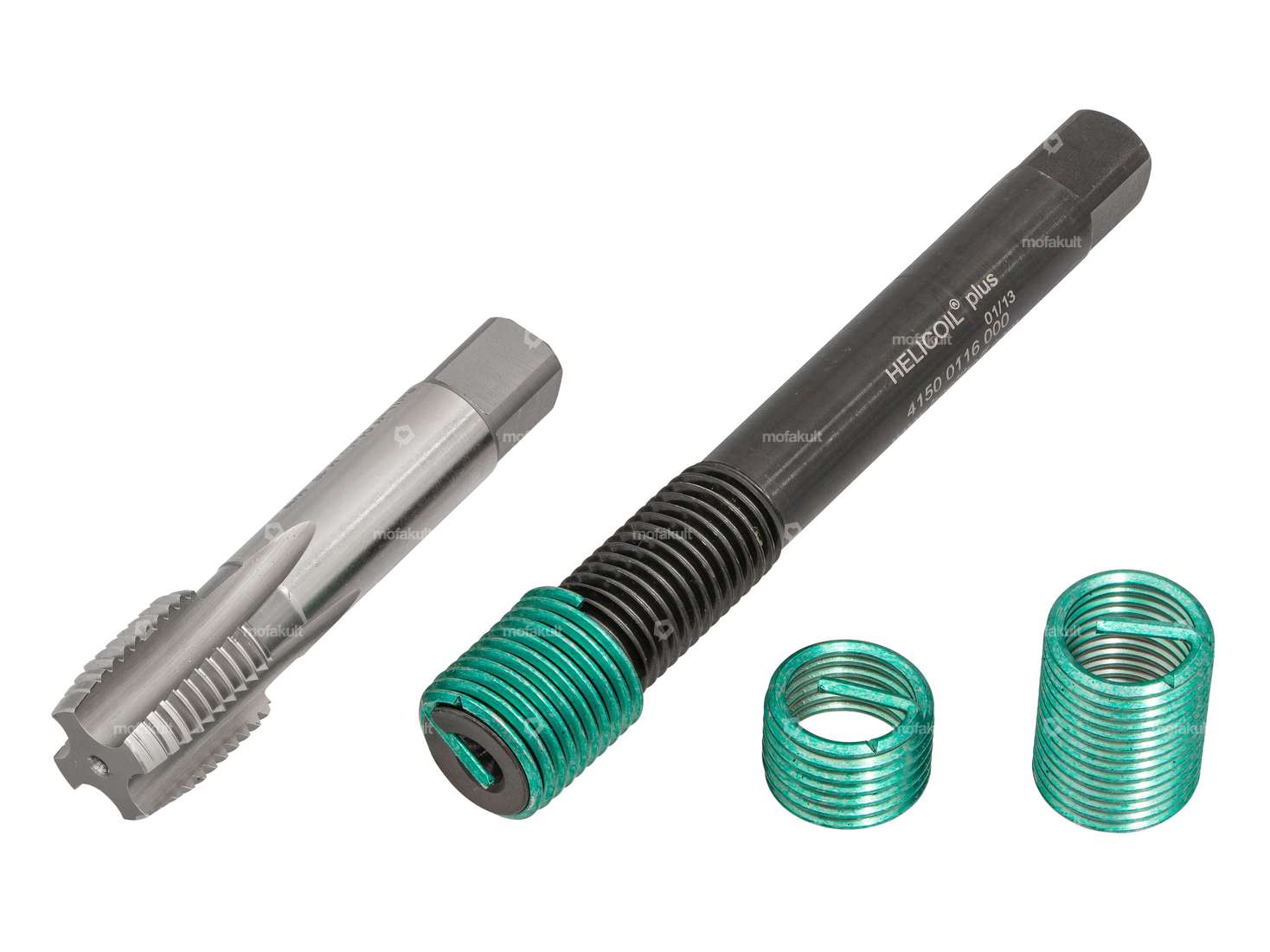

- 1 pc. Thread cutter
- 1 pc. Installation tool
- 10 pcs. HeliCoil thread insert (1D / 14 mm)
- 10 pcs. HeliCoil thread insert (1.5D / 21 mm)
- 10 pcs. HeliCoil threaded insert (2D / 28 mm)

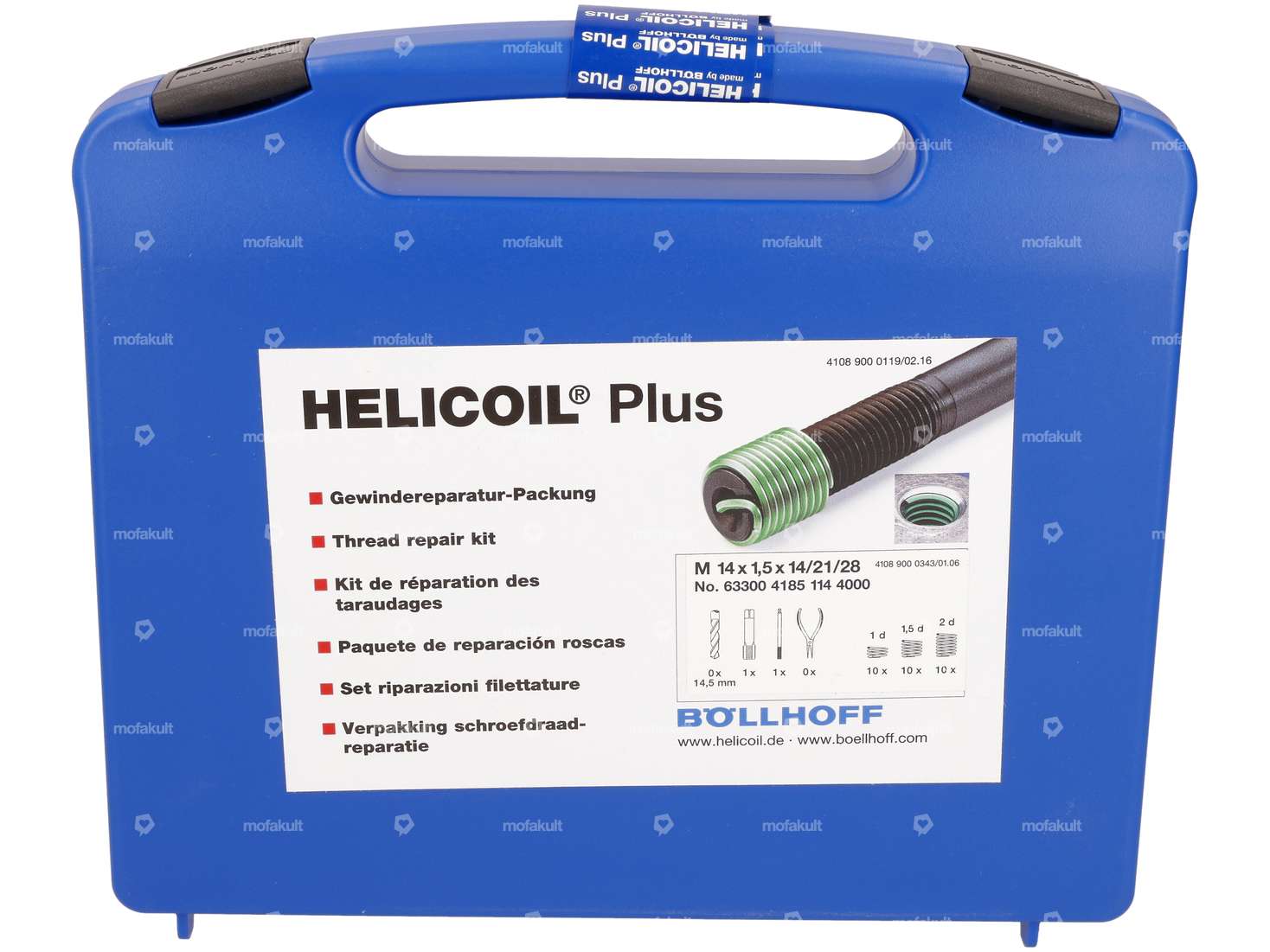

- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Manufacturer | HeliCoil |
| Number of components | 32 pcs |
| Material | Chrome steel (known as Nirosta®) |
| Total length | 14 mm, 21 mm, 28 mm |
| Nominal diameter (thread) | 14 mm |
| Dimension thread insert | 1D, 1.5D, 2D |
| Ø bore | 14.5 mm |
| Storage method | Plastic box |
| Area of application | Workshop accessories |
| Thread type | MF14x1.5 (fine pitch thread) |
