Not so nice

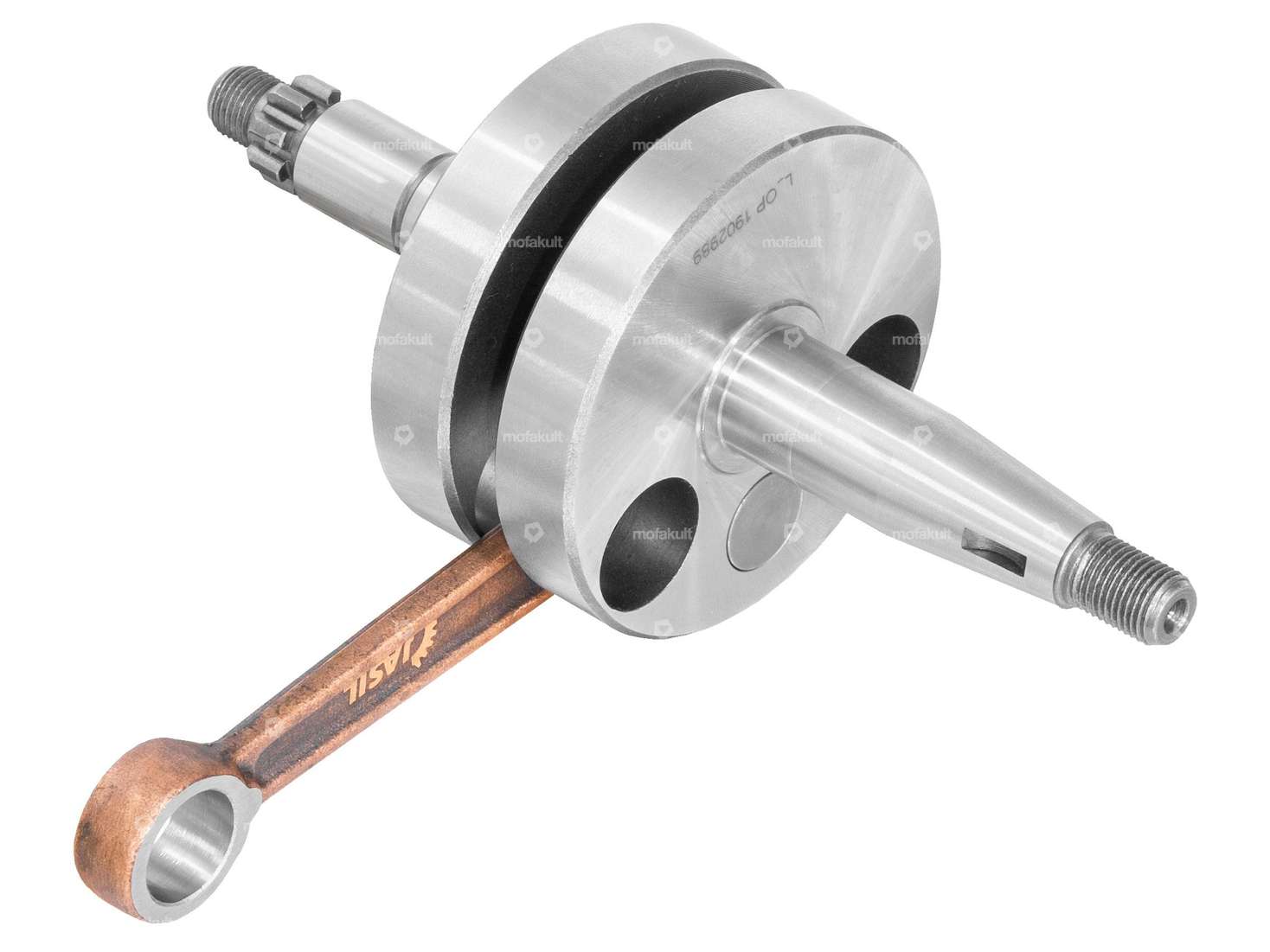

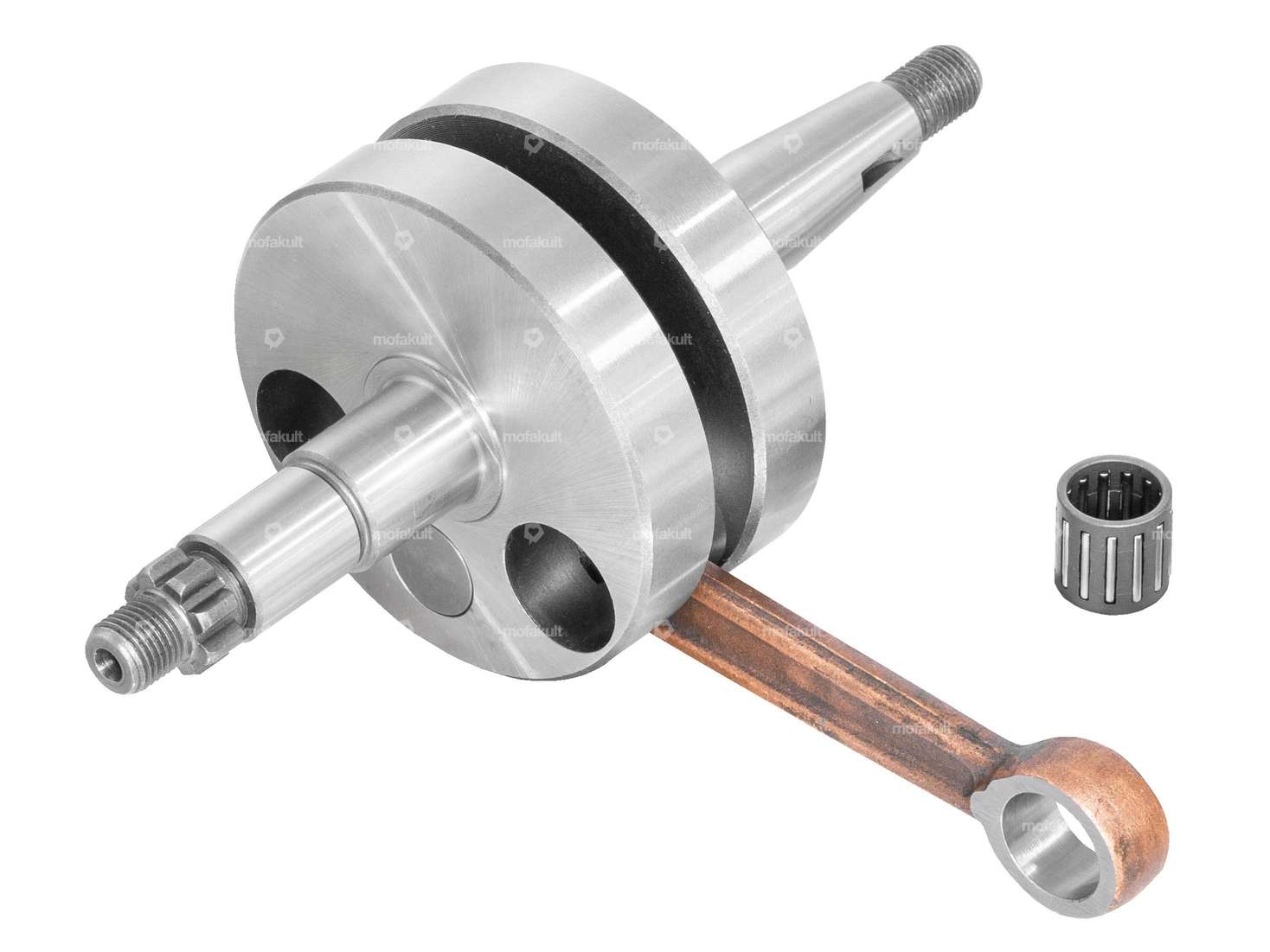

Crankshaft compatible with Puch X30 Sport NS / NL mopeds (not suitable for Velux engines).
So-so! – We strive to offer you the widest selection of moped replacement parts. However, the quality of this product is rather so-so, and we do not recommend it. If you still decide to go with this item, we understand your choice, but we cannot offer any warranty or exchange.
The connecting rod bearing may be too rough, which can cause the lubricating film to break down. This, in turn, can cause the connecting rod bearing to overheat.
You can find high-quality alternatives, such as our swiing crankshaft or bearings and oil seals, in the accessories section.
A brand-name product from the Portuguese manufacturer Jasil under the Top Racing brand.
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | standard |
| Connecting rod length center-center | 90 mm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 57 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.7 mm |
| Ø Connecting rod eye | 15 mm |
| Weight | 910 g |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 8 mm, 12 mm |
| Wide crank webs | 34.1 mm |
| Length 1st paragraph | 20 mm |
| Length 2nd paragraph | 20 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 28 mm |
| Area of application | Standard |
| Number of gears | 2 pcs |
| Puch | Z50 (X30 Sport) |
