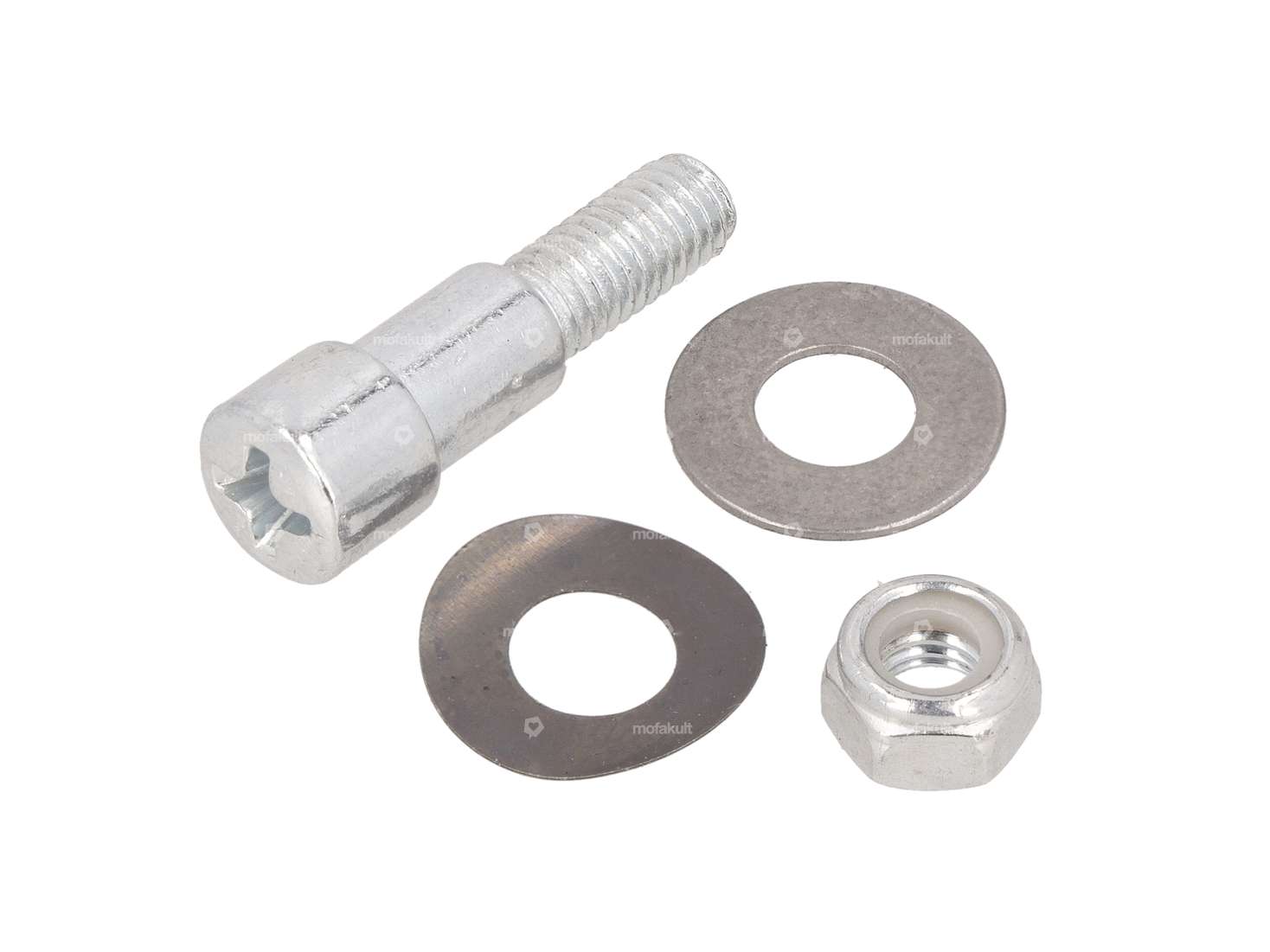

M5 lever screw in the form of a special shaft screw for attaching brake and clutch levers, suitable for your Vespa P, PX, T5, GT, GTR, Sprint, TS, GL, Sprint V., SS180, Rally, Super, V50, V50 Pedalo, V90, V100, VMA, PV and ET3 scooters
.The Phillips drive ensures easy installation, while the M5 thread enables the lever to be securely attached to the lever holder.
Drive: Phillips
Thread: M5 x 0.8 mm
Ø Head: 8.3 mm
Ø Shank: 6.35 mm
Shaft length: 8.25 mm
Total length: 26 mm
Nut (key width): 8 mm
Scope of delivery:
• Lever bolt
• Washer
• Spring washer
• Stop nut
Original Piaggio spare part number: 150235, 012136, 008520
| Thread type | M5x0.8 (standard thread) |
| Drive | Cross recess |
| Ø External head | 8.3 mm |
| Total length | 26 mm |
| Ø shaft | 6.35 mm |
| Shank length | 8.25 mm |
| Thread length | 11 mm |
| Piaggio OEM number | 150235, 012136, 008520 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983–1993 Lusso / Arcobaleno , PX100E · VIX1T · India , P125X · VNX1T · 1977–1982 (Old PX) External Lock , P125X · VNX2T · 1981–1984 (Old PX) Internal Lock , PX125 E · VNX2T · 1982–1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993–1996 Classic , PX125 · VNX2T · 1997–1999 (Disc) , T5 125 · VNX5T · 1985–1993 , PX125 · ZAPM471 · 2001 Model Year Catalytic Converter , P150X · VLX1T · 1978–1993 , P150S · VBX1T · 1978–1990 , PX150 · ZAPM742 · 2001 Model Year Catalytic Converter , P200E · VSX1T · 1977–1984 (Ignition Switch on Steering Head) , PX200 · VSX1T · 1984–1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993–1996 Classic , PX200 · VSX1T · 1997–1999 (Disc) , P80X · V8X1T · old (ignition switch on steering head) |
