Universal

24536

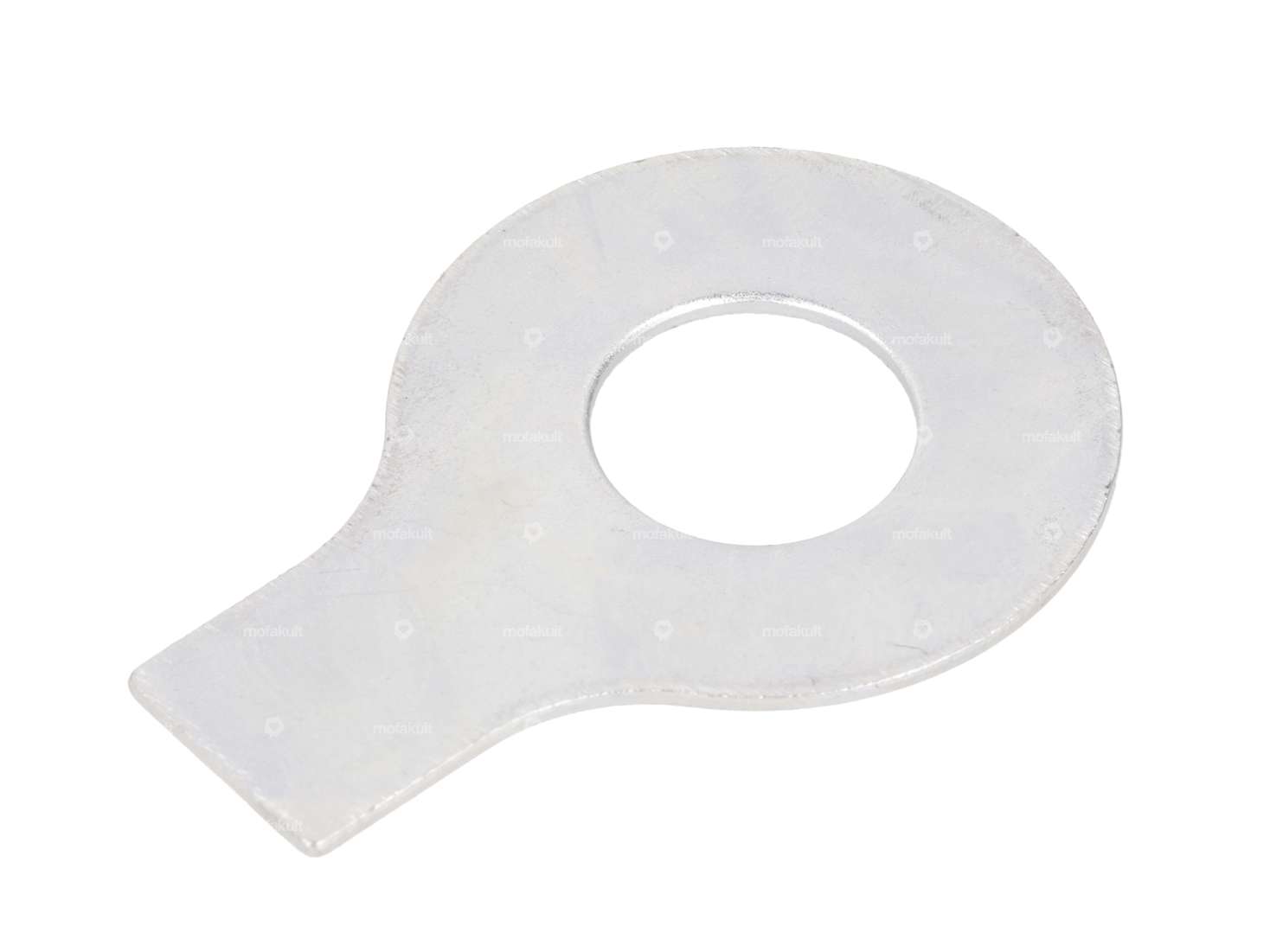

M12 locking plate 1 tab

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 3.35

Incl. 21% VAT.

Description

Galvanized lock washer with 1 tab for securing nuts and bolts.

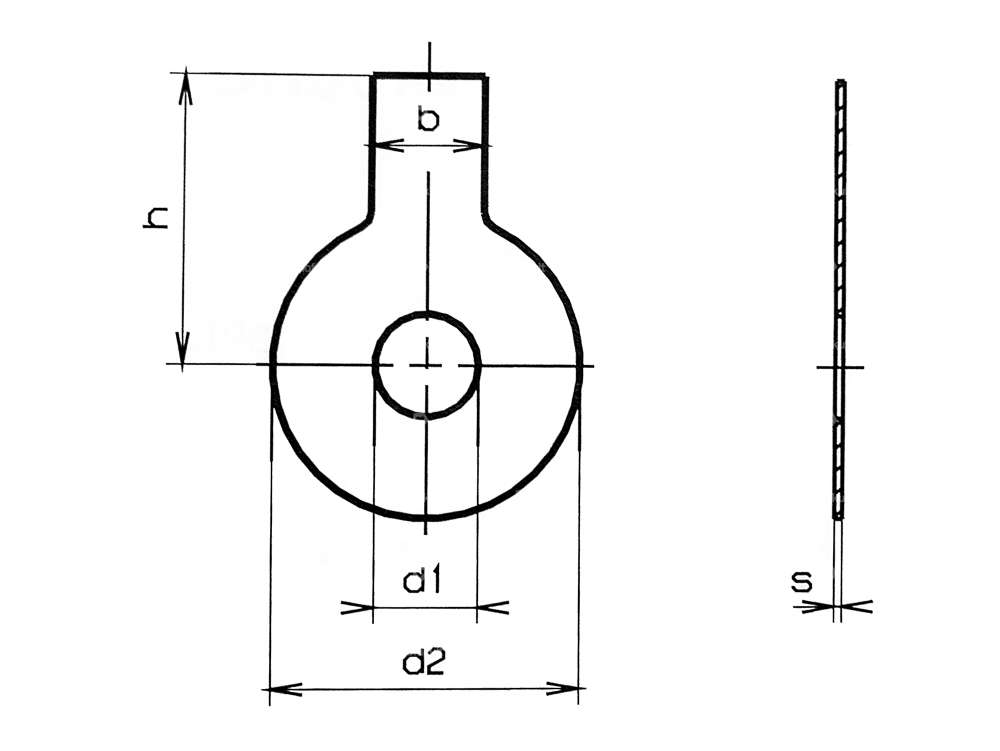

Take the following dimensions from figure 2:

  • d1: 13 mm
  • d2: 30 mm
  • h: 28 mm
  • b: 12 mm
  • s: 1 mm

MaterialSteel
Surfacegalvanized (blue)
Thread sizeM12
Width12 mm
Number of lobes1 pcs
Ø inside13 mm
Ø outside30 mm
Total length28 mm
Thickness1 mm
