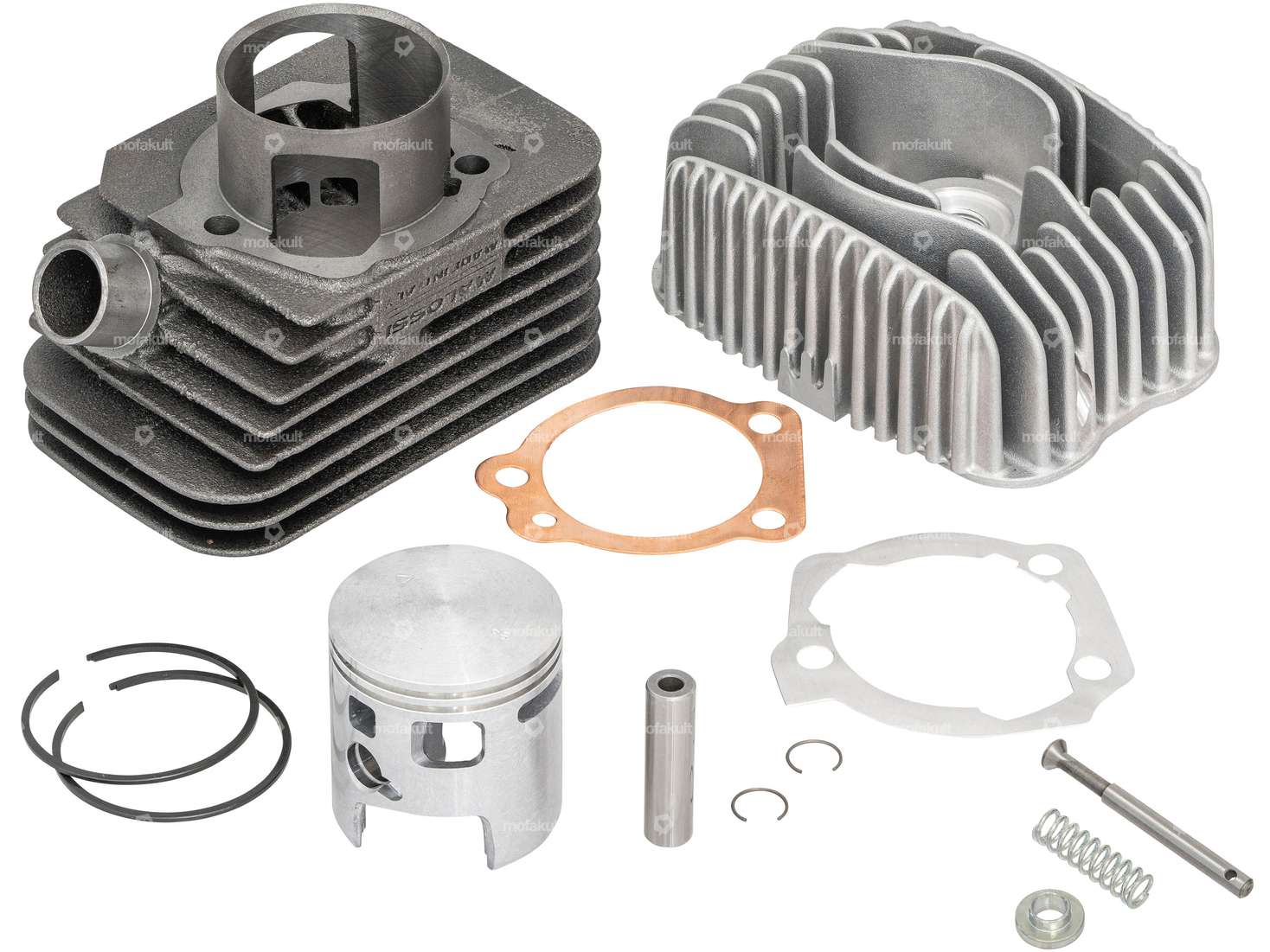

Revised 2021 version of one of the best cylinders available including cylinder head suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped with 10 mm piston pin.

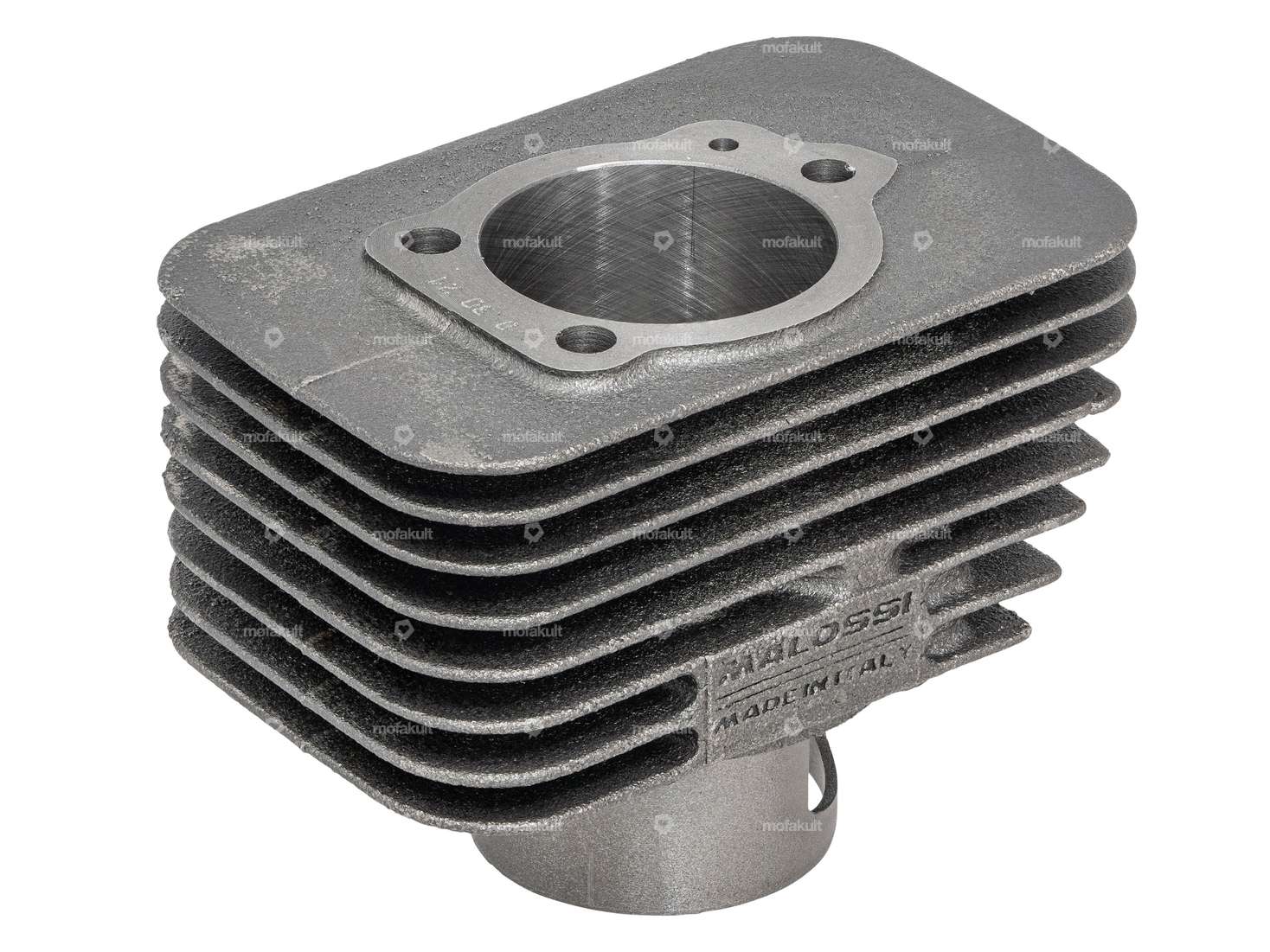

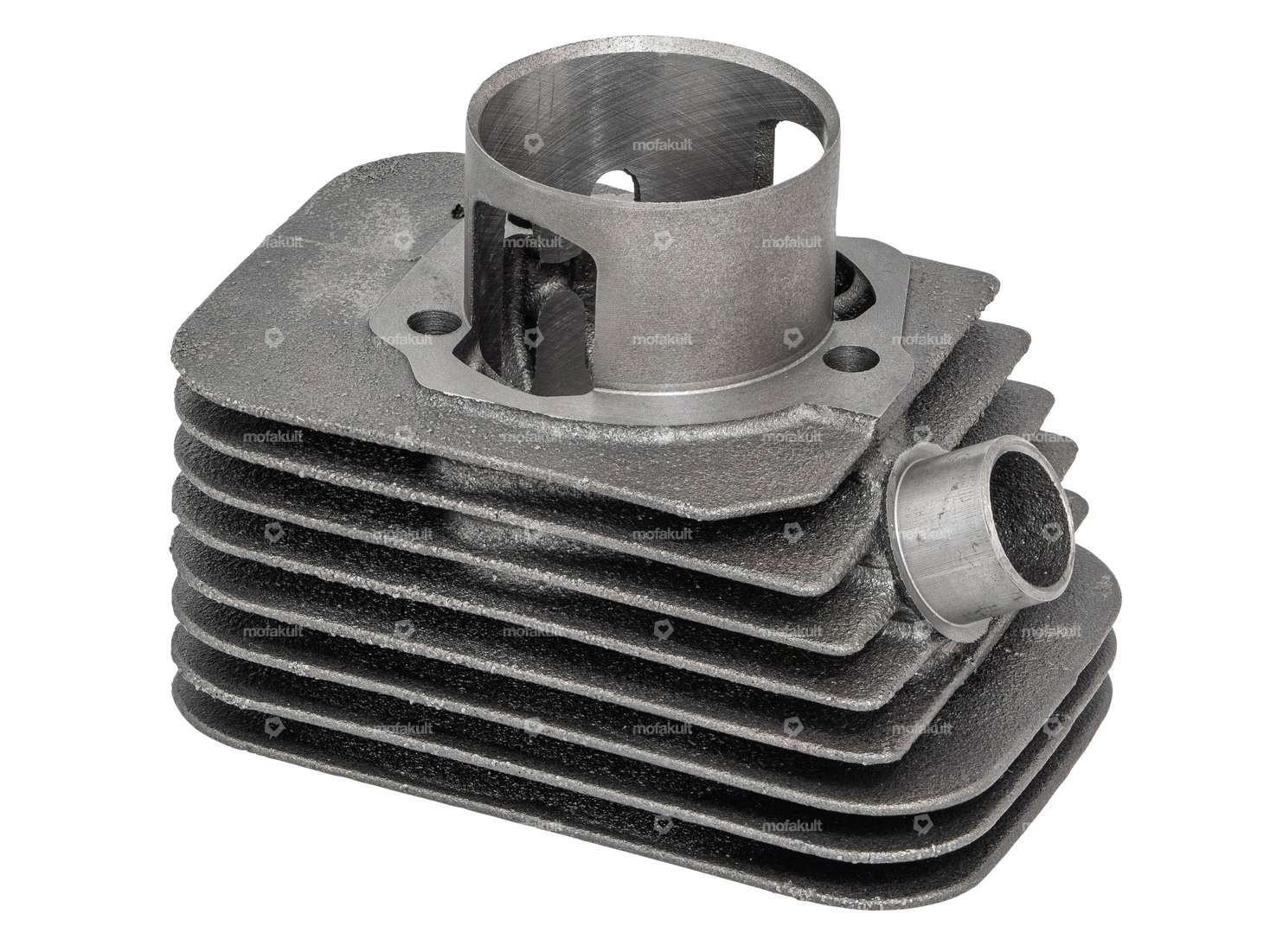

This cast iron cylinder offers a very good increase in performance over the entire speed range and makes it one of the most popular 73.5 cc racing cylinders for Piaggio engines.

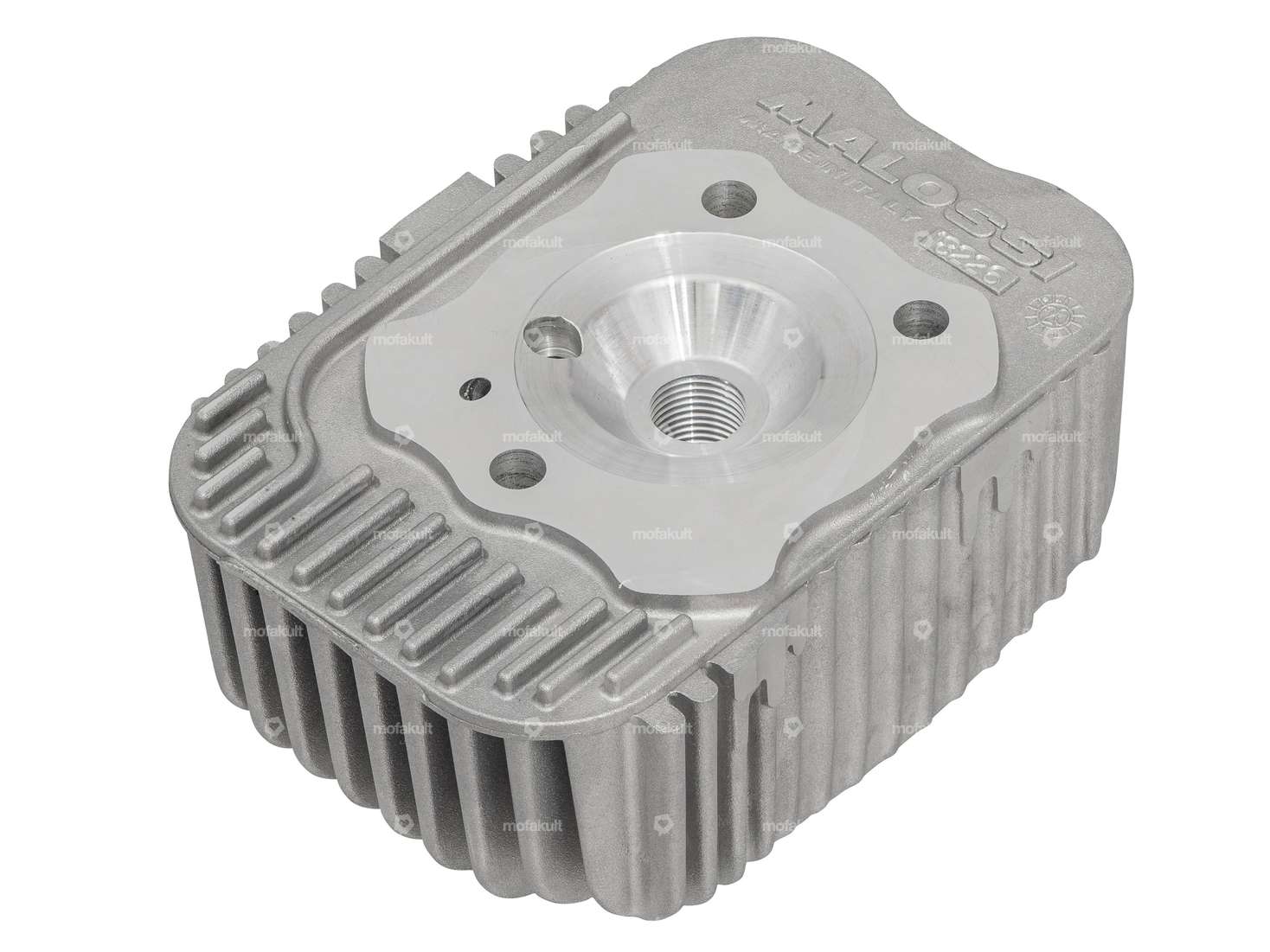

The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is very good. The webs in the area of the cylinder head significantly reduce the risk of piston jamming and make the cylinder extremely durable. The cylinder head with its small combustion chamber and large flat sealing surface ensures good compression. Thanks to the additional cooling fins on the sides, this racing cylinder head can dissipate the resulting heat even better and thus protects the racing set from overheating.
Hole pattern [mm]: 55 x 34 · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 73 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.1 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
Hole pattern [mm]: 35 x 55 · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Camouflaged: No · Number of fixing points: 3 pcs · Candle thread: long · Decompressor: Yes · Total length: 122 mm · Width: 87 mm · Height: 60 mm · Area of application: Racing
| Manufacturer | Malossi |
| Material | Gray cast iron |
| Camouflaged | No |
| Area of application | Tuning |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 46.5 mm |
| Ø piston pin (B) | 10 mm |
| Number of fixing points | 3 pcs |
| Outlet type | clamped |
| Decompressor | Yes |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
