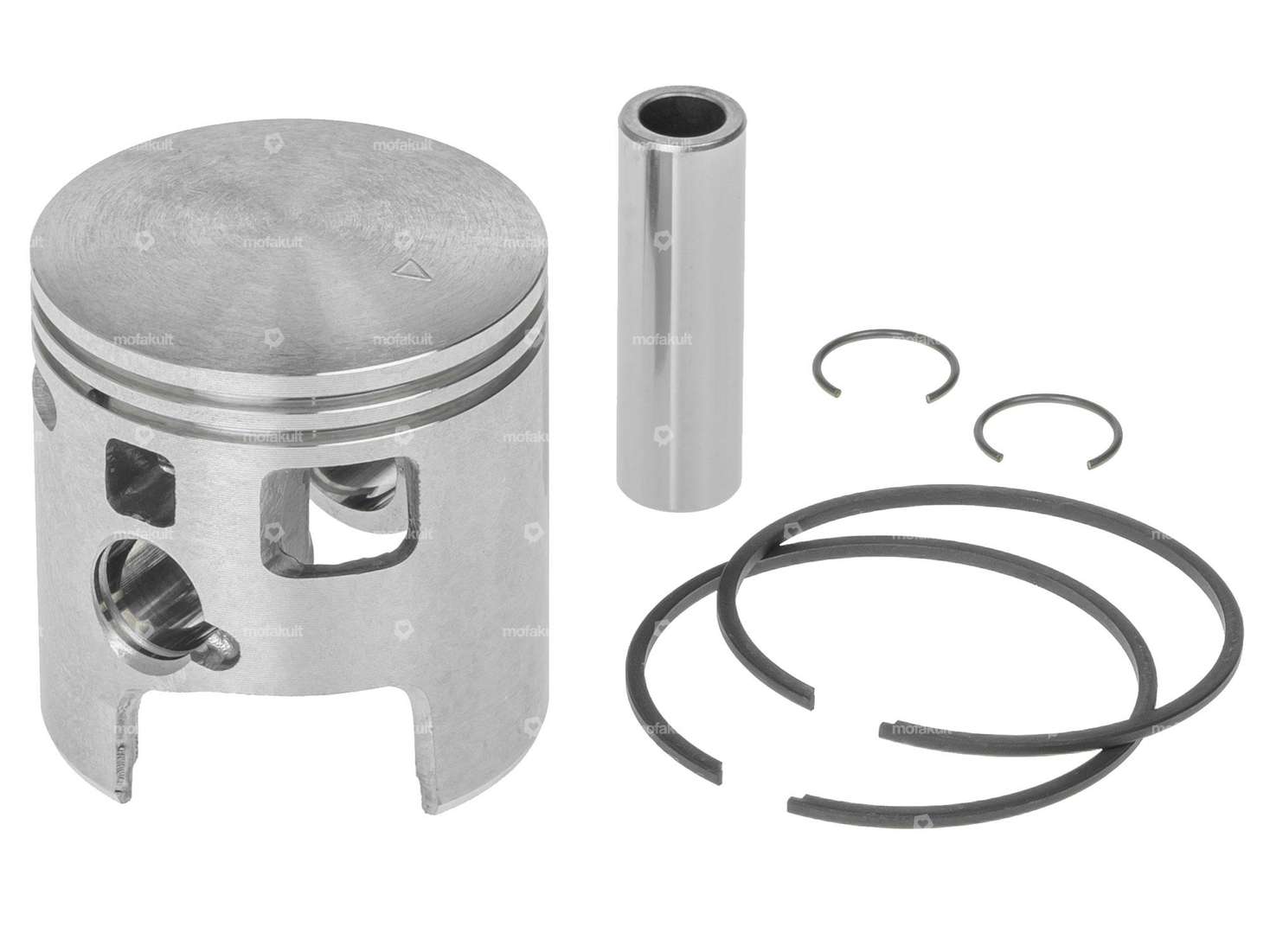

46.50 mm replacement piston / piston kit with two pieces of 1.5 mm rectangular piston ring with internal fuse (IS) for the 46.5 mm Malossi cylinder suitable for Piaggio mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Ø outside piston (A) | 46.4 mm |
| Compression height (C) | 25.9 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 52.8 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 46.5 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 10 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Weight piston kit | 101 g |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
