Puch brake

Circlip Ø 6 mm Brake anchor plate Puch Supermaxi

Fuse type: Inside · Nominal diameter: 6 mm · Place of use: Brake anchor plate · Manufacturer: Puch

swiing® revival revision set back pedal | Puch / Sachs / Hercules / Zündapp

Manufacturer: swiing® revival parts

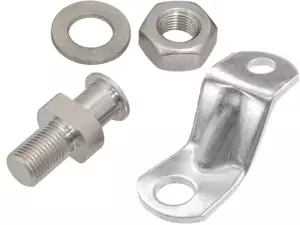

GPO brake cam & retaining plate set | Puch Maxi N

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Surface: galvanized (blue)

swiing® ingenious brake shoes Ø 80 x 18 High End (Grimeca) | Puch Supermaxi

Manufacturer: swiing® ingenious parts · Ø drum: 80 mm · Color: red · Number of springs: 1 pcs · Springs included: No · Width: 18 mm · Area of application: High End

swiing® ingenious brake shoes Ø 90 x 17 Grimeca Snowflake High End | Hercules Prima, Puch

Manufacturer: swiing® ingenious parts · Ø drum: 90 mm · Width: 17 mm · Number of springs: 1 pcs · Springs included: Yes · Ø locating bolt: 10 mm · Slotted: No · Color: red · Area of application: High End · Area of application: Racing · Hercules OEM number: 0873 207 010

NewFren brake shoes Ø 80 x 18 Grimeca | Puch Supermaxi

Manufacturer: NewFren · Ø drum: 80 mm · Number of springs: 1 pcs · Springs included: No · Width: 18 mm

swiing® revival wheel axle M11x1 x 180 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 10.95 mm · Shank length: 30 mm · Thread type: MF11x1 (fine pitch thread) · Thread length: 75 mm · Total length: 180 mm

NewFren brake shoe spring (l=31 mm) | Puch

Spring design: Tension spring · Ø wire: 1.3 mm · Manufacturer: NewFren · Ø outside: 6.5 mm · Total length: 31 mm

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Material: Spring steel · Total length: 125 mm · Length spring hook: 50 mm · Leg length: 45 mm · Ø wire: 2.4 mm · Ø outside: 30 mm · Surface: galvanized (blue) · Ø inside: 25.5 mm · Area of application: Original · Area of application: Standard

ESJOT sprocket 40 teeth 4-hole coaster black

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Color: black · Thickness: 4.5 mm · Manufacturer: ESJOT · Number of fixing points: 4 pcs · Hole spacing: 74 mm · Ø mounting hole: 6.4 mm · Surface: powder-coated · Number of teeth: 40 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm

swiing® revival rear brake anchor plate | Puch Maxi S, X30 NG

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø outside: 91 mm · Ø bore: 12.2 mm · Ø External brake pads: 80 mm · Total length: 187 mm · Ø shaft: 10 mm · Ø axle: 12 mm · Ø screw holder: 6.5 mm · Wide cam holder: 12 mm · Brake lever length (lever length): 55 mm · Cranking (offset): 8 mm

ESJOT sprocket 37 teeth 4-hole coaster black

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Color: black · Thickness: 4.1 mm · Manufacturer: ESJOT · Number of fixing points: 4 pcs · Hole spacing: 74 mm · Ø mounting hole: 6.4 mm · Surface: powder-coated · Number of teeth: 37 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm

Grimeca rear cap

Color: black · Manufacturer: Made in Germany

ESJOT sprocket 34 teeth 4-hole coaster black

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Color: black · Thickness: 4.5 mm · Manufacturer: ESJOT · Number of fixing points: 4 pcs · Hole spacing: 74 mm · Ø mounting hole: 6.4 mm · Surface: powder-coated · Number of teeth: 34 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm

Grimeca brake shoe spring

Spring design: Ironing spring · Material: Spring steel · Manufacturer: Grimeca · Surface: raw

swiing® revival brake cone coaster brake

Material: Steel · Manufacturer: swiing® revival parts · Ø outside: 27.5 mm · Surface: Hardened · Number of teeth: 12 pcs · Ø inside: 10.6 mm · Puch OEM number: 320.4.41.013.1 · Sachs OEM no.: F1514

swiing® revival front brake disk cap | Puch

Color: black · Manufacturer: swiing® revival parts · Ø outside: 12 mm · Clamping diameter: 12.5 mm · Ø Bundle: 14.5 mm · Ø inside: 9 mm

Nut M8x1 half-height Inox

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Thread type: MF8x1 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 8 mm · Width across flats: 13 mm

swiing® revival lock washer sprocket mounting coaster wheel Inox

Material: Chrome steel (colloquially known as stainless steel) · Manufacturer: swiing® revival parts · Number of lobes: 2 pcs

swiing® revival screw set for sprocket mounting coaster brake

Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Color: gray · Manufacturer: swiing® revival parts · Thread length: 12 mm · Number of components: 12 pcs · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Drive: External hexagon · Shank: No · Nominal diameter (thread): 6 mm · Screw head: Hexagon · Width across flats: 8 mm · Width across flats: 10 mm

swiing® revival wheel axle set M11 x 180 spoke rear wheel | Puch Maxi, X30

Material: Steel · Total length: 180 mm · Ball bearing closed: No · Manufacturer: swiing® revival parts · Thread length: 75 mm · Surface: galvanized (blue) · Shank length: 30 mm · Thread type: MF11x1 (fine pitch thread) · Width across flats: 15 mm · Width across flats: 17 mm · Width across flats: 19 mm

Snap ring pedal sprocket (back pedal)

Manufacturer: Sachs · Place of use: Resignation

Washer under sprocket coaster brake NOS

Nominal diameter inside: 35 mm · Thickness: 1.7 mm · Manufacturer: Puch · Ø outside: 41 mm · Ø inside: 35 mm · Nominal diameter (thread): 35 mm

swiing® revival dust cover wheel bearing coaster brake (in the hub shell)

Height: 7.8 mm · Manufacturer: swiing® revival parts · Ø outside: 38 mm · Ø inside: 28 mm

swiing® revival brake support bolt long Inox | Puch X30 NS / NL /NG-2AH

Material: Chrome steel (colloquially known as stainless steel) · Total length: 38.5 mm · Manufacturer: swiing® revival parts · Number of components: 3 pcs · Ø shaft: 9.8 mm · Thread type: MF10x1 (fine pitch thread) · Shank: Yes · Nominal diameter (thread): 10 mm

Nut M6 linkage foot brake

Height: 12.5 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Width across flats: 10 mm

swiing® revival brake support bolt short Inox | Puch Maxi, Supermaxi

Material: Chrome steel (colloquially known as stainless steel) · Total length: 32 mm · Manufacturer: swiing® revival parts · Thread length: 13 mm · Number of components: 3 pcs · Shank length: 9.5 mm · Ø shaft: 9.8 mm · Ø External head: 14 mm · Thread type: MF10x1 (fine pitch thread) · Drive: Outer edge · Shank: Yes · Nominal diameter (thread): 10 mm · Area of application: Standard · Width across flats: 13 mm · Width across flats: 17 mm

Rear brake anchor plate | Puch MV, MS, VS

Material: Aluminum · Ø axle: 12 mm

Rear brake lever | Puch VS, MV

Total length: 91 mm · Ø bore: 10.1 mm · Brake lever length (lever length): 56 mm

ESJOT sprocket 34 teeth coaster brake galvanized

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Color: silver · Thickness: 4.1 mm · Manufacturer: ESJOT · Number of fixing points: 4 pcs · Hole spacing: 74 mm · Ø mounting hole: 6.4 mm · Surface: galvanized (blue) · Number of teeth: 34 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm

Hexagon head screw M6x12 Inox

Material: Chrome steel (colloquially known as stainless steel) · Thread length: 12 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Shank: No · Nominal diameter (thread): 6 mm · Screw head: Hexagon

ESJOT sprocket 50 teeth coaster brake galvanized

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Color: silver · Thickness: 4.3 mm · Manufacturer: ESJOT · Number of fixing points: 4 pcs · Ø mounting hole: 6.4 mm · Surface: galvanized (blue) · Number of teeth: 50 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm

swiing® revival bearing shell back pedal cast hub counterpart | Puch Maxi

Material: Steel · Height: 24 mm · Manufacturer: swiing® revival parts · Ø outside: 43 mm · Surface: gas nitrided · Ø inside: 24.5 mm · Ø inside: 38 mm

Brake shoes Ø 120 x 20 Leleu

Width: 20 mm · Ø drum: 120 mm · Number of springs: 2 pcs · Springs included: No

Brake shoes Ø 140 x 24 | Puch / Hercules

Width: 23.8 mm · Ø drum: 140 mm · Number of springs: 2 pcs · Springs included: Yes · Puch OEM number: 368.1.40.815.0 · Hercules OEM number: 0873 203 000 · Hercules OEM number: 0873 104 000

Brake shoe spring 60 mm

Spring design: Tension spring · Total length: 6 mm · Ø wire: 1 mm · Ø outside: 5.5 mm

Brake shoes Ø 100 x 20 Leleu

Width: 20 mm · Ø drum: 100 mm · Number of springs: 2 pcs · Springs included: Yes

66HEROES cap nut M10.5x1 backpedal stainless steel polished

Material: Chrome steel (colloquially known as stainless steel) · Height: 26.2 mm · Manufacturer: 66HEROES · Surface: polished · Nut type: Cap nut · Thread type: MF10.5x1 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 10.5 mm · Thread depth: 23.4 mm · Width across flats: 17 mm

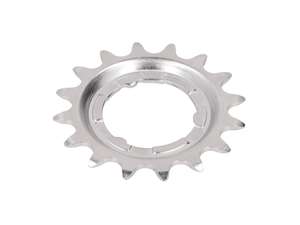

Sprocket back pedal 16 teeth chrome

Material: Steel · Color: Chrome · Surface: chrome-plated · Number of teeth: 16 pcs

Brake cam coaster brake NOS

Manufacturer: Puch

NewFren brake shoes Ø 105 x 25

Width: 25 mm · Manufacturer: NewFren · Ø drum: 105 mm · Number of springs: 2 pcs · Springs included: No · Ø locating bolt: 11 mm

swiing® revival shim ring coaster 3.5 mm | Puch / Sachs

Nominal diameter inside: 10 mm · Thickness: 3.5 mm · Manufacturer: swiing® revival parts · Ø outside: 19 mm · Surface: gas nitrided · Ø inside: 10.7 mm · Nominal diameter (thread): 10 mm

Brake plate Grimeca 90 mm | Peugeot 103 SP, MVL (Puch)

Material: Aluminum · Ø outside: 110 mm · Ø axle: 12 mm · Surface: sandblasted · Ø bore: 12.2 mm · Ø External brake pads: 90 mm

ESJOT sprocket 40 teeth coaster brake galvanized

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Color: silver · Thickness: 4.2 mm · Manufacturer: ESJOT · Number of fixing points: 4 pcs · Hole spacing: 74 mm · Ø mounting hole: 6.5 mm · Surface: galvanized (blue) · Number of teeth: 40 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm

ESJOT sprocket 37 teeth coaster brake galvanized

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Material: Steel · Color: silver · Thickness: 4.1 mm · Manufacturer: ESJOT · Number of fixing points: 4 pcs · Hole spacing: 74 mm · Ø mounting hole: 6.5 mm · Surface: galvanized (blue) · Number of teeth: 37 pcs · Ø inside: 94 mm · Ø bolt circle: 105.5 mm

swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)

Material: Steel · Height: 6 mm · Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Width across flats: 8 mm

swiing® revival thrust washer 10.7/19/1.8 coaster brake

Material: Steel · Thickness: 1.8 mm · Manufacturer: swiing® revival parts · Ø outside: 19 mm · Surface: hardened & ground · Ø inside: 10.7 mm

swiing® revival spacer ring back pedal (19/10.7/8)

Material: Steel · Total length: 8 mm · Nominal diameter inside: 11 mm · Manufacturer: swiing® revival parts · Ø outside: 19 mm · Surface: galvanized (blue) · Ø inside: 10.7 mm

Foot brake | Puch Maxi S

Material: Steel · Color: black · Color: silver · Manufacturer: Made in Portugal · Ø mounting hole: 16.2 mm · Surface: galvanized (blue) · Surface: varnished

swiing® revival rear brake lever Grimeca Snowflake | Puch

Material: Steel · Total length: 71 mm · Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Wide cam holder: 6.3 mm · Brake lever length (lever length): 52 mm · Cranking (offset): 8 mm · Puch OEM number: 349.2.41.713.1
