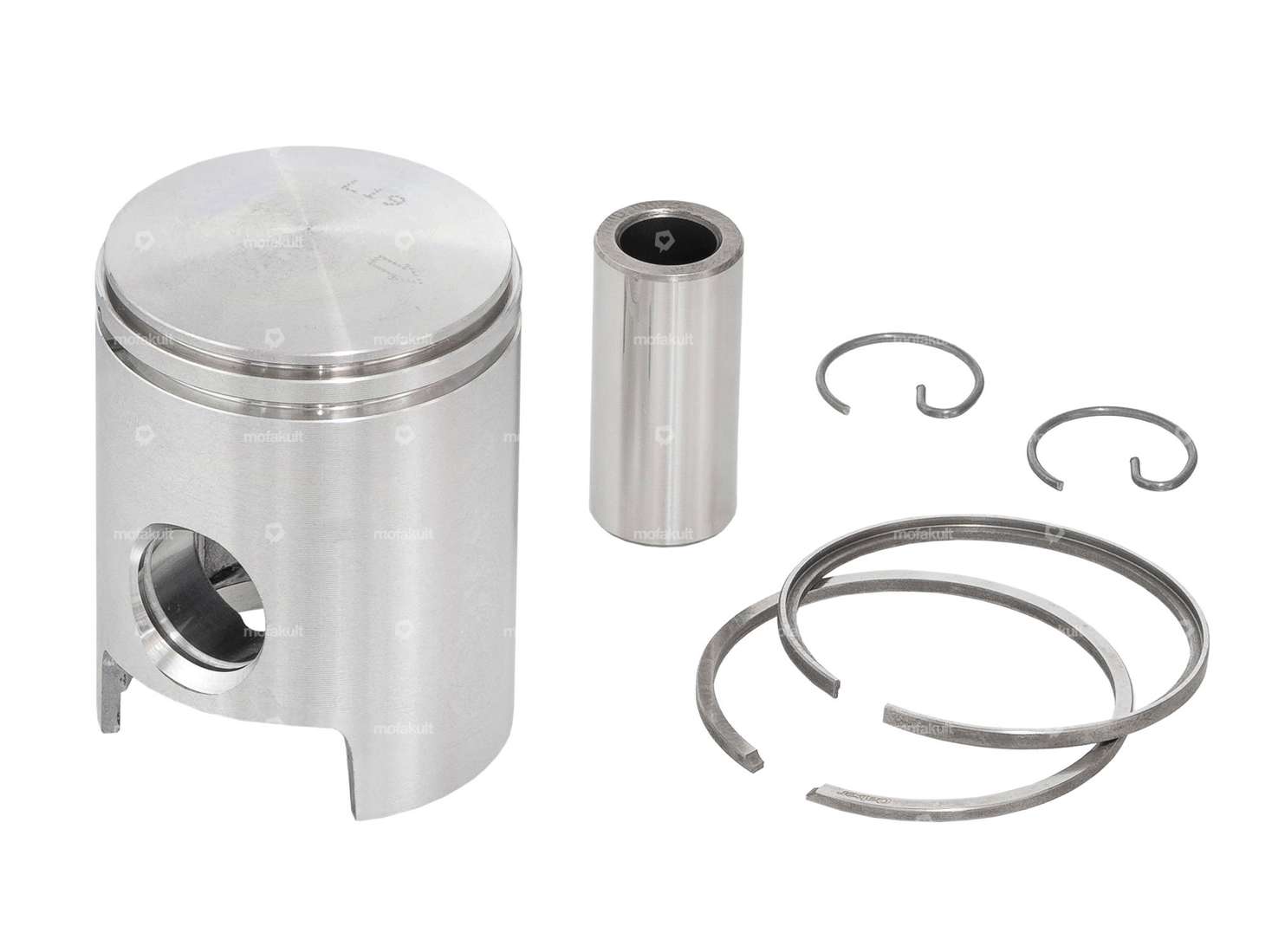

38.00 mm piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) suitable for mopeds, mopeds and small motorcycles with Sachs 50 engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their dimensions and locking types on the legend in the pictures.
Piston size: B (38 mm)
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Original Sachs spare part number: 0286 357 000
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.96 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 2 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Ø piston pin (B) | 14 mm |
| Piston ring height | 2 mm, 1.5 mm |
| Tolerance group | B |
| Weight piston kit | 86 g |
| Sachs | 50/5 |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm
EUR 23.60

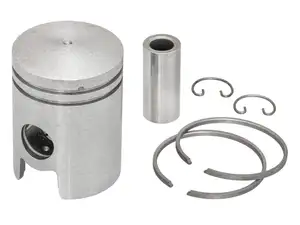

Piston 38.3 mm (14 mm KoBo) NOS | Sachs 50
Nominal diameter: 38 mm · Manufacturer: Sachs · Ø outside piston (A): 38.25 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 14 mm · Tolerance group: 1 · Weight piston kit: 99 g
EUR 225.00
Moped fans also bought
Shock absorber 37 cm black standard
Surface: chrome-plated · Surface: varnished · Damping type: Spring · Ø outside: 49 mm · Adjustable: Yes · Color: Chrome · Color: black · Mounting type: Nuts & bolts · Ø Fastening inside: 10 mm · Ø spars: 30 mm · Number of fixing points: 2 pcs · Hole spacing: 370 mm
EUR 76.90

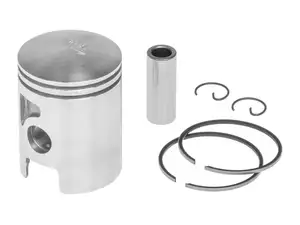

swiing® ingenious piston 40 mm | Sachs 503
