For: Sachs

11681

Meteor piston 38 mm #B | Sachs 503 AB/AC

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 66.30

Incl. 21% VAT.

Description

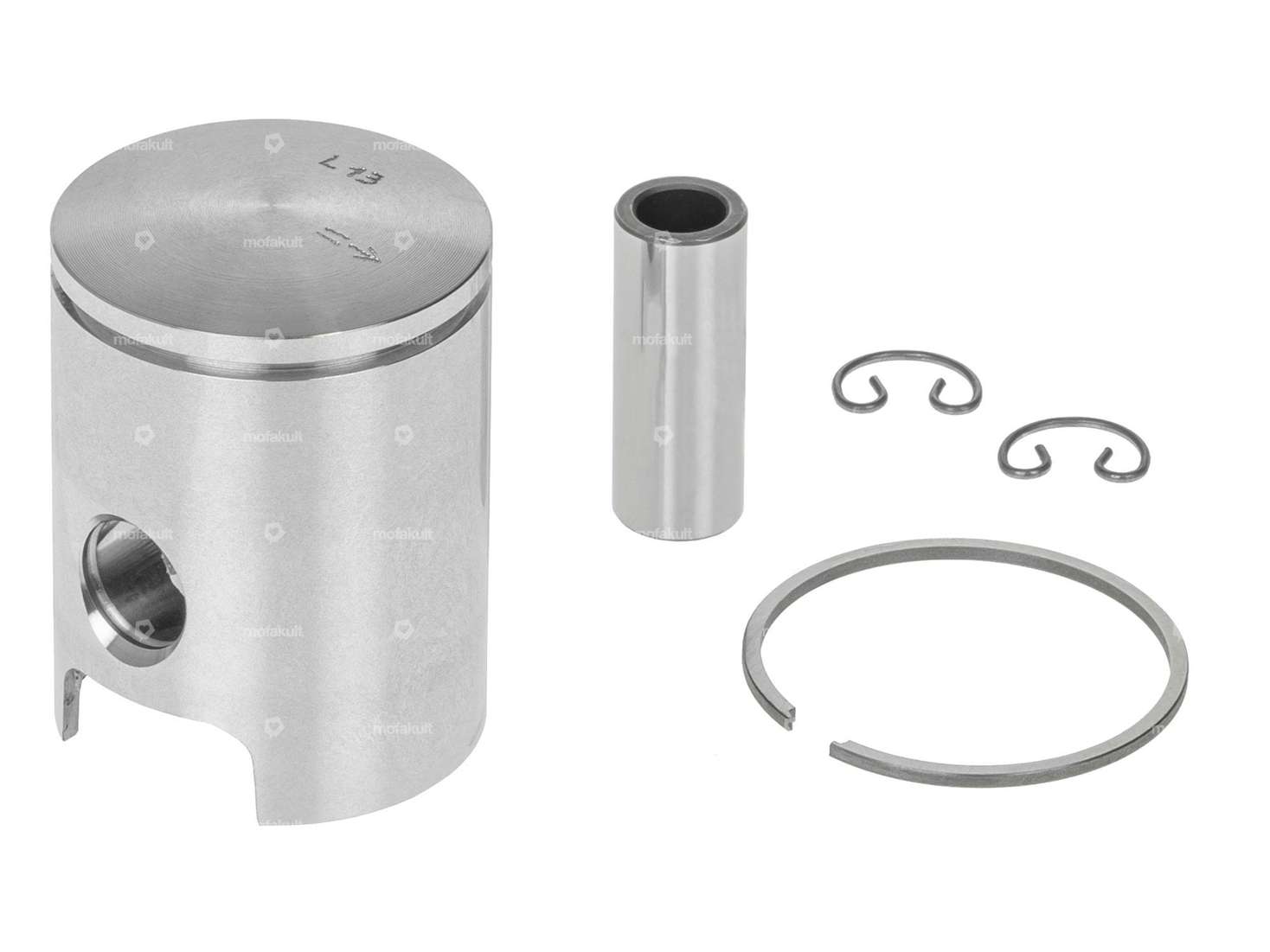

38.0 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for mopeds / mopeds with Sachs 503 AB / AC engines.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Nominal diameter38 mm
Ø outside piston (A)37.97 mm
Ø piston pin (B)12 mm
Compression height (C)28 mm
Curvature (D)2 mm
Total piston height (E)51 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupB
Weight piston kit75 g
Pony OEM numberA5685B
Sachs OEM no.0286 382 306
Sachs

503 - AB , AC
