logo_meteor-piston-mk

For: Sachs

25412

Meteor piston 38 mm #D | Sachs 505

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 67.10

Incl. 21% VAT.

Description

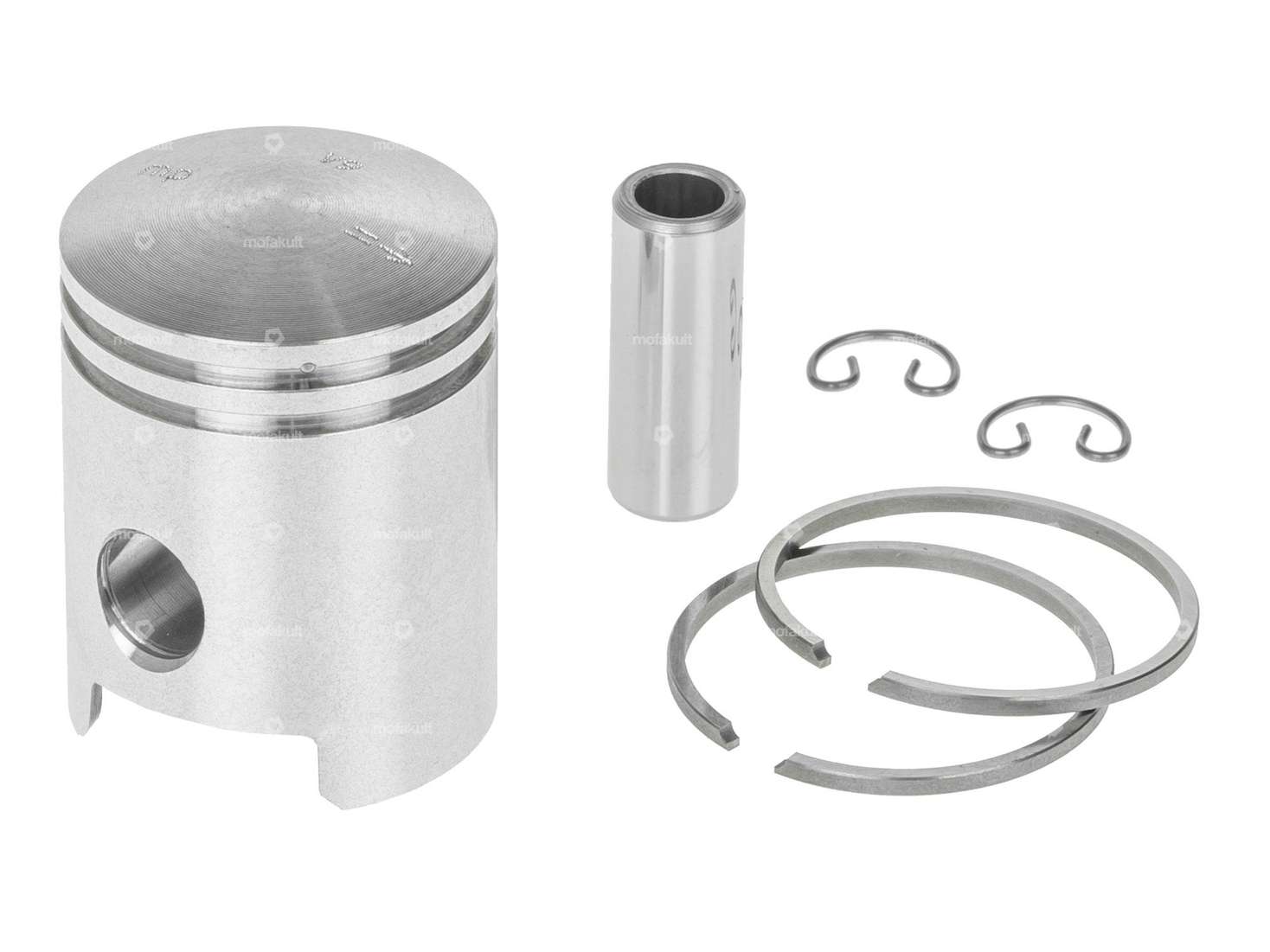

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 505 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Ø outside piston (A)38 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)50.5 mm
Number of piston rings (F)2 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Tolerance groupD
Weight piston kit78 g
Sachs

505 (with pedal shaft) - 1A (AT) , 2A (HG)
