Meteor piston 38 mm type D | Sachs 503 ADV

EUR 66.30

Incl. 21% VAT.

Description

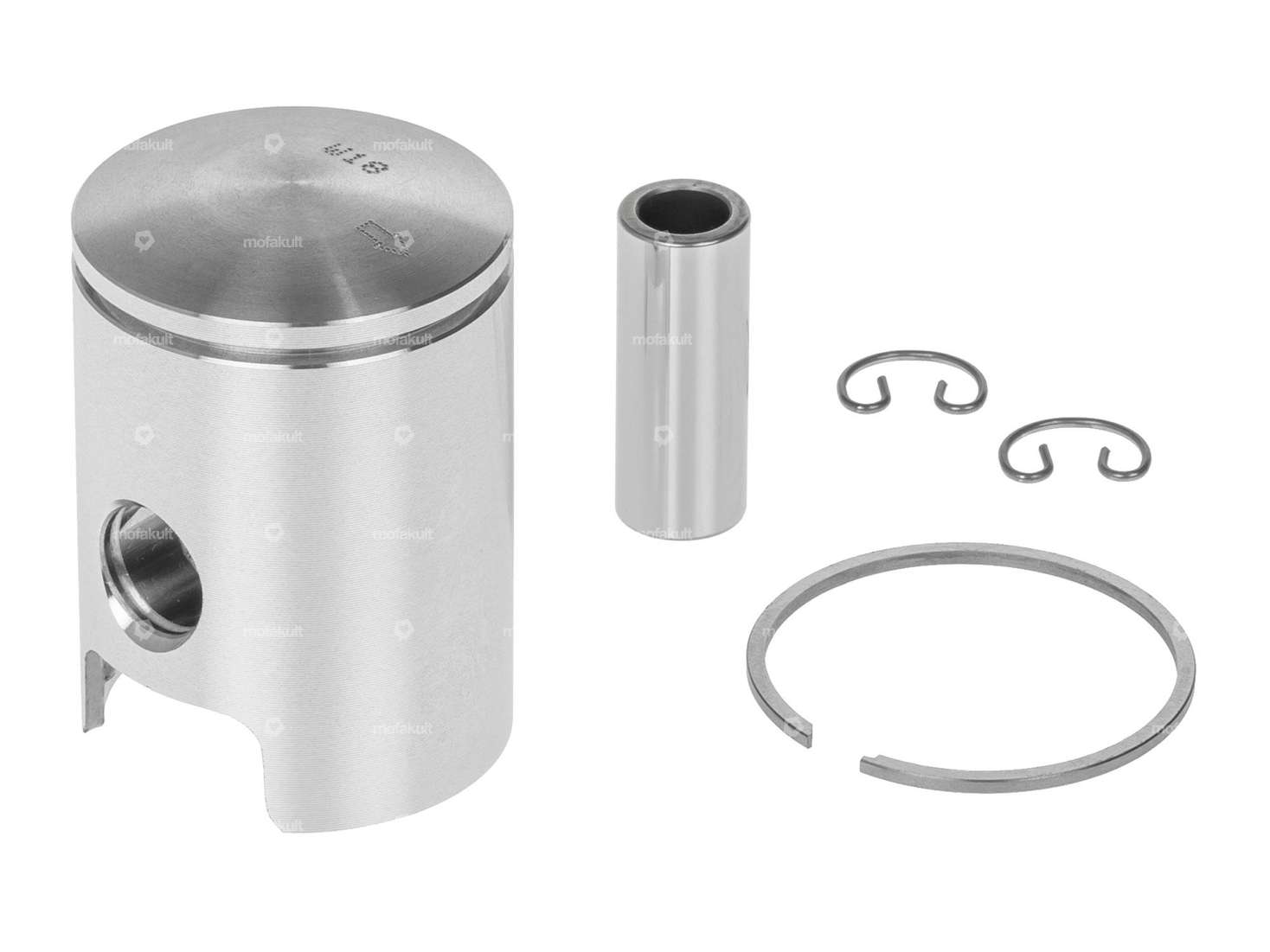

37.99 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Sachs 503 ADV engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.99 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)54 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupD
Weight piston kit77 g
