logo_meteor-piston-mk

For: Pony / Cilo (Beta 521 & 512)

21373

Meteor piston 40 mm "V" (A8105) | Beta 521 & 512

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 88.90

Incl. 21% VAT.

Description

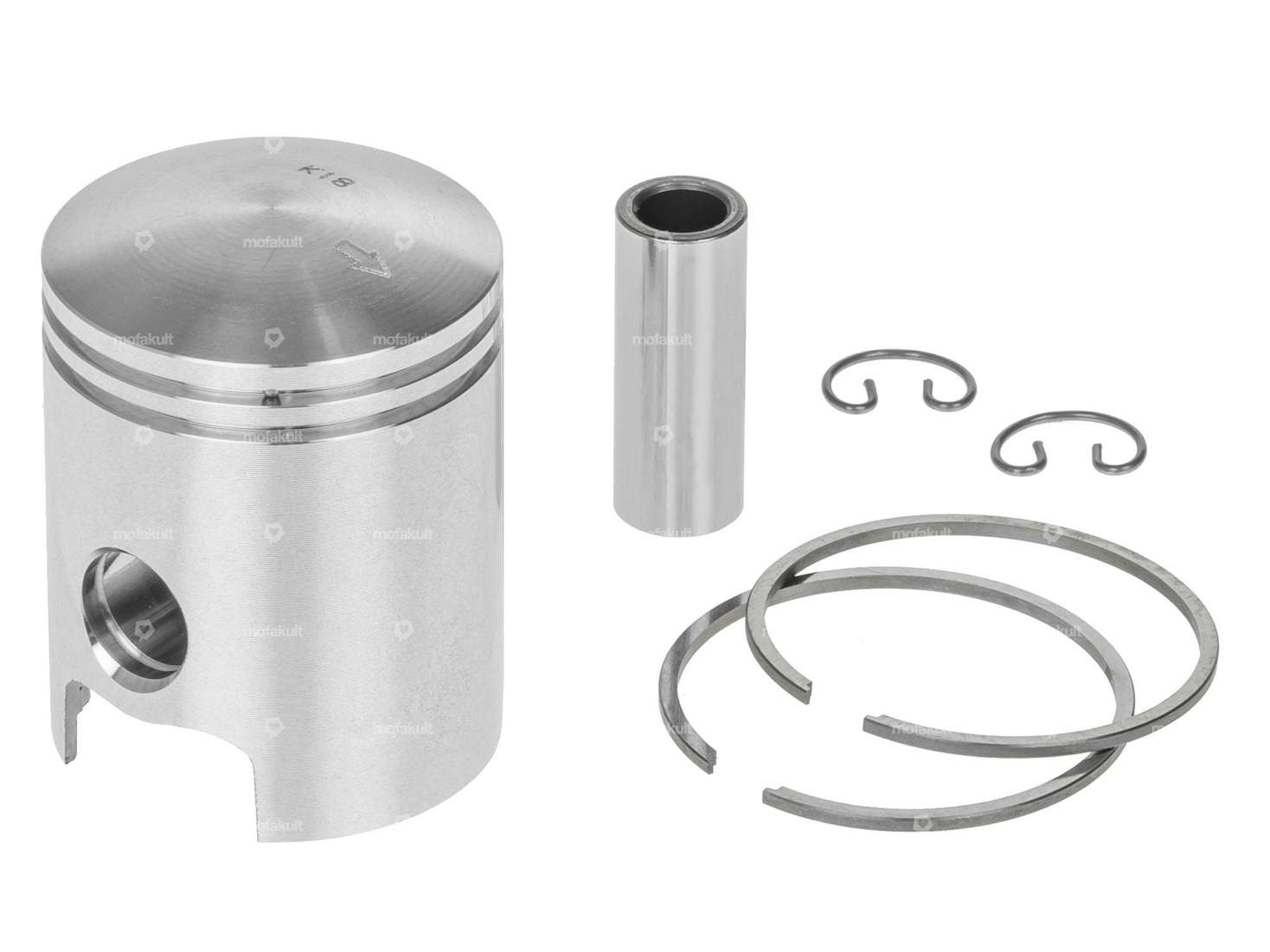

40.0 mm piston with two 1.5 mm rectangular piston rings with internal locking (IS) for Cilo Cross 521 & 512, Pony Cross 521, Pony GTX 521 mopeds / mopeds.

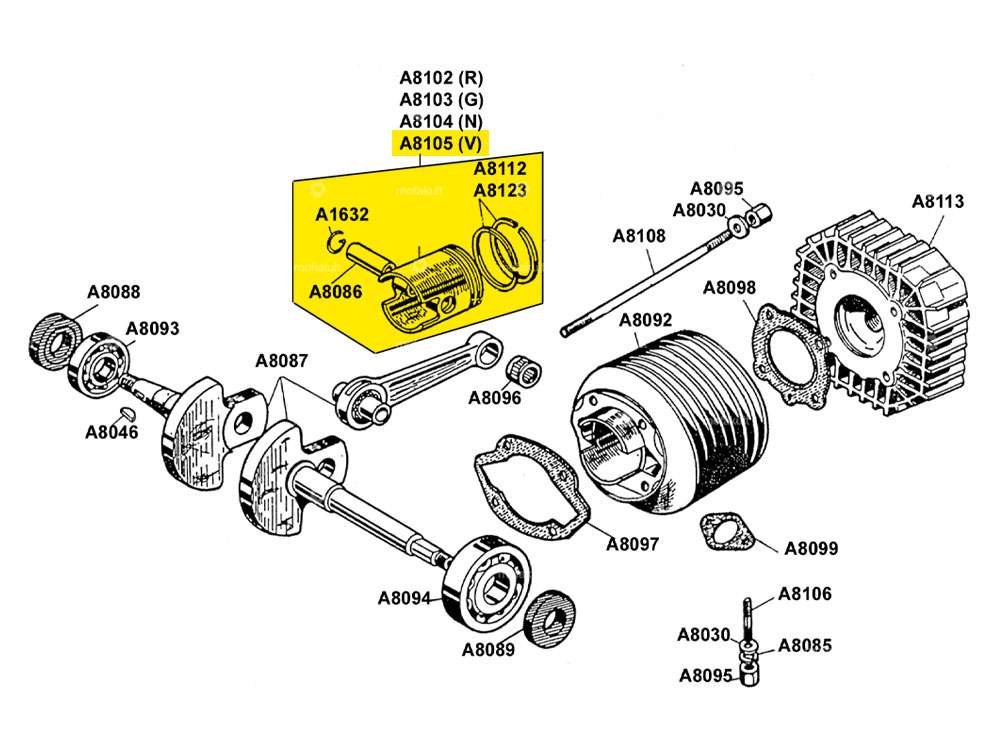

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter40 mm
ManufacturerMeteor
Ø outside piston (A)39.93 mm
Ø piston pin (B)12 mm
Compression height (C)27.9 mm
Curvature (D)4 mm
Total piston height (E)52 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Weight piston kit83 g
Pony / Cilo (Beta 521 & 512)

Beta 512

Beta 521 (engine)
