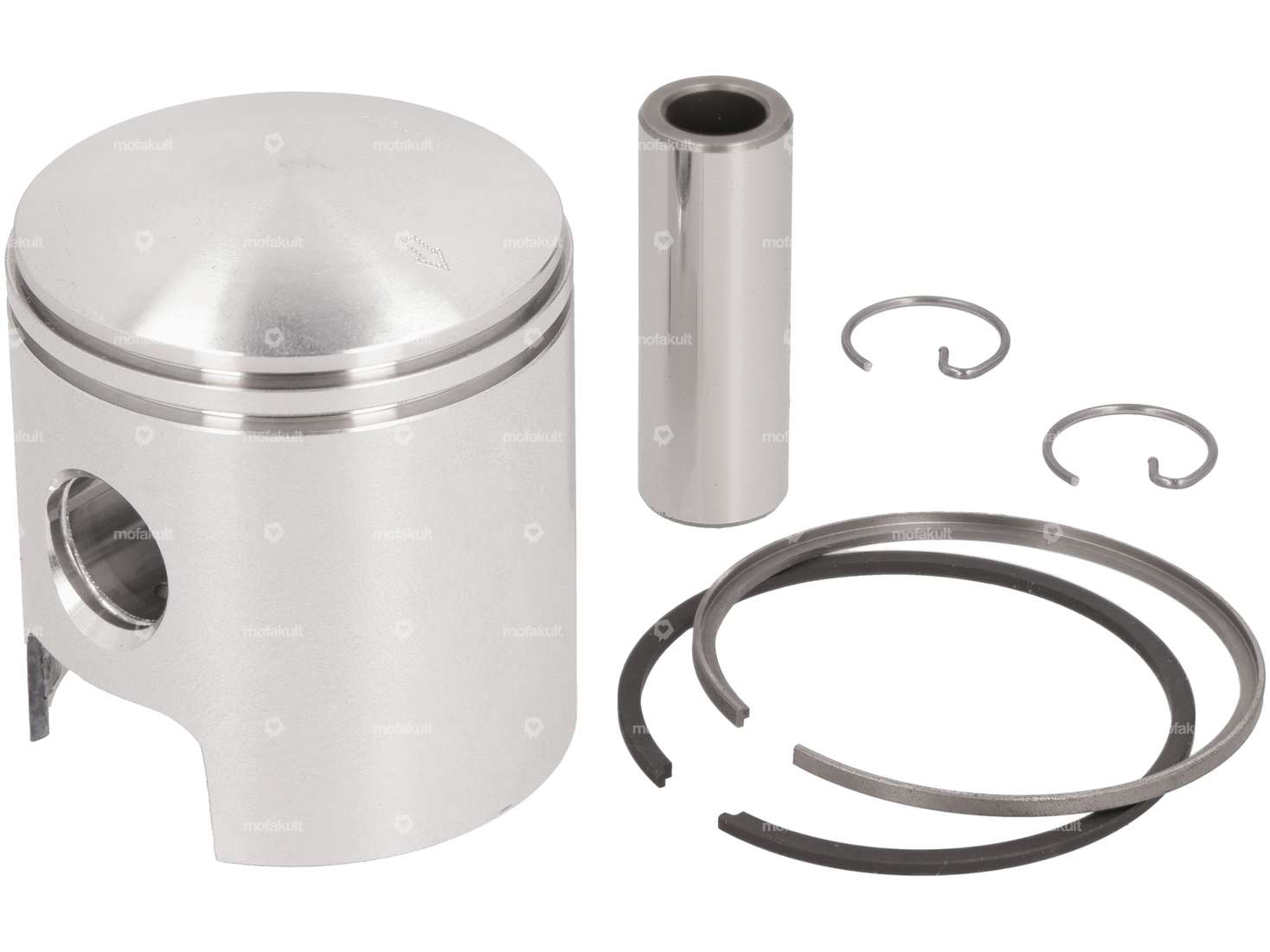

47.95 mm oversize piston with 1.5 mm rectangular piston ring and 2 mm L-ring piston ring, each with internal locking (IS) for your Tomos moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Nominal diameter | 48 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 47.95 mm |
| Compression height (C) | 23 mm |
| Curvature (D) | 4.2 mm |
| Total piston height (E) | 54.2 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 2 mm, 1.5 mm |
| Ø piston pin (B) | 14 mm |
| Piston weight | 124 g |
Suitable for the following models
| Tomos |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 23.60
Meteor piston 47.96 mm (14 mm KoBo) oversize #B | Tomos
Manufacturer: Meteor · Nominal diameter: 48 mm · Ø outside piston (A): 47.96 mm · Ø piston pin (B): 14 mm · Compression height (C): 23 mm · Curvature (D): 4.2 mm · Total piston height (E): 54.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 124 g
EUR 76.80
Meteor piston 47.97 mm (14 mm KoBo) oversize #C | Tomos
Manufacturer: Meteor · Nominal diameter: 48 mm · Ø outside piston (A): 47.97 mm · Ø piston pin (B): 14 mm · Compression height (C): 23 mm · Curvature (D): 4.2 mm · Total piston height (E): 54.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 124 g
EUR 76.80
Meteor piston 47.98 mm (14 mm KoBo) oversize #D | Tomos
Manufacturer: Meteor · Nominal diameter: 48 mm · Ø outside piston (A): 47.98 mm · Ø piston pin (B): 14 mm · Compression height (C): 23 mm · Curvature (D): 4.2 mm · Total piston height (E): 54.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 124 g
EUR 76.80
Moped fans like you also bought:
Magura cable clamp Ø 8 x 15 mm
Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Drive: External hexagon · Thread type: M6x1 (standard thread) · Drive: Slot · Ø outside: 8 mm · Ø Cable bushing: 2.3 mm · Total length: 15 mm · Screw head: Hexagon · Ø Bundle: 6 mm · Area of application: Standard · Thread length: 7 mm · Width across flats SW: 7 mm
EUR 2.95

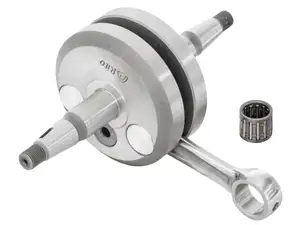

Rito crankshaft Kreidler Florett K3 39.8 mm stroke
