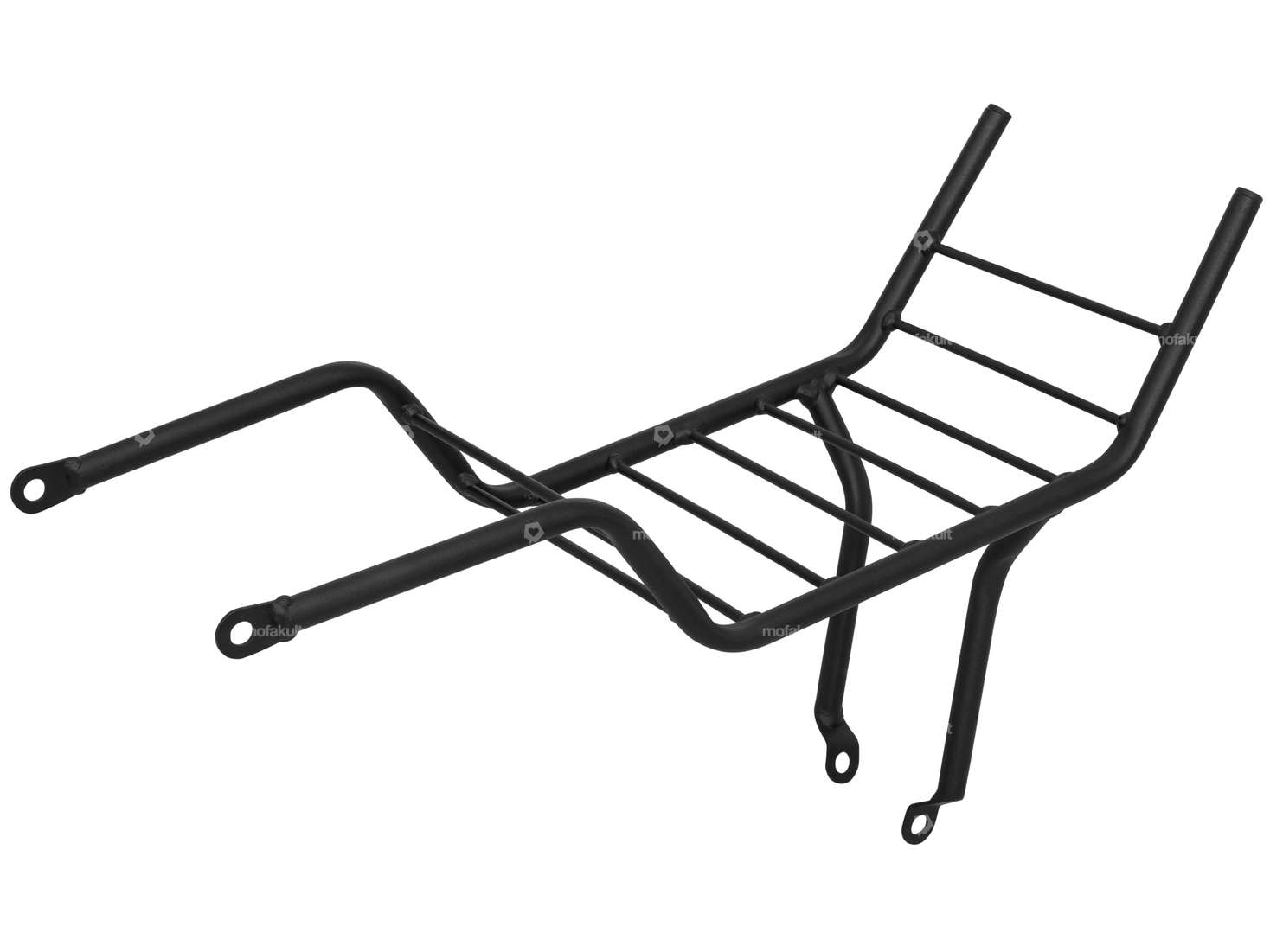

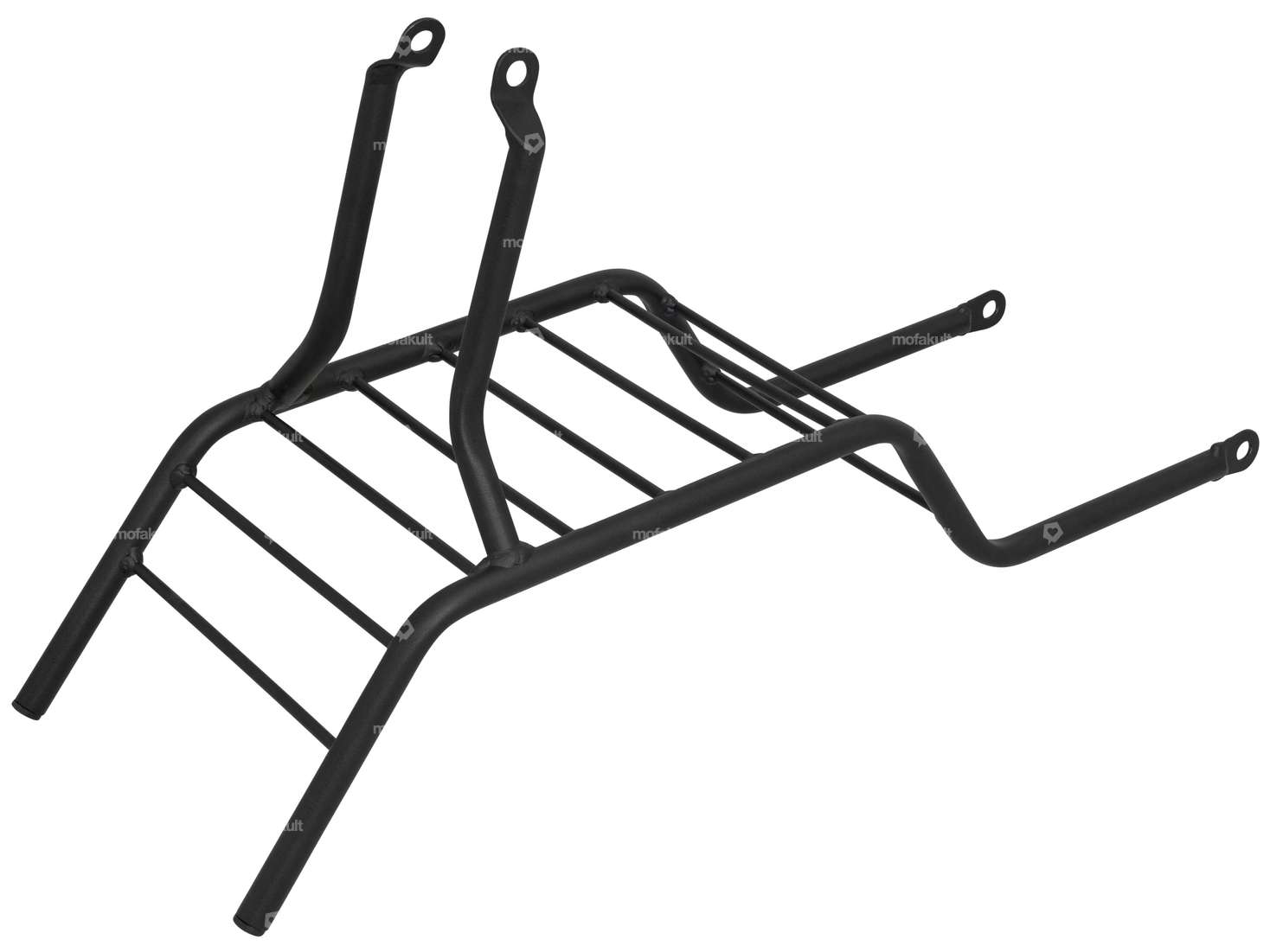

MLM tank / frame carrier linkage black | Puch Maxi S

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 207 mm · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch OEM number: 349.4.28.502.2 · Alternative version of the Puch OEM number: 349.4.28.603.2 · Puch OEM number: 349.7.28.503.2

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Lamp grille round black

Material: Steel · Surface: varnished · Ø outside: 130 mm · Total length: 70 mm · Color: black · Number of fixing points: 2 pcs · Grille length to attachment: 60 mm · Wide intake: 128 mm · Width: 138 mm · Mounting type: Screws

Leonelli 12V voltage regulator (1A quality)

Manufacturer: Leonelli · Material: Aluminum · Material: Plastic · Tension: 12 V · Performance: 100 W · Type of current: Alternating current (AC) · Total length: 50 mm · Width: 27 mm · Mounting type: Screws · Height: 15 mm · Ø mounting hole: 6 mm

GPO clamp saddle mount aluminum black (CNC) | Puch Maxi

Material: Aluminum · Surface: anodized · Color: black · Manufacturer: GPO

swiing® ingenious 15 mm carburetor tuning camouflaged | Puch

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SRE · Choke control: Hand choke · Total length: 66 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Width: 50 mm · Mounting type: Plug connection clamped · Height: 95 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m

Exhaust clamp 70 mm black

Nominal diameter: 70 mm · Manufacturer: Made in Portugal · Thickness: 2 mm · Material: Steel · Surface: varnished · Color: black · Number of fixing points: 1 pcs · Ø mounting hole: 8.9 mm · Width: 28 mm · Clamping diameter: 67 - 71 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom | Puch Maxi S, N

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Puch OEM number: 349.3.22.030.0 · Puch OEM number: 349.4.22.030.0

Flame tube 28 mm black | Puch Maxi S, N / X30 Sport

Manufacturer: Made in Portugal · Material: Steel · Ø inside: 25 mm · Ø outside: 28 mm · Total length: 295 mm · Color: black · Number of fixing points: 2 pcs · Mounting type: Stud bolts & nuts · Hole spacing outlet: 42 mm
