Gearboxes & shafts

Cylindrical roller Ø 4x6 mm | Sachs 50/2, 50/3, 50/4, 503 manual/automatic (A1145)

Manufacturer: Sachs · Material: Steel · Surface: Hardened · Diameter: 4 mm · Width: 6 mm · Pony OEM number: A1145 · Sachs OEM no.: 0232 002 000

Cylindrical roller Ø 3.5x7.5 mm Gearbox | Puch Z50

Manufacturer: Puch · Area of application: Standard · Material: Steel · Surface: Hardened · Width: 7.4 mm · Diameter: 3.5 mm

SKF 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Stock number: 6202 · Ø outside: 35 mm · Ø inside: 15 mm · Width: 11 mm · Puch OEM number: 900.4.6202

17 mm circlip E50 & ZA50 motor

Fuse type: Outside · Ø inside: 15.6 mm · Ø outside: 19.2 mm · Manufacturer: Puch · Place of use: Clutch · Material: Spring steel · Surface: gas nitrided · Nominal diameter: 17 mm · Thickness: 0.9 mm

swiing® revival clamp body reinforced | Sachs 503 AB, AC, ADV, ABL (A1196)

Height: 10.9 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Number of teeth: 24 pcs · Ø inside: 19 mm · Ø outside: 26.8 mm · Pony OEM number: A1196 · Sachs OEM no.: 0232 186 100

swiing® revival sprag / freewheel bearing motor | Beta 521, 512 (A8078)

Ø inside: 24 mm · Ø outside: 32 mm · Manufacturer: swiing® revival parts · Material: Steel · Number of teeth: 29 pcs · Height: 8.7 mm

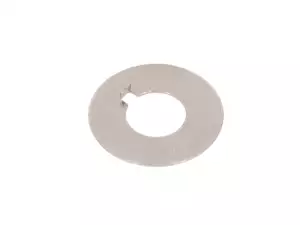

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Thickness: 0.5 mm · Number of lobes: 1 pcs · Pony OEM number: A1717 · Sachs OEM no.: A1717 · Sachs OEM no.: 0246 049 000

Washer for engine mounting | Sachs 503 2AL/2BL/AAL (A1628)

Ø inside: 8.1 mm · Ø outside: 20 mm · Manufacturer: Sachs · Ø Bundle: 10 mm · Nominal diameter (thread): 8 mm

Spring for gear wheel Puch ZA50

Spring design: Ironing spring · Manufacturer: Puch · Material: Spring steel · Surface: raw

SKF 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: SKF · Bearing clearance: C3 · Stock number: 6203 · Ø outside: 40 mm · Ø inside: 17 mm · Width: 12 mm

Woodruff key KW/Transmission | Sachs (A1674)

Height: 3.8 mm · Manufacturer: Sachs · Material: Steel · Total length: 9.3 mm · Width: 3 mm · Pony OEM number: A1674 · Sachs OEM no.: 0246 005 000

swiing® revival manual shift spring | Sachs 50/2, 503 2AL, 2BL (A1337)

Spring design: Tension spring · Total length: 28 mm · Length spring hook: 8 mm · Ø wire: 1.25 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: burnished · Color: gray · Ø inside: 6 mm · Ø outside: 8.5 mm · Pony OEM number: A1337 · Sachs OEM no.: 0239 102 100

Cylindrical roller Ø 8x8 mm gearbox NOS | Puch ZA50

Manufacturer: Puch · Material: Steel · Surface: Hardened · Diameter: 8 mm · Width: 8 mm · Puch OEM number: 900.6129

Snap ring gear wheel | Puch E50

Manufacturer: Puch · Puch OEM number: 901.4656

O-ring selector shaft Z50

Manufacturer: Puch · Material: NBR · Place of use: Shift shaft · Color: black · Number of components: 1 pcs · Ø inside: 8.3 mm · Cord thickness: 2.4 mm · Ø outside: 13.1 mm · Hardness [Shore]: 70 Shore

Splined pinion shaft 13 mm pinion | Sachs 50/2 AL, 502 AAL (A1673)

Manufacturer: Sachs · Material: Steel · Total length: 12.1 mm · Height: 4.9 mm · Width: 3 mm · Pony OEM number: A1673 · Sachs OEM no.: 0246 001 001

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Ø outside: 145 mm · Recording type: Interlocking · Number of teeth: 94 pcs · Ø axle: 17 mm

GPO ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Manufacturer: GPO · Bearing clearance: CN (standard) · Area of application: Standard · Material: Steel · Surface: blank / oiled · Ø outside: 35 mm · Ø inside: 15 mm · Width: 8 mm · Width: 25.6 mm · Thread type: MF20x1 (fine pitch thread) · Ball bearing closed: No · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105

Sliding block circuit old version | Sachs 50/2, 503 2AL/2BL (A1910)

Surface: Hardened · Material: Steel · Width: 4.4 mm · Total length: 18.4 mm · Total height: 10.4 mm · Ø Pin: 3.95 mm · Pony OEM number: A1910 · Sachs OEM no.: 0259 021 000

Ball Ø 7 mm circuit | Zündapp Belmondo (Type 247)

Number of components: 8 pcs · Material: Steel · Surface: hardened & ground · Ø ball [inch] / [mm]: 7 mm

Roller bearing 24/32/5 | Beta 521 (A8120)

Width: 5 mm · Manufacturer: Pony · Material: Steel · Surface: Hardened · Ø inside: 24 mm · Ø outside: 32 mm

swiing® revival pinion pulley | Puch Z50

Ø inside: 13.9 mm · Ø inside: 17.1 mm · Ø outside: 24.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thickness: 3 mm · Nominal diameter (thread): 17 mm · Puch OEM number: 050.1.1319

swiing® revival locking plate gear nut M10 | Puch X30

Manufacturer: swiing® revival parts · Material: Steel · Thread size: M10 · Number of lobes: 1 pcs · Ø inside: 10.45 mm

Nut M12x1.25 Clutch/gearbox engine | Beta 521 & 512 (A8052)

Manufacturer: Pony · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.5D · Drive: External hexagon · Thread type: MF12x1.25 (fine pitch thread) · Height: 6 mm

swiing snapper to gearshift | Puch Z50

Manufacturer: swiing · Material: Steel · Surface: gas nitrided · Puch OEM number: 050.1.1421

Outer ring 23.5/31.5/6 Main shaft left | Sachs 502, 50/2, 50/3, 50/4, 503 (A1157)

Ø inside: 23.5 mm · Ø outside: 31.5 mm · Material: Steel · Surface: hardened & ground · Width: 6 mm · Pony OEM number: A1157 · Sachs OEM no.: 0232 049 000

MBR clutch basket & spur gear 18:94 teeth Racing straight | Puch E50

Manufacturer: MBR · Area of application: Tuning · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs

Reinforcement set 9 springs clutch | Sachs 50/2 & 503

Spring design: Pressure spring · Number of components: 12 pcs

swiing® revival washer for engine mounting Inox | Sachs 503 (A1628)

Material: Chrome steel (known as Nirosta®) · Manufacturer: swiing® revival parts · Ø inside: 8.6 mm · Ø Bundle: 10.5 mm · Ø outside: 20 mm

NTN 6203 C4 ball bearing 17/40/12 engine | Puch E50

Manufacturer: NTN · Material: Steel · Surface: blank · Width: 12 mm · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Bearing clearance: C4 · Area of application: Standard · Stock number: 6203 · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Ø outside: 40 mm

swiing® ingenious ball bearing pinion shaft 15.5/31.5/8 | Sachs 502 AML, 50/2 ML, 50/3, 50/4

Width: 8 mm · Bearing cage: Sheet steel cage · Manufacturer: swiing® ingenious parts · Dust protection type: 2RS1 - NBR contact seal on both sides · Material: Steel · Bearing type: Deep groove ball bearing · Ø inside: 15.5 mm · Ø outside: 31.5 mm · Ball bearing closed: Yes

Clutch basket & spur gear 19:96 teeth | Puch E50

Material: Steel · Area of application: Standard · Toothing type: helical toothed · Recording type: Interlocking · Number of teeth: 19 pcs · Number of teeth: 96 pcs

Outer ring 21/28/6 Main shaft right | Sachs 502, 50/2, 50/3, 50/4, 503 (A1146)

Width: 6 mm · Material: Steel · Surface: hardened & ground · Ø inside: 21 mm · Ø outside: 28 mm · Pony OEM number: A1146 · Sachs OEM no.: 0232 012 000

Locking plate countershaft | Puch X30 Velux

Width: 6 mm · Ø inside: 12.7 mm · Number of lobes: 2 pcs · Thickness: 1 mm · Width 2: 9 mm

Koyo 12.7/17.46/15.8 pinion shaft | Puch ZA50

Width: 15.7 mm · Manufacturer: Koyo · Bearing type: Needle box · Ø inside: 12.7 mm · Ø outside: 17.5 mm · Dimension needle bearing: 12.7/17.5 x 15.7

Spring freewheel Tomos

Spring design: Ironing spring · Material: Spring steel · Manufacturer: Tomos · Tomos OEM number: 223121

Spring washer gearshift shaft Puch Z50

Manufacturer: Puch · Spring design: Special spring · Material: Spring steel · Surface: raw · Ø inside: 8.5 mm · Ø outside: 15.5 mm · Puch OEM number: 050.1.1426

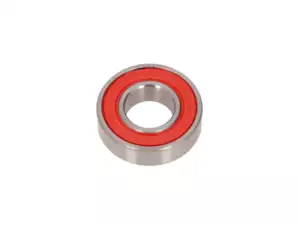

swiing® ingenious ball bearing pinion shaft 13/28/8 | Sachs 502, 50/2, 503

Width: 8 mm · Bearing cage: Sheet steel cage · Manufacturer: swiing® ingenious parts · Dust protection type: 2RS1 - NBR contact seal on both sides · Bearing clearance: CN (standard) · Material: Steel · Bearing type: Deep groove ball bearing · Ø inside: 13 mm · Ø outside: 28 mm · Ball bearing closed: Yes

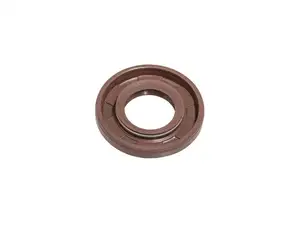

Oil seal FPM 15/30/5.5 AS crankshaft & main shaft | Sachs 503, 504, 505, 535 (A4215 / A5602)

Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: FPM - Fluororubber · Surface: rubberized · Place of use: Crankshaft · Ø outside: 30 mm · Ø inside: 15 mm · Width: 5.5 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100

Fan wheel E-Start | Beta 521 (A8786)

Manufacturer: Pony · Material: Plastic · Color: black · Number of fixing points: 4 pcs

Tubular rivet circuit | Sachs 503 2AL, 2BL (A1532)

Total length: 25 mm · Manufacturer: Sachs · Material: Steel · Ø outside: 6 mm · Ø outside: 9 mm

Shim 19/26/0.5

Ø inside: 19 mm · Ø outside: 26 mm · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 19 mm · Thickness: 0.5 mm

swiing® revival plain bearing countershaft | Sachs 50/2, 503 2AL/2BL

Material: special bearing bronze · Manufacturer: swiing® revival parts · Total length: 25 mm · Nominal diameter inside: 14 mm · Ø inside: 14 mm · Ø outside: 15 mm

swiing® revival shift arm Z50 Motor | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Puch OEM number: 320.5.14.017.1

Elastic driver gearbox | Puch ZA50

Material: Rubber · Total length: 8 mm · Ø outside: 19 mm

Needle bearing 15/18/16 clutch basket | Beta 521, 512 (A8057)

Width: 16 mm · Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Ø inside: 15 mm · Ø outside: 18 mm · Dimension needle bearing: 15/18 x 16

NSK sleeve freewheel clutch basket | Sachs 503 AB, ABL automatic

Manufacturer: NSK · Material: Sheet metal (steel) · Material: Steel · Stock number: HF1416 · Ø outside: 20 mm · Ø inside: 14 mm · Height: 15.9 mm

Spring washer M12 countershaft | Sachs 503, 50/2, 50/3, 50/4 (A3746)

Height: 1.2 mm · Material: Steel · Surface: blank · Ø inside: 13 mm · Ø outside: 24 mm · Pony OEM number: A3746

Seeger ring countershaft | Sachs 503 ABL, AB, AC, ADV (A5653)

Place of use: Clutch shaft · Fuse type: Outside · Manufacturer: Sachs · Material: Spring steel · Nominal diameter: 19 mm · Thickness: 1.2 mm · Pony OEM number: A5653 · Sachs OEM no.: 2512 007 000

Nut M14x1 gear shaft | Tomos

Manufacturer: Tomos · Height: 7.3 mm · Drive: External hexagon · Nut type: Hexagon nut · Thread type: MF14x1 (fine pitch thread) · Width across flats SW: 22 mm · Tomos OEM number: 200141

Gearwheel 2nd gear replica | Beta 521, 512 (A8048)

Ø inside: 15 mm · Ø outside: 85.7 mm · Material: Steel · Surface: blank · Toothing type: helical toothed · Recording type: Wedge connection · Number of teeth: 49 pcs · Pony OEM number: A8048

Washer (12/21/0.4 mm) Pinion motor | Beta 521 & 512 (A8070)

Manufacturer: Pony · Material: Steel · Surface: blank / oiled · Ø inside: 12.1 mm · Ø outside: 21 mm · Thickness: 0.4 mm · Nominal diameter (thread): 12 mm

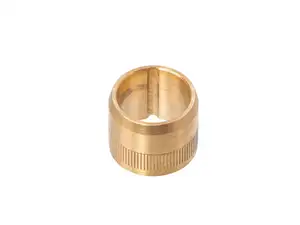

swiing® revival plain bearing 13 mm countershaft | Sachs 50/2, 503 (A1186)

Material: special bearing bronze · Manufacturer: swiing® revival parts · Nominal diameter inside: 13 mm · Ø inside: 13 mm · Ø outside: 16 mm · Total height: 13 mm · Pony OEM number: A1186 · Sachs OEM no.: 0232 153 001

NSK sleeve freewheel gear 1st gear | Sachs 503 automatic

Manufacturer: NSK · Material: Plastic · Material: Sheet metal (steel) · Material: Steel · Stock number: HCB 121616 · Ø outside: 25.5 mm · Ø inside: 19 mm · Height: 25.3 mm
