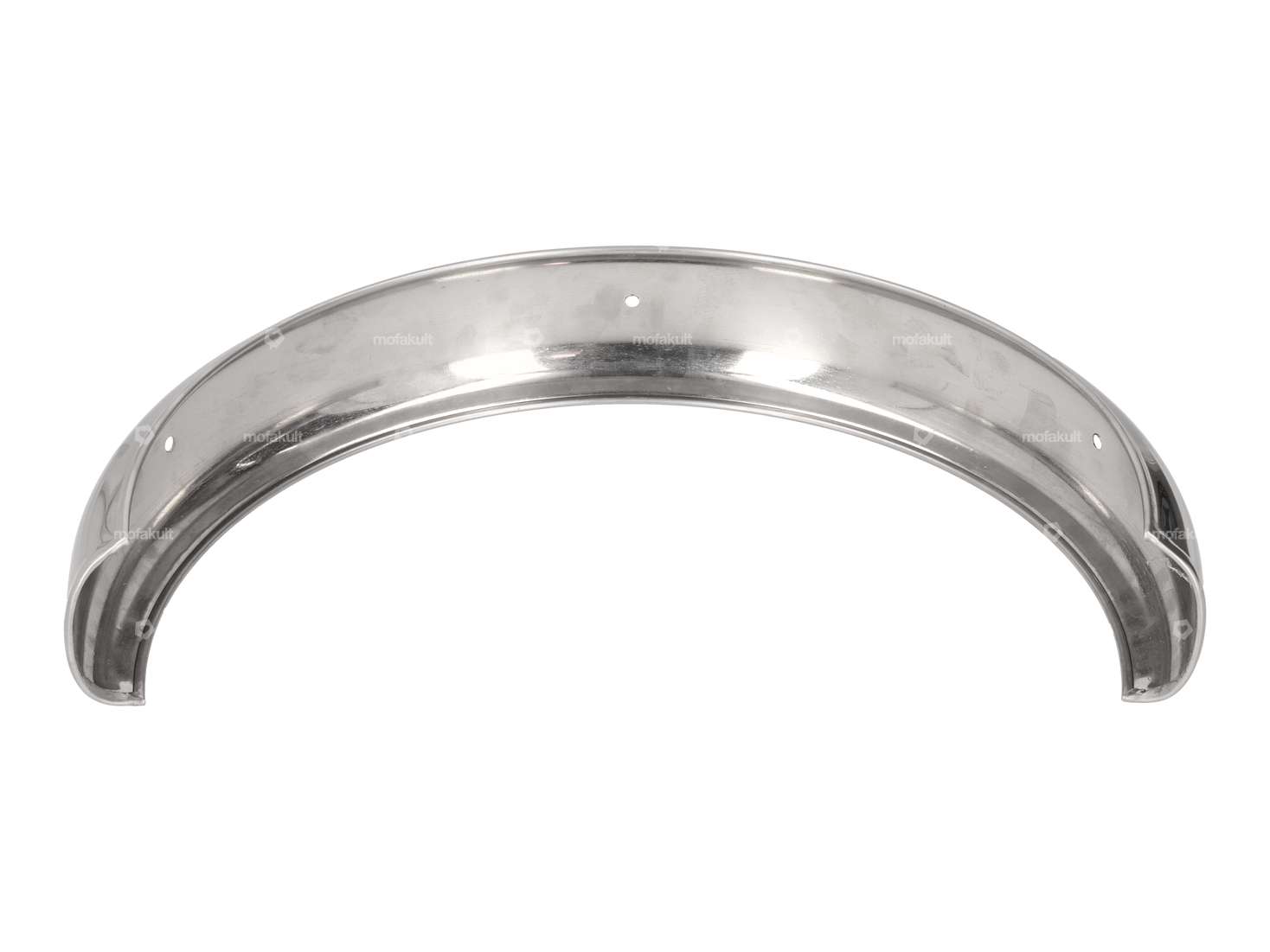

Mudguard 12" galvanized

swiing® revival 17" front fender round Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Folding the ends: folded · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 570 mm · Mounting type: Nuts & bolts · Scope: 715 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 185 mm · Wheel size: 17 "

swiing® revival 17" rear fender Inox | Puch X30 NS, NL, NG-2AH, N-2AH, Sprinter

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Wheel size: 17 " · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 635 mm · Scope: 1005 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 320 mm · Mounting type: Screws

swiing® revival 17" rear fender "Retro" Inox | Puch X30 NS, NL, NG-2AH, N-2AH, Sprinter

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Wheel size: 17 " · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: round · Total length over ends: 623 mm · Scope: 1020 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 320 mm · Mounting type: Nuts & bolts

Washer M5 plastic black

Manufacturer: Made in Germany · Material: Polyamide (PA) · Thread size: M5 · Nominal diameter (thread): 5 mm · Ø outside: 11.8 mm · Ø inside: 5.3 mm · Thickness: 1.5 mm

Mitas 3.00 x 12" tires MC5 Allround (Scooter)

Inventory-managed: No · Manufacturer: Mitas · Tire width: 3 " · Tire width [mm]: 76.2 · Width: 3 " · Wheel size: 12 " · Speed index: J = 100 km/h · Load capacity index: 47 = 175 kg · Profile type: MC5 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Flange nut M5 galvanized (10 strength)

Width across flats: 8 mm · Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Drive: External hexagon · Strength class: 10 · Thread type: M5x0.8 (standard thread) · Height: 5 mm · Pony OEM number: A1501 · Sachs OEM no.: 0242 024 104

Washer M5 (5.3/12/1.3) Rubber | Side panel Sheet metal

Material: Rubber · Thread size: M5 · Ø outside: 12 mm · Nominal diameter (thread): 5 mm · Ø inside: 5.3 mm · Thickness: 1.3 mm

CHROMINOX 17" front fender NOS | Puch Velux X30S / Allegro APN

Material: Chrome steel (colloquially known as stainless steel) · Surface: chrome-plated · Color: Chrome · Wheel size: 17 " · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 575 mm · Scope: 690 mm · Wide mudguard profile: 78 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 165 mm · Mounting type: Nuts & bolts

M5x12 hexagon head screw, galvanized

Width across flats: 8 mm · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Thread length: 12 mm · Screw head: Hexagon · Drive: External hexagon · Shank: No · Strength class: 8.8 · Thread type: M5x0.8 (standard thread) · Total length: 15.5 mm

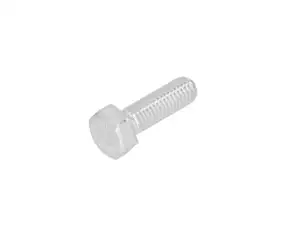

M5x16 hexagon head screw, galvanized

Total length: 19.5 mm · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats: 8 mm · Shank: No · Thread length: 16 mm · Strength class: 8.8

Washer M5 large 5.3/15/1.2 Inox

Material: Chrome steel (colloquially known as stainless steel) · Thread size: M5 · Number of components: 1 pcs · Ø outside: 15 mm · Nominal diameter (thread): 5 mm · Ø inside: 5.3 mm · Thickness: 1.2 mm

Screw M5x16 cylinder head low hexagon socket, galvanized

Width across flats: 3 mm · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Thread length: 16 mm · Screw head: Cylinder head · Drive: Hexagon socket · Ø External head: 8.4 mm · Shank: No · Strength class: 8.8 · Thread type: M5x0.8 (standard thread) · Total length: 19.2 mm

Chrome mirror

Material: Steel · Surface: chrome-plated · Color: Chrome · Ø mirror surface: 96 mm · Ø mirror rod: 7 mm · Mirror rod length: 230 mm · Clamping diameter: 22 mm · Total length: 285 mm · Thread size: M8 · Thread type: M8x1.25 (standard thread) · Test mark: none

Black bench seat

Total length: 300 mm · Width: 215 mm · Height: 80 mm · Height: 115 mm · Manufacturer: Made in Portugal · Ø Saddle tube holder: 22 mm · Material: Imitation leather · Spring-loaded: No · Lettering: No · Color: black · Number of fixing points: 1 pcs

swiing® revival side protection screw 50 mm chrome (Puch)

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: chrome-plated · Surface: galvanized (blue) · Color: Chrome · Total length: 62.7 mm · Thread length: 50 mm · Drive: Slot · Drive: Triangular head · Thread type: M5x0.8 (standard thread)

swiing® revival set screw M6x0.75 carburetor tube bend & carburetor cover

Manufacturer: swiing® revival parts · Width across flats nut: 8 mm · Thread length: 10 mm · Thread type: MF6x0.75 (fine pitch thread)

Leonelli 12V voltage regulator (1A quality)

Total length: 50 mm · Width: 27 mm · Height: 15 mm · Manufacturer: Leonelli · Material: Aluminum · Material: Plastic · Tension: 12 V · Ø mounting hole: 6 mm · Performance: 100 W · Type of current: Alternating current (AC) · Mounting type: Screws

IMCA shock absorber 32 cm chrome / black

Manufacturer: IMCA · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Damping type: Spring · Adjustable: Yes · Hole spacing: 320 mm · Ø outside: 45 mm · Total length: 350 mm · Ø spars: 28 mm · Ø Fastening inside: 10 mm · Number of fixing points: 2 pcs · Mounting type: Nuts & bolts

Lamp grille round chrome

Total length: 70 mm · Width: 136 mm · Material: Steel · Surface: chrome-plated · Ø outside: 130 mm · Color: Chrome · Mounting type: Screws · Wide intake: 128 mm · Number of fixing points: 2 pcs · Grille length to attachment: 60 mm

Clutch lever left sheet metal (Magura replica)

Material: Steel · Color: silver

Wheel clamp straight (coaster brake) per piece

Ø inside: 11.2 mm · Total length: 60.5 mm · Ø outside: 20.2 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread length: 33.2 mm
