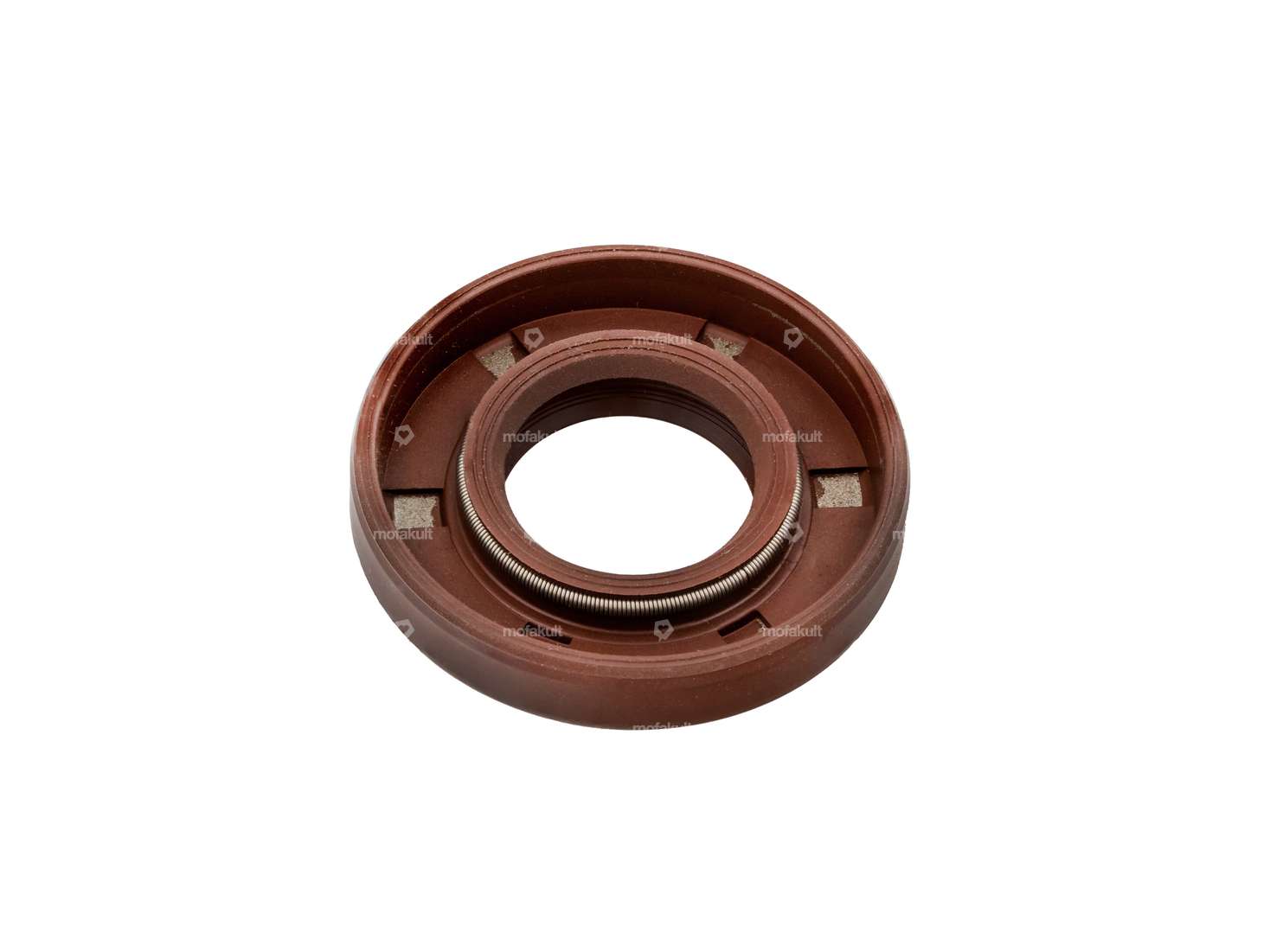

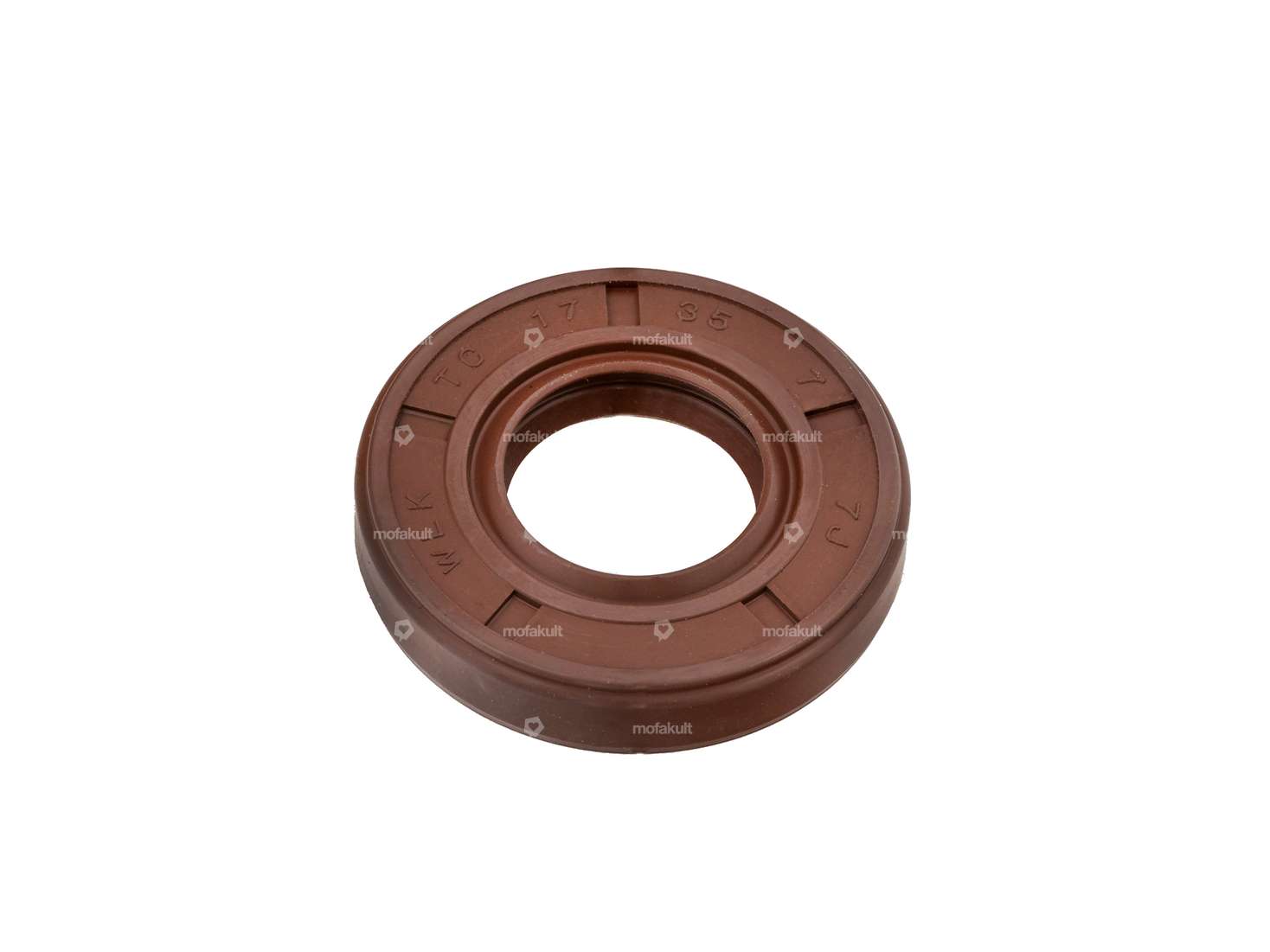

Shaft seal ring (colloquially known as oil seal) 17x35x7 mm for use on the crankshaft (e.g. crankshaft oil seal).
| Material | FPM - Fluororubber |
| Surface | rubberized |
| Temperature resistance (min.) | -30 - 200 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Place of use | Crankshaft |
| Width | 7 mm |
| Ø inside | 17 mm |
| Ø outside | 35 mm |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
