Oil seal NBR 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer

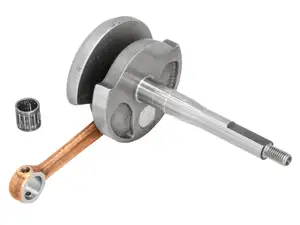

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Original · Area of application: Standard · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread length: 16 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Weight: 698 g · Number of gears: 1 pcs

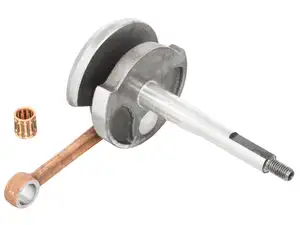

Mazzucchelli crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Area of application: Original · Area of application: Standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 10 mm · Thread length: 16 mm · Ø Connecting rod eye: 13 mm · Thread type: M8x1.25 (standard thread) · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Weight: 695 g · Number of gears: 1 pcs

Oil seal NBR 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Surface: rubberized · Material: NBR · Width: 5 mm · Ø inside: 15 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 100 °C

Oil seal 15/24/5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Place of use: Crankshaft · Ø outside: 24 mm · Ø inside: 15 mm · Width: 5 mm

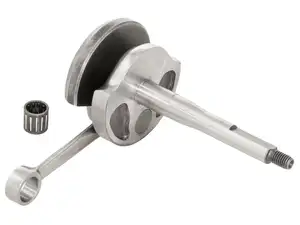

Athena crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Manufacturer: Athena · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 85 mm · Area of application: Racing · Total length crankpin ignition side: 91.6 mm · Ø piston pin (B): 10 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 13 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm · Number of gears: 1 pcs

Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 200 °C · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Simmering type: A - With rubberized outer part / one sealing lip. · Width: 5 mm · Place of use: Crankshaft · Manufacturer: Malossi · Ø outside: 24 mm · Ø inside: 15 mm

Oil seal FPM 15/24/5 AS crankshaft original | Piaggio Ciao, SI, Bravo & Boxer

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Piaggio · Surface: rubberized · Place of use: Crankshaft · Material: FPM - Fluororubber · Width: 5 mm · Ø inside: 15 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 200 °C

Polini oil seal FPM / PTFE 15/24/5

Temperature resistance (min.): -30 - 200 °C · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Width: 5 mm · Manufacturer: Polini · Place of use: Universal · Ø outside: 24 mm · Ø inside: 15 mm · Area of application: Racing

GPO license plate holder Inox (CH version)

Thread type: M5x0.8 (standard thread) · Thread length: 8 mm · Height: 5.3 mm · Manufacturer: GPO · Total length: 145 mm · Width: 105 mm · Material: Chrome steel (known as Nirosta®) · Color: silver · Mounting type: Nuts & bolts · Ø mounting hole: 5 mm · Hole spacing: 30 mm · Hole spacing: 50 mm · Number of fixing points: 2 pcs

KMC Standard pedal chain

Chain pitch: 1/2" x 1/8" · Chain type: 410 · Color: gray · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Number of chain links: 112 pcs · Rolling circumference: 1422 mm · Chain lock type: Spring lock

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: galvanized (blue) · Number of components: 6 pcs · Drive: External hexagon · Thread type: M7x1 (standard thread) · Material: Steel · Width across flats SW: 11 mm · Total length: 25 mm · Screw head: Hexagon · Ø outside: 11 mm · Area of application: Standard · Thread length: 19.5 mm

Shim 15/21/0.5

Ø inside: 15 mm · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø outside: 21 mm · Nominal diameter inside: 15 mm

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Area of application: Tuning · Material: Plastic · Color: black · Filter type: Foam · Total length: 31.2 mm · Width: 95 mm · Ø Internal connection: 51 mm · Ø outside: 53.2 mm · Height: 88.7 mm · Mounting type: Plug connection clamped · Camouflaged: No

Mirror mount M8 aluminum

Material: Aluminum · Thread size: M8 · Clamping diameter: 22 mm · Total length: 28 mm · Width: 24 mm · Height: 62 mm

Large flywheel rubber (from 1975) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Rubber · Color: black · Total length: 42 mm · Total length: 47 mm · Width: 24 mm · Width: 27 mm · Piaggio OEM number: 166554

swiing® revival screw set engine mounting Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Area of application: Standard · Drive: External hexagon · Color: silver · Screw head: Hexagon · Thread length: 19 mm · Thread length: 25 mm · Shank: Yes · Thread type: M6x1 (standard thread) · Storage method: Sack · Width across flats SW: 10 mm · Dimension storage box: 120 x 110 x 10 · Number of components: 10 pcs · Piaggio OEM number: 006176 · Piaggio OEM number: 008977 · Piaggio OEM number: 020106 · Piaggio OEM number: 031092

Oil seal FPM 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Surface: rubberized · Material: FPM - Fluororubber · Width: 5 mm · Ø inside: 15 mm · Ø outside: 24 mm · Temperature resistance (min.): -30 - 200 °C

swiing® revival gasket engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.3 mm · Piaggio OEM number: 112967
