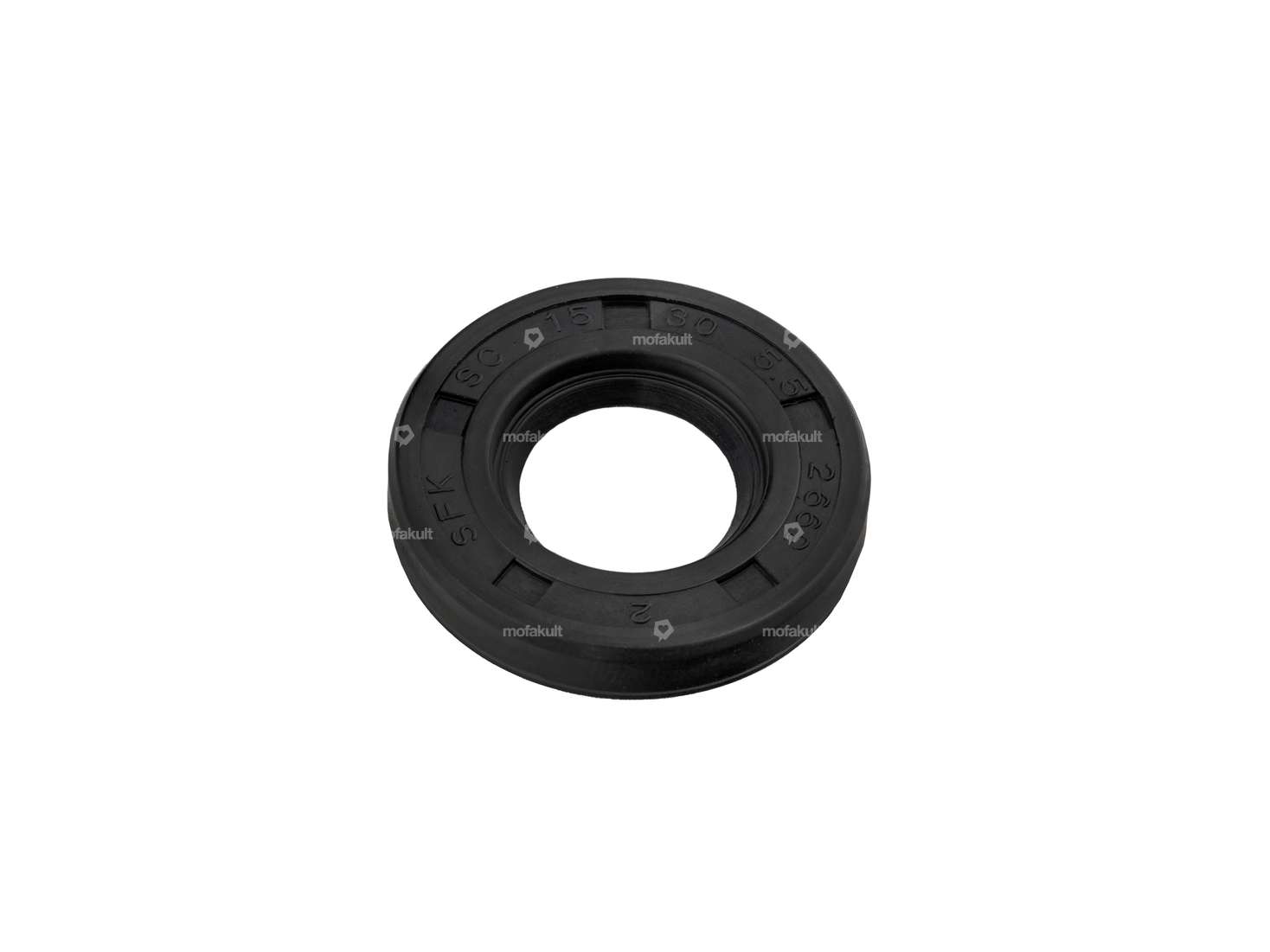

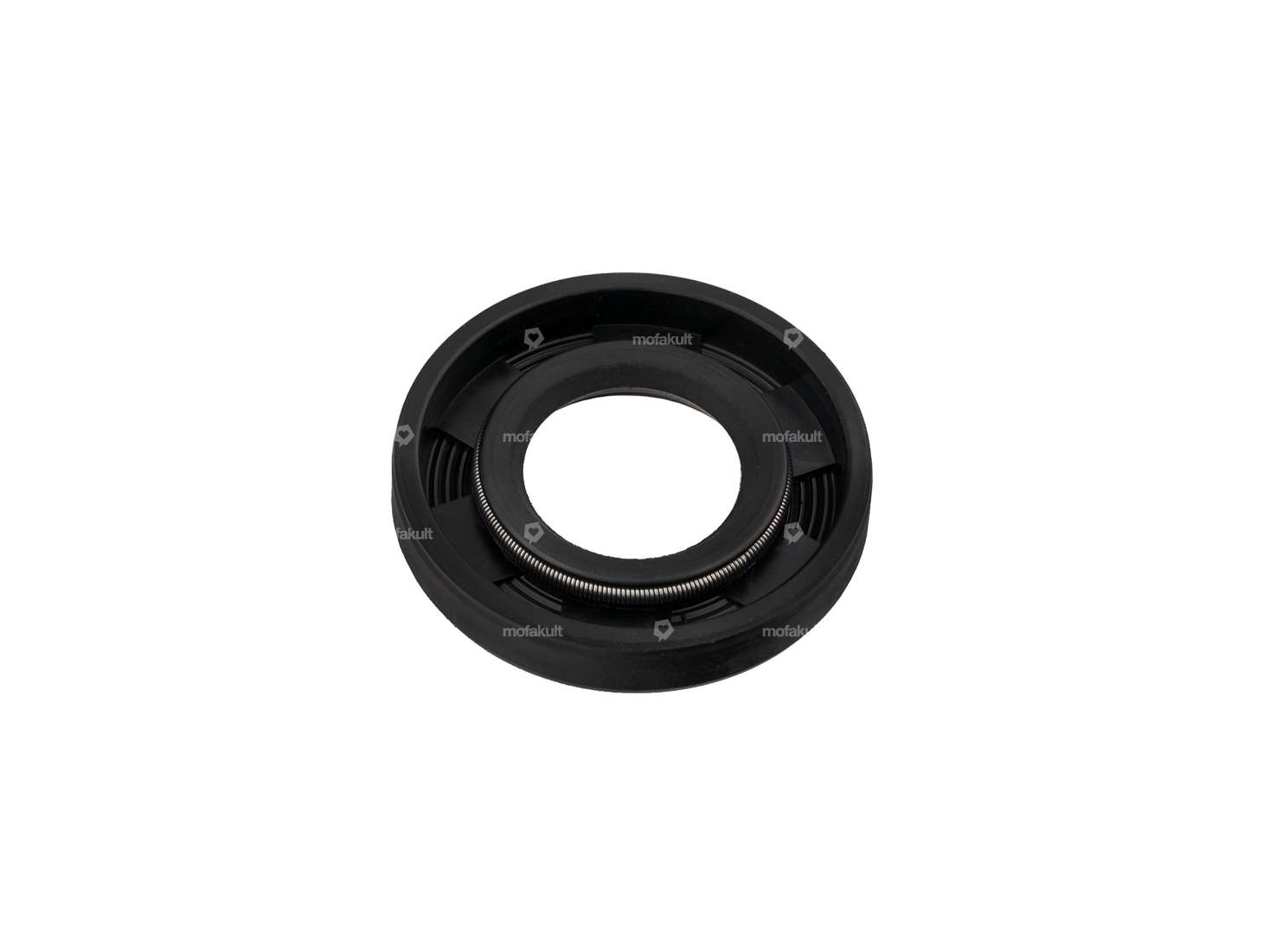

Shaft seal ring 15x30x5.5 mm for use on the crankshaft of your moped / moped with Sachs 504, 505, 535 and 503 ABL/AB engine.
This shaft seal ring (colloquially known as a radial shaft seal) is suitable for Hercules Prima M, 2, 3, 4, 5 and Optima models, among others.
Ø
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Ø outside | 30 mm |
| Manufacturer | Sachs |
| Surface | rubberized |
| Material | NBR |
| Place of use | Crankshaft |
| Width | 5.5 mm |
| Ø inside | 15 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Pony OEM number | A5602 |
| Sachs OEM no. | 0230 111 100 |
| Sachs | 503 - ABL 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
| Hercules | Great - 2, 3, 4, 5, Optima |
