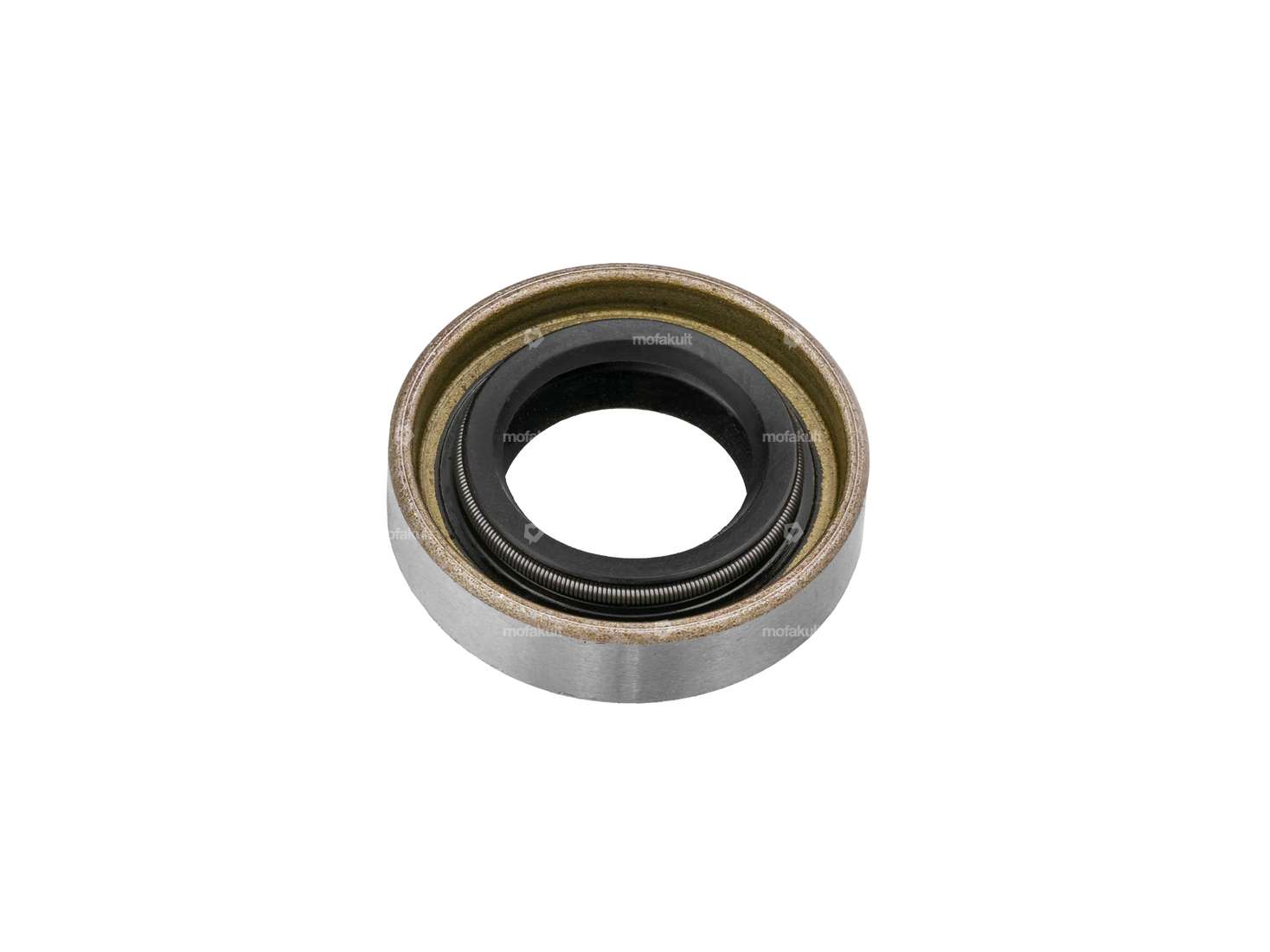

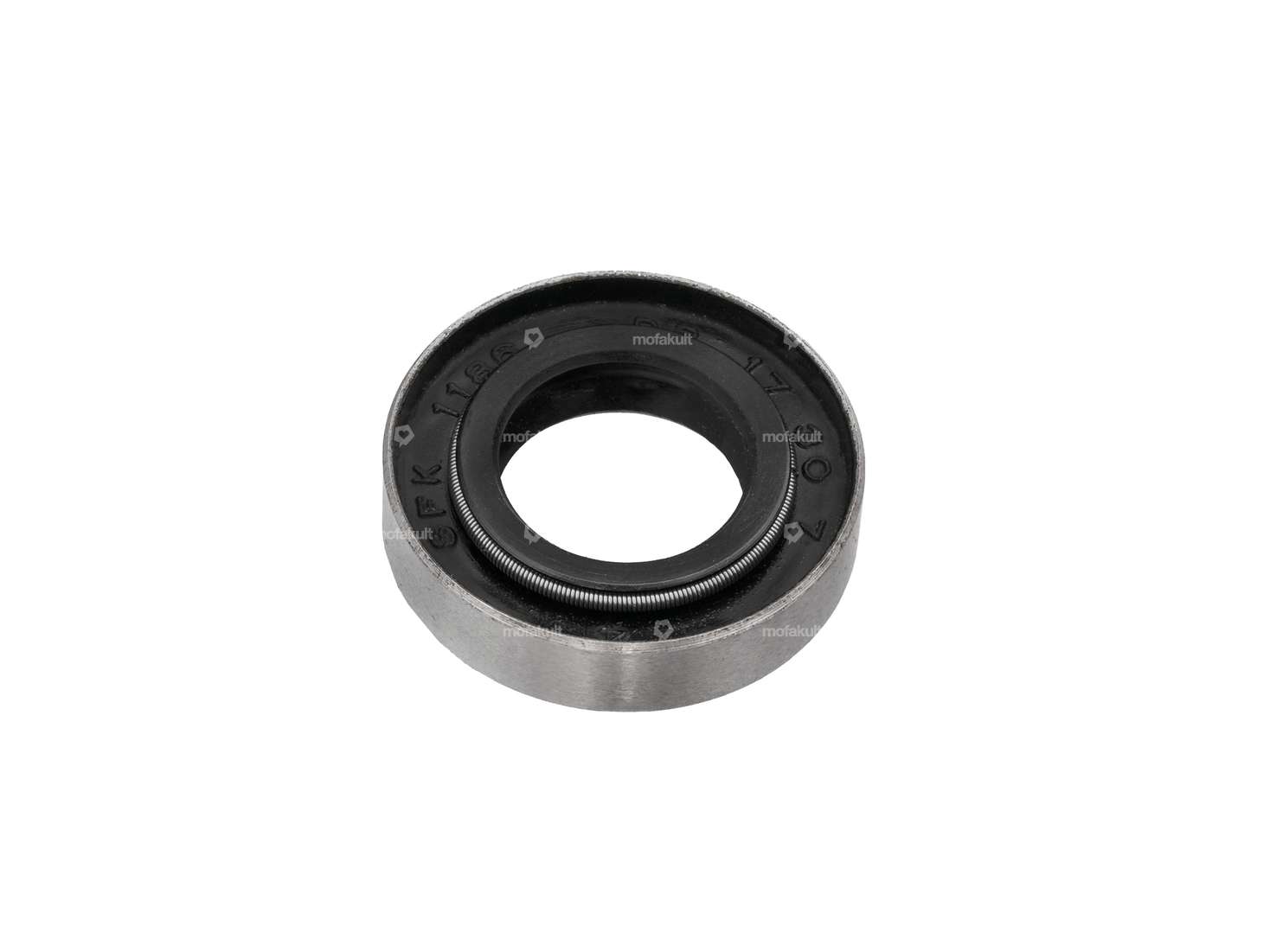

Shaft seal ring 17x30x7 mm for use on the crankshaft for your Sachs 50/3, 50/4 moped / moped.
This shaft seal ring (colloquially known as a radial shaft seal) is fitted to the crankshaft.
Ø inner: 17 mm
Ø outer: 30 mm
Width: 7 mm
Material: NBR
Temperature-resistant: -30 to +100 °C, briefly up to 120 °C
B DUO - With sheet metal outer casing and two sealing lips.
Sachs spare part number: 0930 026 100
| Shaft seal type | B DUO - With sheet metal outer casing / two sealing lips. |
| Manufacturer | Sachs |
| Material | NBR |
| Ø inside | 17 mm |
| Place of use | Crankshaft |
| Width | 7 mm |
| Ø outside | 30 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Ratings
Accessories & related products

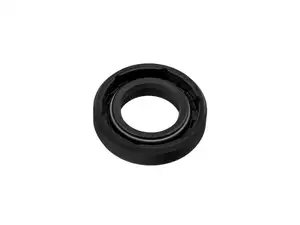

Oil seal NBR 17/30/7 AS crankshaft | Cilo
