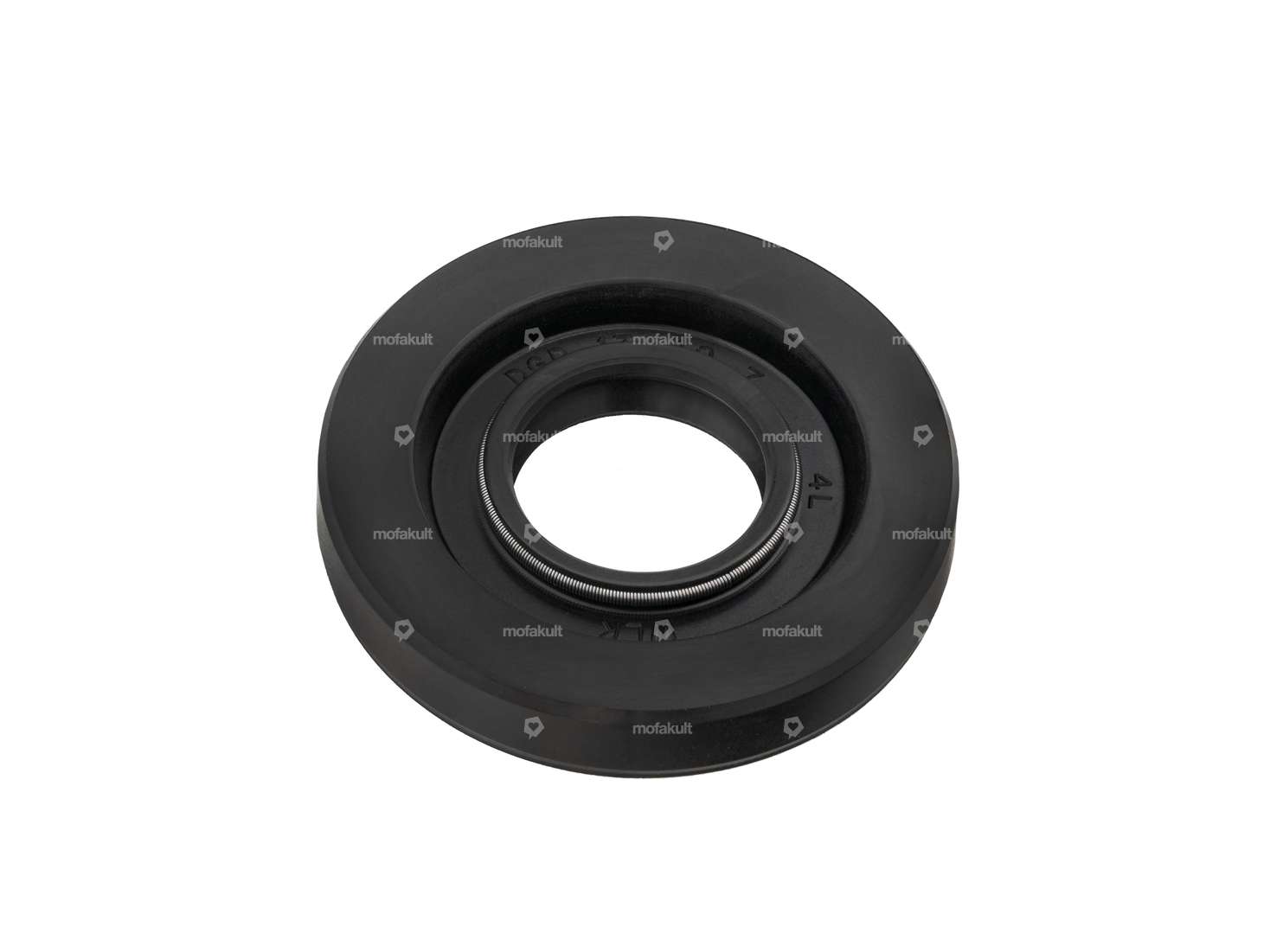

Oil seal NBR 17/40/7 A DUO | Puch E50

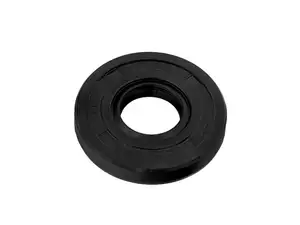

Oil seal NBR 17/40/7 AS | Puch E50

Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Oil seal FPM 17/40/7 A | Puch E50

Temperature resistance (min.): -30 - 200 °C · Ø inside: 17 mm · Simmering type: A - With rubberized outer part / one sealing lip. · Ø outside: 40 mm · Manufacturer: Puch · Material: FPM - Fluororubber · Surface: rubberized · Width: 7 mm

swiing® revival engine overhaul kit small | Puch E50

Manufacturer: Motorex · Manufacturer: swiing® revival parts · Number of components: 42 pcs · Area of application: Standard

Engine overhaul kit large | Puch E50

Manufacturer: GPO · Manufacturer: Motorex · Manufacturer: NGK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard

Oil seal FPM 17/40/7 DUO | Puch E50

Material: FPM - Fluororubber · Surface: rubberized · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Width: 7 mm · Manufacturer: Puch · Ø outside: 40 mm · Ø inside: 17 mm · Area of application: Standard · Temperature resistance (min.): -30 - 200 °C

swiing® ingenious engine revision set Racing C3 / FPM (new model) | Puch E50

Manufacturer: swiing® ingenious parts · Number of components: 7 pcs · Area of application: Racing

swiing® ingenious engine revision set Racing C3 / FPM (old model) | Puch E50

Manufacturer: swiing® ingenious parts · Number of components: 7 pcs · Area of application: Racing

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Number of components: 7 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes

swiing® revival plain bearing clutch basket | Puch E50

Material: special bearing bronze · Nominal diameter inside: 15 mm · Manufacturer: swiing® revival parts · Ø outside: 17 mm · Ø inside: 15 mm · Total height: 21.75 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival stud bolt set M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Drive: External hexagon · Width across flats SW: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: Yes · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

NTN 6203 NR C3 ball bearing with outer ring (old model) | Puch E50

Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: Yes · Material: Steel · Surface: blank · Ø inside: 17 mm · Stock number: 6203 · Ø outside: 40 mm · Ø outside: 44 mm · Ball bearing closed: No · Width: 12 mm · Area of application: Standard

NTN 6203 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Surface: blank · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 22 mm · Ø outside: 40 mm

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 1 mm · Number of components: 1 pcs · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

NTN 6203 Ball bearing 17/40/12 engine | Puch E50, ZA50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Manufacturer: NTN
