For: Piaggio

19422

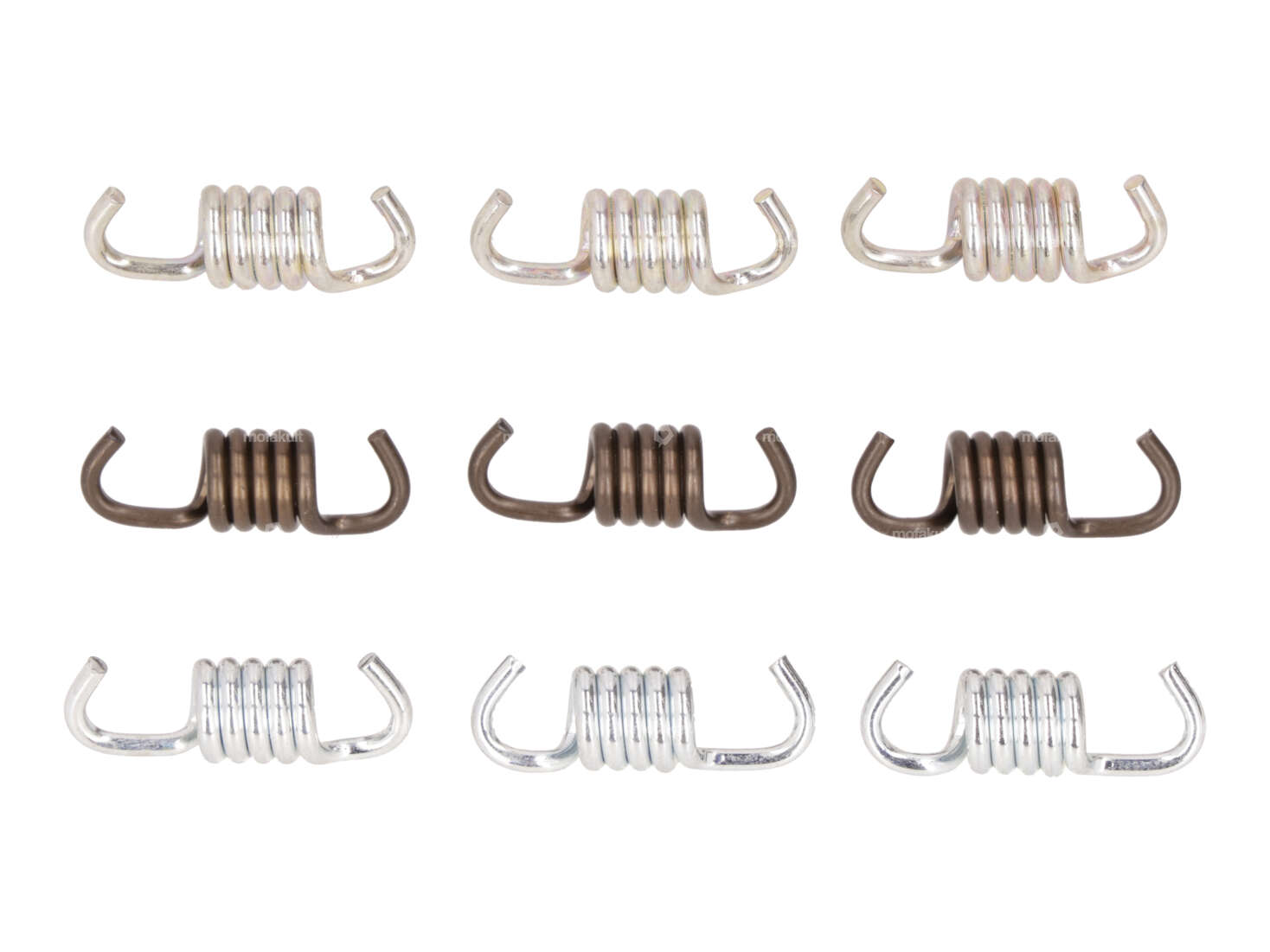

Pinasco clutch spring set Mono | Piaggio Ciao, SI, Bravo, Boxer

EUR 35.30

Incl. 21% VAT.

Product description

Clutch spring set suitable for Piaggio Ciao, Si, Bravo, Boxer mopeds / mopeds with mono drive.

These springs are suitable for heavily tuned engines with up to 47 mm cylinders.

9 clutch springs in 3 different degrees of hardness. The thicker the wire, the harder the spring.
The harder the spring, the more delayed the clutch engages and the more power is transferred to the rear wheel.

Length of all springs: 26 mm
Wire thickness black: 1.7 mm
Wire thickness gray: 1.8 mm
Wire thickness gold: 1.9 mm

Quality product from the Italian manufacturer Pinasco.

Spring designTension spring
ManufacturerPinasco
MaterialSpring steel
Colorblack, gray, gold
Ø wire1.7 mm, 1.8 mm, 1.9 mm
Total length26 mm
Area of applicationTuning
Piaggio

Ciao - P, SC, PX, C24

Si

Bravo / Super Bravo

Boxer

Grillo
