For: Puch

11858

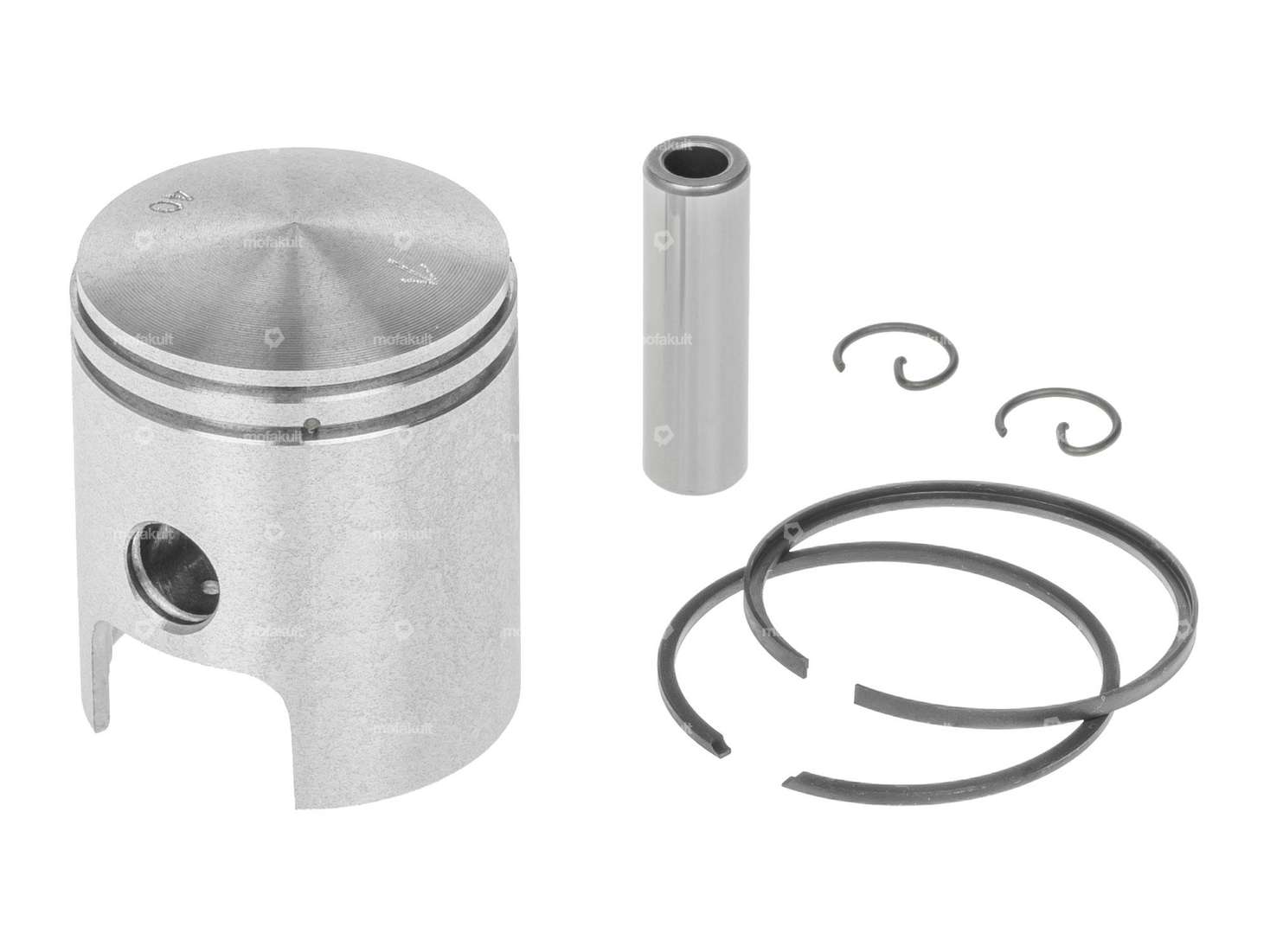

Piston 40 mm (10 mm KoBo) | Puch X30 Velux fan-cooled

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 56.80

Incl. 21% VAT.

Description

40.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) for your Puch X30 Velux moped / moped with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter40 mm
Ø outside piston (A)39.95 mm
Ø piston pin (B)10 mm
Compression height (C)23.6 mm
Curvature (D)3.4 mm
Total piston height (E)49.4 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Piston ring height2 mm, 1.5 mm
Weight piston kit78 g
Puch

ZA50 (fan-cooled)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
